Neo-Pure

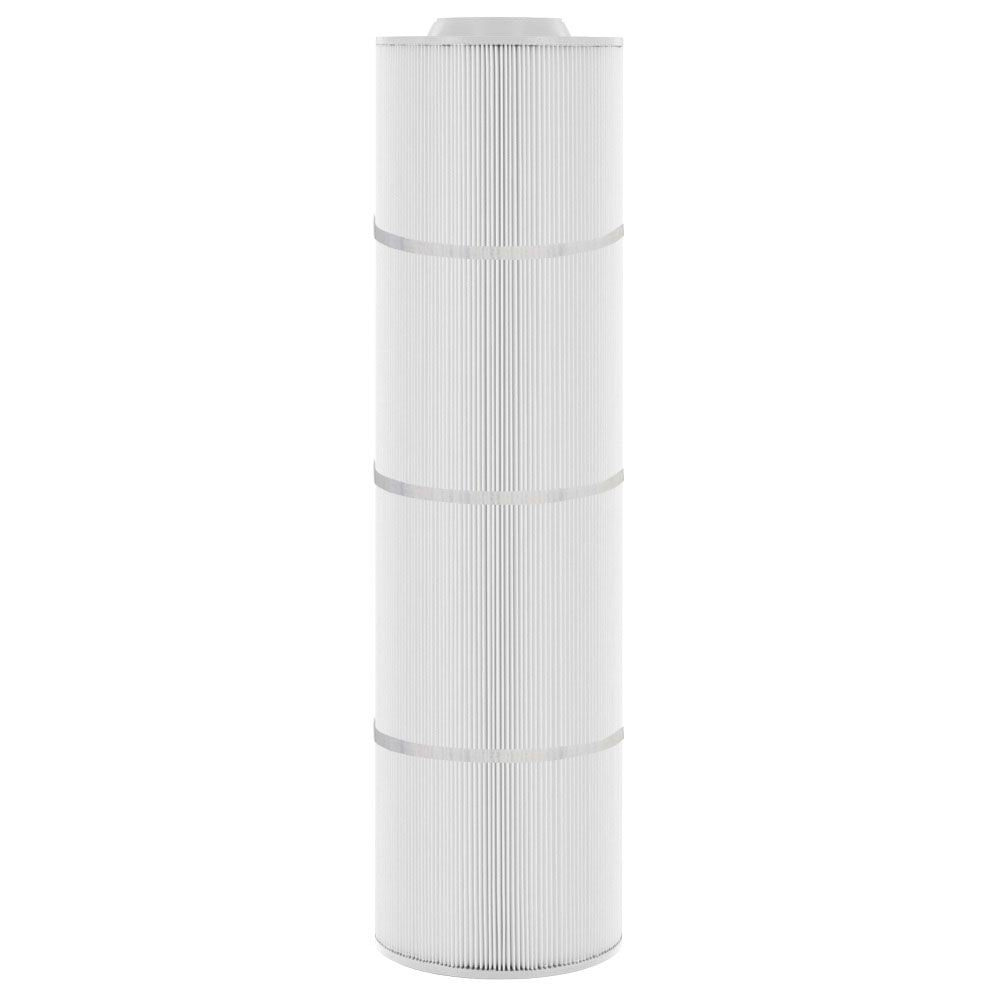

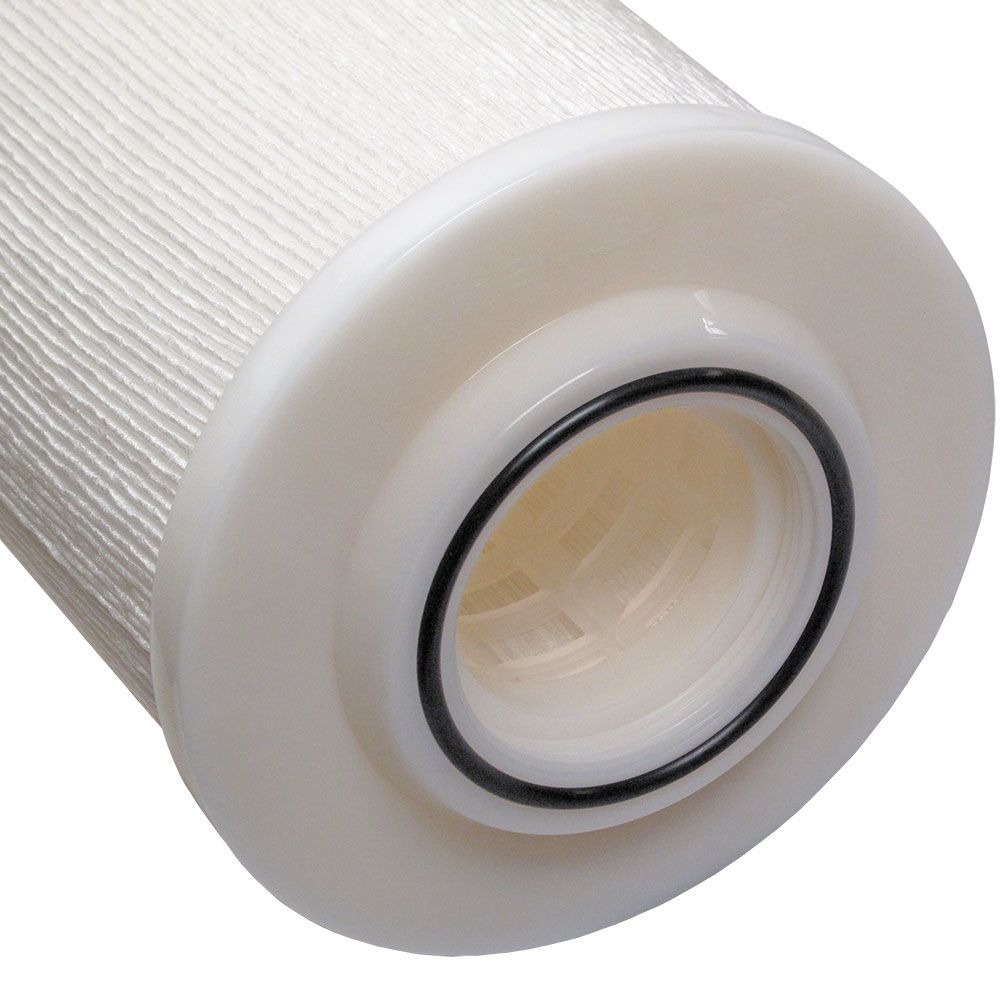

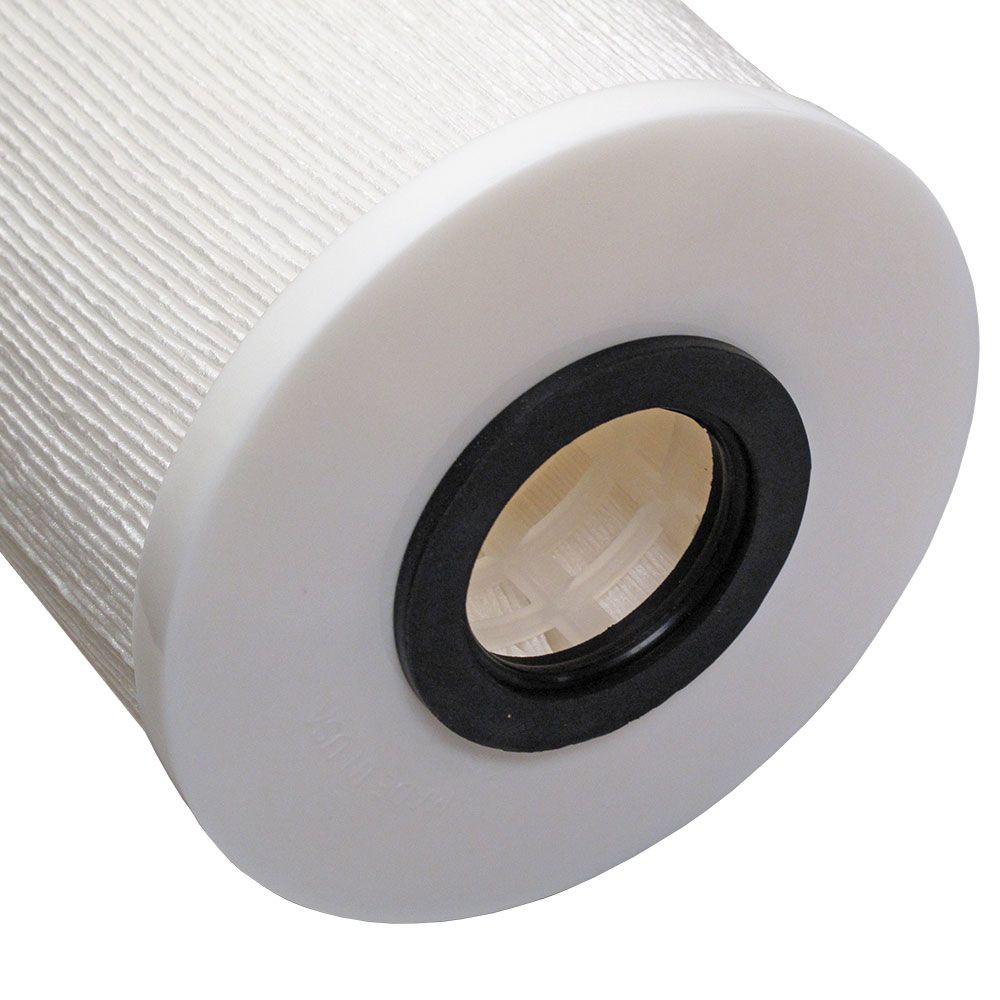

Neo-Pure PSJE-170-1A Pleated Synthetic Jumbo Cartridge 1 micron ABS

Part Number: PSJE-170-1A

In Stock

out of stock

In Stock

$211.69


The Neo-Pure PSJE-170-1A Pleated Synthetic Jumbo Cartridge features pleated synthetic polypropylene filter media which allows for lower initial pressure drop and higher flow rates which means fewer cartridges to change. The PSJE Series filter's pleated surface area translates to increased filter life, higher dirt loading capacity and increased particle removal.
Features:
  • Reduces Cysts. The 1.0 micron absolute filtration of the Neo-Pure PSJE-170-1A is rated for the reduction of cysts.
  • Pleated Filter Design.The pleated filter design of the PSJE-170-1A offers an extended filter area to provide high flow rates, low pressure drops, and increased dirt-holding capacity.
  • High Value At A Competitive Price.The PSJE-170-1A Synthetic Jumbo filter cartridge offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
  • Low Maintenance The Neo-Pure PSJE-170-1A requires fewer cartridge changes, which results in lower maintenance costs.
  • Increased Cartridge Strength. The center tube, end cap and filter media are bonded as one unit for additional strength.
  • Made in the USA.The Neo-Pure PSJE-170-1A filter cartridge is made and manufactured in the US.
Additional Specifications:
  • Length: 30-3/4"
  • Diameter: 7-3/4"
  • Micron Rating: 1 micron absolute
  • Surface Area: ~170 sq. ft.
  • Max Temperature: 140°F
  • Max Flow Rate: 150 gpm
Applications:
  • Potable drinking water
  • Industrial waste water treatment
  • Food and beverage
  • Reverse osmosis prefiltration
  • Cooling tower filtration
  • Desalination prefiltration
  • Process water
  • Oil/Gas
  • Paper and Pulp
  • Paints
  • Inks
  • Coatings

Compatible with: Harmsco® Compatible | PPFS-HC-170-1, PP-HC-170-1


Weight & Dimensions

Approx Length (Inches)

30-3/4" (78.1 cm)

Details

Cap Material

Polypropylene

Capacity

As Needed

Case Quantity

1

Filter Application

Sediment/Dirt/Rust; Cyst

Flow Rate

130 Gallons Per Minute

Max Flow Rate

150 Gallons Per Minute

Media Type

Synthetic Polypropylene

Micron Rating (Absolute)

1 Micron

Micron Rating (Nominal)

0.35 Micron

Netting

Polypropylene

Operating Temperature Range

Max 140 Degrees Fahrenheit

Origin

USA

Outer Diameter

7-3/4"

Surface Area

170 Square Feet


Neo-Pure





The Neo-Pure PSJE-170-1A Pleated Synthetic Jumbo Cartridge features pleated synthetic polypropylene filter media which allows for lower initial pressure drop and higher flow rates which means fewer cartridges to change. The PSJE Series filter's pleated surface area translates to increased filter life, higher dirt loading capacity and increased particle removal.
Features:
  • Reduces Cysts. The 1.0 micron absolute filtration of the Neo-Pure PSJE-170-1A is rated for the reduction of cysts.
  • Pleated Filter Design.The pleated filter design of the PSJE-170-1A offers an extended filter area to provide high flow rates, low pressure drops, and increased dirt-holding capacity.
  • High Value At A Competitive Price.The PSJE-170-1A Synthetic Jumbo filter cartridge offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
  • Low Maintenance The Neo-Pure PSJE-170-1A requires fewer cartridge changes, which results in lower maintenance costs.
  • Increased Cartridge Strength. The center tube, end cap and filter media are bonded as one unit for additional strength.
  • Made in the USA.The Neo-Pure PSJE-170-1A filter cartridge is made and manufactured in the US.
Additional Specifications:
  • Length: 30-3/4"
  • Diameter: 7-3/4"
  • Micron Rating: 1 micron absolute
  • Surface Area: ~170 sq. ft.
  • Max Temperature: 140°F
  • Max Flow Rate: 150 gpm
Applications:
  • Potable drinking water
  • Industrial waste water treatment
  • Food and beverage
  • Reverse osmosis prefiltration
  • Cooling tower filtration
  • Desalination prefiltration
  • Process water
  • Oil/Gas
  • Paper and Pulp
  • Paints
  • Inks
  • Coatings

Compatible with: Harmsco® Compatible | PPFS-HC-170-1, PP-HC-170-1

Weight & Dimensions

Approx Length (Inches)

30-3/4" (78.1 cm)

Details

Cap Material

Polypropylene

Capacity

As Needed

Case Quantity

1

Filter Application

Sediment/Dirt/Rust; Cyst

Flow Rate

130 Gallons Per Minute

Max Flow Rate

150 Gallons Per Minute

Media Type

Synthetic Polypropylene

Micron Rating (Absolute)

1 Micron

Micron Rating (Nominal)

0.35 Micron

Netting

Polypropylene

Operating Temperature Range

Max 140 Degrees Fahrenheit

Origin

USA

Outer Diameter

7-3/4"

Surface Area

170 Square Feet
