Specifications:
- Made in USA
- Cleanable and reusable in most applications
- Pleated design for increased surface area, dirt holding capacity and increased particle removal
- Fewer cartridges to change results in lower maintenance costs
- Center tube, end cap and filter media are bonded as one unit for additional strength
- Filter Dimensions: 30-3/4" x 7-3/4"
- Max Temperature: 140°F
- Tested and certified by WQA according to NSF/ANSI Standard 61
- Potable drinking water
- Industrial waste water treatment
- Food and beverage
- Reverse osmosis prefiltration
- Cooling tower filtration
- Desalination prefiltration
- Process water
- Oil/Gas
- Paper and Pulp
- Paints
- Inks
- Coatings
Compatible with:
| Harmsco® Compatible | HC/170-20, HC/170-20W-HF, HC-PP-170-20, HC/170-20-AM |
| Watts | FMHC-170-20, FMHC-170-20EZ, PWPL170M20 |
| Harmsco® Compatible | HC/170-20W-HF |
Weight & Dimensions
Approx Length (Inches) | 30-3/4" (78.1 cm) |
Box Dimensions | 8.375x8.375x32.25 |
Weight (lbs) | 9.45 |
Details
Capacity | As Needed |
Max Flow Rate | 150 GPM |
Max Temp (°F) | 140 |
Micron Rating (Nominal) | 20 µm |
Netting | Polypropylene |
O-Rings | EPDM |
Surface Area | Approximately 170 Square Feet |
Cap Material | Polypropylene |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 7-3/4" |
Media Type | Synthetic Polypropylene |
Origin | USA |
Warranty & Certifications
Certifications | Tested and certified by WQA according to NSF/ANSI Standard 61 |

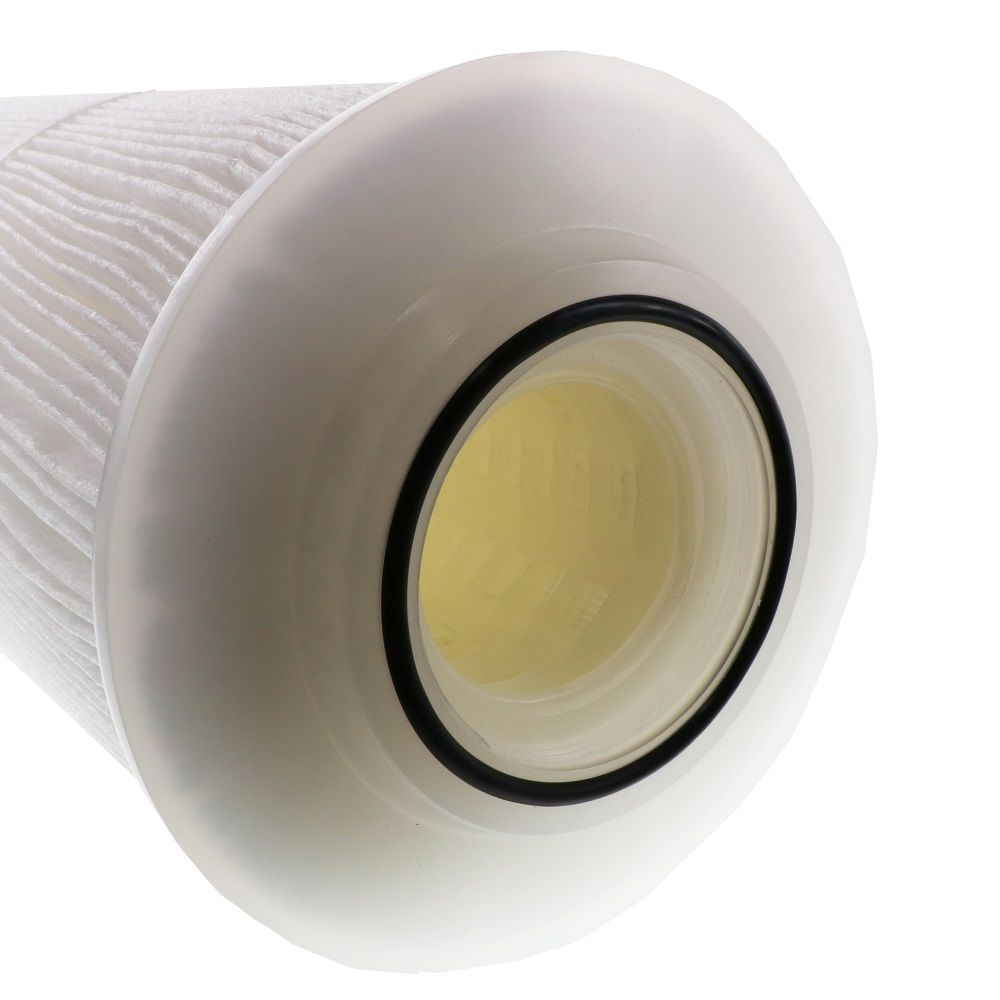

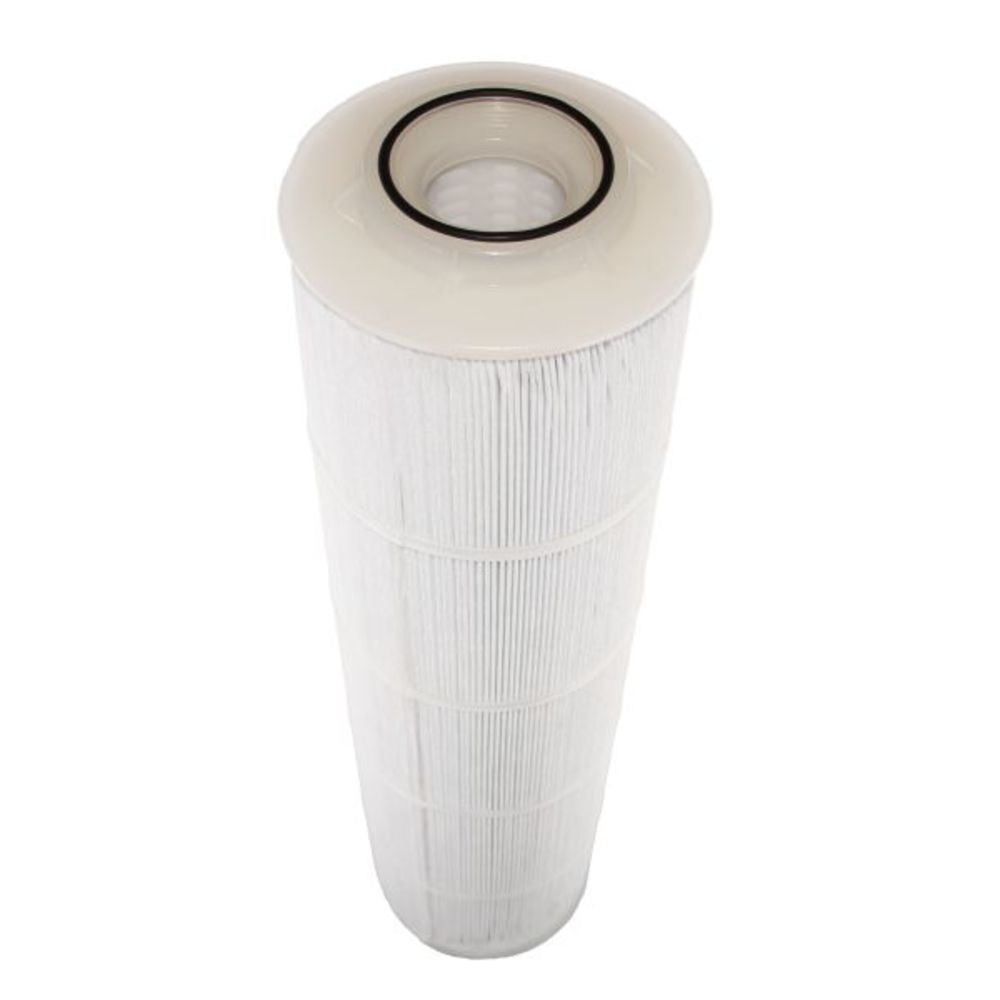

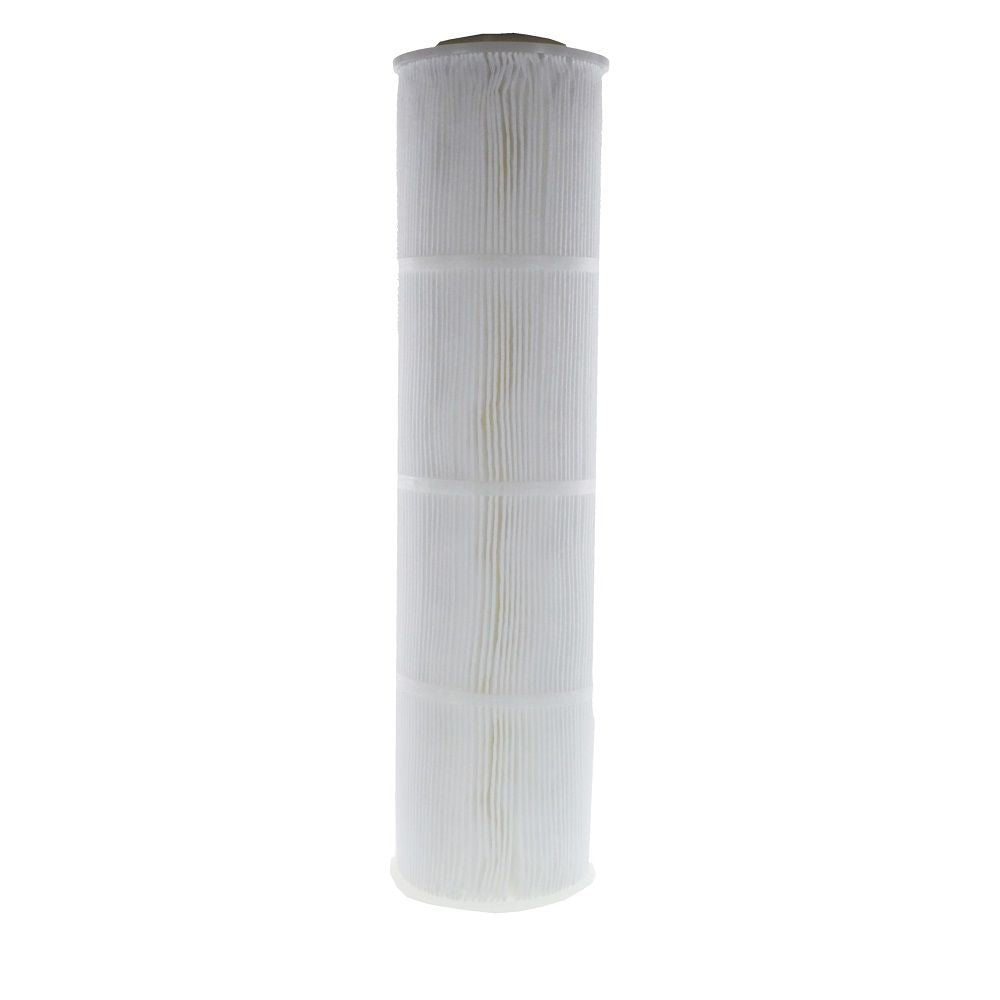

The Neo-Pure PSJ-170 Pleated Synthetic Jumbo Cartridge features pleated synthetic polypropylene filter media which allows for lower initial pressure drop and higher flow rates which means fewer cartridges to change. The PSJ Series filter's pleated surface area translates to increased filter life, higher dirt loading capacity and increased particle removal.
Specifications:
- Made in USA
- Cleanable and reusable in most applications
- Pleated design for increased surface area, dirt holding capacity and increased particle removal
- Fewer cartridges to change results in lower maintenance costs
- Center tube, end cap and filter media are bonded as one unit for additional strength
- Filter Dimensions: 30-3/4" x 7-3/4"
- Max Temperature: 140°F
- Tested and certified by WQA according to NSF/ANSI Standard 61
- Potable drinking water
- Industrial waste water treatment
- Food and beverage
- Reverse osmosis prefiltration
- Cooling tower filtration
- Desalination prefiltration
- Process water
- Oil/Gas
- Paper and Pulp
- Paints
- Inks
- Coatings
Compatible with:
| Harmsco® Compatible | HC/170-20, HC/170-20W-HF, HC-PP-170-20, HC/170-20-AM |
| Watts | FMHC-170-20, FMHC-170-20EZ, PWPL170M20 |
| Harmsco® Compatible | HC/170-20W-HF |
Weight & Dimensions
Approx Length (Inches) | 30-3/4" (78.1 cm) |
Box Dimensions | 8.375x8.375x32.25 |
Weight (lbs) | 9.45 |
Details
Capacity | As Needed |
Max Flow Rate | 150 GPM |
Max Temp (°F) | 140 |
Micron Rating (Nominal) | 20 µm |
Netting | Polypropylene |
O-Rings | EPDM |
Surface Area | Approximately 170 Square Feet |
Cap Material | Polypropylene |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 7-3/4" |
Media Type | Synthetic Polypropylene |
Origin | USA |
Warranty & Certifications
Certifications | Tested and certified by WQA according to NSF/ANSI Standard 61 |
