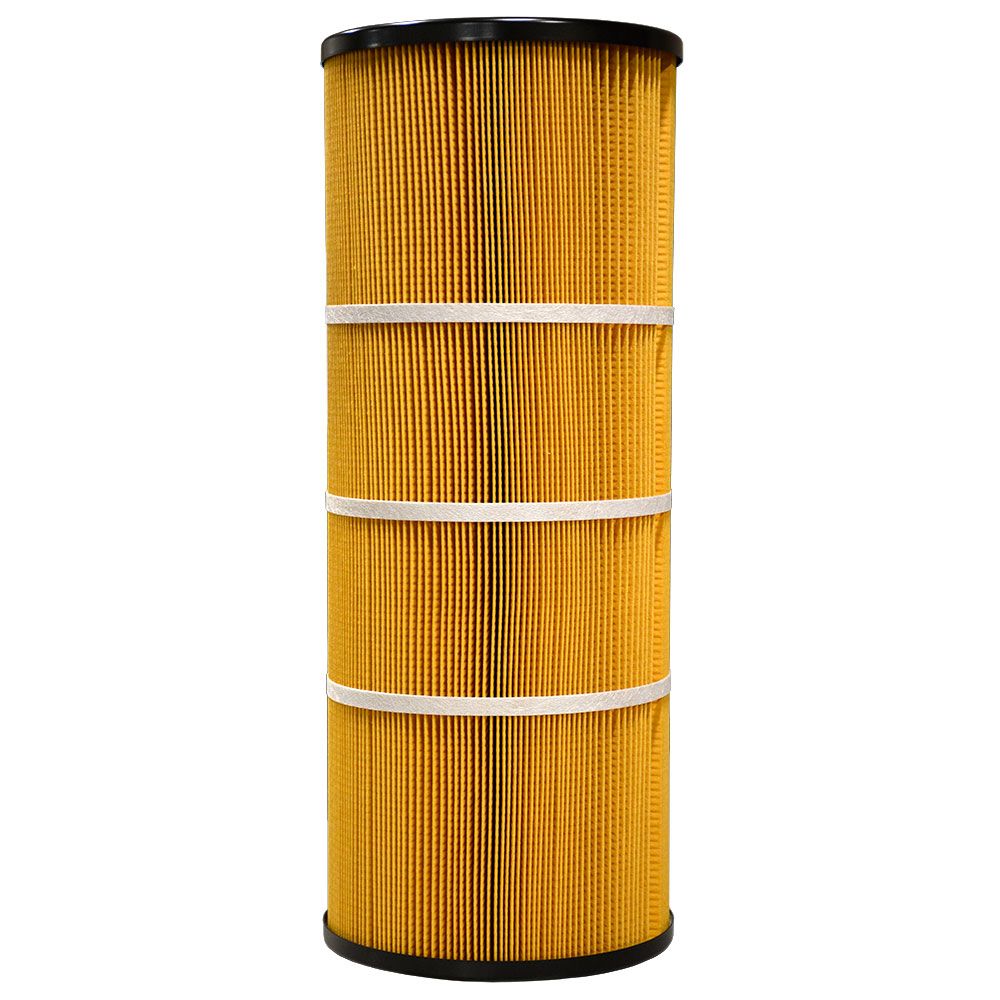

Neo-Pure PSJ-90-20M Pleated High Temp Jumbo Cartridge 20 micron

Part Number: PSJ-90-20M

In Stock

out of stock

In Stock

$111.25


The Neo-Pure PSJ-90-20M Pleated High Temperature Jumbo Cartridge is manufactured in the USA and designed to be used in applications where temperatures may range up to 250°F. Neo-Pure High Temperature Cartridges are constructed out of pleated phenolic impregnated cellulose media and come with Buna-N gaskets. The pleated surface area increases filter life, loading capacity, and particle removal.

Specifications:
  • Pleated design for increased surface area, dirt holding capacity and increased particle removal
  • Fewer cartridges to change results in lower maintenance costs
  • Media: Pleated phenolic impregnated cellulose
  • Epoxy coated center core
  • Gaskets: Buna-N
  • Filter Dimensions: 19-1/2" x 7-5/8"
  • Max Temperature: 250°F
  • Made in the USA
Applications:
  • High Temperature Industrial Water
  • Filtration
  • Lubricating Oil
  • Cutting Fluids
  • Solvents
  • Distillate Fuel
  • Fuel Oil
  • Hydraulic Fluids

Compatible with: American Filtration Technologies | 820-20B, Harmsco® Compatible | HC/90-20HT, Watts | FMPIC-90-20-HT


Weight & Dimensions

Approx Length (Inches)

19 1/2" (49.5 cm)

Case Dimensions

9x9x21

Details

Cap Material

Electro Plated Tin

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

1

Filter Application

Sediment/Dirt/Rust

Gaskets

Buna-N

Media Type

Phenolic Impregnated Cellulose

Micron Rating (Nominal)

20 Micron

Operating Pressure Range

Max 75 PSID PSI

Operating Temperature Range

250 Degrees Fahrenheit

Origin

USA

Outer Diameter

7-5/8"

Surface Area

Approximately 90 Square Feet


Neo-Pure





The Neo-Pure PSJ-90-20M Pleated High Temperature Jumbo Cartridge is manufactured in the USA and designed to be used in applications where temperatures may range up to 250°F. Neo-Pure High Temperature Cartridges are constructed out of pleated phenolic impregnated cellulose media and come with Buna-N gaskets. The pleated surface area increases filter life, loading capacity, and particle removal.

Specifications:
  • Pleated design for increased surface area, dirt holding capacity and increased particle removal
  • Fewer cartridges to change results in lower maintenance costs
  • Media: Pleated phenolic impregnated cellulose
  • Epoxy coated center core
  • Gaskets: Buna-N
  • Filter Dimensions: 19-1/2" x 7-5/8"
  • Max Temperature: 250°F
  • Made in the USA
Applications:
  • High Temperature Industrial Water
  • Filtration
  • Lubricating Oil
  • Cutting Fluids
  • Solvents
  • Distillate Fuel
  • Fuel Oil
  • Hydraulic Fluids

Compatible with: American Filtration Technologies | 820-20B, Harmsco® Compatible | HC/90-20HT, Watts | FMPIC-90-20-HT

Weight & Dimensions

Approx Length (Inches)

19 1/2" (49.5 cm)

Case Dimensions

9x9x21

Details

Cap Material

Electro Plated Tin

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

1

Filter Application

Sediment/Dirt/Rust

Gaskets

Buna-N

Media Type

Phenolic Impregnated Cellulose

Micron Rating (Nominal)

20 Micron

Operating Pressure Range

Max 75 PSID PSI

Operating Temperature Range

250 Degrees Fahrenheit

Origin

USA

Outer Diameter

7-5/8"

Surface Area

Approximately 90 Square Feet
