Neo-Pure

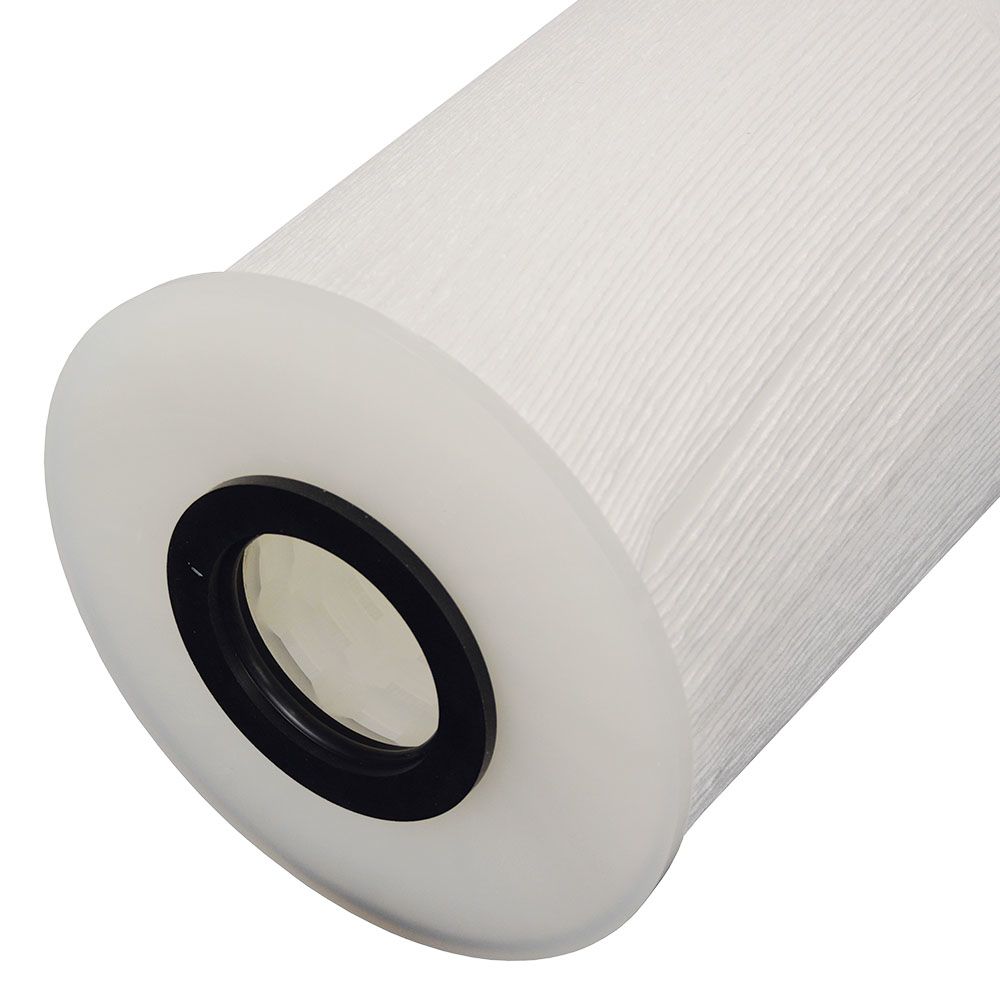

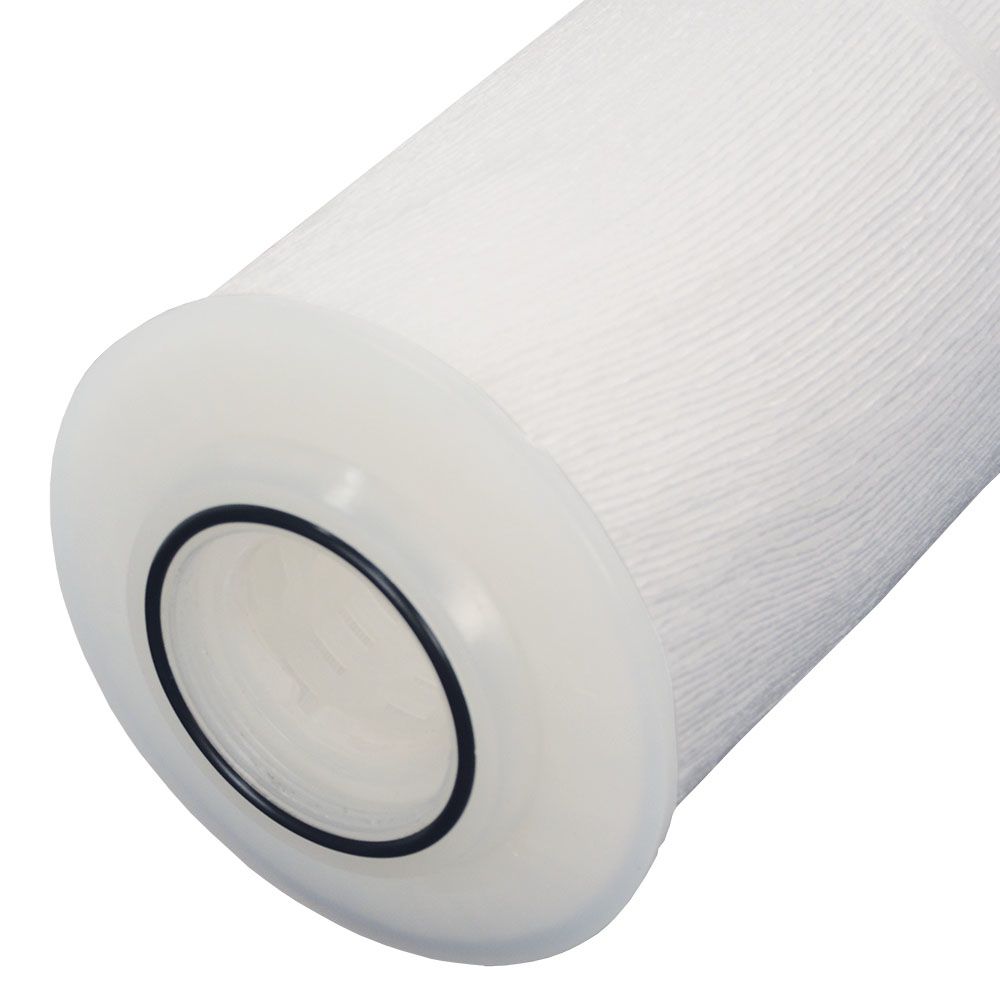

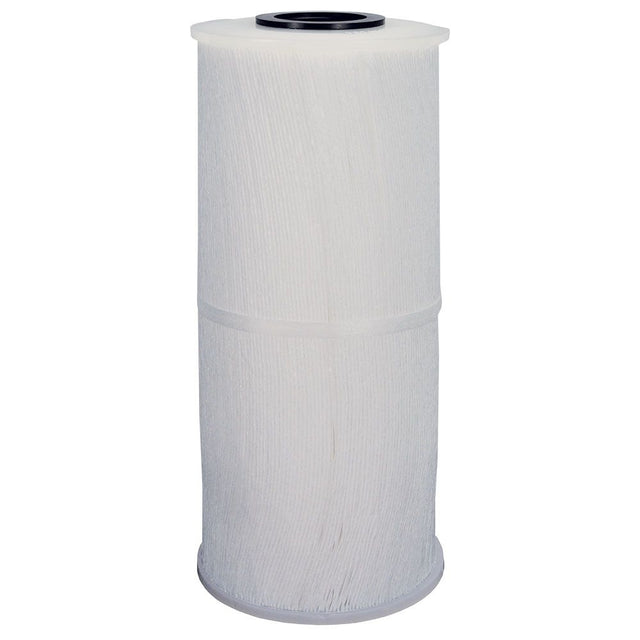

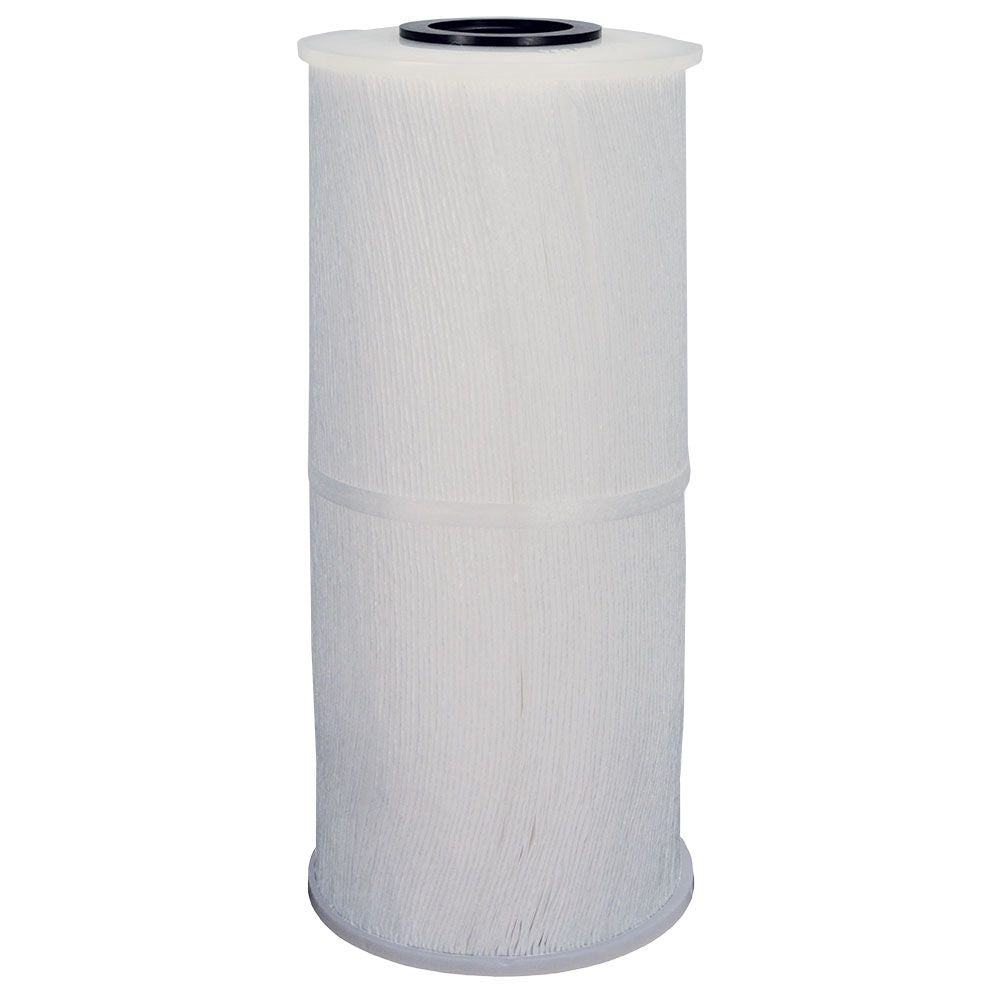

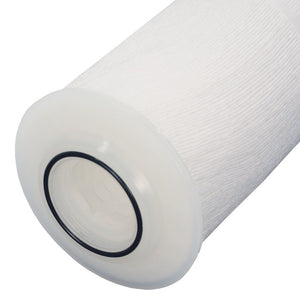

Neo-Pure PSJ-90-1A Pleated Synthetic Jumbo Cartridge 1 micron ABS

Part Number: PSJ-90-1A

Alt. Part Number: FMHC-90-1A

In Stock

out of stock

In Stock

$162.99


The Neo-Pure PSJ-90 Pleated Synthetic Jumbo Cartridge features pleated synthetic polypropylene filter media which allows for lower initial pressure drop and higher flow rates which means fewer cartridges to change. The PSJ Series filter's pleated surface area translates to increased filter life, higher dirt loading capacity and increased particle removal.
Features:
  • Certifications. The Neo-Pure PSJ-90-1A Jumbo Cartridges are tested and certified by the WQA according to NSF/ANSI standard 61 for potable water.
  • Increased Surface Area. The Neo-Pure PSJ-90-1A Jumbo Cartridges features pleated synthetic polypropylene filter media for increased surface area, dirt holding capacity and increased particle removal.
  • Simply Maintenance For Lower Cost. The Neo-Pure PSJ-90-1A Jumbo Cartridges allow you to use fewer cartridges because there are designed for maximum filtration which results in lower maintenance costs.
  • Maximum Strength. The Neo-Pure PSJ-90-1A Jumbo Cartridges feature a bonded center tube, end cap and filter media for maximum filter strength.

Specifications:
  • Made in USA
  • Max Temperature: 140°F
  • Filter Dimensions: 19-1/2" x 7-3/4"
  • 1 micron absolute filtration for cyst reduction
  • Micron Rating: 1 micron absolute/0.35 micron nominal
 Applications:
  • Potable drinking water
  • Industrial waste water treatment
  • Food and beverage
  • Reverse osmosis prefiltration
  • Cooling tower filtration
  • Desalination prefiltration
  • Process water
  • Oil/Gas
  • Paper and Pulp
  • Paints
  • Inks
  • Coatings

Compatible with: Harmsco® Compatible | HC/90-0.35, PP-HC/90-1, PPFS-HC-90-1, PP-HC-90-1, Watts | FMHC-90-1A, FMHC-90-1AEZ, PWPL90M1AB


Weight & Dimensions

Approx Length (Inches)

19 1/2" (49.5 cm)

Details

Cap Material

Polypropylene

Capacity

As Needed

Case Quantity

1

Filter Application

Sediment/Dirt/Rust; Cyst

Max Flow Rate

100 Gallons Per Minute

Media Type

Synthetic Polypropylene

Micron Rating (Absolute)

1 Micron

Micron Rating (Nominal)

0.35 Micron

Netting

Polypropylene

Operating Temperature Range

Max 140 Degrees Fahrenheit

Origin

USA

Outer Diameter

7-3/4"

Surface Area

Approximately 90 Square Feet

Warranty & Certifications

Certifications

Tested and certified by WQA according to NSF/ANSI Standard 61
