Neo-Pure

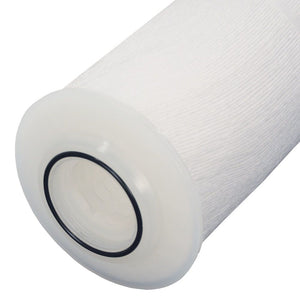

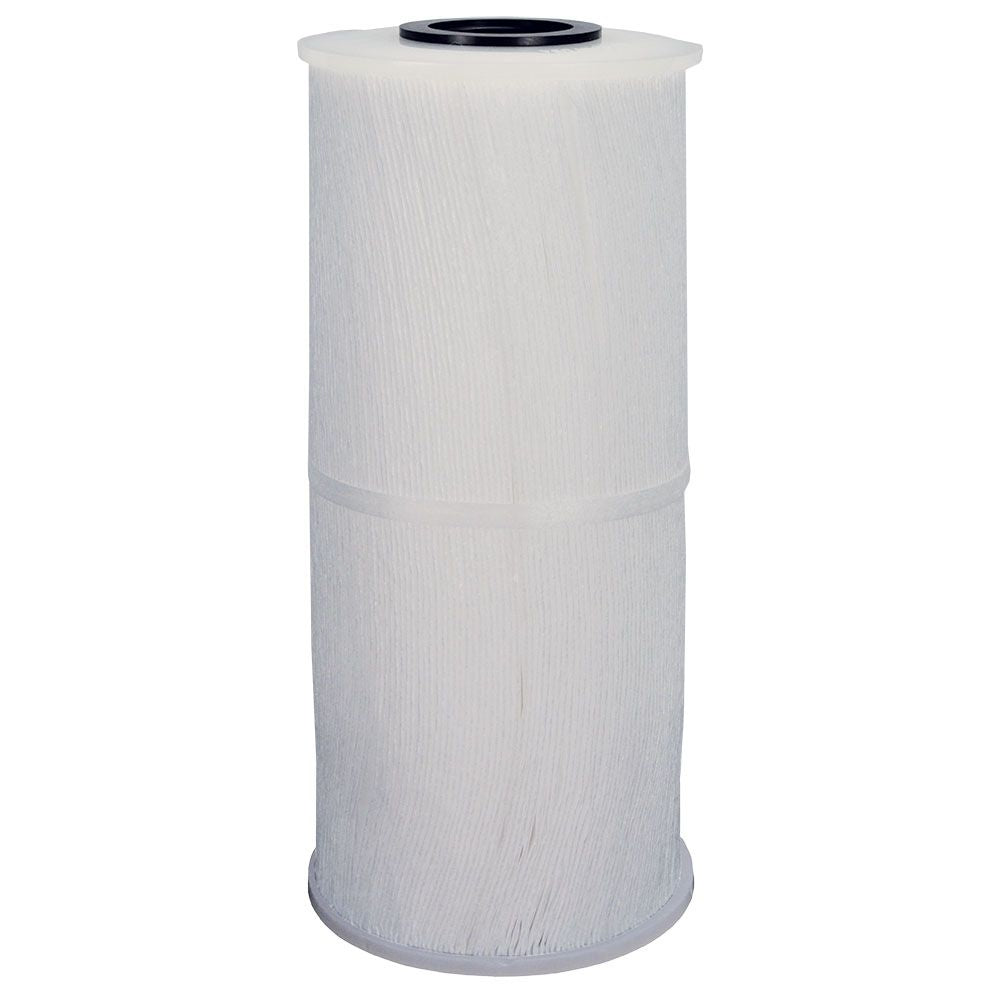

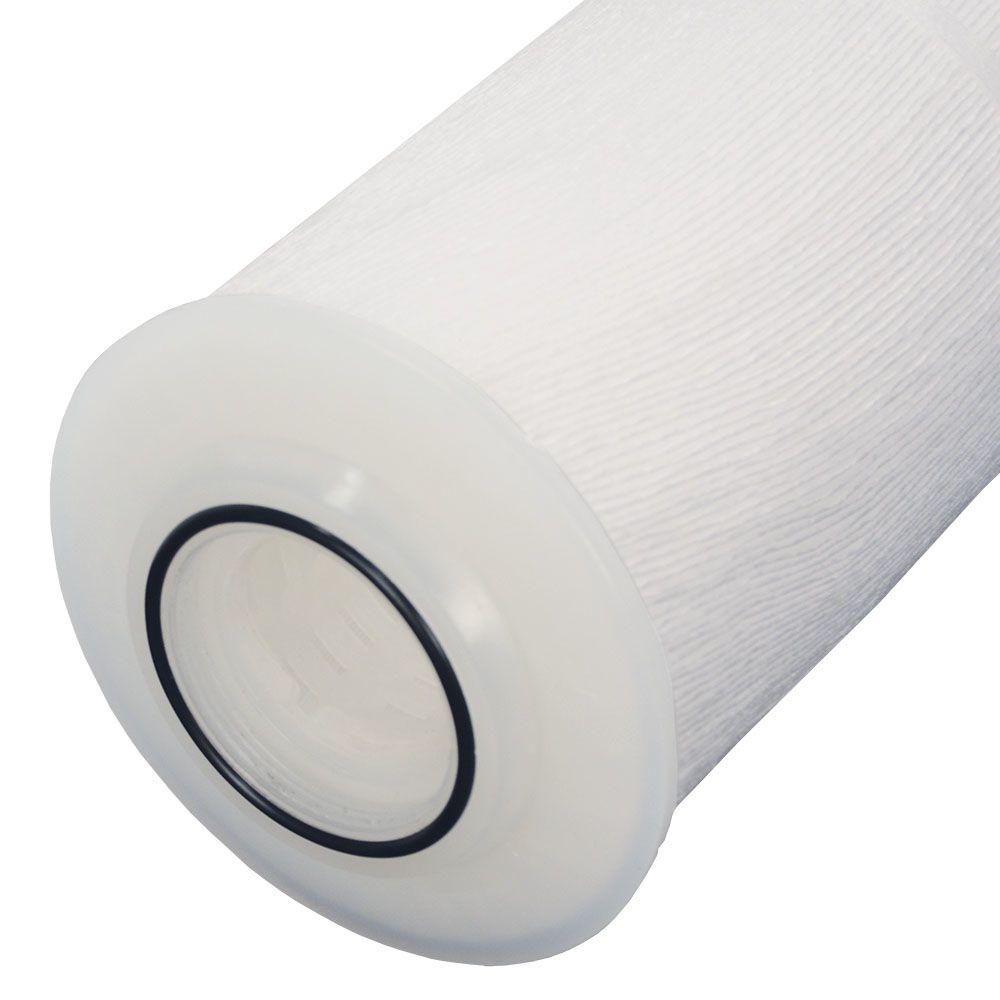

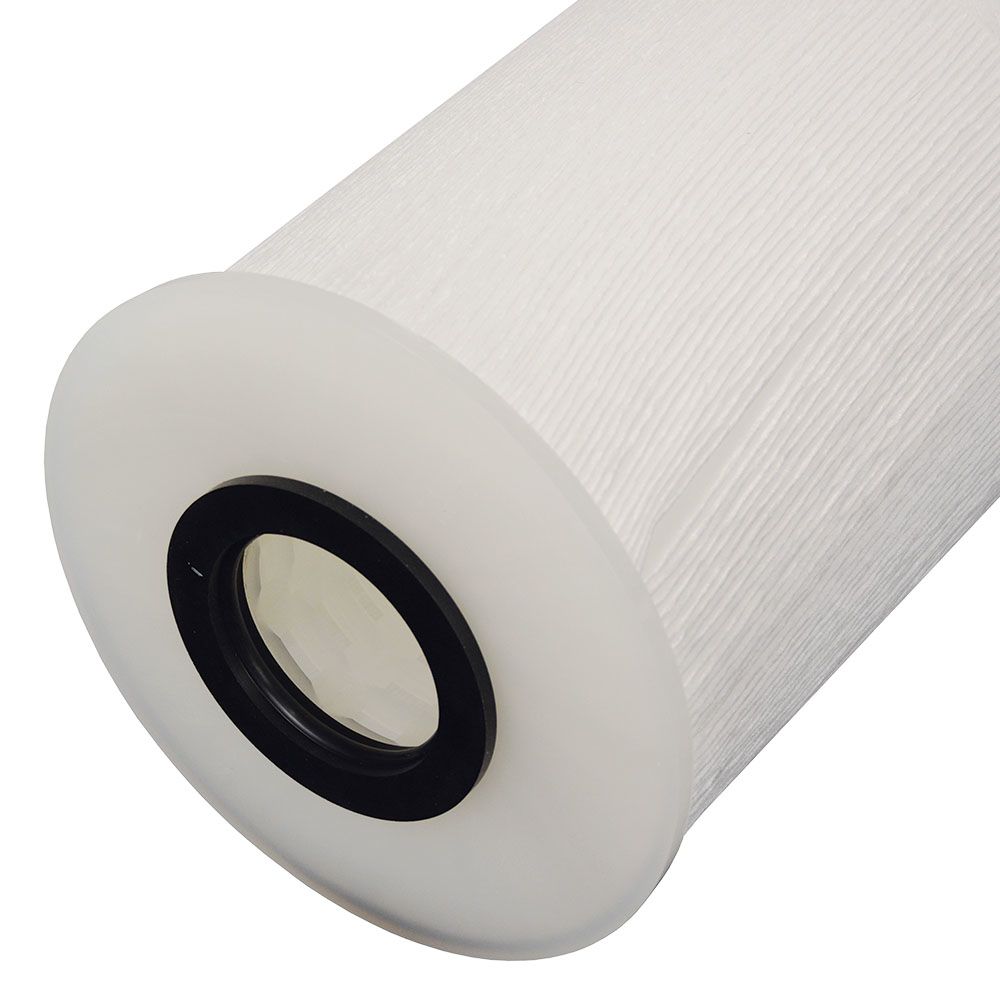

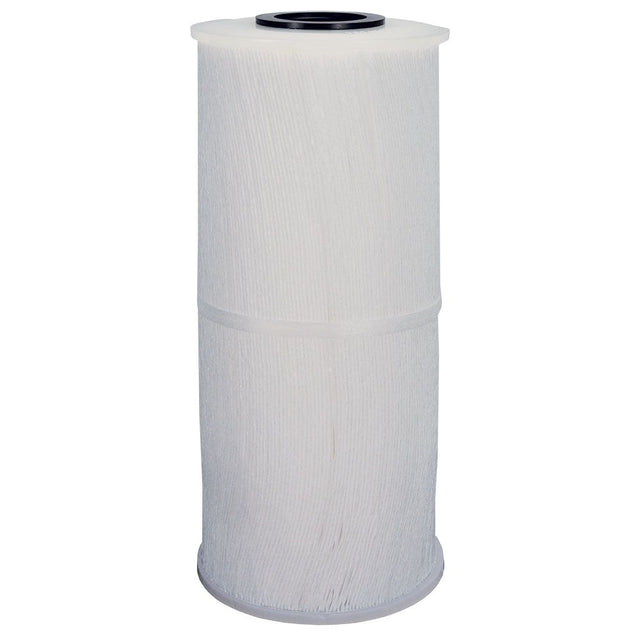

Neo-Pure PSJ-90-100 Pleated Synthetic Jumbo Cartridge 100 micron

Part Number: PSJ-90-100

In Stock

out of stock

In Stock

$73.34

The Neo-Pure PSJ-90 Pleated Synthetic Jumbo Cartridge features pleated synthetic polypropylene filter media which allows for lower initial pressure drop and higher flow rates which means fewer cartridges to change. The PSJ Series filter's pleated surface area translates to increased filter life, higher dirt loading capacity and increased particle removal.

Applications:
  • Potable drinking water
  • Industrial waste water treatment
  • Food and beverage
  • Reverse osmosis prefiltration
  • Cooling tower filtration
  • Desalination prefiltration
  • Process water
  • Oil/Gas
  • Paper and Pulp
  • Paints
  • Inks
  • Coatings
Specifications:
  • Made in USA
  • Cleanable and reusable in most applications
  • Pleated design for increased surface area, dirt holding capacity and increased particle removal
  • Fewer cartridges to change results in lower maintenance costs
  • Center tube, end cap and filter media are bonded as one unit for additional strength
  • Filter Dimensions: 19-1/2" x 7-3/4"
  • Max Temperature: 140°F
  • Tested and certified by WQA according to NSF/ANSI Standard 61



Compatible with:
Harmsco® CompatibleHC/90-100
WattsFMHC-90-100, FMHC-90-100EZ, PWPL90M100

Weight & Dimensions

Approx Length (Inches)

19 1/2" (49.5 cm)

Box Dimensions

8.375x8.375x20.5

Weight (lbs)

4.91

Details

Max Flow Rate

100 GPM

Max Temp (°F)

140

Micron Rating (Nominal)

100 µm

Netting

Polypropylene

Outer Diameter

7-3/4"

Surface Area

Approximately 90 Square Feet

Cap Material

Polypropylene

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

7-3/4"

Media Type

Synthetic Polypropylene

Origin

USA

Warranty & Certifications

Certifications

Tested and certified by WQA according to NSF/ANSI Standard 61
