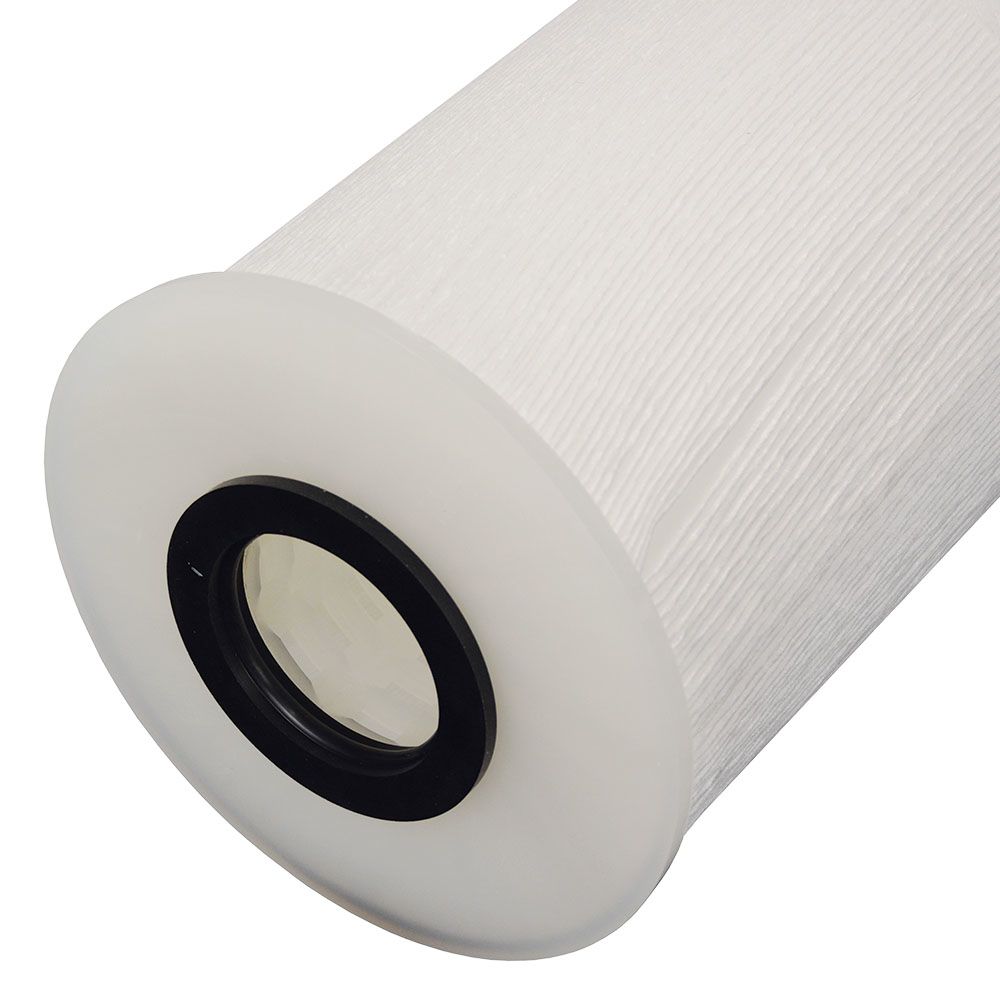

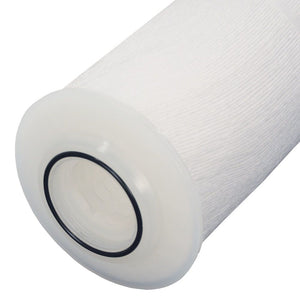

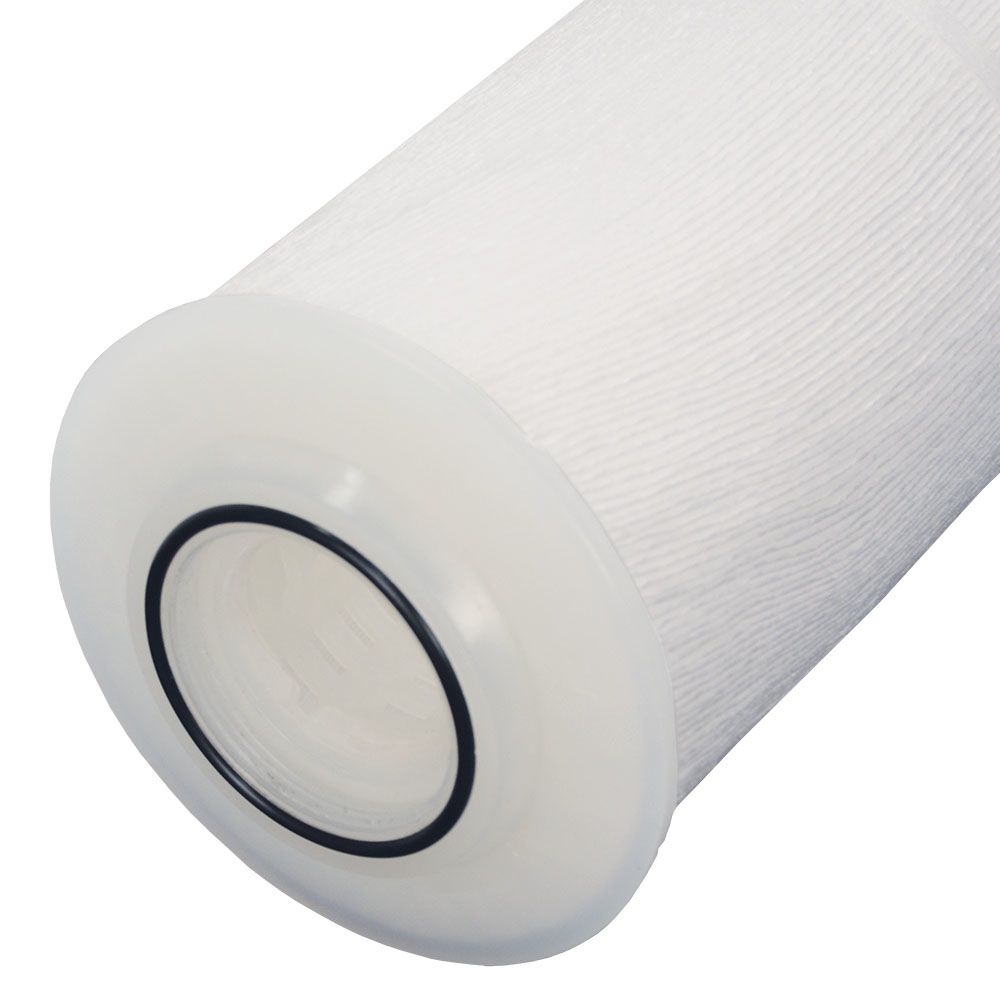

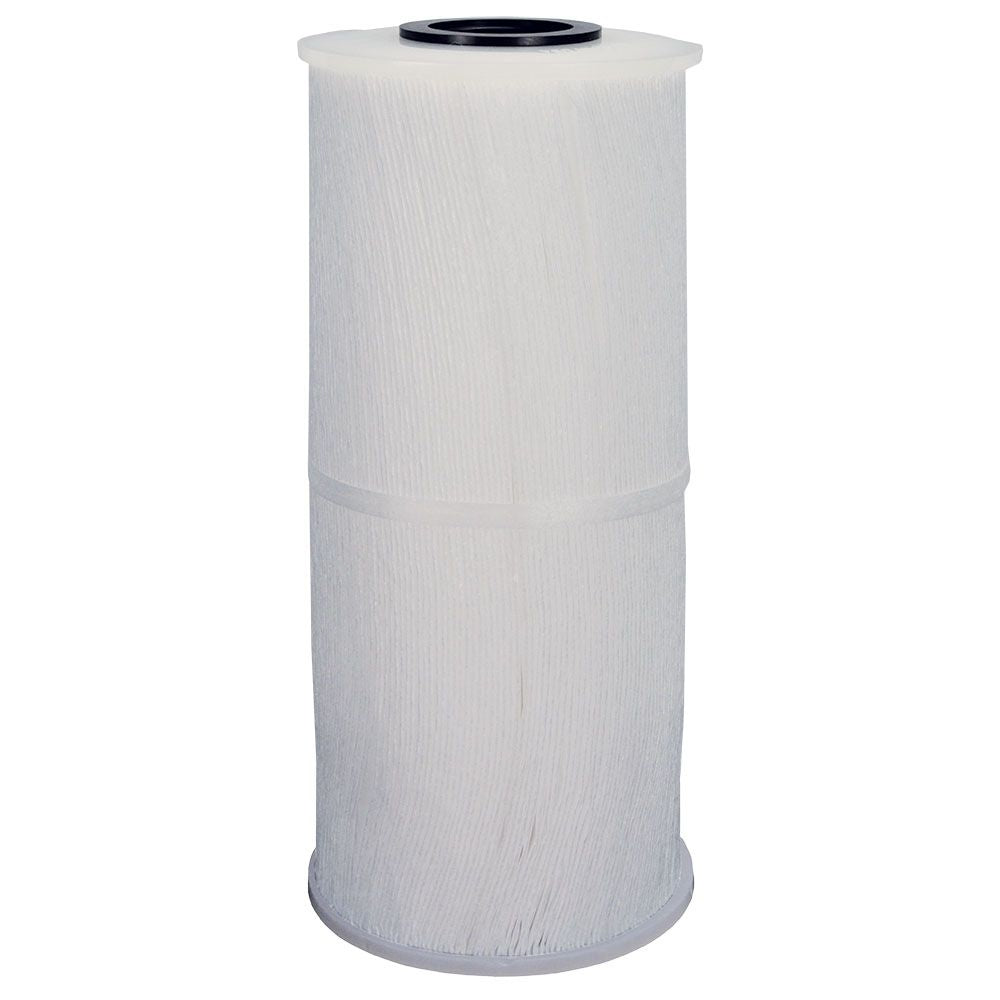

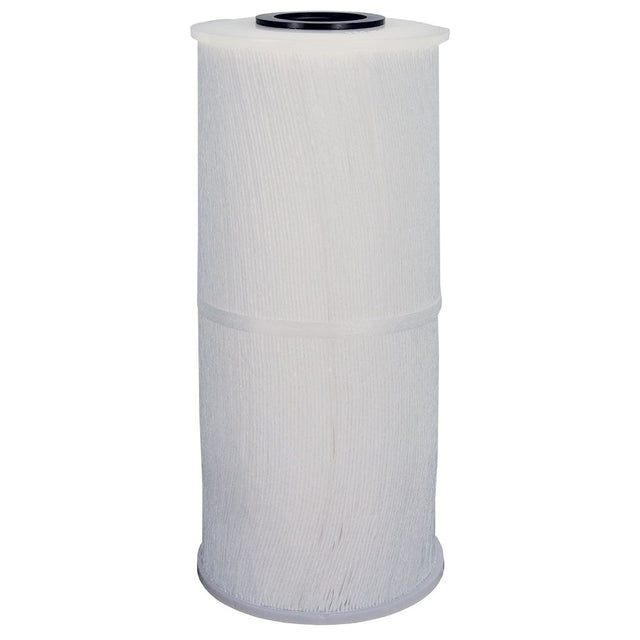

Neo-Pure PSJ-90-01 Pleated Synthetic Jumbo Cartridge 1 micron

Part Number: PSJ-90-01

In Stock

out of stock

In Stock

$99.09


The Neo-Pure PSJ-90 Pleated Synthetic Jumbo Cartridge features pleated synthetic polypropylene filter media which allows for lower initial pressure drop and higher flow rates which means fewer cartridges to change. The PSJ Series filter's pleated surface area translates to increased filter life, higher dirt loading capacity and increased particle removal.

Features:
  • Made in USA
  • Pleated design for increased surface area, dirt holding capacity and increased particle removal
  • Fewer cartridges to change results in lower maintenance costs
  • Center tube, end cap and filter media are bonded as one unit for additional strength
  • Filter Dimensions: 19-1/2" x 7-3/4"
  • Max Temperature: 140°F
  • Tested and certified by WQA according to NSF/ANSI Standard 61
 Applications:
  • Potable drinking water
  • Industrial waste water treatment
  • Food and beverage
  • Reverse osmosis prefiltration
  • Cooling tower filtration
  • Desalination prefiltration
  • Process water
  • Oil/Gas
  • Paper and Pulp
  • Paints
  • Inks
  • Coatings

Compatible with: Harmsco® Compatible | HC/90-1, HC/90-1W-HF, HC-PP-90-1, Watts | FMHC-90-1, FMHC-90-1EZ, PWPL90M1


Weight & Dimensions

Approx Length (Inches)

19 1/2" (49.5 cm)

Details

Cap Material

Polypropylene

Capacity

As Needed

Case Quantity

1

Filter Application

Sediment/Dirt/Rust

Max Flow Rate

100 Gallons Per Minute

Media Type

Synthetic Polypropylene

Micron Rating (Nominal)

1 Micron

Netting

Polypropylene

Operating Temperature Range

Max 140 Degrees Fahrenheit

Origin

USA

Outer Diameter

7-3/4"

Surface Area

Approximately 90 Square Feet

Warranty & Certifications

Certifications

Tested and certified by WQA according to NSF/ANSI Standard 61


Neo-Pure





The Neo-Pure PSJ-90 Pleated Synthetic Jumbo Cartridge features pleated synthetic polypropylene filter media which allows for lower initial pressure drop and higher flow rates which means fewer cartridges to change. The PSJ Series filter's pleated surface area translates to increased filter life, higher dirt loading capacity and increased particle removal.

Features:
  • Made in USA
  • Pleated design for increased surface area, dirt holding capacity and increased particle removal
  • Fewer cartridges to change results in lower maintenance costs
  • Center tube, end cap and filter media are bonded as one unit for additional strength
  • Filter Dimensions: 19-1/2" x 7-3/4"
  • Max Temperature: 140°F
  • Tested and certified by WQA according to NSF/ANSI Standard 61
 Applications:
  • Potable drinking water
  • Industrial waste water treatment
  • Food and beverage
  • Reverse osmosis prefiltration
  • Cooling tower filtration
  • Desalination prefiltration
  • Process water
  • Oil/Gas
  • Paper and Pulp
  • Paints
  • Inks
  • Coatings

Compatible with: Harmsco® Compatible | HC/90-1, HC/90-1W-HF, HC-PP-90-1, Watts | FMHC-90-1, FMHC-90-1EZ, PWPL90M1

Weight & Dimensions

Approx Length (Inches)

19 1/2" (49.5 cm)

Details

Cap Material

Polypropylene

Capacity

As Needed

Case Quantity

1

Filter Application

Sediment/Dirt/Rust

Max Flow Rate

100 Gallons Per Minute

Media Type

Synthetic Polypropylene

Micron Rating (Nominal)

1 Micron

Netting

Polypropylene

Operating Temperature Range

Max 140 Degrees Fahrenheit

Origin

USA

Outer Diameter

7-3/4"

Surface Area

Approximately 90 Square Feet

Warranty & Certifications

Certifications

Tested and certified by WQA according to NSF/ANSI Standard 61
