Neo-Pure

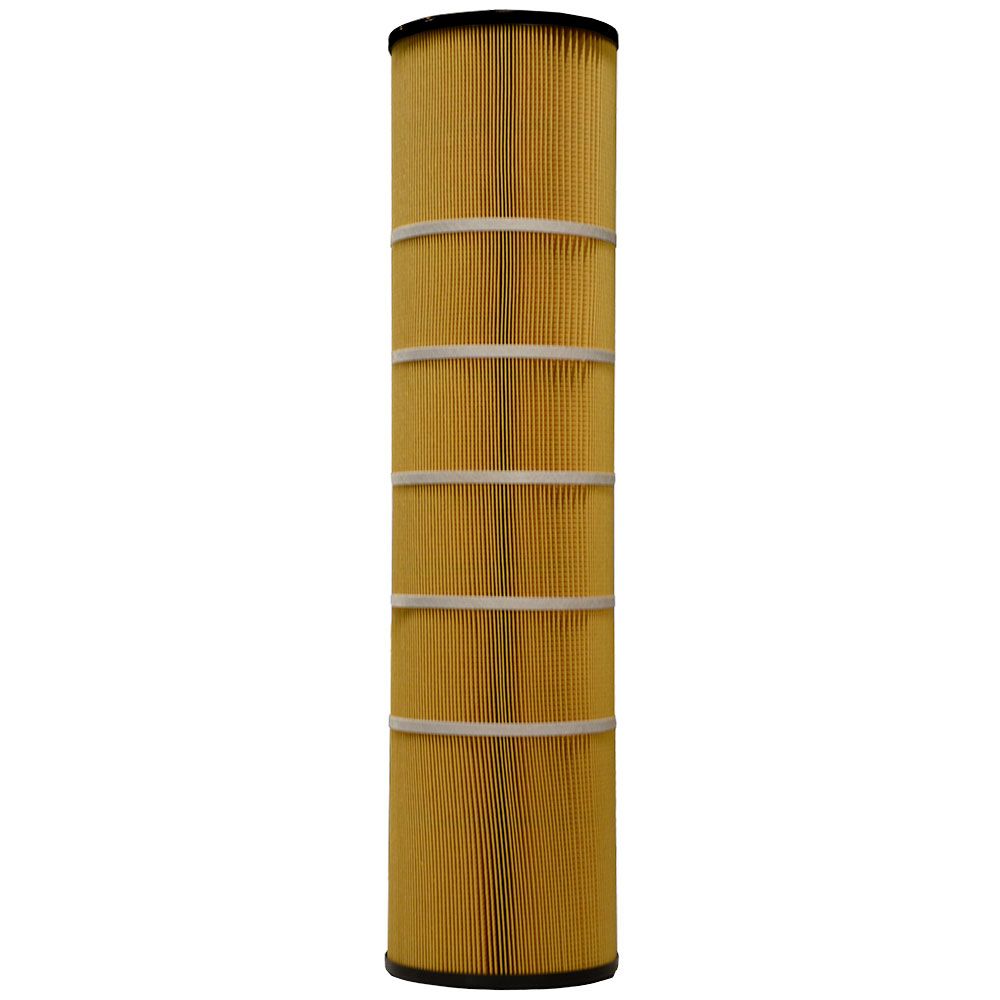

Neo-Pure PSJ-170-S35M Pleated High Temp Jumbo Cartridge .35 micron

Part Number: PSJ-170-S35M

In Stock

out of stock

In Stock

$137.50


The Neo-Pure PSJ-170-S35M Pleated High Temperature Jumbo Cartridge is manufactured in the USA and designed to be used in applications where temperatures may range up to 140°F. Neo-Pure High Temperature Cartridges are constructed out of pleated phenolic impregnated cellulose media and come with Buna-N gaskets. The pleated surface area increases filter life, loading capacity, and particle removal.

Specifications:
  • Pleated design for increased surface area, dirt holding capacity and increased particle removal
  • Fewer cartridges to change results in lower maintenance costs
  • Media: Pleated phenolic impregnated cellulose
  • Epoxy coated center core
  • Gaskets: Buna-N
  • Filter Dimensions: 30-3/4" x 7-3/4"
  • Max Temperature: 140°F
  • Made in the USA
Compatible with the American Filtration 831-50B and Watts FMPIC-170-50-HT.
Applications:
  • High Temperature Industrial Water
  • Filtration
  • Lubricating Oil
  • Cutting Fluids
  • Solvents
  • Distillate Fuel
  • Fuel Oil
  • Hydraulic Fluids

Compatible with: American Filtration Technologies | 831-50B, Watts | FMPIC-170-50-HT


Weight & Dimensions

Approx Length (Inches)

30-3/4" (78.1 cm)

Case Dimensions

9X9X11

Details

Cap Material

Electro Plated Tin

Capacity

AS NEEDED

Cartridge Style

Drop-In

Case Quantity

1

Filter Application

Sediment/Dirt/Rust

Gaskets

Buna-N

Media Type

Phenolic Impregnated Cellulose

Micron Rating (Nominal)

.35 Micron

O Rings

EPDM

Operating Pressure Range

Max 75 PSID PSI

Operating Temperature Range

140 Degrees Fahrenheit

Origin

USA

Outer Diameter

7-3/4"

Surface Area

Approximately 170 Square Feet

Warranty & Certifications

Certifications

WQA




The Neo-Pure PSJ-170-S35M Pleated High Temperature Jumbo Cartridge is manufactured in the USA and designed to be used in applications where temperatures may range up to 140°F. Neo-Pure High Temperature Cartridges are constructed out of pleated phenolic impregnated cellulose media and come with Buna-N gaskets. The pleated surface area increases filter life, loading capacity, and particle removal.

Specifications:
  • Pleated design for increased surface area, dirt holding capacity and increased particle removal
  • Fewer cartridges to change results in lower maintenance costs
  • Media: Pleated phenolic impregnated cellulose
  • Epoxy coated center core
  • Gaskets: Buna-N
  • Filter Dimensions: 30-3/4" x 7-3/4"
  • Max Temperature: 140°F
  • Made in the USA
Compatible with the American Filtration 831-50B and Watts FMPIC-170-50-HT.
Applications:
  • High Temperature Industrial Water
  • Filtration
  • Lubricating Oil
  • Cutting Fluids
  • Solvents
  • Distillate Fuel
  • Fuel Oil
  • Hydraulic Fluids

Compatible with: American Filtration Technologies | 831-50B, Watts | FMPIC-170-50-HT

Weight & Dimensions

Approx Length (Inches)

30-3/4" (78.1 cm)

Case Dimensions

9X9X11

Details

Cap Material

Electro Plated Tin

Capacity

AS NEEDED

Cartridge Style

Drop-In

Case Quantity

1

Filter Application

Sediment/Dirt/Rust

Gaskets

Buna-N

Media Type

Phenolic Impregnated Cellulose

Micron Rating (Nominal)

.35 Micron

O Rings

EPDM

Operating Pressure Range

Max 75 PSID PSI

Operating Temperature Range

140 Degrees Fahrenheit

Origin

USA

Outer Diameter

7-3/4"

Surface Area

Approximately 170 Square Feet

Warranty & Certifications

Certifications

WQA
