Neo-Pure

Neo-Pure PS-45097-20 9-3/4" BB Standard Efficiency Pleated Filter 20 micron

Part Number: PS-45097-20

In Stock

out of stock

In Stock

$10.27

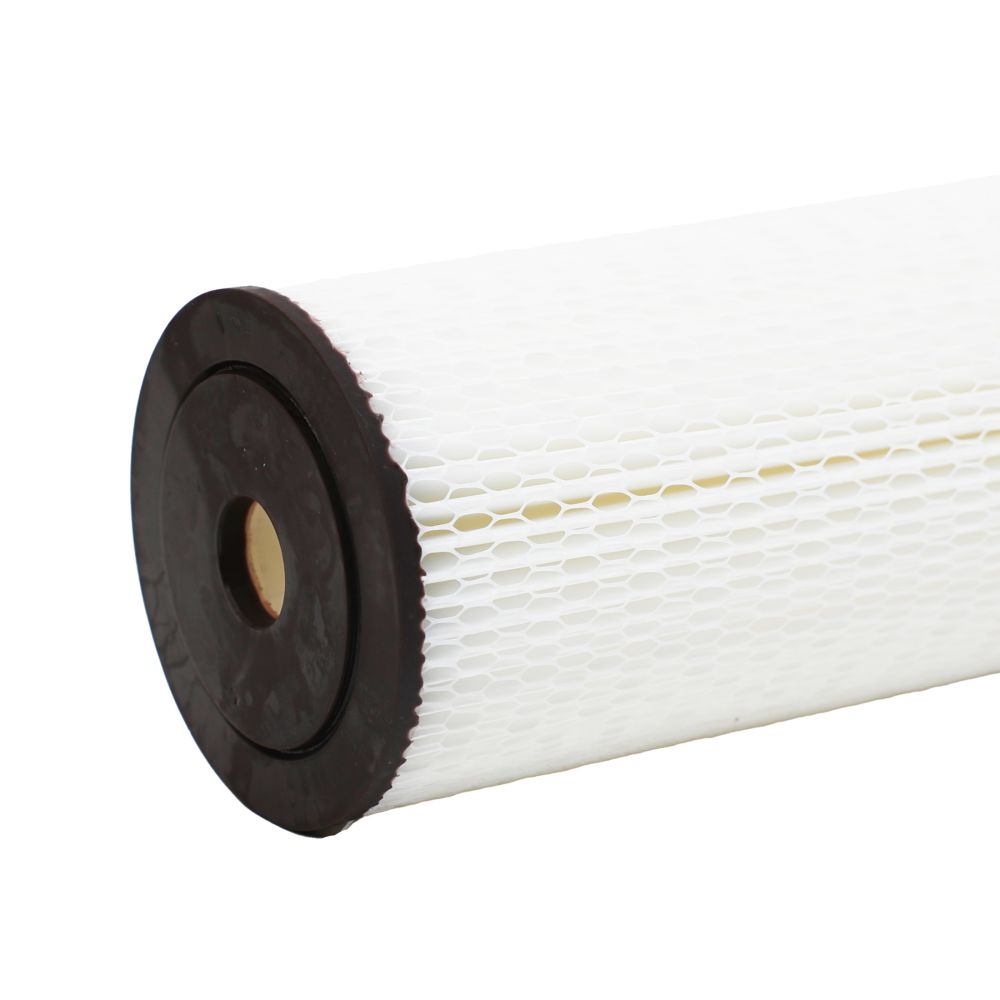

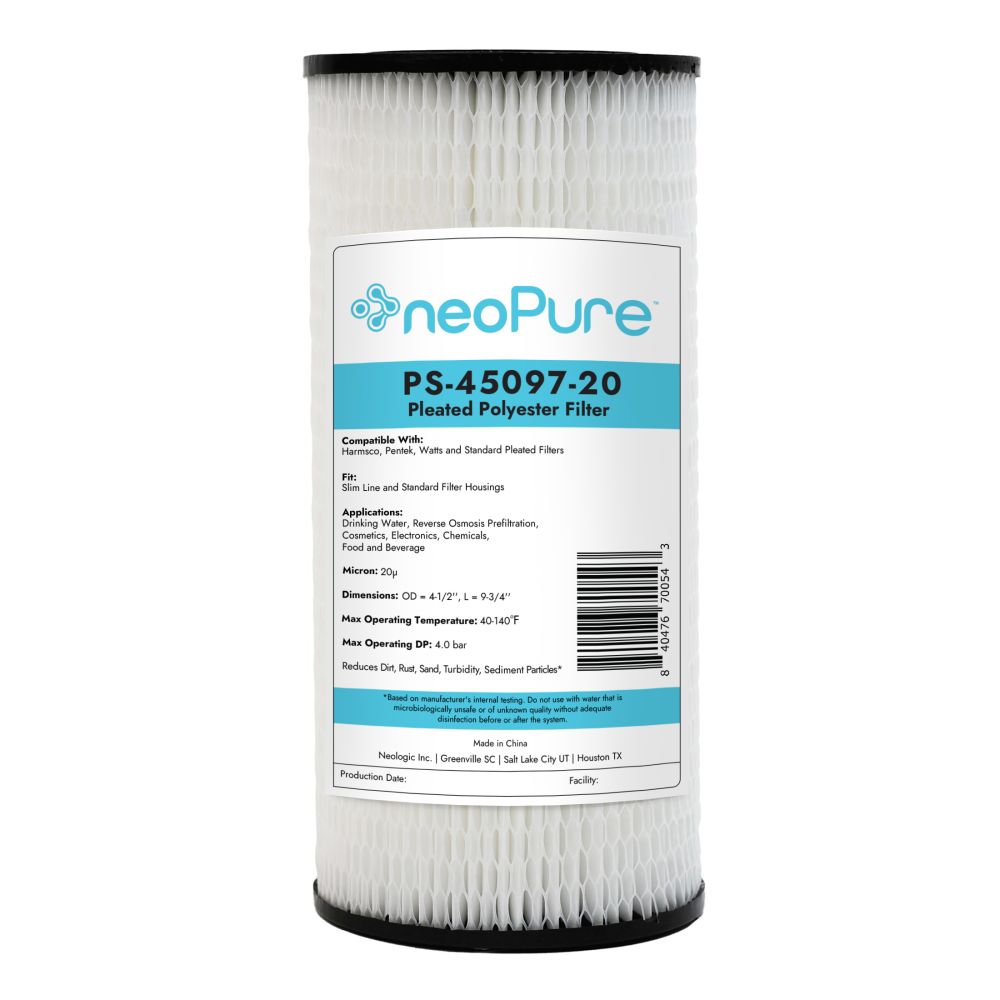

TheNeo-Pure PS-45097-20 Standard Efficiency Pleated Filter is constructed out of 5 square feet of pleated polyester media wrapped around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. The polyester media reduces sediment, and provides excellent resistance to chemicals and bacteria.

Features:
  • Reduces Sediment and Rust. The Neo-Pure PS-45097-20 filter is manufactured using pleated polyester for improved reduction of sediment, dirt and rust.
  • Perfect for Residential, Commercial and Industrial Filtration. The PS-45097-20 is ideal for use as a reverse osmosis prefilter. It's large surface area make this filter perfect for drinking water and filtration in residential, commercial and industrial applications.
  • Pleated Filter Design. The pleated filter design of the PS-45097-20 offers an extended filter area to provide high flow rates, low pressure drops, and increased dirt-holding capacity.
  • Polyester Media and Polypropylene Core. Polyester is a non-cellulose fabric; this material provides excellent resistance to bacteria and chemicals. The polypropylene core is durable, extending the life of the filter.
  • High Value At A Competitive Price. The Neo-Pure PS-45097-20 filter cartridge offers an economical and competitive price while providing exceptional performance and high bacterial resistance.
  • WQA Certified. The Neo-Pure PS-45097-20 is tested and certified by the WQA against NSF/ANSI 42 Standard for material requirements.
Specifications:
  • Micron Rating: 20 micron
  • Surface Area: 9.5 sq. ft.
  • Temperature range: 40-180°F



Compatible with:
Harmsco® CompatibleWB-HB-10-20W, HB-10-20W
HydronixSPC-45-1020
LiquatecSPF-45-1020
WattsFM-BB-10-20, PWPL10BBM20

Weight & Dimensions

Length (inches)

10

Height (inches)

4.5

Width (inches)

4.5

Weight (lbs)

0.654

Details

Max Temp (°F)

180

Min Temp (°F)

40

Cap Material

Polypropylene

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

12

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Media Type

Polyester

Micron Rating (Nominal)

20 µm

Origin

China

Outer Diameter

4-1/2"

Surface Area

9.5 Square Feet

Warranty & Certifications

Certifications

Tested and certified by WQA according to NSF/ANSI Standard 42 for material requirements only
