Neo-Pure

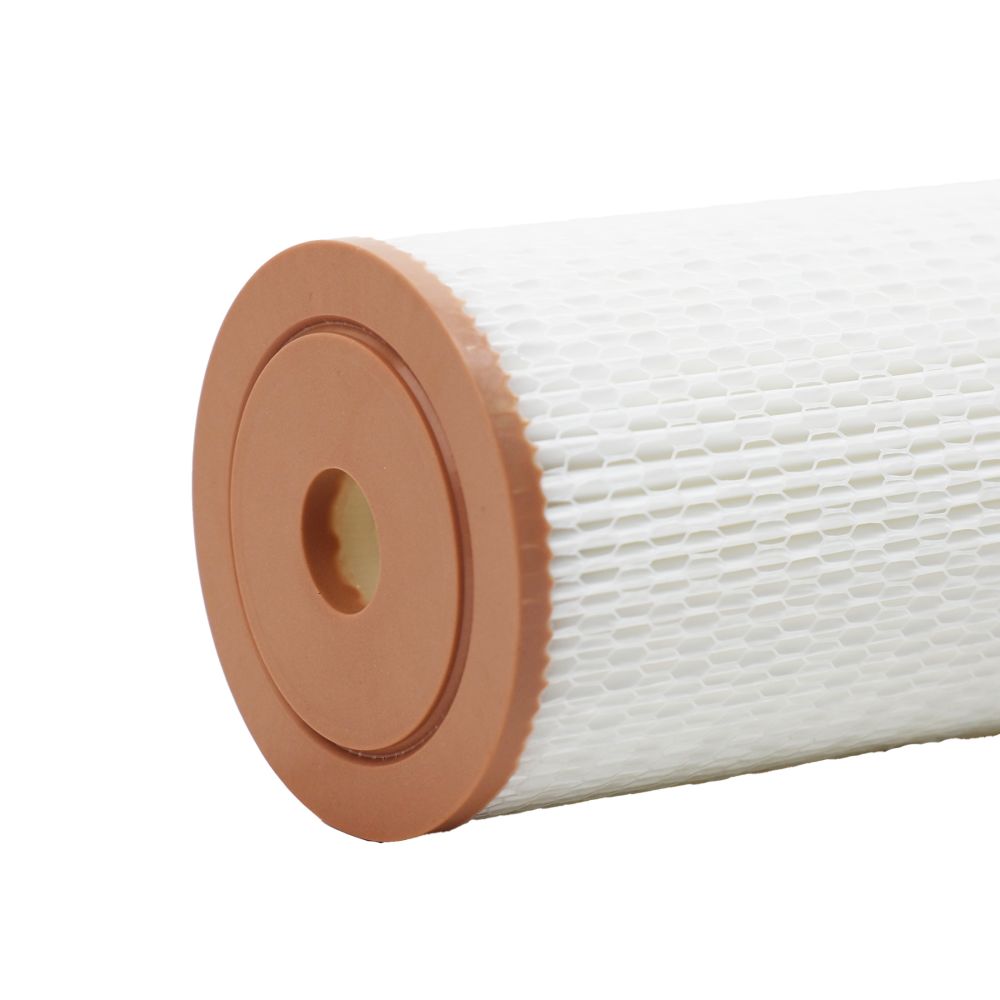

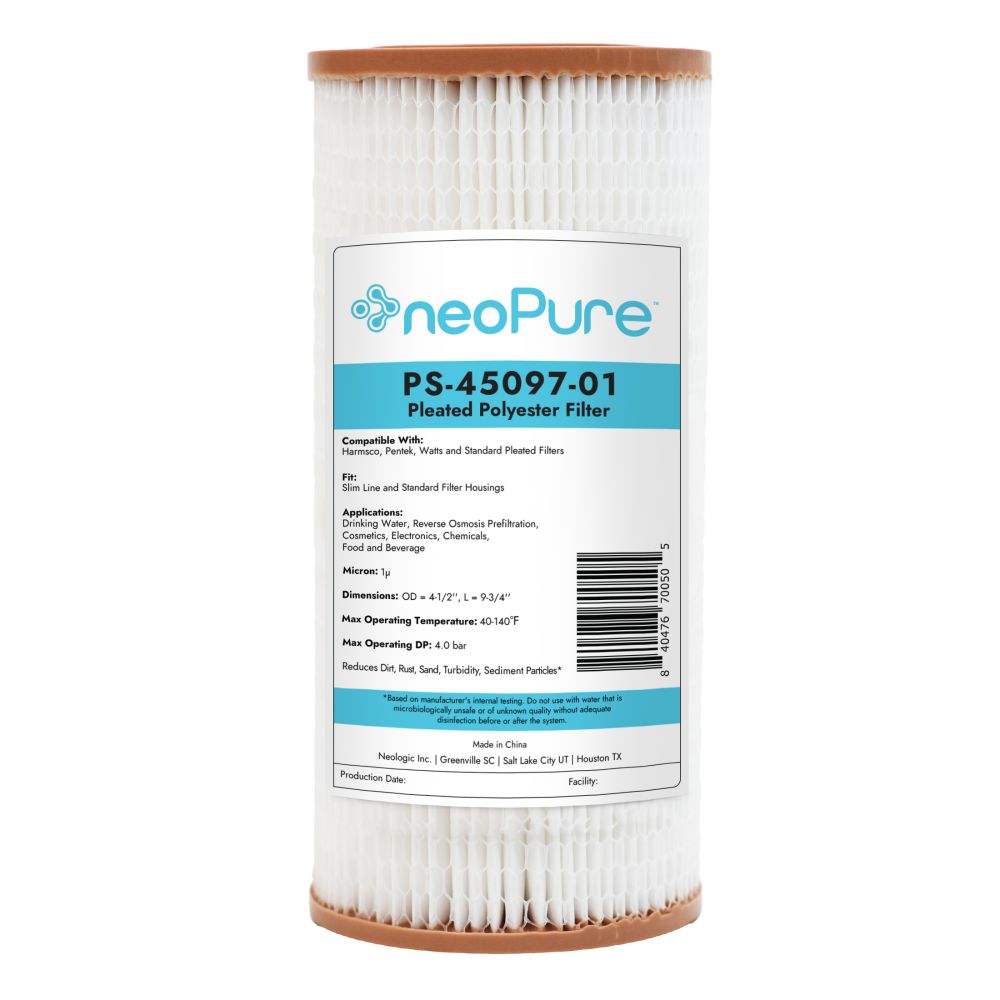

Neo-Pure PS-45097-01 9-3/4" BB Standard Efficiency Pleated Filter 1 micron

Part Number: PS-45097-01

In Stock

out of stock

In Stock

$11.39

The Neo-Pure PS-45097-01 Standard Efficiency Pleated Filter is constructed out of 5 square feet of pleated polyester media wrapped around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. The polyester media reduces sediment, and provides excellent resistance to chemicals and bacteria. With the ability to fit in Big Blue Filter Housings, the large surface area makes the Neo-Pure PS-45097-01 perfect for drinking water and filtration in residential, commercial and industrial applications.

Features:
  • Reduces Sediment and Rust. The Neo-Pure PS-45097-01 filter is manufactured using pleated polyester for improved reduction of sediment, dirt and rust.
  • Pleated Filter Design.The pleated filter design of the PS-45097-01 offers an extended filter area to provide high flow rates, low pressure drops, and increased dirt-holding capacity.High Value At A Competitive Price.The Neo-Pure PS-45097-01 filter cartridge offers an economical and competitive price while providing exceptional performance and high bacterial resistance.
  • WQA Certified.The Neo-Pure PS-45097-01 is tested and certified by the WQA against NSF/ANSI 42 Standard for material requirements.
Specifications:
  • Length: 9-3/4"
  • Diameter: 4-1/2"
  • Micron Rating: 1 micron
  • Surface Area: 9.5 sq. ft.
  • Temperature range: 40-180°F
  • Change frequency: 6-12 months



Compatible with:
Harmsco® CompatibleWB-HB-10-1W, HB-10-1W

Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Case Quantity

12

Height (inches)

9.63

Length (inches)

20.5

Weight (lbs)

8.05625

Width (inches)

14

Details

Capacity

As Needed

Core Material

Polypropylene

Max Temp (°F)

180

Micron Rating (Nominal)

1 µm

Min Temp (°F)

40

Psid@Flow Rate

< 1 psid typical

Surface Area

9.5 Square Feet

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

4-1/2"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Inner Diameter

1-1/16"

Media Type

Polyester

Micron Rating

1 µm

Origin

China

Product Length

9-3/4"

Warranty & Certifications

Certifications

NSF/ANSI 42


Neo-Pure




The Neo-Pure PS-45097-01 Standard Efficiency Pleated Filter is constructed out of 5 square feet of pleated polyester media wrapped around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. The polyester media reduces sediment, and provides excellent resistance to chemicals and bacteria. With the ability to fit in Big Blue Filter Housings, the large surface area makes the Neo-Pure PS-45097-01 perfect for drinking water and filtration in residential, commercial and industrial applications.

Features:
  • Reduces Sediment and Rust. The Neo-Pure PS-45097-01 filter is manufactured using pleated polyester for improved reduction of sediment, dirt and rust.
  • Pleated Filter Design.The pleated filter design of the PS-45097-01 offers an extended filter area to provide high flow rates, low pressure drops, and increased dirt-holding capacity.High Value At A Competitive Price.The Neo-Pure PS-45097-01 filter cartridge offers an economical and competitive price while providing exceptional performance and high bacterial resistance.
  • WQA Certified.The Neo-Pure PS-45097-01 is tested and certified by the WQA against NSF/ANSI 42 Standard for material requirements.
Specifications:
  • Length: 9-3/4"
  • Diameter: 4-1/2"
  • Micron Rating: 1 micron
  • Surface Area: 9.5 sq. ft.
  • Temperature range: 40-180°F
  • Change frequency: 6-12 months



Compatible with:
Harmsco® CompatibleWB-HB-10-1W, HB-10-1W

Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Case Quantity

12

Height (inches)

9.63

Length (inches)

20.5

Weight (lbs)

8.05625

Width (inches)

14

Details

Capacity

As Needed

Core Material

Polypropylene

Max Temp (°F)

180

Micron Rating (Nominal)

1 µm

Min Temp (°F)

40

Psid@Flow Rate

< 1 psid typical

Surface Area

9.5 Square Feet

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

4-1/2"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Inner Diameter

1-1/16"

Media Type

Polyester

Micron Rating

1 µm

Origin

China

Product Length

9-3/4"

Warranty & Certifications

Certifications

NSF/ANSI 42
