Neo-Pure

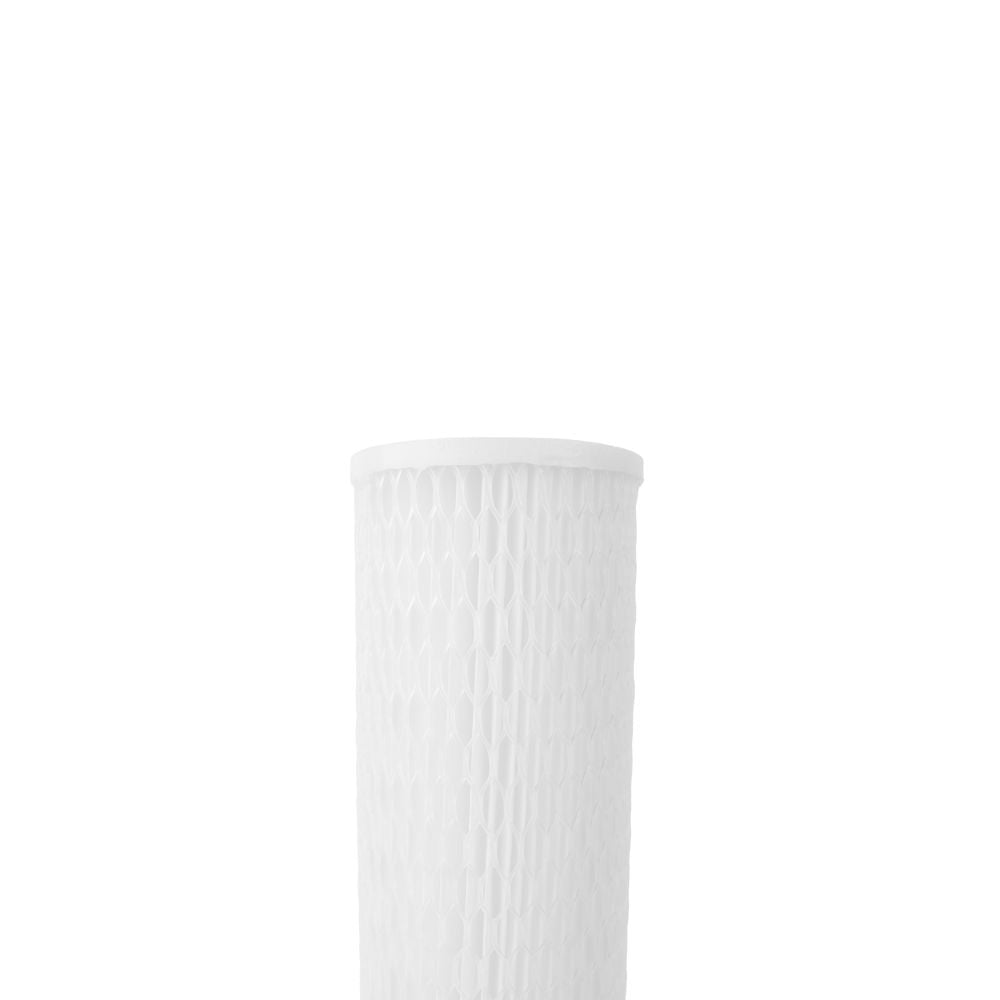

Neo-Pure PS-27200-05 20" Standard Efficiency Pleated Filter 5 Micron

Part Number: PS-27200-05

Alt. Part Number: SPF-25-2005

In Stock

out of stock

In Stock

$9.68

The Neo-Pure PS-27200-05 Standard Efficiency Pleated Filter is constructed out of 5 square feet of pleated polyester media wrapped around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. The polyester media reduces sediment, and provides excellent resistance to chemicals and bacteria.

Features:
  • Reduces Sediment and Rust. The Neo-Pure PS-27200-05 filter is manufactured using pleated polyester for improved reduction of sediment, dirt and rust.
  • Perfect for Residential, Commercial and Industrial Filtration. The PS-27200-05 is ideal for use as a reverse osmosis prefilter. It's large surface area makes this filter perfect for drinking water and filtration in residential, commercial and industrial applications.
  • Pleated Polyester Filter Design. The pleated filter design of the PS-27200-05 offers an extended filter area to provide high flow rates, low pressure drops, and increased dirt-holding capacity. Polyester is a non-cellulose fabric material that provides excellent resistance to bacteria and chemicals.
  • WQA Certified. The Neo-Pure PS-27200-05 is tested and certified by the WQA against NSF/ANSI 42 Standard for material requirements.
Specifications
  • Length: 20"
  • Diameter: 2-3/4"
  • Surface Area: 10 sq. ft.
  • Micron Rating: 5.0 micron
  • Temperature range: 40-180°F



Compatible with:
Graver TechnologiesPME5-200PS
Harmsco® CompatibleWB-20-5W, 801-5/20W, 801-5/20, 701-5/20
HydronixSPC-25-2005
LiquatecSPF-25-2005
WattsFM-5-20, PWPL20M5

Weight & Dimensions

Length (inches)

19.88

Height (inches)

2.5

Width (inches)

9.56

Weight (lbs)

0.034375

Details

Max Temp (°F)

180

Min Temp (°F)

40

Cap Material

Polypropylene

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

25

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Media Type

Polyester

Micron Rating (Nominal)

5 µm

Origin

China

Outer Diameter

2-3/4"

Surface Area

10 Square Feet

Warranty & Certifications

Certifications

Tested and certified by WQA according to NSF/ANSI Standard 42 for material requirements only


Neo-Pure




The Neo-Pure PS-27200-05 Standard Efficiency Pleated Filter is constructed out of 5 square feet of pleated polyester media wrapped around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. The polyester media reduces sediment, and provides excellent resistance to chemicals and bacteria.

Features:
  • Reduces Sediment and Rust. The Neo-Pure PS-27200-05 filter is manufactured using pleated polyester for improved reduction of sediment, dirt and rust.
  • Perfect for Residential, Commercial and Industrial Filtration. The PS-27200-05 is ideal for use as a reverse osmosis prefilter. It's large surface area makes this filter perfect for drinking water and filtration in residential, commercial and industrial applications.
  • Pleated Polyester Filter Design. The pleated filter design of the PS-27200-05 offers an extended filter area to provide high flow rates, low pressure drops, and increased dirt-holding capacity. Polyester is a non-cellulose fabric material that provides excellent resistance to bacteria and chemicals.
  • WQA Certified. The Neo-Pure PS-27200-05 is tested and certified by the WQA against NSF/ANSI 42 Standard for material requirements.
Specifications
  • Length: 20"
  • Diameter: 2-3/4"
  • Surface Area: 10 sq. ft.
  • Micron Rating: 5.0 micron
  • Temperature range: 40-180°F



Compatible with:
Graver TechnologiesPME5-200PS
Harmsco® CompatibleWB-20-5W, 801-5/20W, 801-5/20, 701-5/20
HydronixSPC-25-2005
LiquatecSPF-25-2005
WattsFM-5-20, PWPL20M5

Weight & Dimensions

Length (inches)

19.88

Height (inches)

2.5

Width (inches)

9.56

Weight (lbs)

0.034375

Details

Max Temp (°F)

180

Min Temp (°F)

40

Cap Material

Polypropylene

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

25

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Media Type

Polyester

Micron Rating (Nominal)

5 µm

Origin

China

Outer Diameter

2-3/4"

Surface Area

10 Square Feet

Warranty & Certifications

Certifications

Tested and certified by WQA according to NSF/ANSI Standard 42 for material requirements only
