Features:
- Reduces Sediment and Rust. The Neo-Pure PS-27200-01 filter is manufactured using pleated polyester for improved reduction of sediment, dirt and rust.
- Perfect for Residential, Commercial and Industrial Filtration. The PS-27200-01 is ideal for use as a reverse osmosis prefilter. It's large surface area make this filter perfect for drinking water and filtration in residential, commercial and industrial applications.
- Pleated Filter Design. The pleated filter design of the PS-27200-01 offers an extended filter area to provide high flow rates, low pressure drops, and increased dirt-holding capacity.
- Polyester Media and Polypropylene Core. Polyester is a non-cellulose fabric; this material provides excellent resistance to bacteria and chemicals. The polypropylene core is durable, extending the life of the filter.
- High Value At A Competitive Price. The Neo-Pure PS-27200-01 filter cartridge offers an economical and competitive price while providing exceptional performance and high bacterial resistance.
- WQA Certified. The Neo-Pure PS-27200-01 is tested and certified by the WQA against NSF/ANSI 42 Standard for material requirements.
- Length: 20"
- Diameter: 2-3/4"
- Micron Rating: 1.0 micron
- Surface Area: 10 sq. ft.
- Temperature range: 40-180°F
Compatible with:
| Graver Technologies | PME1-200PS |
| Harmsco® Compatible | WB-20-1W, 801-1/20W, 801-1/20, 701-1/20 |
| Hydronix | SPC-25-2001 |
| Liquatec | SPF-25-2001 |
| Watts | FM-1-20, PWPL20M1 |
Weight & Dimensions
Approx Length (Inches) | 20" (50.8 cm) |
Case Quantity | 25 |
Height (inches) | 2.75 |
Length (inches) | 20 |
Weight (lbs) | 0.034375 |
Width (inches) | 2.75 |
Details
Capacity | As Needed |
Core Material | Polypropylene |
Max Temp (°F) | 180 |
Micron Rating (Nominal) | 1 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | < 1 psid typical |
Surface Area | 10 Square Feet |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-3/4" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Inner Diameter | 1-1/16" |
Media Type | Polyester |
Micron Rating | 1 µm |
Origin | China |
Product Length | 20" |
Warranty & Certifications
Certifications | NSF/ANSI 42 |

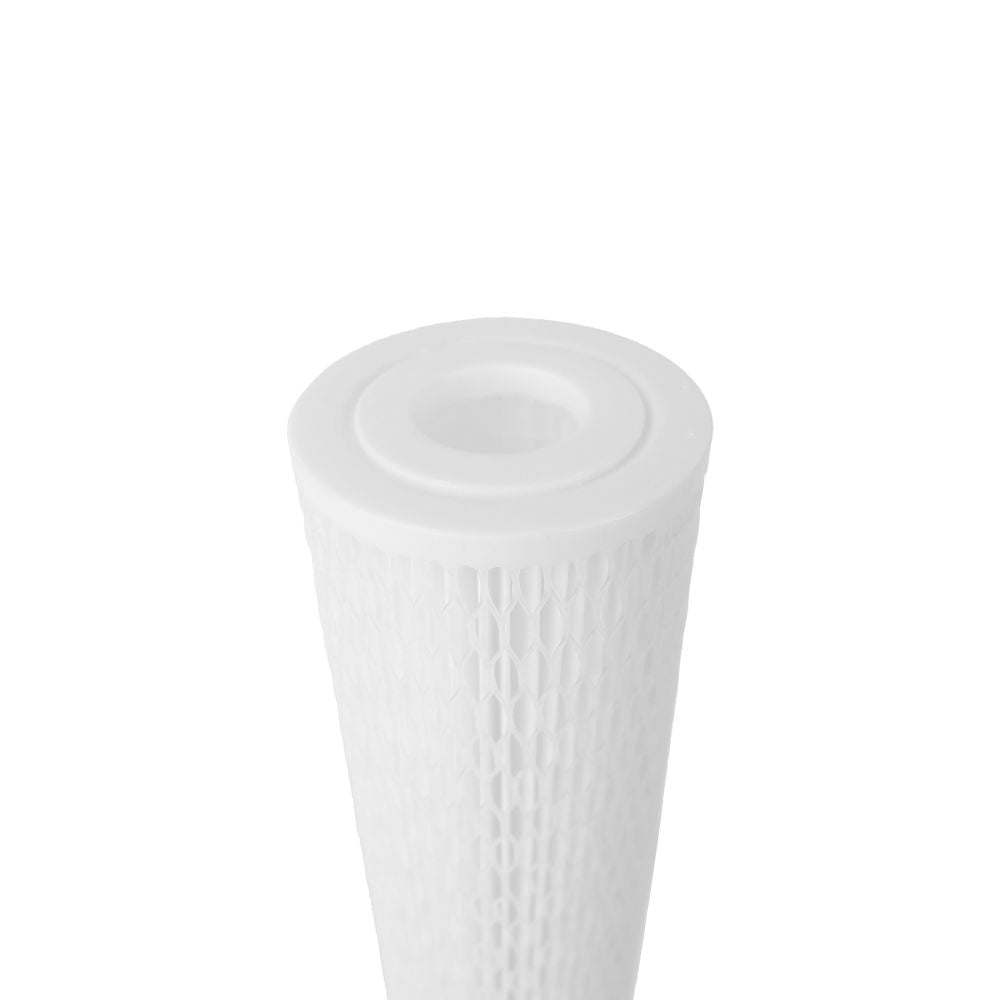

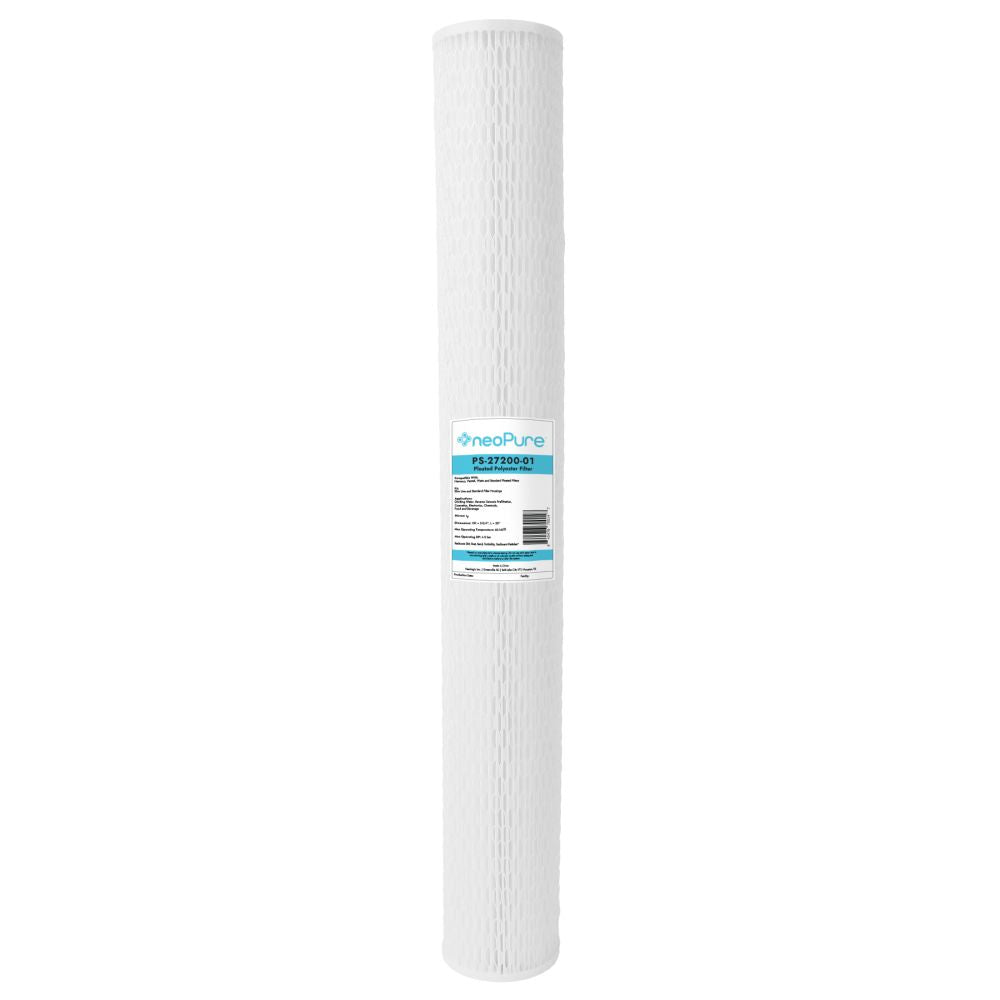

The Neo-Pure PS-27200-01 Standard Efficiency Pleated Filter is constructed out of 5 square feet of pleated polyester media wrapped around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. The polyester media reduces sediment, and provides excellent resistance to chemicals and bacteria.
Features:
- Reduces Sediment and Rust. The Neo-Pure PS-27200-01 filter is manufactured using pleated polyester for improved reduction of sediment, dirt and rust.
- Perfect for Residential, Commercial and Industrial Filtration. The PS-27200-01 is ideal for use as a reverse osmosis prefilter. It's large surface area make this filter perfect for drinking water and filtration in residential, commercial and industrial applications.
- Pleated Filter Design. The pleated filter design of the PS-27200-01 offers an extended filter area to provide high flow rates, low pressure drops, and increased dirt-holding capacity.
- Polyester Media and Polypropylene Core. Polyester is a non-cellulose fabric; this material provides excellent resistance to bacteria and chemicals. The polypropylene core is durable, extending the life of the filter.
- High Value At A Competitive Price. The Neo-Pure PS-27200-01 filter cartridge offers an economical and competitive price while providing exceptional performance and high bacterial resistance.
- WQA Certified. The Neo-Pure PS-27200-01 is tested and certified by the WQA against NSF/ANSI 42 Standard for material requirements.
- Length: 20"
- Diameter: 2-3/4"
- Micron Rating: 1.0 micron
- Surface Area: 10 sq. ft.
- Temperature range: 40-180°F
Compatible with:
| Graver Technologies | PME1-200PS |
| Harmsco® Compatible | WB-20-1W, 801-1/20W, 801-1/20, 701-1/20 |
| Hydronix | SPC-25-2001 |
| Liquatec | SPF-25-2001 |
| Watts | FM-1-20, PWPL20M1 |
Weight & Dimensions
Approx Length (Inches) | 20" (50.8 cm) |
Case Quantity | 25 |
Height (inches) | 2.75 |
Length (inches) | 20 |
Weight (lbs) | 0.034375 |
Width (inches) | 2.75 |
Details
Capacity | As Needed |
Core Material | Polypropylene |
Max Temp (°F) | 180 |
Micron Rating (Nominal) | 1 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | < 1 psid typical |
Surface Area | 10 Square Feet |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-3/4" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Inner Diameter | 1-1/16" |
Media Type | Polyester |
Micron Rating | 1 µm |
Origin | China |
Product Length | 20" |
Warranty & Certifications
Certifications | NSF/ANSI 42 |
