Neo-Pure

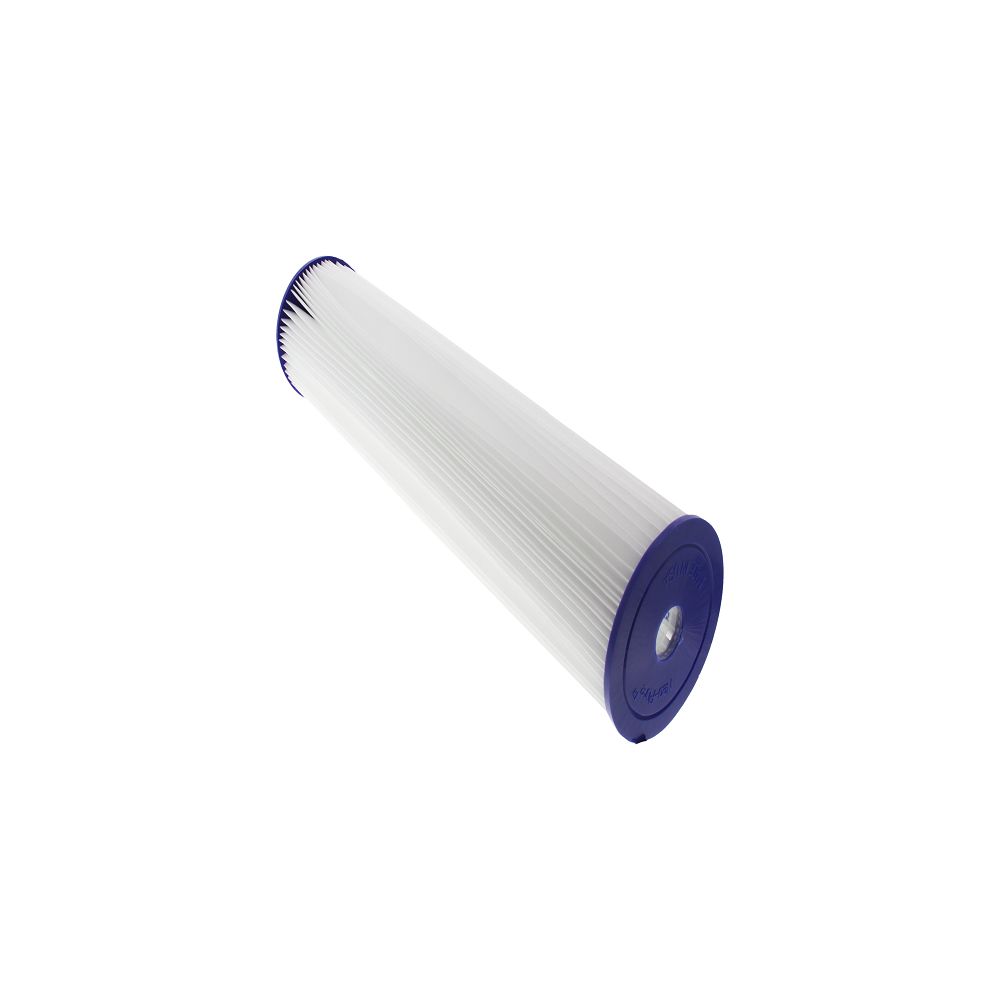

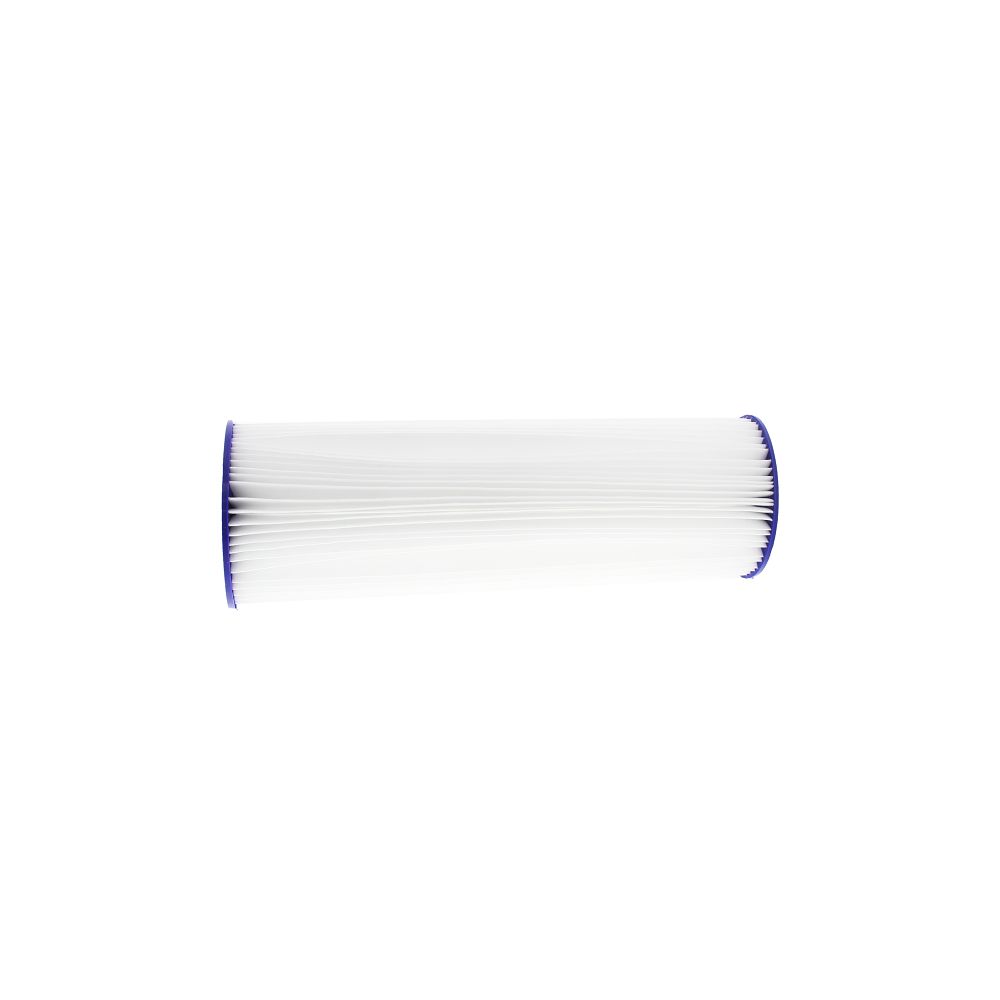

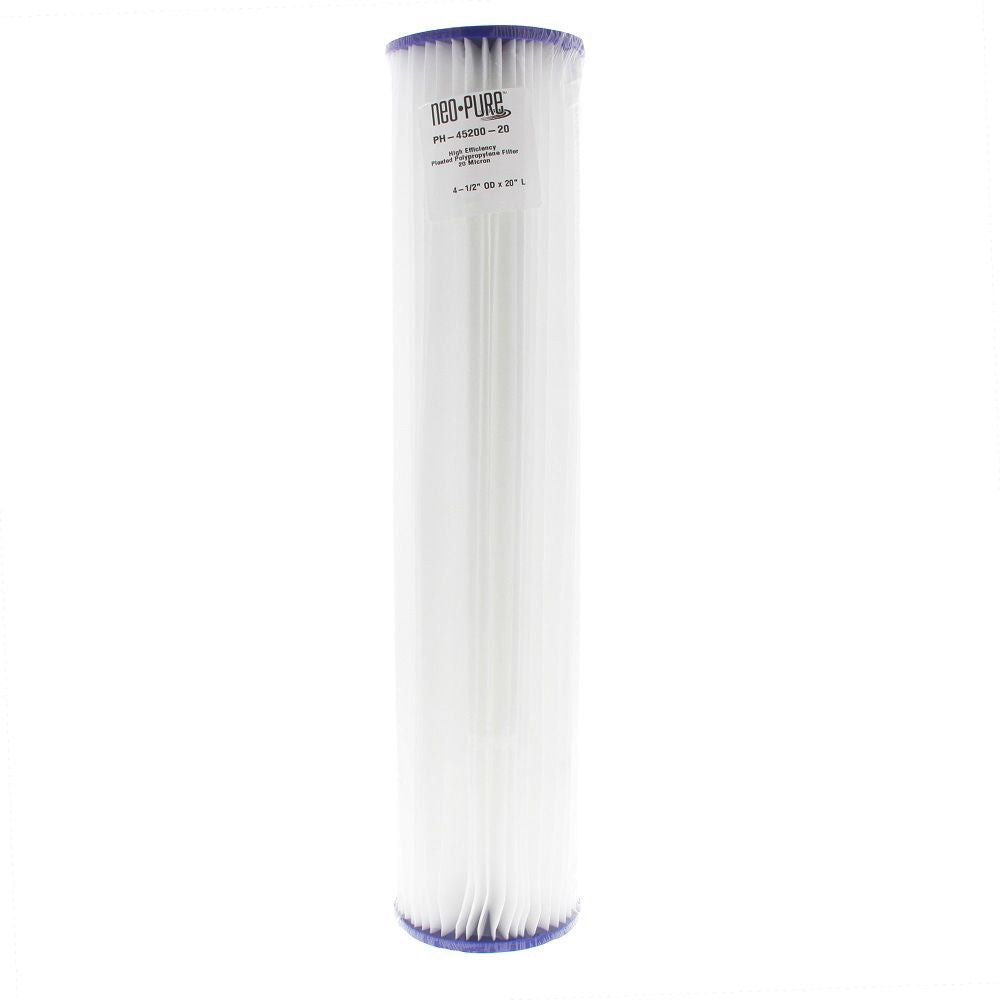

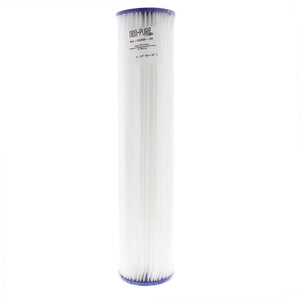

Neo-Pure PH-45200-20 20" BB High Efficiency Pleated Filter 20 micron

Part Number: PH-45200-20

Alt. Part Number: PE20X20BB

In Stock

out of stock

In Stock

$27.36

The Neo-Pure PH-45200-20 High Efficiency Pleated Filter is manufactured in the USA with materials that comply with materials FDA requirements and are NSF 61 certified.The filter operates at 90% filtration efficiency and is suitable for use in the filtration of liquids as well as edible oils.

Features:
  • Reduces Sediment and Rust. The Neo-Pure PH-45200-20 filter is manufactured using Synthetic Polypropylene for improved reduction of sediment, dirt and rust.
  • High Efficiency. The 90% filtration efficiency of the PH-45200-20 is suitable for filtration of liquids and edible oils.

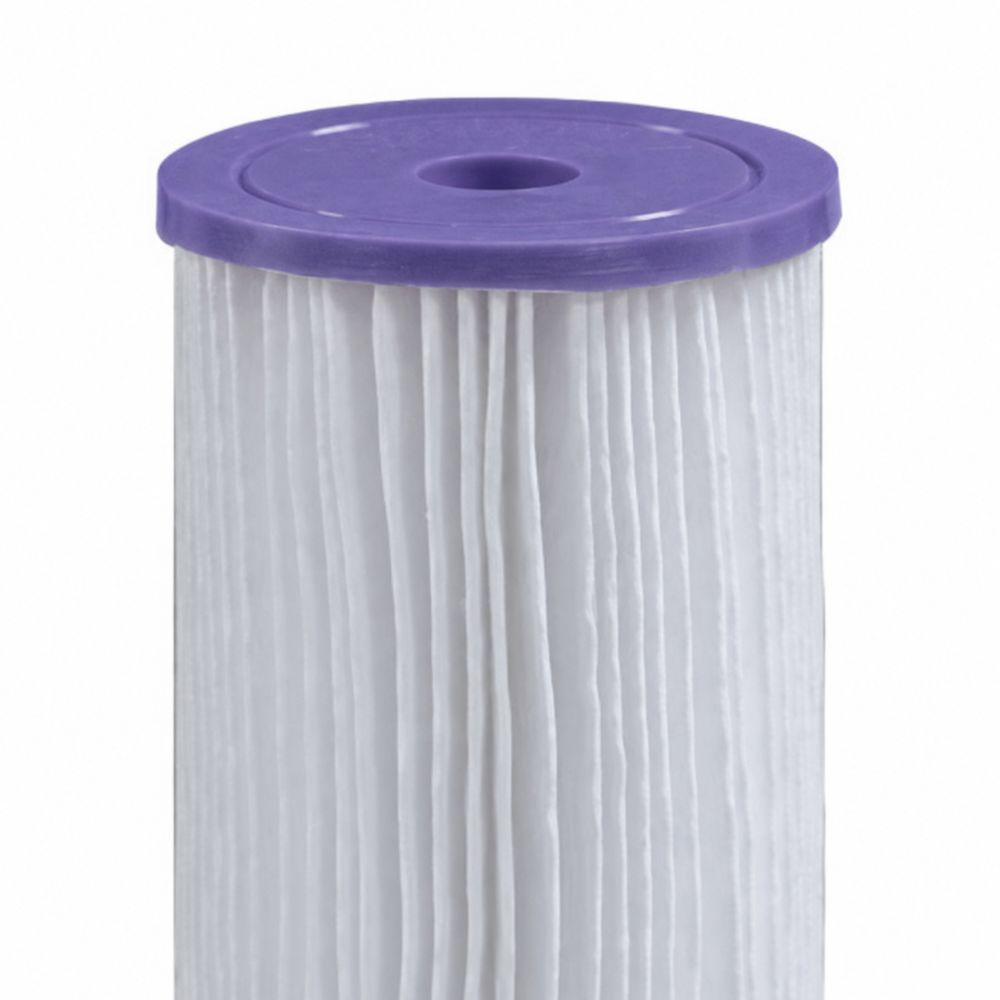

  • Pleated Filter Design. The pleated filter design of the PH-45200-20 offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
  • High Value At A Competitive Price. The PH-45200-20 High Efficiency filter offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
  • Low Maintenance. Maintenance costs are reduced due to the cartridge having a longer service life and requiring fewer filter changes. The filter cartridge is cleanable and reusable in most applications.
  • WQA Certified. The Neo-Pure PH-45200-20 is tested and certified by the WQA against NSF/ANSI 61 Standard.
  • FDA Compliant. The filter media meets FDA/CFR Title 21 regulations for food and water contact.
  • Made in the USA. The Neo-Pure PH-45200-20 filter cartridge is made and manufactured in the US.
Additional Specifications:
  • Length: 20"
  • Diameter: 4-1/2"
  • Micron Rating: 20 micron
  • Surface Area: 26 sq. ft.
Applications:
  • Edible oils
  • Cosmetics
  • Electronics
  • Chemicals
  • Plating solutions
  • Prefiltration for reverse osmosis
  • Magnetic tape coatings
  • Food and beverage
  • Water and wastewater
  • Aqueous Solutions
Available Endcap Options for PH-45200-20:
  • Fin
  • 222
  • Spring
  • 226
  • DOE/Gasket



Compatible with:
Aqua Sun InternationalWR-BB
FilterCorPE20X20BB
Harmsco® CompatibleHB-20-20W, HB-20-20, WB-HB-20-20W, WB-HB-20-20, HB-20-20W-HF, HB-20-20W-AM
PurwaterPP20-BB-2-S
UnicelK-40430-B

Weight & Dimensions

Length (inches)

20

Height (inches)

4.5

Width (inches)

4.5

Weight (lbs)

0.875

Details

Max Temp (°F)

175

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

6

Efficiency

0.9

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Media Type

Synthetic Polypropylene

Micron Rating (Nominal)

20 µm

Origin

USA

Outer Diameter

4-1/2"

Surface Area

26 Square Feet

Warranty & Certifications

Certifications

FDA CFR-21; Tested and certified by WQA according to NSF/ANSI Standard 61
