Neo-Pure

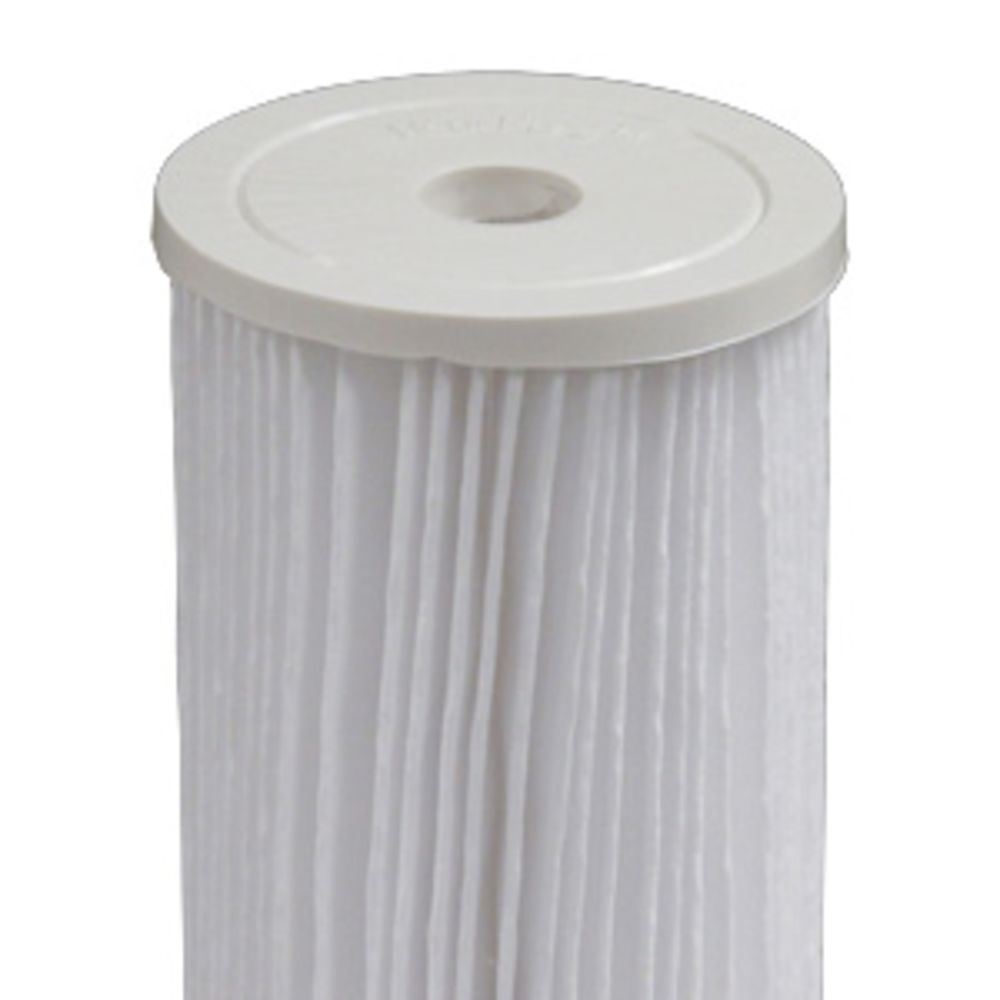

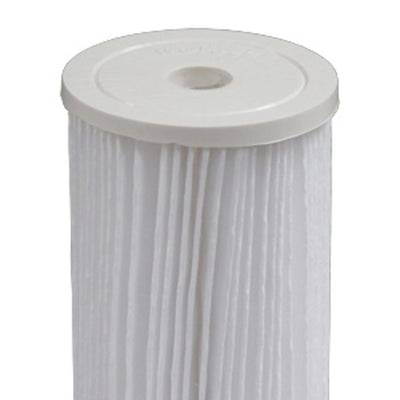

Neo-Pure PH-45200-05 20" BB High Efficiency Pleated Filter 5 micron

Part Number: PH-45200-05

Alt. Part Number: PE10X20BB

In Stock

out of stock

In Stock

$23.07

The Neo-Pure PH-45200-05 High Efficiency Pleated Filter is manufactured in the USA with materials that comply with materials FDA requirements and are NSF 61 certified.The filter operates at 90% filtration efficiency and is suitable for use in the filtration of liquids as well as edible oils.

Features:
  • Reduces Sediment and Rust. The Neo-Pure PH-45200-05 filter is manufactured using Synthetic Polypropylene for improved reduction of sediment, dirt and rust.
  • High Efficiency. The 90% filtration efficiency of the PH-45200-05 is suitable for filtration of liquids and edible oils.
  • Pleated Filter Design. The pleated filter design of the PH-45200-05 offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
  • High Value At A Competitive Price. The PH-45200-05 High Efficiency filter offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
  • Low Maintenance. Maintenance costs are reduced due to the cartridge having a longer service life and requiring fewer filter changes. The filter cartridge is cleanable and reusable in most applications.
  • WQA Certified. The Neo-Pure PH-45200-05 is tested and certified by the WQA against NSF/ANSI 61 Standard.
  • FDA Compliant. The filter media meets FDA/CFR Title 21 regulations for food and water contact.
  • Made in the USA. The Neo-Pure PH-45200-05 filter cartridge is made and manufactured in the US.
Specifications:
  • Length: 20"
  • Diameter: 4-1/2"
  • Micron Rating: 5.0 micron
  • Surface Area: 26 sq. ft.
Applications:
  • Edible oils
  • Cosmetics
  • Electronics
  • Chemicals
  • Plating solutions
  • Prefiltration for reverse osmosis
  • Magnetic tape coatings
  • Food and beverage
  • Water and wastewater
  • Aqueous Solutions



Fin Style
(222, 226, or SOE)

Dual O-ring Style
(222)

Spring Style
(222, 226, or SOE)

Dual O-ring Style
(226)

Gasket Style
(222 or 226)

Compatible with:
FilterCorPE5X20BB
Harmsco® CompatibleHB-20-5W, HB-20-5, WB-HB-20-5W, WB-HB-20-5, HB-20-5W-HF
Ideal H2O™728955
UnicelK-40530-B

Details

Capacity

As Needed

Core Material

Polypropylene

Efficiency

0.9

Max Temp (°F)

175

Micron Rating (Nominal)

5 µm

Psid@Flow Rate

Change out pressure: 25-30 psid (1.72-2.07 bar)

Surface Area

26 Square Feet

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

4-1/2"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Inner Diameter

1-1/16"

Media Type

Synthetic Polypropylene

Micron Rating

5 µm

Origin

USA

Product Length

20"

Warranty & Certifications

Certifications

FDA CFR-21; NSF/ANSI 61


Neo-Pure




The Neo-Pure PH-45200-05 High Efficiency Pleated Filter is manufactured in the USA with materials that comply with materials FDA requirements and are NSF 61 certified.The filter operates at 90% filtration efficiency and is suitable for use in the filtration of liquids as well as edible oils.

Features:
  • Reduces Sediment and Rust. The Neo-Pure PH-45200-05 filter is manufactured using Synthetic Polypropylene for improved reduction of sediment, dirt and rust.
  • High Efficiency. The 90% filtration efficiency of the PH-45200-05 is suitable for filtration of liquids and edible oils.
  • Pleated Filter Design. The pleated filter design of the PH-45200-05 offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
  • High Value At A Competitive Price. The PH-45200-05 High Efficiency filter offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
  • Low Maintenance. Maintenance costs are reduced due to the cartridge having a longer service life and requiring fewer filter changes. The filter cartridge is cleanable and reusable in most applications.
  • WQA Certified. The Neo-Pure PH-45200-05 is tested and certified by the WQA against NSF/ANSI 61 Standard.
  • FDA Compliant. The filter media meets FDA/CFR Title 21 regulations for food and water contact.
  • Made in the USA. The Neo-Pure PH-45200-05 filter cartridge is made and manufactured in the US.
Specifications:
  • Length: 20"
  • Diameter: 4-1/2"
  • Micron Rating: 5.0 micron
  • Surface Area: 26 sq. ft.
Applications:
  • Edible oils
  • Cosmetics
  • Electronics
  • Chemicals
  • Plating solutions
  • Prefiltration for reverse osmosis
  • Magnetic tape coatings
  • Food and beverage
  • Water and wastewater
  • Aqueous Solutions



Fin Style
(222, 226, or SOE)

Dual O-ring Style
(222)

Spring Style
(222, 226, or SOE)

Dual O-ring Style
(226)

Gasket Style
(222 or 226)

Compatible with:
FilterCorPE5X20BB
Harmsco® CompatibleHB-20-5W, HB-20-5, WB-HB-20-5W, WB-HB-20-5, HB-20-5W-HF
Ideal H2O™728955
UnicelK-40530-B

Details

Capacity

As Needed

Core Material

Polypropylene

Efficiency

0.9

Max Temp (°F)

175

Micron Rating (Nominal)

5 µm

Psid@Flow Rate

Change out pressure: 25-30 psid (1.72-2.07 bar)

Surface Area

26 Square Feet

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

4-1/2"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Inner Diameter

1-1/16"

Media Type

Synthetic Polypropylene

Micron Rating

5 µm

Origin

USA

Product Length

20"

Warranty & Certifications

Certifications

FDA CFR-21; NSF/ANSI 61
