Neo-Pure

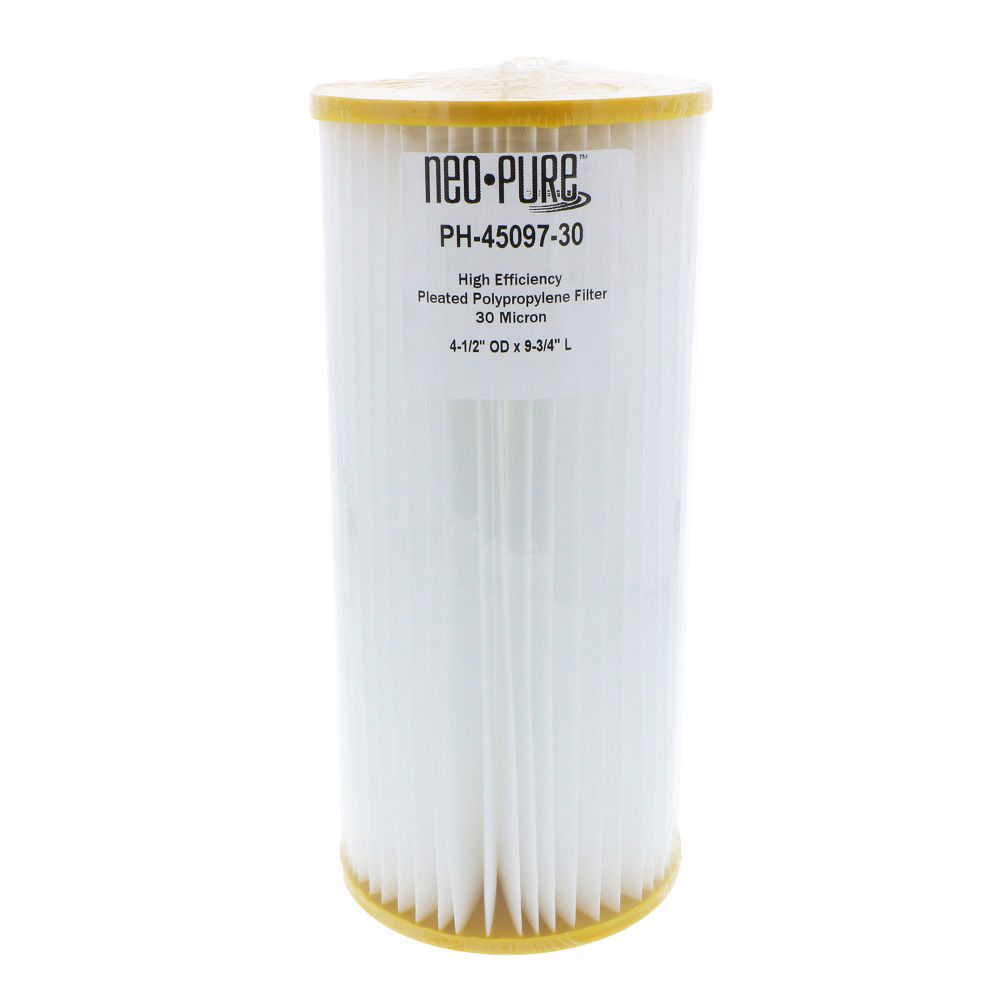

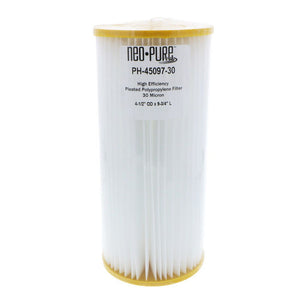

Neo-Pure PH-45097-30 9-3/4" BB High Efficiency Pleated Filter 30 micron

Part Number: PH-45097-30

In Stock

out of stock

In Stock

$13.69


The Neo-Pure PH-45097-30 9 Efficiency Pleated Filter is manufactured in the USA with materials that comply with materials FDA requirements and are NSF 61 certified.The filter operates at 90% filtration efficiency and is suitable for use in the filtration of liquids as well as edible oils.
Features:

  • Reduces Sediment and Rust. The Neo-Pure PH-45097-30 filter is manufactured using Synthetic Polypropylene for improved reduction of sediment, dirt and rust.
  • High Efficiency. The 90% filtration efficiency of the PH-45097-30 is suitable for filtration of liquids and edible oils.
  • Pleated Filter Design. The pleated filter design of the PH-45097-30 offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
  • High Value At A Competitive Price. The PH-45097-30 High Efficiency filter offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
  • Low Maintenance. Maintenance costs are reduced due to the cartridge having a longer service life and requiring fewer filter changes. The filter cartridge is cleanable and reusable in most applications.
  • WQA Certified. The Neo-Pure PH-45097-30 is tested and certified by the WQA against NSF/ANSI 61 Standard.
  • FDA Compliant. The filter media meets FDA/CFR Title 21 regulations for food and water contact.
  • Made in the USA. The Neo-Pure PH-45097-30 filter cartridge is made and manufactured in the US.

Additional Specifications:
  • Length: 9-3/4"
  • Diameter: 4-1/2"
  • Micron Rating: 30 micron
  • Surface Area: 13 sq. ft.
Applications:
  • Edible oils
  • Cosmetics
  • Electronics
  • Chemicals
  • Plating solutions
  • Prefiltration for reverse osmosis
  • Magnetic tape coatings
  • Food and beverage
  • Water and wastewater
  • Aqueous Solutions
Fin Style

(222, 226, or SOE)
Dual O-ring Style

(222)
Spring Style

(222, 226, or SOE)
Dual O-ring Style

(226)
Gasket Style

(222 or 226)

Compatible with: Harmsco® Compatible | HB-10-30W, HB-10-30, WB-HB-10-30W, WB-HB-10-30, HB-10-30W-HF, HB-10-30W-AM, Purwater | PP30-BB-S


Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

12

Efficiency

90 Percent

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Media Type

Synthetic Polypropylene

Micron Rating (Nominal)

30 Micron

Operating Temperature Range

Max 175° F Degrees Fahrenheit

Origin

USA

Outer Diameter

4.5" (11.4 cm)

Surface Area

13 Square Feet

Warranty & Certifications

Certifications

FDA CFR-21; Tested and certified by WQA according to NSF/ANSI Standard 61


Neo-Pure





The Neo-Pure PH-45097-30 9 Efficiency Pleated Filter is manufactured in the USA with materials that comply with materials FDA requirements and are NSF 61 certified.The filter operates at 90% filtration efficiency and is suitable for use in the filtration of liquids as well as edible oils.
Features:

  • Reduces Sediment and Rust. The Neo-Pure PH-45097-30 filter is manufactured using Synthetic Polypropylene for improved reduction of sediment, dirt and rust.
  • High Efficiency. The 90% filtration efficiency of the PH-45097-30 is suitable for filtration of liquids and edible oils.
  • Pleated Filter Design. The pleated filter design of the PH-45097-30 offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
  • High Value At A Competitive Price. The PH-45097-30 High Efficiency filter offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
  • Low Maintenance. Maintenance costs are reduced due to the cartridge having a longer service life and requiring fewer filter changes. The filter cartridge is cleanable and reusable in most applications.
  • WQA Certified. The Neo-Pure PH-45097-30 is tested and certified by the WQA against NSF/ANSI 61 Standard.
  • FDA Compliant. The filter media meets FDA/CFR Title 21 regulations for food and water contact.
  • Made in the USA. The Neo-Pure PH-45097-30 filter cartridge is made and manufactured in the US.

Additional Specifications:
  • Length: 9-3/4"
  • Diameter: 4-1/2"
  • Micron Rating: 30 micron
  • Surface Area: 13 sq. ft.
Applications:
  • Edible oils
  • Cosmetics
  • Electronics
  • Chemicals
  • Plating solutions
  • Prefiltration for reverse osmosis
  • Magnetic tape coatings
  • Food and beverage
  • Water and wastewater
  • Aqueous Solutions
Fin Style

(222, 226, or SOE)
Dual O-ring Style

(222)
Spring Style

(222, 226, or SOE)
Dual O-ring Style

(226)
Gasket Style

(222 or 226)

Compatible with: Harmsco® Compatible | HB-10-30W, HB-10-30, WB-HB-10-30W, WB-HB-10-30, HB-10-30W-HF, HB-10-30W-AM, Purwater | PP30-BB-S

Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

12

Efficiency

90 Percent

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Media Type

Synthetic Polypropylene

Micron Rating (Nominal)

30 Micron

Operating Temperature Range

Max 175° F Degrees Fahrenheit

Origin

USA

Outer Diameter

4.5" (11.4 cm)

Surface Area

13 Square Feet

Warranty & Certifications

Certifications

FDA CFR-21; Tested and certified by WQA according to NSF/ANSI Standard 61

Documentation
Neo-Pure
