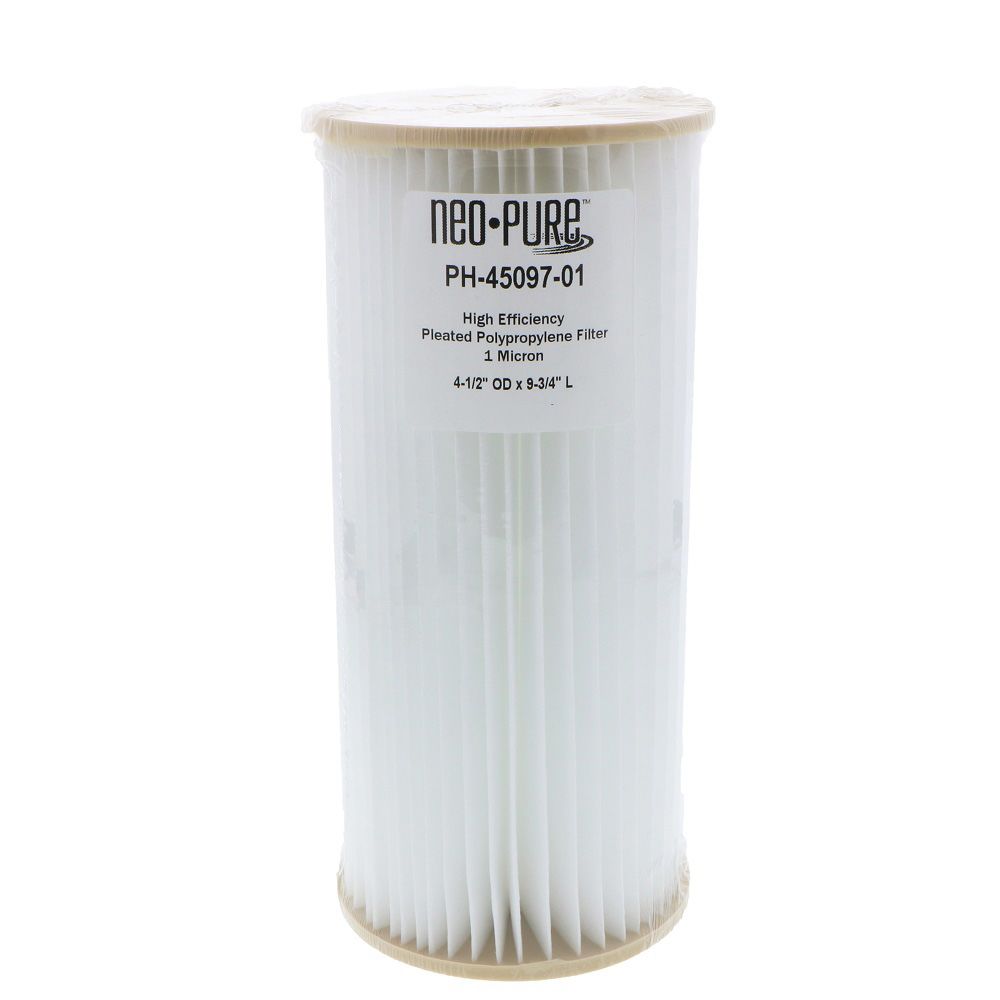

Neo-Pure PH-45097-01 9-3/4" BB High Efficiency Pleated Filter 1 micron

Home / Filters & Cartridges / Sediment Filters / Neo-Pure PH-45097-01 9-3/4" BB High Efficiency Pleated Filter 1 micron

Neo-Pure

Neo-Pure PH-45097-01 9-3/4" BB High Efficiency Pleated Filter 1 micron

Part Number: PH-45097-01

Alt. Part Number: PE1X93/4BB

Neo-Pure

Neo-Pure PH-45097-01 9-3/4" BB High Efficiency Pleated Filter 1 micron

Part Number: PH-45097-01

Alt. Part Number: PE1X93/4BB

One-time purchase

Subscription

Subscription details

Your price:

Choose

Single

Case of 12

Quantity

similar items

The Neo-Pure PH-45097-01 High Efficiency Pleated Filter is manufactured with materials that comply with materials FDA requirements and are NSF 42, 61, and 372 certified. The filter operates at 90% filtration efficiency and is suitable for use in the filtration of liquids as well as edible oils.

Features:

Reduces Sediment and Rust. The Neo-Pure PH-45097-01 filter is manufactured using Synthetic Polypropylene for improved reduction of sediment, dirt and rust.
High Efficiency. The 90% filtration efficiency of the PH-45097-01 is suitable for filtration of liquids and edible oils.
Pleated Filter Design. The pleated filter design of the PH-45097-01 offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
High Value At A Competitive Price. The PH-45097-01 High Efficiency filter offers an economical and competitive price while providing exceptional performance and high absorptive capacity.
Low Maintenance. Maintenance costs are reduced due to the cartridge having a longer service life and requiring fewer filter changes.
IAPMO Certified. The Neo-Pure PH-45097-01 is tested and certified by IAPMO against NSF/ANSI 42, 61, and 372 Standards.
FDA Compliant. The filter media meets FDA/CFR Title 21 regulations for food and water contact.

Additional Specifications:
- Length: 9-3/4"
- Diameter: 4-1/2"
- Micron Rating: 1.0 micron
- Surface Area: 13 sq. ft.
Applications:
- Edible oils
- Cosmetics
- Electronics
- Chemicals
- Plating solutions
- Prefiltration for reverse osmosis
- Magnetic tape coatings
- Food and beverage
- Water and wastewater
- Aqueous Solutions

Compatible with:

FilterCor	PE1X93/4BB
Harmsco® Compatible	HB-10-1W, HB-10-1, WB-HB-10-1W, WB-HB-10-1, HB-10-1W-HF
Unicel	K-41115-B

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Core Material	Polypropylene
Efficiency	0.9
Max Temp (°F)	175
Micron Rating (Nominal)	1 µm
Psid@Flow Rate	Change out pressure: 25-30 psid (1.72-2.07 bar)
Surface Area	13 Square Feet
Cap Material	Vinyl-Plastisol
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	4-1/2"
End Cap Type	Double Open Ended (DOE)
Filter Construction	Pleated
Filter Type	Pleated
Inner Diameter	1-1/16"
Media Type	Synthetic Polypropylene
Micron Rating	1 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 42, FDA CFR-21
Shipping Dimensions
Shipping Length	9.75 in.
Shipping Width	4.375 in.
Shipping Height	4.375 in.
Product Weight & Dimensions
Product Height	4.375
Product Length	10"
Product Width	4.375
Product Weight (lbs)	0.802

Product Details
Core Material	Polypropylene
Efficiency	0.9
Max Temp (°F)	175
Micron Rating (Nominal)	1 µm
Psid@Flow Rate	Change out pressure: 25-30 psid (1.72-2.07 bar)
Surface Area	13 Square Feet
Cap Material	Vinyl-Plastisol
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	4-1/2"
End Cap Type	Double Open Ended (DOE)
Filter Construction	Pleated
Filter Type	Pleated
Inner Diameter	1-1/16"
Media Type	Synthetic Polypropylene
Micron Rating	1 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 42, FDA CFR-21
Shipping Dimensions
Shipping Length	20.75 in.
Shipping Width	9.5 in.
Shipping Height	14 in.
Product Weight & Dimensions
Product Length	10"
Product Weight (lbs)	10.435
