Neo-Pure

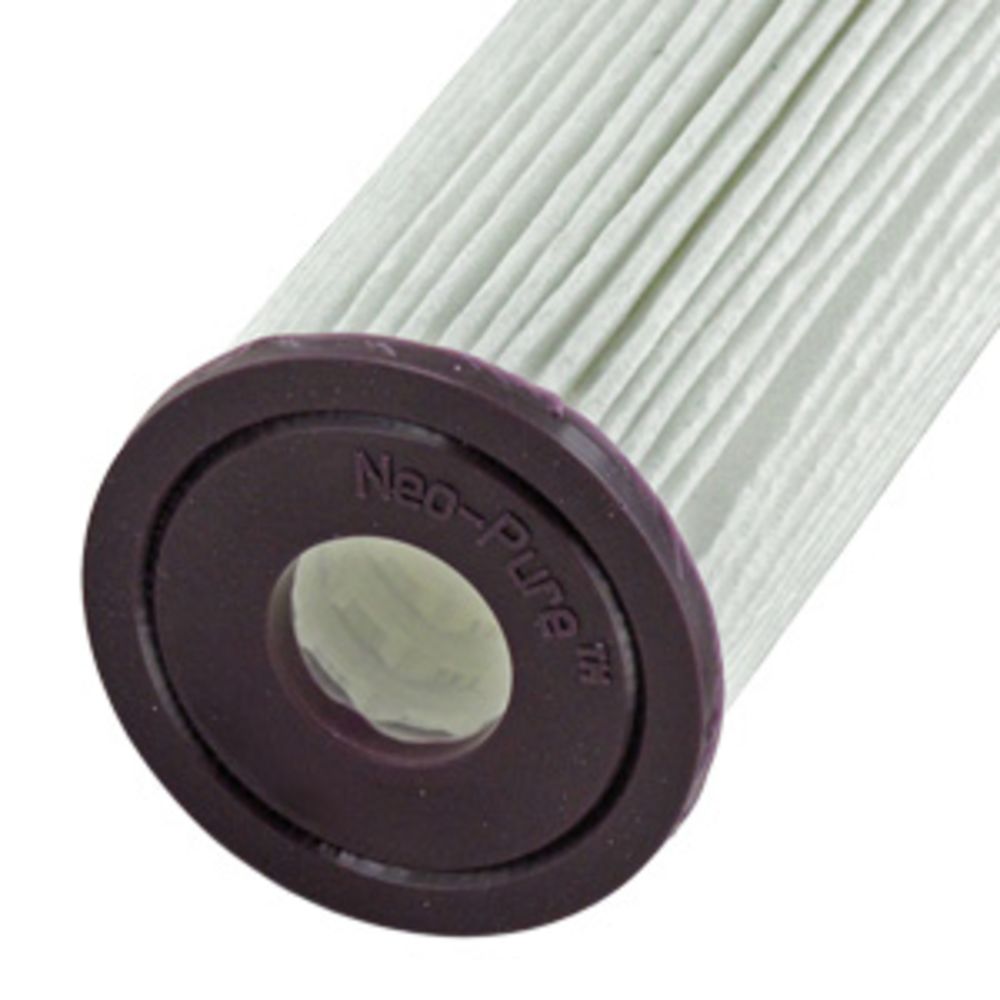

Neo-Pure PH-27400-1A 40" High Efficiency Pleated Filter 1 micron ABS

Part Number: PH-27400-1A

In Stock

out of stock

In Stock

$39.06

The Neo-Pure PH-27400-1A High Efficiency Pleated Filter is manufactured in the USA with materials that comply with materials FDA requirements and are NSF 61 certified.The filter operates at 90% filtration efficiency and is suitable for use in the filtration of liquids as well as edible oils.

Features:
  • Reduces Cysts. The 1.0 micron absolute filtration Neo-Pure PH-27400-1A is rated for the reduction of cysts.
  • Reduces Sediment and Rust. The Neo-Pure PH-27400-1A filter is manufactured using Synthetic Polypropylene for improved reduction of sediment, dirt and rust.
  • High Efficiency. The 90% filtration efficiency of the Neo-Pure PH-27400-1A is suitable for filtration of liquids and edible oils.
  • Pleated Filter Design. The pleated filter design of the PH-27400-1A offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
  • High Value At A Competitive Price. The PH-27400-1A High Efficiency filter offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
  • Low Maintenance. Maintenance costs are reduced due to the cartridge having a longer service life and requiring fewer filter changes.
  • WQA Certified. The Neo-Pure PH-27400-1A is tested and certified by the WQA against NSF/ANSI 61 Standard.
  • FDA Compliant. The filter media meets FDA/CFR Title 21 regulations for food and water contact.
  • Made in the USA. The Neo-Pure PH-27400-1A filter cartridge is made and manufactured in the US.
Additional Specifications:
  • Length: 40"
  • Diameter: 2-3/4"
  • Micron Rating: 1.0 micron absolute
  • Surface Area: 24 sq. ft.
Applications:
  • Edible oils
  • Cosmetics
  • Electronics
  • Chemicals
  • Plating solutions
  • Prefiltration for reverse osmosis
  • Magnetic tape coatings
  • Food and beverage
  • Water and wastewater
  • Aqueous Solutions



Fin Style
(222, 226, or SOE)

Dual O-ring Style
(222)

Spring Style
(222, 226, or SOE)

Dual O-ring Style
(226)

Gasket Style
(222 or 226)


Weight & Dimensions

Weight (lbs)

1.7

Approx Length (Inches)

40" (101.6 cm)

Details

Capacity

As Needed

Core Material

Polypropylene

Max Temp (°F)

175

Micron Rating (Absolute)

1 µm

Psid@Flow Rate

Change out pressure: 25-30 psid (1.72-2.07 bar)

Surface Area

24 Square Feet

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-3/4"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Inner Diameter

1-1/16"

Media Type

Synthetic Polypropylene

Micron Rating

1 µm

Origin

USA

Product Length

40"

Warranty & Certifications

Certifications

FDA CFR-21; NSF/ANSI 61
