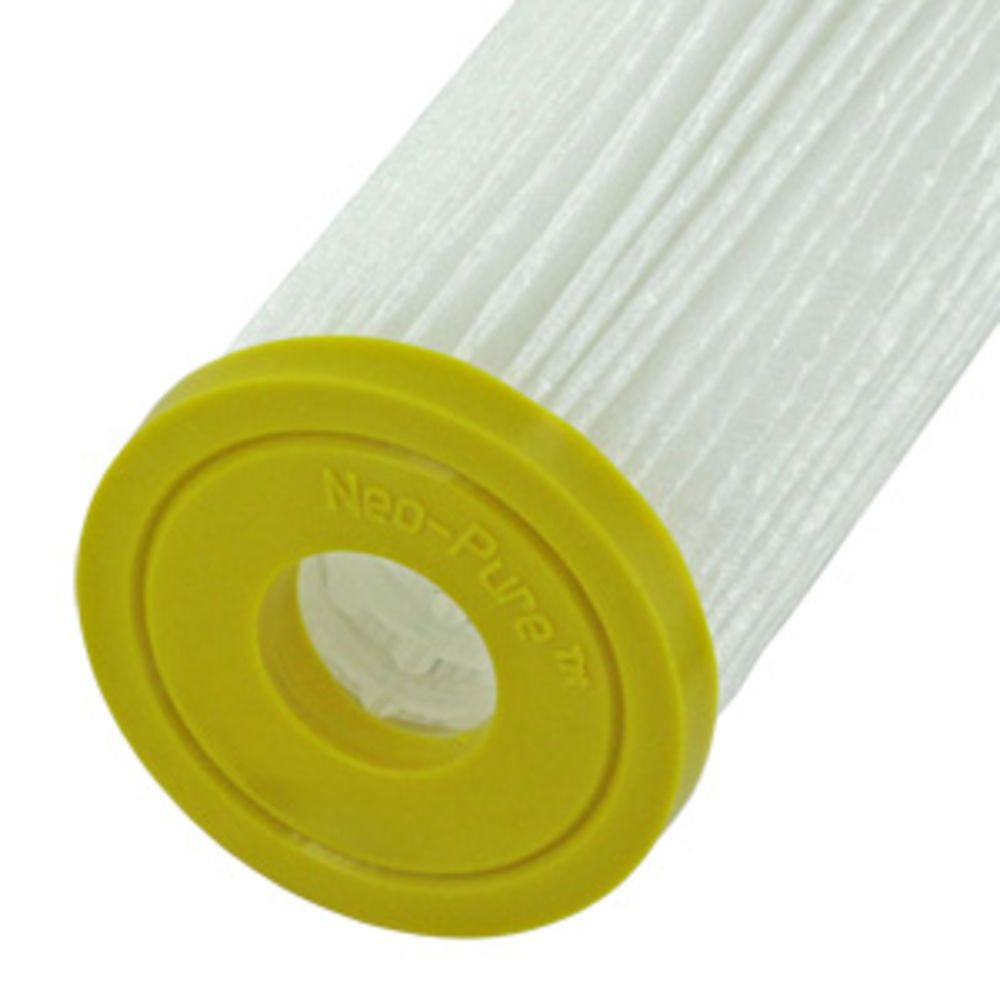

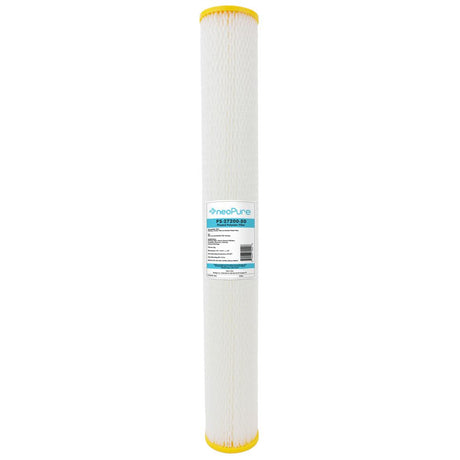

Neo-Pure PH-27200-50 20" High Efficiency Pleated Filter 50 micron

Home / Filters & Cartridges / Sediment Filters / Neo-Pure PH-27200-50 20" High Efficiency Pleated Filter 50 micron

Neo-Pure

Neo-Pure PH-27200-50 20" High Efficiency Pleated Filter 50 micron

Part Number: PH-27200-50

Neo-Pure

Neo-Pure PH-27200-50 20" High Efficiency Pleated Filter 50 micron

Part Number: PH-27200-50

One-time purchase

Subscription

Subscription details

Your price:

Choose

Single

Case of 24

Quantity

similar items

The Neo-Pure PH-27200-50 20" High Efficiency Pleated Filter is manufactured with materials that comply with materials FDA requirements and are NSF 42, 61, and 372 certified. The filter operates at 90% filtration efficiency and is suitable for use in the filtration of liquids as well as edible oils.

Features:

Reduces Sediment and Rust. The Neo-Pure PH-27200-50 filter is manufactured using Synthetic Polypropylene for improved reduction of sediment, dirt and rust.
High Efficiency. The 90% filtration efficiency of the Neo-Pure PH-27200-50 is suitable for filtration of liquids and edible oils.
Pleated Filter Design. The pleated filter design of the PH-27200-50 offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
High Value At A Competitive Price. The PH-27200-50 High Efficiency filter offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
Low Maintenance. Maintenance costs are reduced due to the cartridge having a longer service life and requiring fewer filter changes. The filter is cleanable and reusable in most applications.
IAPMO Certified. The Neo-Pure PH-27200-50 is tested and certified by IAPMO against NSF/ANSI 42, 61, and 372 Standards.
FDA Compliant. The filter media meets FDA/CFR Title 21 regulations for food and water contact.

Additional Specifications:

Length: 20"
Diameter: 2-34"
Micron Rating: 50 micron
Surface Area: 12 sq. ft.

Applications:

Edible oils
Cosmetics
Electronics
Chemicals
Plating solutions
Prefiltration for reverse osmosis
Magnetic tape coatings
Food and beverage
Water and wastewater
Aqueous Solutions

Compatible with:

Harmsco® Compatible	801-50/20, 801-50/20W, WB-20-50W, WB-20-50, 701-50/20
Unicel	T-0720-50-B

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Core Material	Polypropylene
Efficiency	0.9
Max Temp (°F)	175
Micron Rating (Nominal)	50 µm
Psid@Flow Rate	Change out pressure: 25-30 psid (1.72-2.07 bar)
Surface Area	12 Square Feet
Cap Material	Vinyl-Plastisol
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-3/4"
End Cap Type	Double Open Ended (DOE)
Filter Construction	Pleated
Filter Type	Pleated
Inner Diameter	1-1/16"
Media Type	Synthetic Polypropylene
Micron Rating	50 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 42, FDA CFR-21
Shipping Dimensions
Shipping Length	19.5 in.
Shipping Width	2.75 in.
Shipping Height	2.75 in.
Product Weight & Dimensions
Product Height	2.75
Product Length	20"
Product Width	2.75
Product Weight (lbs)	0.505

Product Details
Core Material	Polypropylene
Efficiency	0.9
Max Temp (°F)	175
Micron Rating (Nominal)	50 µm
Psid@Flow Rate	Change out pressure: 25-30 psid (1.72-2.07 bar)
Surface Area	12 Square Feet
Cap Material	Vinyl-Plastisol
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-3/4"
End Cap Type	Double Open Ended (DOE)
Filter Construction	Pleated
Filter Type	Pleated
Inner Diameter	1-1/16"
Media Type	Synthetic Polypropylene
Micron Rating	50 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 42, FDA CFR-21
Shipping Dimensions
Shipping Length	21.125 in.
Shipping Width	16.25 in.
Shipping Height	12.125 in.
Product Weight & Dimensions
Product Length	20"
Product Weight (lbs)	14.12

similar items

Reduces Sediment and Rust. The Neo-Pure PH-27200-50 filter is manufactured using Synthetic Polypropylene for improved reduction of sediment, dirt and rust.
High Efficiency. The 90% filtration efficiency of the Neo-Pure PH-27200-50 is suitable for filtration of liquids and edible oils.
Pleated Filter Design. The pleated filter design of the PH-27200-50 offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
High Value At A Competitive Price. The PH-27200-50 High Efficiency filter offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
Low Maintenance. Maintenance costs are reduced due to the cartridge having a longer service life and requiring fewer filter changes. The filter is cleanable and reusable in most applications.
IAPMO Certified. The Neo-Pure PH-27200-50 is tested and certified by IAPMO against NSF/ANSI 42, 61, and 372 Standards.
FDA Compliant. The filter media meets FDA/CFR Title 21 regulations for food and water contact.

Additional Specifications:

Length: 20"
Diameter: 2-34"
Micron Rating: 50 micron
Surface Area: 12 sq. ft.

Applications:

Edible oils
Cosmetics
Electronics
Chemicals
Plating solutions
Prefiltration for reverse osmosis
Magnetic tape coatings
Food and beverage
Water and wastewater
Aqueous Solutions

Compatible with:

Harmsco® Compatible	801-50/20, 801-50/20W, WB-20-50W, WB-20-50, 701-50/20
Unicel	T-0720-50-B

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
