Neo-Pure

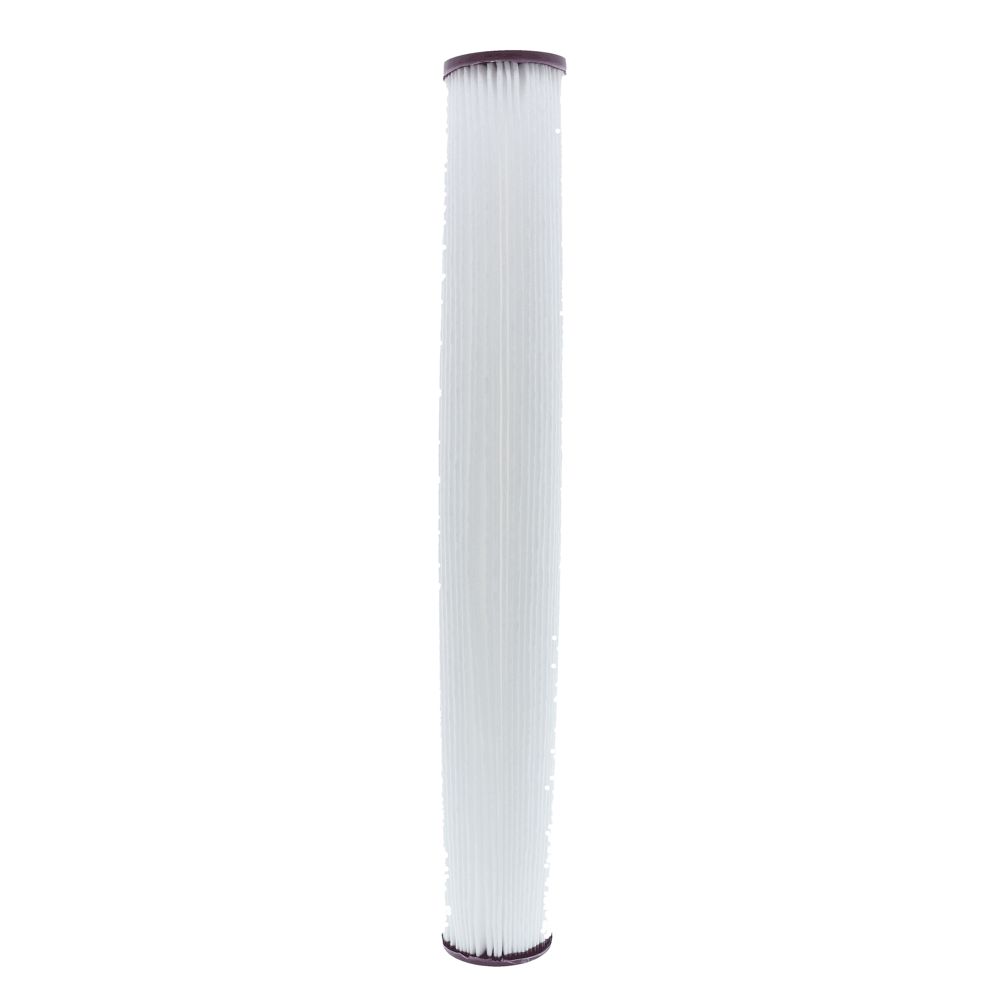

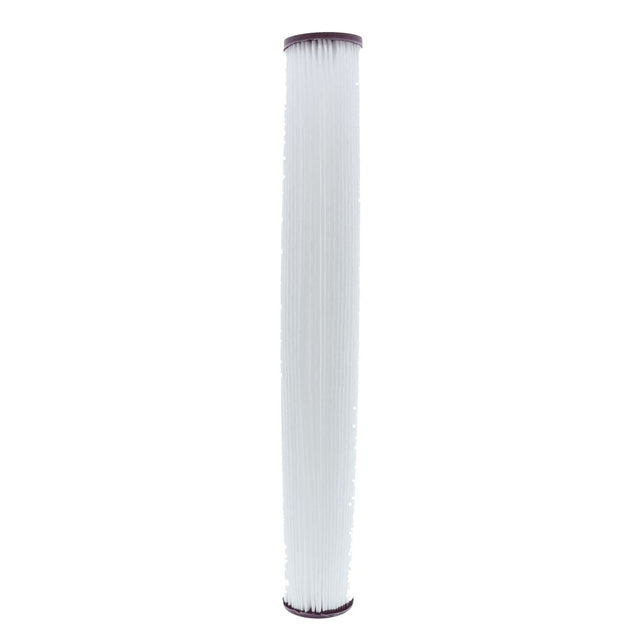

Neo-Pure PH-27200-1A 20" High Efficiency Pleated Filter 1 micron ABS

Part Number: PH-27200-1A

Alt. Part Number: PP-20E-1

In Stock

out of stock

In Stock

$26.08

The Neo-Pure PH-27097-S35 High Efficiency Pleated Filter is manufactured in the USA with materials that comply with materials FDA requirements and are NSF 61 certified.The filter operates at 90% filtration efficiency and is suitable for use in the filtration of liquids as well as edible oils.Features:
  • Reduces Cysts: The 1.0 micron absolute filtration Neo-Pure PH-27200-1A is rated for the reduction of cysts.
  • Reduces Sediment and Rust: The Neo-Pure PH-27200-1A filter is manufactured using Synthetic Polypropylene for improved reduction of sediment, dirt and rust.
  • High Efficiency: The 90% filtration efficiency of the Neo-Pure PH-27200-1A is suitable for filtration of liquids and edible oils.
  • Pleated Filter Design: The pleated filter design of the PH-27200-1A offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
  • High Value At A Competitive Price: The PH-27200-1A High Efficiency filter offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
  • Low Maintenance: Maintenance costs are reduced due to the cartridge having a longer service life and requiring fewer filter changes.
  • WQA Certified: The Neo-Pure PH-27200-1A is tested and certified by the WQA against NSF/ANSI 61 Standard.
  • FDA Compliant: The filter media meets FDA/CFR Title 21 regulations for food and water contact.
  • Made in the USA: The Neo-Pure PH-27200-1A filter cartridge is made and manufactured in the US.
Specifications:
  • Length: 20"
  • Diameter: 2-3/4"
  • Micron Rating: 1.0 micron absolute
  • Surface Area: 12 sq. ft.
Applications:
  • Edible oils
  • Cosmetics
  • Electronics
  • Chemicals
  • Plating solutions
  • Prefiltration for reverse osmosis
  • Magnetic tape coatings
  • Food and beverage
  • Water and wastewater
  • Aqueous Solution



Fin Style
(222, 226, or SOE)

Dual O-ring Style
(222)

Spring Style
(222, 226, or SOE)

Dual O-ring Style
(226)

Gasket Style
(222 or 226)

Compatible with:
Harmsco® CompatiblePP-20E-1, PPFS-20E-1

Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Quantity

24

Height (inches)

2.88

Length (inches)

20.13

Weight (lbs)

0.03125

Width (inches)

2.88

Details

Capacity

As Needed

Core Material

Polypropylene

Efficiency

0.9

Max Temp (°F)

175

Micron Rating (Absolute)

1 µm

Psid@Flow Rate

Change out pressure: 25-30 psid (1.72-2.07 bar)

Surface Area

12 Square Feet

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-3/4"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Inner Diameter

1-1/16"

Media Type

Synthetic Polypropylene

Micron Rating

1 µm

Origin

USA

Product Length

20"

Warranty & Certifications

Certifications

FDA CFR-21; NSF/ANSI 61


Neo-Pure




The Neo-Pure PH-27097-S35 High Efficiency Pleated Filter is manufactured in the USA with materials that comply with materials FDA requirements and are NSF 61 certified.The filter operates at 90% filtration efficiency and is suitable for use in the filtration of liquids as well as edible oils.Features:
  • Reduces Cysts: The 1.0 micron absolute filtration Neo-Pure PH-27200-1A is rated for the reduction of cysts.
  • Reduces Sediment and Rust: The Neo-Pure PH-27200-1A filter is manufactured using Synthetic Polypropylene for improved reduction of sediment, dirt and rust.
  • High Efficiency: The 90% filtration efficiency of the Neo-Pure PH-27200-1A is suitable for filtration of liquids and edible oils.
  • Pleated Filter Design: The pleated filter design of the PH-27200-1A offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
  • High Value At A Competitive Price: The PH-27200-1A High Efficiency filter offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
  • Low Maintenance: Maintenance costs are reduced due to the cartridge having a longer service life and requiring fewer filter changes.
  • WQA Certified: The Neo-Pure PH-27200-1A is tested and certified by the WQA against NSF/ANSI 61 Standard.
  • FDA Compliant: The filter media meets FDA/CFR Title 21 regulations for food and water contact.
  • Made in the USA: The Neo-Pure PH-27200-1A filter cartridge is made and manufactured in the US.
Specifications:
  • Length: 20"
  • Diameter: 2-3/4"
  • Micron Rating: 1.0 micron absolute
  • Surface Area: 12 sq. ft.
Applications:
  • Edible oils
  • Cosmetics
  • Electronics
  • Chemicals
  • Plating solutions
  • Prefiltration for reverse osmosis
  • Magnetic tape coatings
  • Food and beverage
  • Water and wastewater
  • Aqueous Solution



Fin Style
(222, 226, or SOE)

Dual O-ring Style
(222)

Spring Style
(222, 226, or SOE)

Dual O-ring Style
(226)

Gasket Style
(222 or 226)

Compatible with:
Harmsco® CompatiblePP-20E-1, PPFS-20E-1

Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Quantity

24

Height (inches)

2.88

Length (inches)

20.13

Weight (lbs)

0.03125

Width (inches)

2.88

Details

Capacity

As Needed

Core Material

Polypropylene

Efficiency

0.9

Max Temp (°F)

175

Micron Rating (Absolute)

1 µm

Psid@Flow Rate

Change out pressure: 25-30 psid (1.72-2.07 bar)

Surface Area

12 Square Feet

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-3/4"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Inner Diameter

1-1/16"

Media Type

Synthetic Polypropylene

Micron Rating

1 µm

Origin

USA

Product Length

20"

Warranty & Certifications

Certifications

FDA CFR-21; NSF/ANSI 61

Documentation
