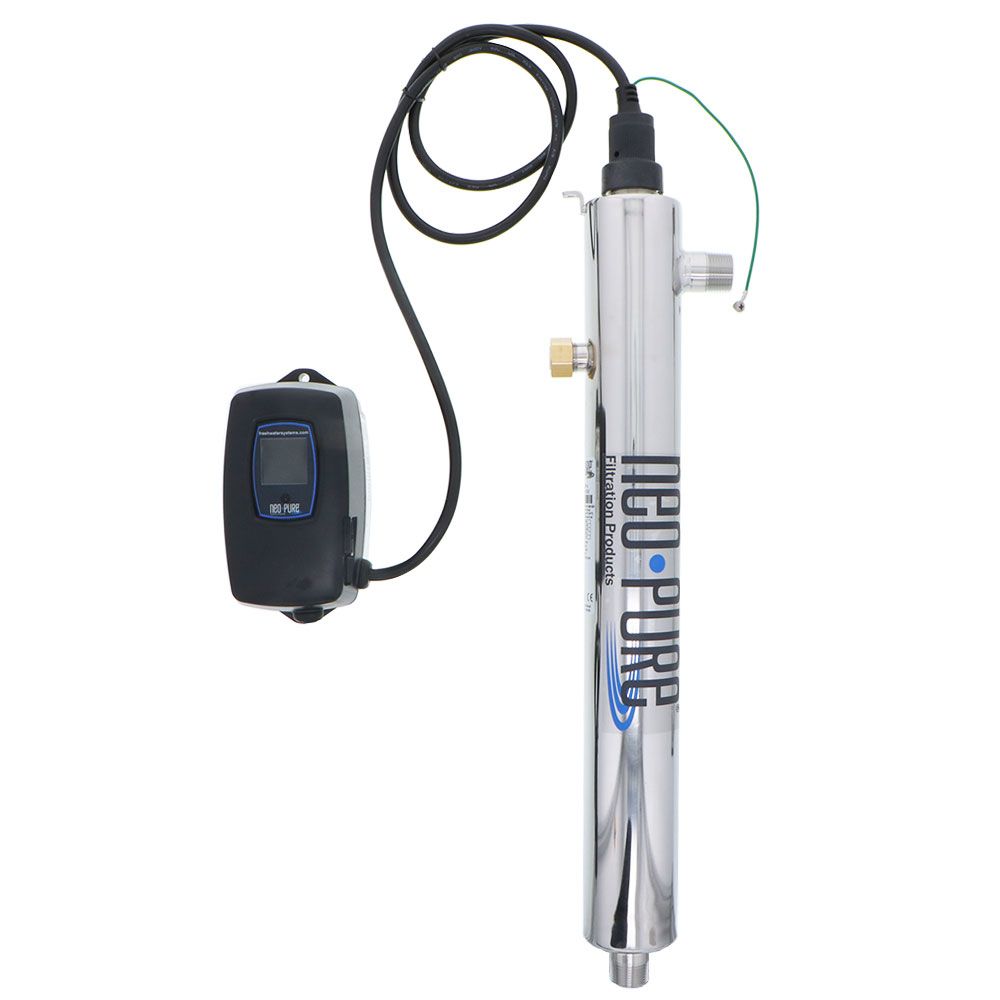

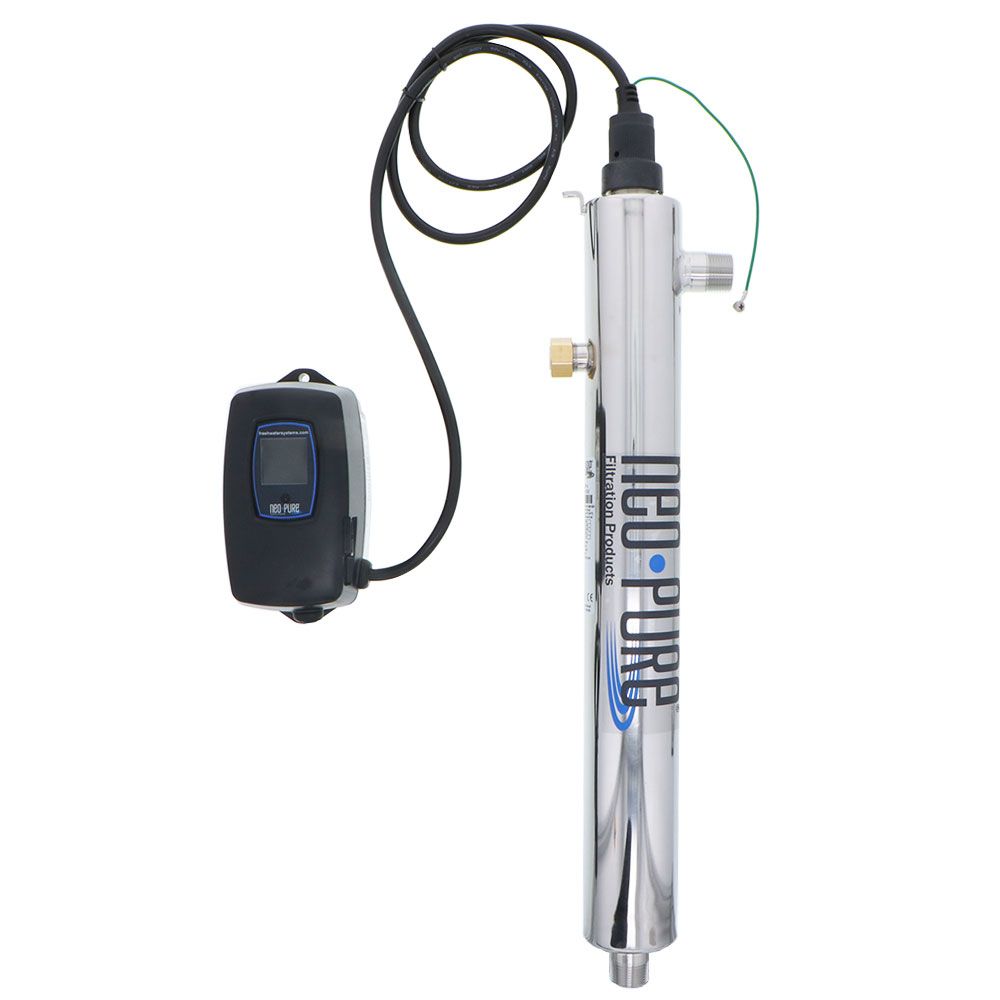

The Neo-Pure NP5-6 UV Disinfection System is designed to ensure safe drinking water for your family despite the presence of harmful bacteria. Ultraviolet light neutralizes the DNA of harmful viruses and bacteria, such as Cryptosporidium, Giardia, and E-Coli so they’re unable to reproduce. This NSF Class B Certified system is rated at 6 gallon-per-minute (GPM) and is ideal for small residences with 2 to 3 bathrooms. Other applications may use this system as well, including large RV campers, condos, cottages, large boats, and other light commercial applications. The NP5-6 is a point-of-entry (POE) system that connects directly to the water supply coming into your home, safeguarding all the water entering your residence.
System Features:

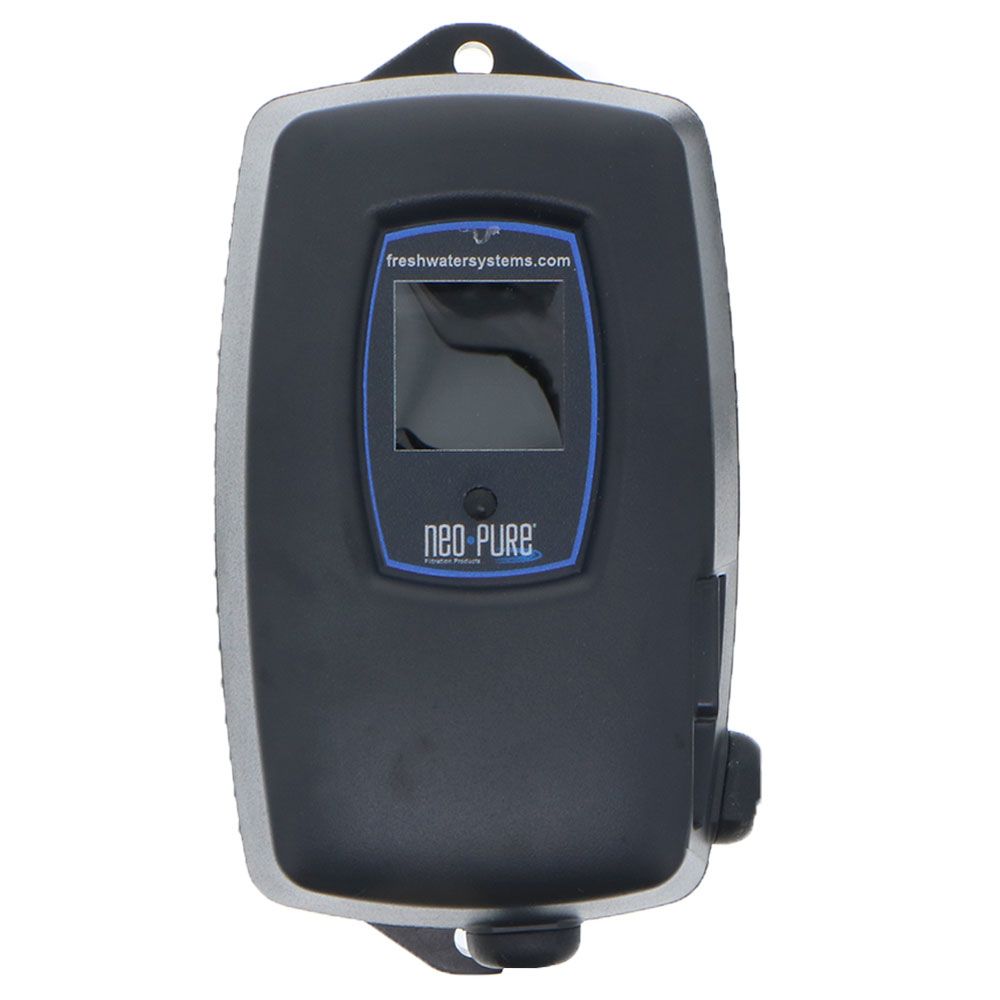

The Neo-Pure NP5-6 unit receives our Premium LED controller standard. This premium controller features new technology designed to eliminate the guesswork out of UV system maintenance. Older systems require a manual reset that, if performed incorrectly, would lead to UV lamp failure without the user’s knowledge. The Neo-Pure UV System uses a state-of-the-art encrypted lamp key which is required for the system to run. When the UV Bulb reaches its limit the unit will shut down, and the LED display will notify the user that the UV lamp needs to be replaced. The new lamp comes with a new encrypted key that brings the unit safely back online and ensures safe drinking water for your home. The controller has many other helpful screens to keep the user posted on on-going maintenance and parts replacement.
Monitor Features:
System Features:
- Axial Flow 304 Stainless Steel Reactor

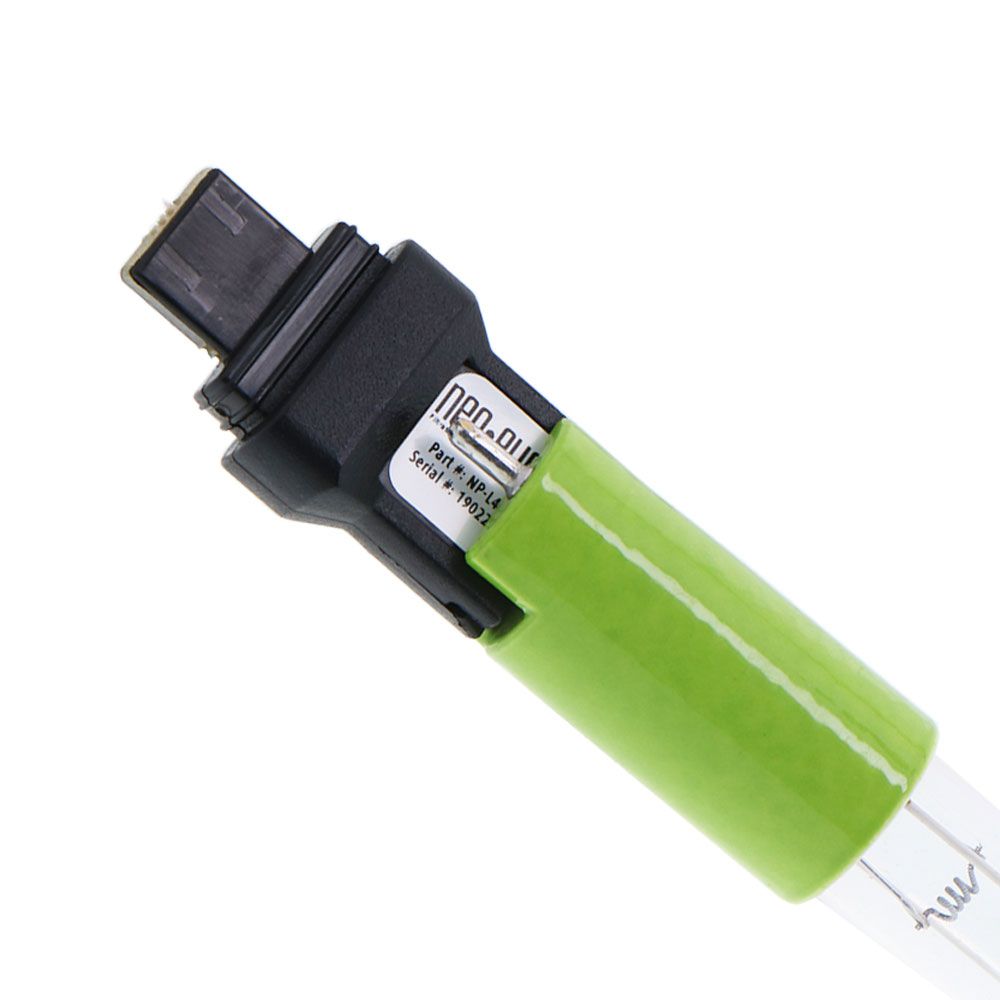

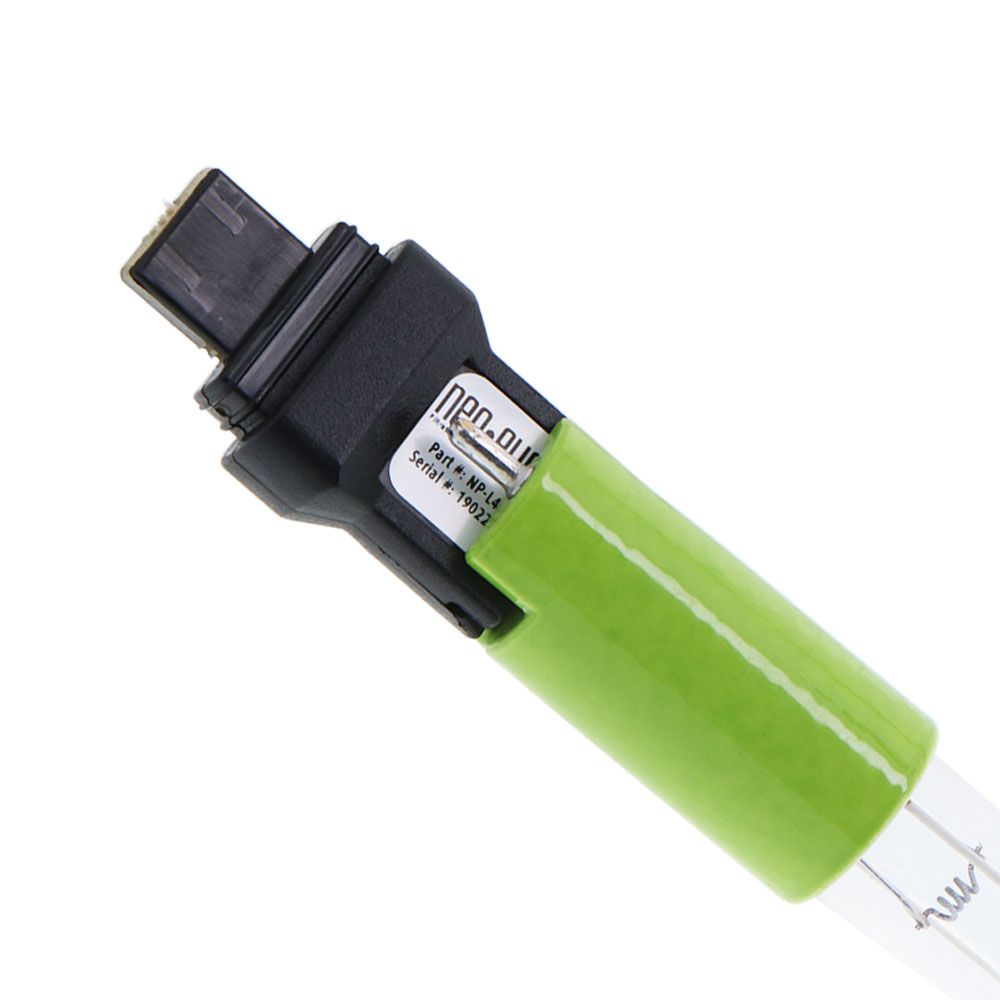

- 1/4 Turn Lamp Connector for easy maintenance

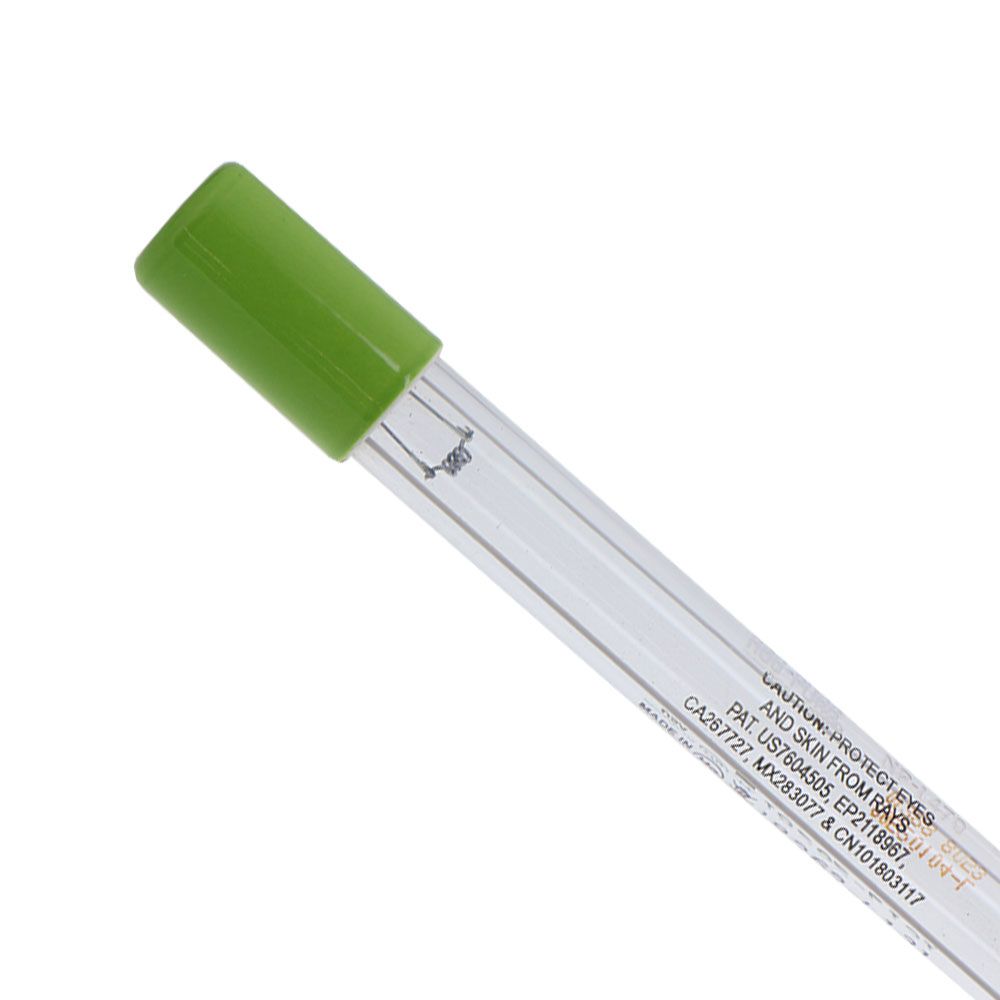

- Industry Proven Low Pressure Coated UV Lamp for Long Lamp Life

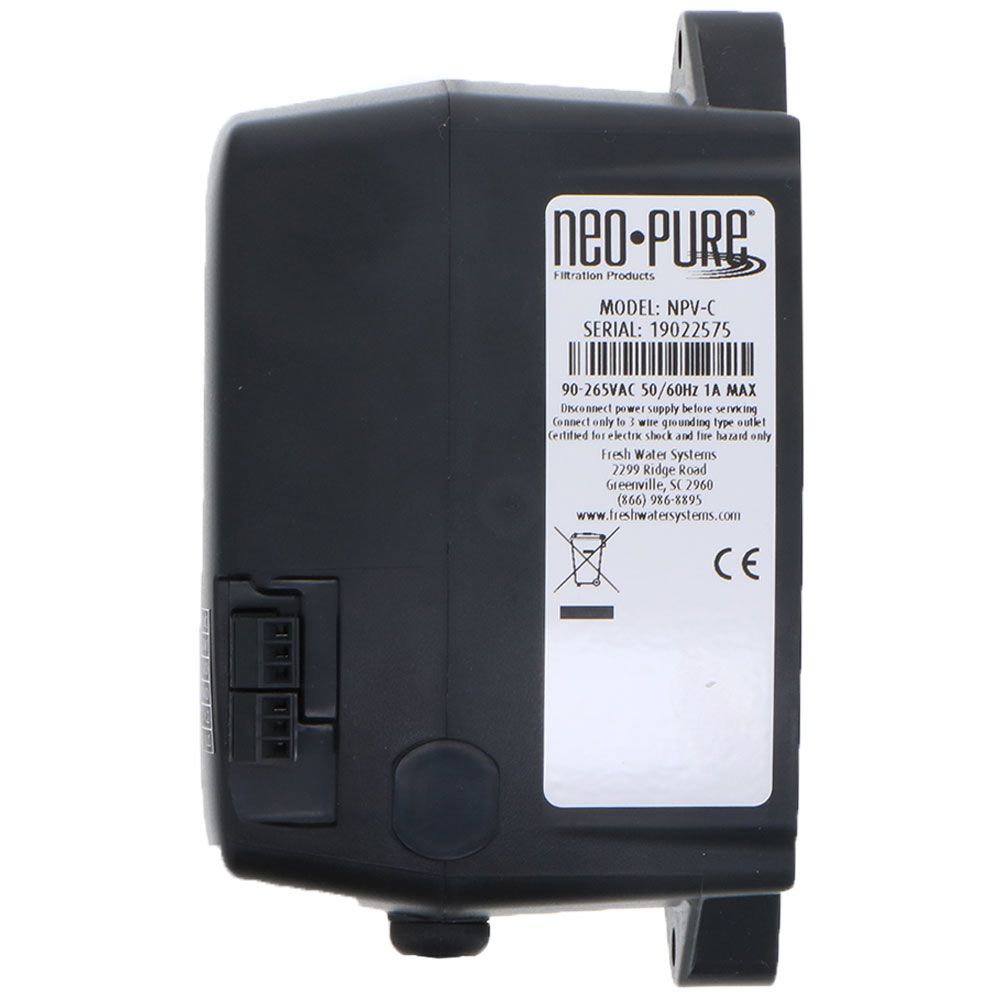

- Constant Current Electronic Controller with Splash Proof Casings
- 6 GPM LP System with Monitoring
The Neo-Pure NP5-6 unit receives our Premium LED controller standard. This premium controller features new technology designed to eliminate the guesswork out of UV system maintenance. Older systems require a manual reset that, if performed incorrectly, would lead to UV lamp failure without the user’s knowledge. The Neo-Pure UV System uses a state-of-the-art encrypted lamp key which is required for the system to run. When the UV Bulb reaches its limit the unit will shut down, and the LED display will notify the user that the UV lamp needs to be replaced. The new lamp comes with a new encrypted key that brings the unit safely back online and ensures safe drinking water for your home. The controller has many other helpful screens to keep the user posted on on-going maintenance and parts replacement.
Monitor Features:
- Lamp Life Remaining Screen
- Lamp Expiration Screen
- QR Code Screen for Immediate Information
- Lamp Failure Monitor
- Incorrect Lamp Usage Indicator
- Maintenance Parts Guide for Correct Replacement Ordering
- Missing Port Key or Invalid Key Indicator
- Fresh Water Systems Contact Information
Weight & Dimensions
Box Quantity | 1 |
Dimensions | 2.5” D x 21.3” L (6.4 x 54.2cm) |
Shipping Weight | 14.3 lbs |
Weight (lbs) | 14.3 |
Details
Amps | 1 Amps |
Body Material | 304 Stainless Steel |
Inlet/Outlet Connection | 3/4" MPT |
Power | Lamp-22W, Lamp-30W |
Size | 3/4" |
System Class | Residential Systems |
Connection Type | Male (MPT) |
Flow Rate | 6 GPM (30mJ/cm2 @ 95% UVT), 4.4 GPM (40mJ/cm2 @ 95% UVT), 11 GPM (16mJ/cm2 @ 95% UVT) |
Type | Single UV System |
Warranty & Certifications
Certifications | NSF Class B Standard 55 |
The Neo-Pure NP5-6 UV Disinfection System is designed to ensure safe drinking water for your family despite the presence of harmful bacteria. Ultraviolet light neutralizes the DNA of harmful viruses and bacteria, such as Cryptosporidium, Giardia, and E-Coli so they’re unable to reproduce. This NSF Class B Certified system is rated at 6 gallon-per-minute (GPM) and is ideal for small residences with 2 to 3 bathrooms. Other applications may use this system as well, including large RV campers, condos, cottages, large boats, and other light commercial applications. The NP5-6 is a point-of-entry (POE) system that connects directly to the water supply coming into your home, safeguarding all the water entering your residence.
System Features:
- Axial Flow 304 Stainless Steel Reactor
- 1/4 Turn Lamp Connector for easy maintenance
- Industry Proven Low Pressure Coated UV Lamp for Long Lamp Life
- Constant Current Electronic Controller with Splash Proof Casings
- 6 GPM LP System with Monitoring
The Neo-Pure NP5-6 unit receives our Premium LED controller standard. This premium controller features new technology designed to eliminate the guesswork out of UV system maintenance. Older systems require a manual reset that, if performed incorrectly, would lead to UV lamp failure without the user’s knowledge. The Neo-Pure UV System uses a state-of-the-art encrypted lamp key which is required for the system to run. When the UV Bulb reaches its limit the unit will shut down, and the LED display will notify the user that the UV lamp needs to be replaced. The new lamp comes with a new encrypted key that brings the unit safely back online and ensures safe drinking water for your home. The controller has many other helpful screens to keep the user posted on on-going maintenance and parts replacement.
Monitor Features:
- Lamp Life Remaining Screen
- Lamp Expiration Screen
- QR Code Screen for Immediate Information
- Lamp Failure Monitor
- Incorrect Lamp Usage Indicator
- Maintenance Parts Guide for Correct Replacement Ordering
- Missing Port Key or Invalid Key Indicator
- Fresh Water Systems Contact Information
Weight & Dimensions
Box Quantity | 1 |
Dimensions | 2.5” D x 21.3” L (6.4 x 54.2cm) |
Shipping Weight | 14.3 lbs |
Weight (lbs) | 14.3 |
Details
Amps | 1 Amps |
Body Material | 304 Stainless Steel |
Inlet/Outlet Connection | 3/4" MPT |
Power | Lamp-22W, Lamp-30W |
Size | 3/4" |
System Class | Residential Systems |
Connection Type | Male (MPT) |
Flow Rate | 6 GPM (30mJ/cm2 @ 95% UVT), 4.4 GPM (40mJ/cm2 @ 95% UVT), 11 GPM (16mJ/cm2 @ 95% UVT) |
Type | Single UV System |
Warranty & Certifications
Certifications | NSF Class B Standard 55 |
