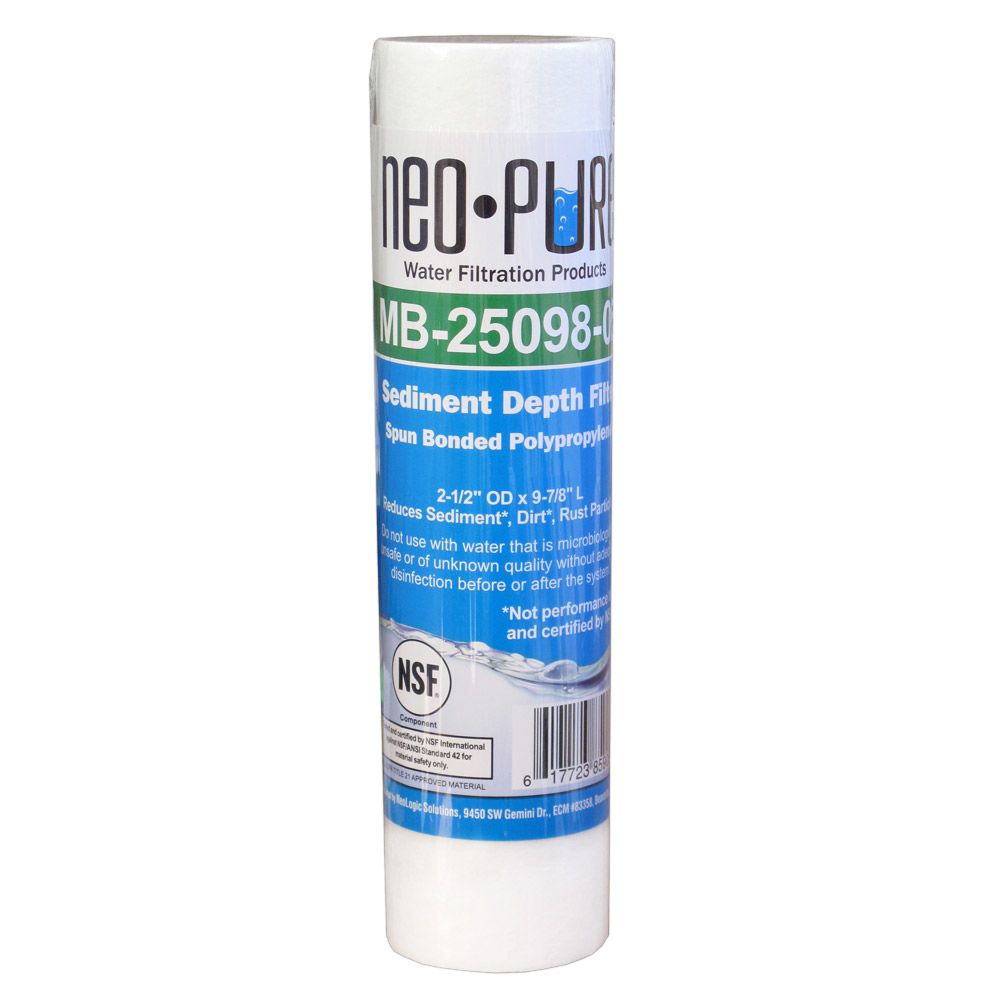

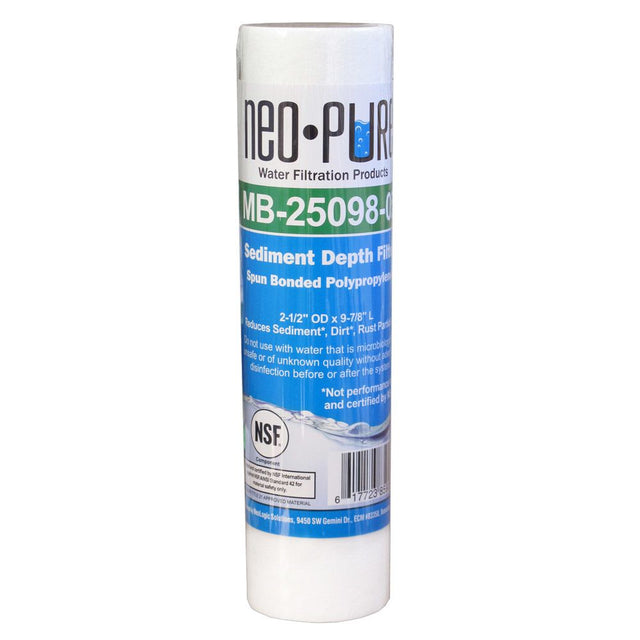

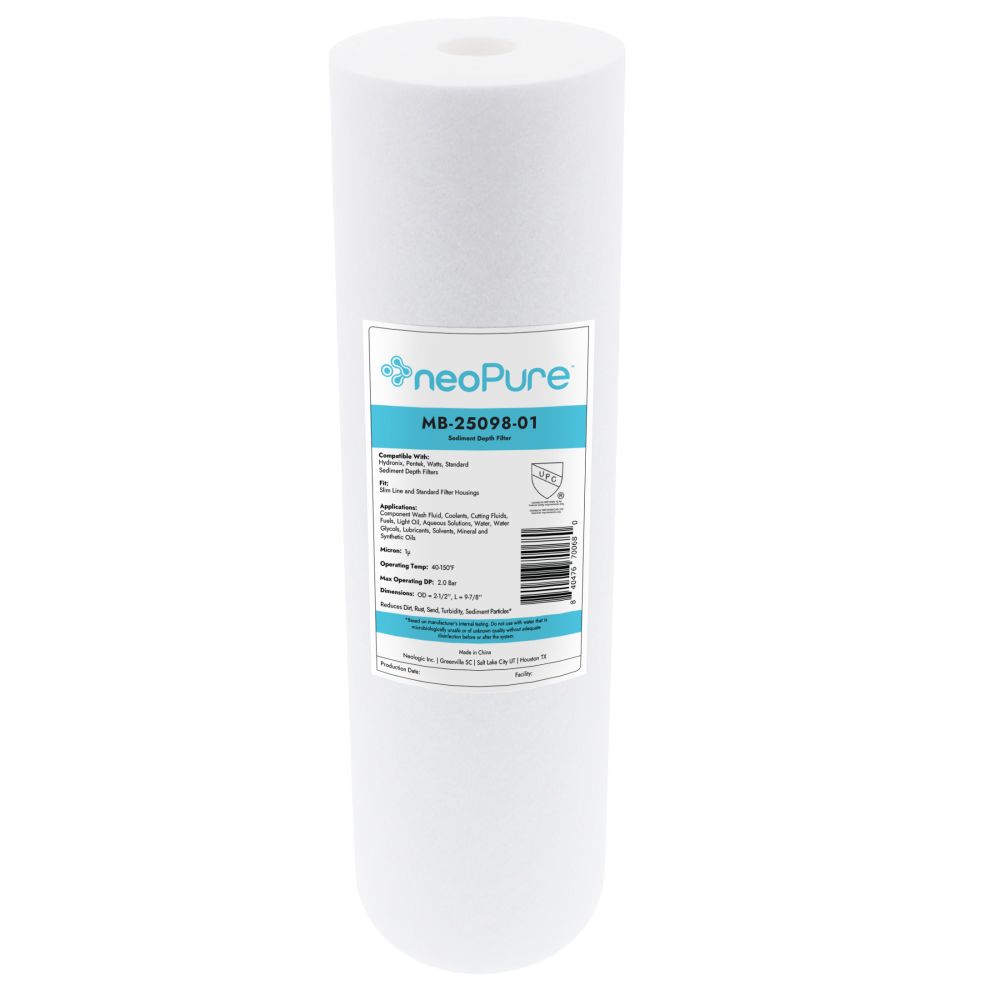

Neo-Pure MB-25098-01 9-7/8" Polypropylene Sediment Depth Filter 1 Mic

Part Number: MB-25098-01

Alt. Part Number: SD-25-1001

In Stock

out of stock

In Stock

$17.25

The Neo-Pure MB-25098-01 is a High Efficiency 9-7/8" Polypropylene Sediment Depth Filter, which is a reliable and economical solution for pre-filtration in many applications. The 9-7/8" sediment depth filter, like FCRO cartridges, offer greater surface area for longer life and greater dirt holding capacity. Neo-Pure MB-25098-01 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.

Applications:
  • RO Prefiltration
  • Food & Beverage
  • Photo Solutions
  • Electroplating
  • Ice Machines
  • DI Prefiltration
  • Microelectronics
  • Chemicals
  • UV Prefilter
  • Water Pump Prefiltration
Features:
  • Manufactured from 100% pure polypropylene fibers
  • True multi-layer depth filtration
  • High dirt holding capacity and high level of chemical compatibility
  • Coreless Design is an economical solution to pre-filtration for many applications
  • Fits in most water filter housings that use 9-7/8" x 2.5" filters
  • FDA CFR Title 21 Approved Material
  • Certified by NSF/ANSI Standard 42 for material safety only



Compatible with:
Coster Engineering625-002-392
GE Water93113, 1193113, PX01-9 7/8, PX01-10
Graver TechnologiesSTC1-9.75NN
HydronixSDC-25-1001
Ideal H2O™738335
LiquatecSDF-25-1001
PentekP1, 155225-43
PureProPP-10-01, 03002
Valuetrex1227865-V, VX01-9 7/8
WattsFPMB1-978

Weight & Dimensions

Approx Length (Inches)

9-7/8" (25.1 cm)

Case Quantity

50

Height (inches)

2.5

Length (inches)

10

Weight (lbs)

0.293

Width (inches)

2.5

Details

Capacity

As Needed

Efficiency

0.8

Initial Pressure Drop

<1 typical PSI Differential

Max Temp (°F)

175

Micron Rating (Nominal)

1 µm

Min Temp (°F)

40

Psid@Flow Rate

< 1 psi typical

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Melt Blown

Filter Type

Sediment Depth

Media Type

Polypropylene

Micron Rating

1 µm

Origin

China

Product Length

9-7/8"

Warranty & Certifications

Certifications

NSF/ANSI 42; FDA CFR-21
