Features:
- 1 micron filtration of chlorine taste and odor, sediment, cysts, lead and scale
- Radial flow filter design utilizes entire media area for maximum performance and minimal pressure drop
- Self-contained sealed cartridge ensures that hands do not touch the filter media reducing the potential for introducing bacteria
- Spun polypropylene prefilter wrap extends the life of the filter by protecting the media from plugging due to sediment
- Capacity of 1250 gallons for a maximum service life of 1 year
- Higher capacity alternative to the Insinkerator F-201 Filter System
- Single filter mounting bracket with mounting screws
- Head assembly with quick-connect fittings
- NP-QCB01PBS filter
- 6’ of 1/4" tubing
- Twistloc 3/8 x 3/8 x 1/4 angle stop adapter valve

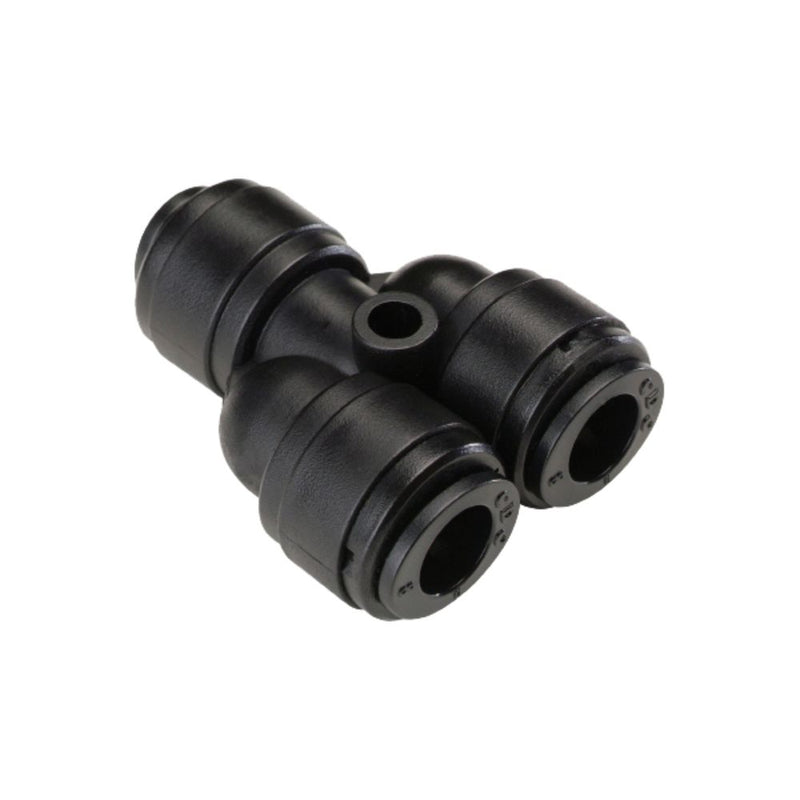

- Parker Liquifit 1/4" divider fitting
Weight & Dimensions
Approx Depth | 3-1/4" |
Approx Height (Inches) | 13-1/2" |
Approx Width (Inches) | 3-5/8" |
Weight (lbs) | 1.3 |
Details
Application | Hot Water |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 100 |
Micron Rating (Nominal) | 1 µm |
Min Temp (°F) | 35 |
Change Frequency | 1250 Gallons |
Contaminants Reduced | Chlorine/Taste/Odor, Sediment/Dirt/Rust, Lead, Cysts, Scale |
Flow Rate | 0.5 GPM |
Media Type | Coconut Shell Carbon Block w/ Phosphate |
Origin | Contains USA and foreign made components |

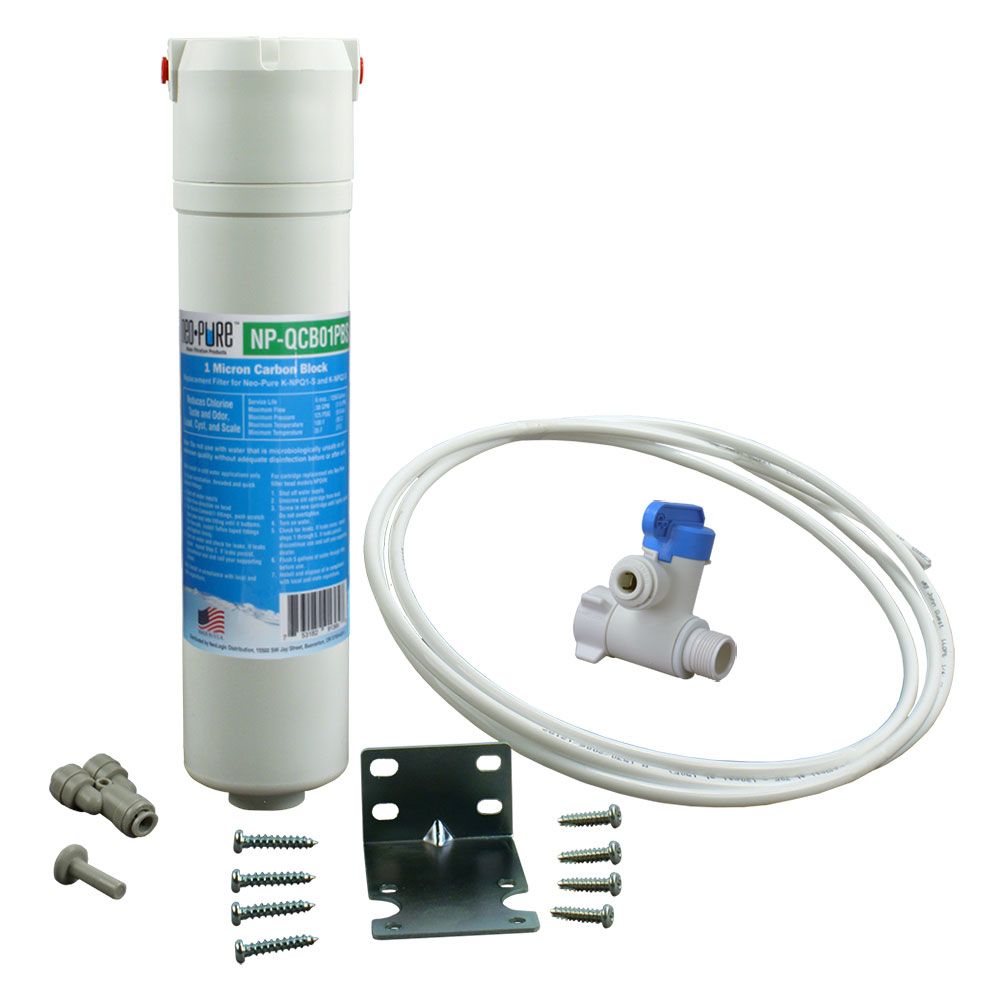

The Neo-Pure K-NPHWD Quick Change Hot Water Dispenser Filter Kit is designed to work with hot water dispensers such as the Waste King Quick & Hot or Insinkerator Hot Water Dispenser. The filter will reduce sediment, cysts, lead, chlorine, taste and odor and has a scale inhibitor to help protect your equipment from the harmful effects of scale buildup.
Features:
- 1 micron filtration of chlorine taste and odor, sediment, cysts, lead and scale
- Radial flow filter design utilizes entire media area for maximum performance and minimal pressure drop
- Self-contained sealed cartridge ensures that hands do not touch the filter media reducing the potential for introducing bacteria
- Spun polypropylene prefilter wrap extends the life of the filter by protecting the media from plugging due to sediment
- Capacity of 1250 gallons for a maximum service life of 1 year
- Higher capacity alternative to the Insinkerator F-201 Filter System
- Single filter mounting bracket with mounting screws
- Head assembly with quick-connect fittings
- NP-QCB01PBS filter
- 6’ of 1/4" tubing
- Twistloc 3/8 x 3/8 x 1/4 angle stop adapter valve
- Parker Liquifit 1/4" divider fitting
Weight & Dimensions
Approx Depth | 3-1/4" |
Approx Height (Inches) | 13-1/2" |
Approx Width (Inches) | 3-5/8" |
Weight (lbs) | 1.3 |
Details
Application | Hot Water |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 100 |
Micron Rating (Nominal) | 1 µm |
Min Temp (°F) | 35 |
Change Frequency | 1250 Gallons |
Contaminants Reduced | Chlorine/Taste/Odor, Sediment/Dirt/Rust, Lead, Cysts, Scale |
Flow Rate | 0.5 GPM |
Media Type | Coconut Shell Carbon Block w/ Phosphate |
Origin | Contains USA and foreign made components |
