Neo-Pure

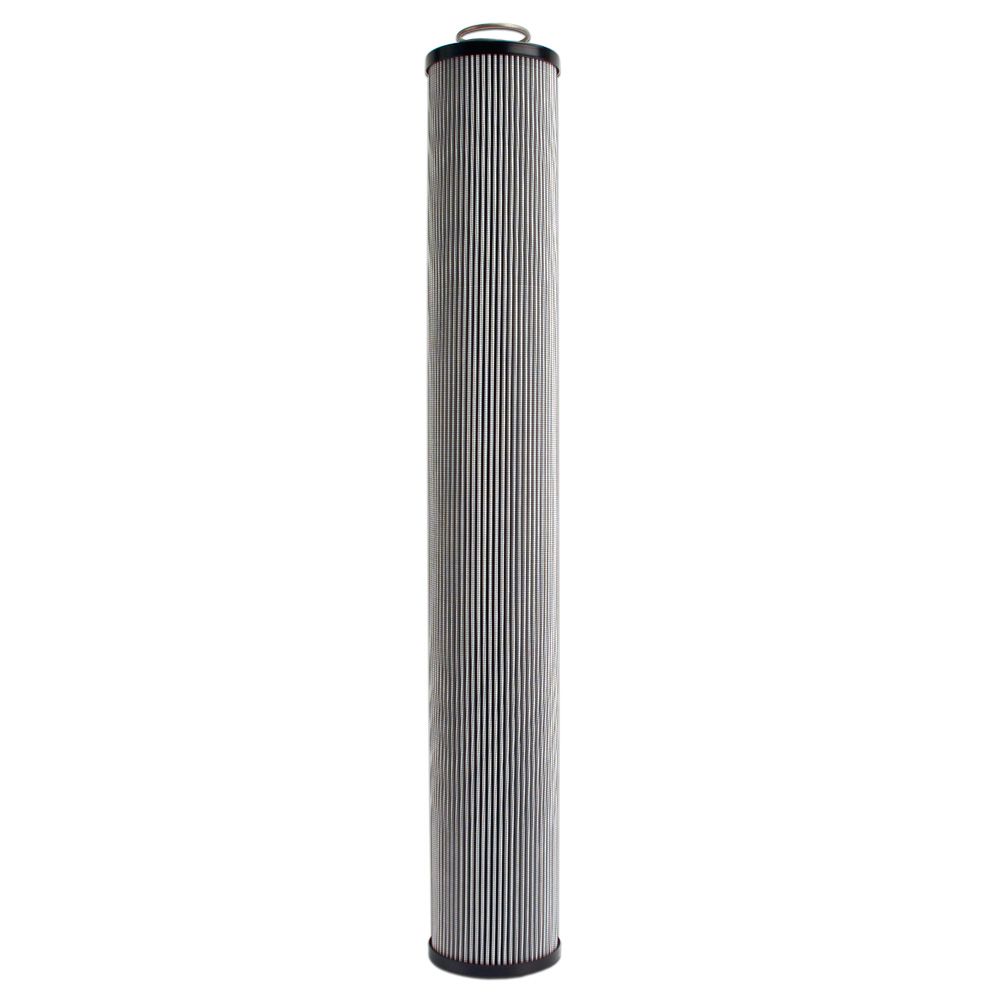

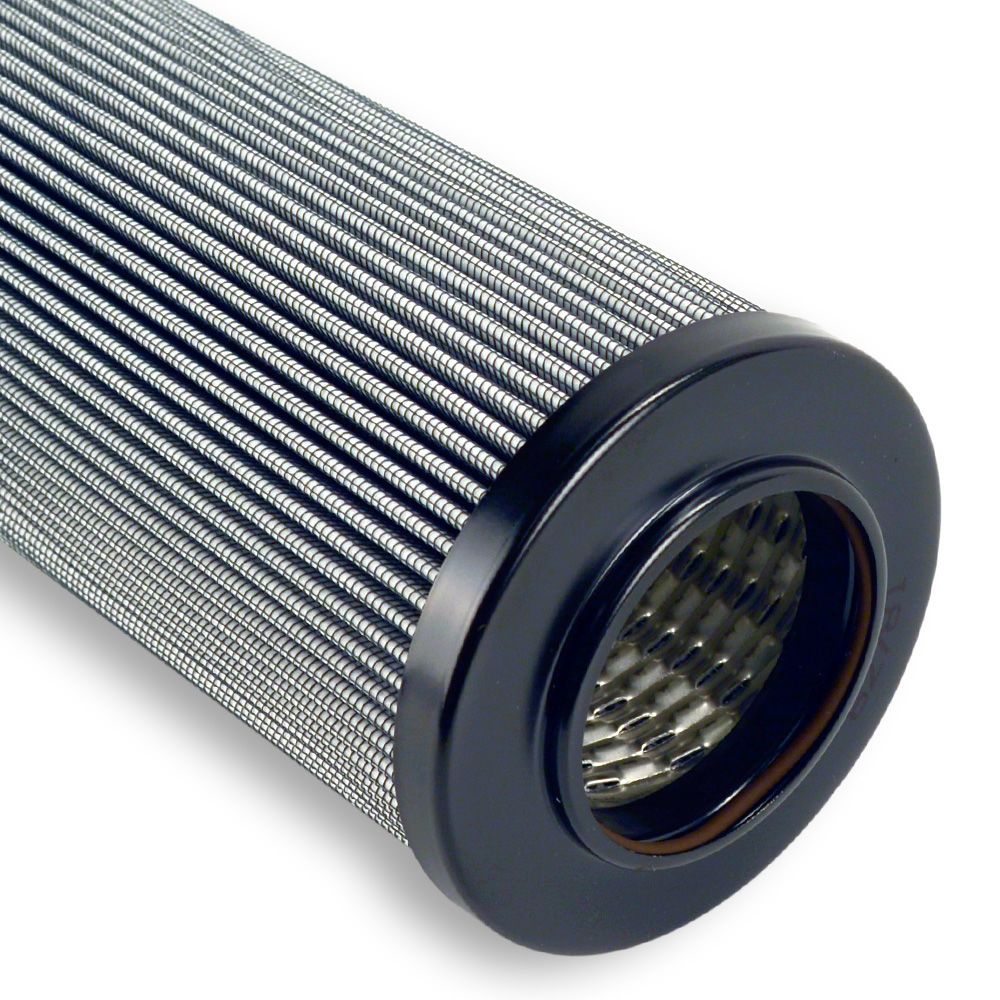

Neo-Pure HYL426-12VS HYL Series Hydraulic & Lubrication Filter

Part Number: HYL426-12VS

In Stock

out of stock

In Stock

$130.00


Neo-Pure HYL Series Hydraulic and Lubrication Filters are designed for a variety of oil and hydraulic fluid filtration applications and are manufactured the USA. The HYL426-12VS is constructed out of carbon steel and contains multi-layer dual phase microglass pleated media designed to handle high flow rates. HYL Series filters are ISO 16889 and Dynamic Filter Efficiency Tested.

Specifications:
  • Multi-layer dual phase microglass pleated media
  • High flow rates, low pressure drop and stable Beta x[c] rated efficiencies
  • Micron Rating: Beta 12[c] >= 1000
  • Max Temperature: 250°F

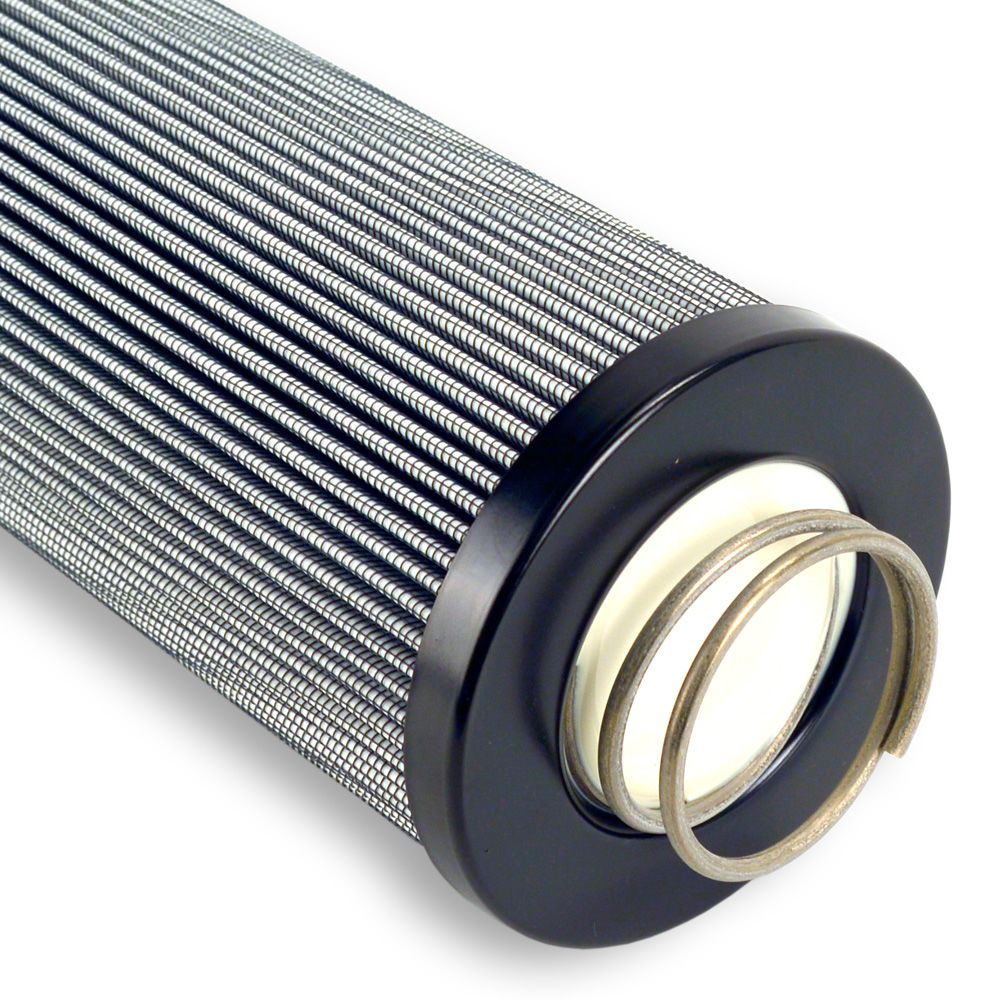

  • Viton O-ring seal with external hold-down spring
  • Made in the USA
Compatible with the following filters:
  • GE: 328A8836P003, 358A8836P001
  • Hilco: PH426-01-CG1V, PH426-11-CG1V
  • Hycoa: V2640120V1
  • Hy-pro: HPQ20228-12MV
  • National Filter: 2200A2, 2200FE, P4260120PC17
  • National Filtration: 2200A3, REP, HF12426-1-7, HF06426-1-7


Weight & Dimensions

Approx Length (Inches)

26"

Details

Cap Material

Corrosion Resistant CS/AL

Capacity

As Needed

Case Quantity

1

End Cap Type

SOE/Spring

Inner/Outer Wraps

Electro-Tin Plated CS

Media Type

Microglass supported both sides

Mesh Size

Epoxy-coated Carbon Steel

Micron Rating (Absolute)

Beta 12[c] >= 1000 Micron

O Rings

Viton

Operating Pressure Range

Max 150 psid PSI

Operating Temperature Range

Max 250 Degrees Fahrenheit

Origin

USA

Outer Diameter

3.78"

Direction

Outside - In


Neo-Pure





Neo-Pure HYL Series Hydraulic and Lubrication Filters are designed for a variety of oil and hydraulic fluid filtration applications and are manufactured the USA. The HYL426-12VS is constructed out of carbon steel and contains multi-layer dual phase microglass pleated media designed to handle high flow rates. HYL Series filters are ISO 16889 and Dynamic Filter Efficiency Tested.

Specifications:
  • Multi-layer dual phase microglass pleated media
  • High flow rates, low pressure drop and stable Beta x[c] rated efficiencies
  • Micron Rating: Beta 12[c] >= 1000
  • Max Temperature: 250°F
  • Viton O-ring seal with external hold-down spring
  • Made in the USA
Compatible with the following filters:
  • GE: 328A8836P003, 358A8836P001
  • Hilco: PH426-01-CG1V, PH426-11-CG1V
  • Hycoa: V2640120V1
  • Hy-pro: HPQ20228-12MV
  • National Filter: 2200A2, 2200FE, P4260120PC17
  • National Filtration: 2200A3, REP, HF12426-1-7, HF06426-1-7

Weight & Dimensions

Approx Length (Inches)

26"

Details

Cap Material

Corrosion Resistant CS/AL

Capacity

As Needed

Case Quantity

1

End Cap Type

SOE/Spring

Inner/Outer Wraps

Electro-Tin Plated CS

Media Type

Microglass supported both sides

Mesh Size

Epoxy-coated Carbon Steel

Micron Rating (Absolute)

Beta 12[c] >= 1000 Micron

O Rings

Viton

Operating Pressure Range

Max 150 psid PSI

Operating Temperature Range

Max 250 Degrees Fahrenheit

Origin

USA

Outer Diameter

3.78"

Direction

Outside - In
