Neo-Pure

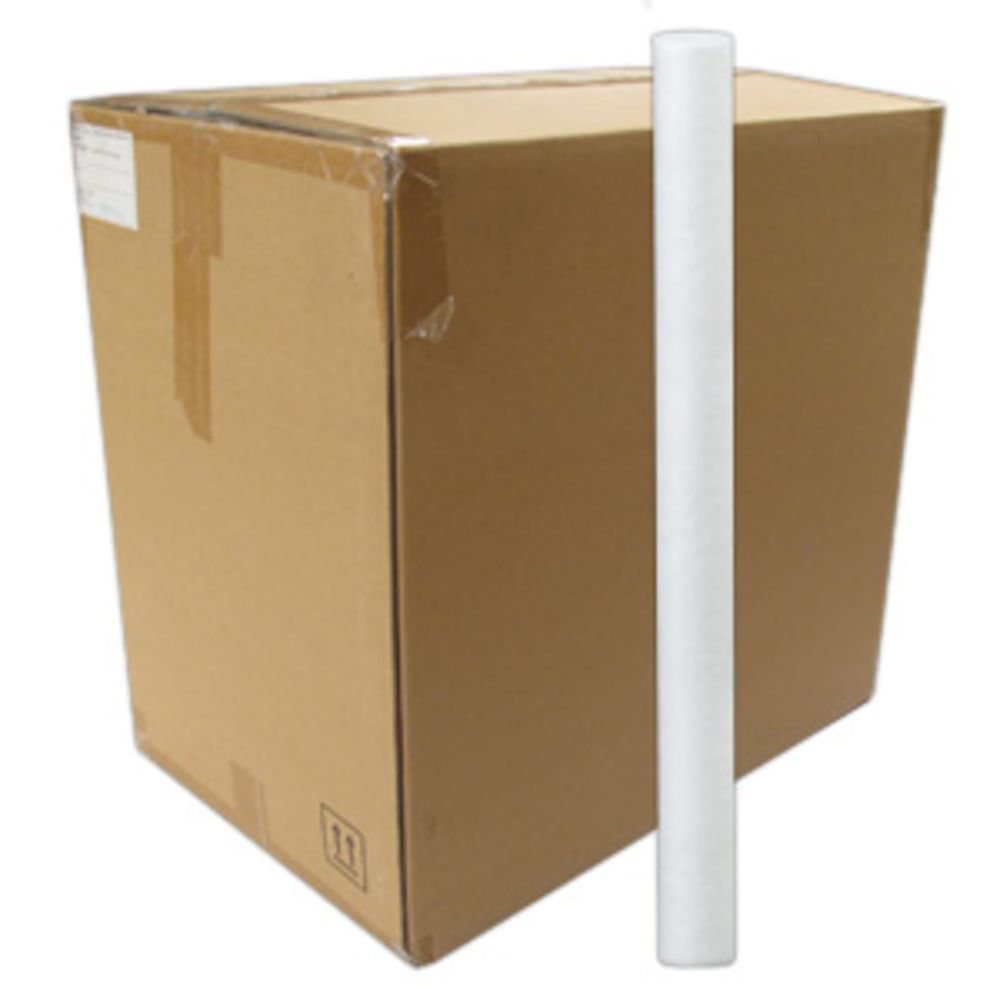

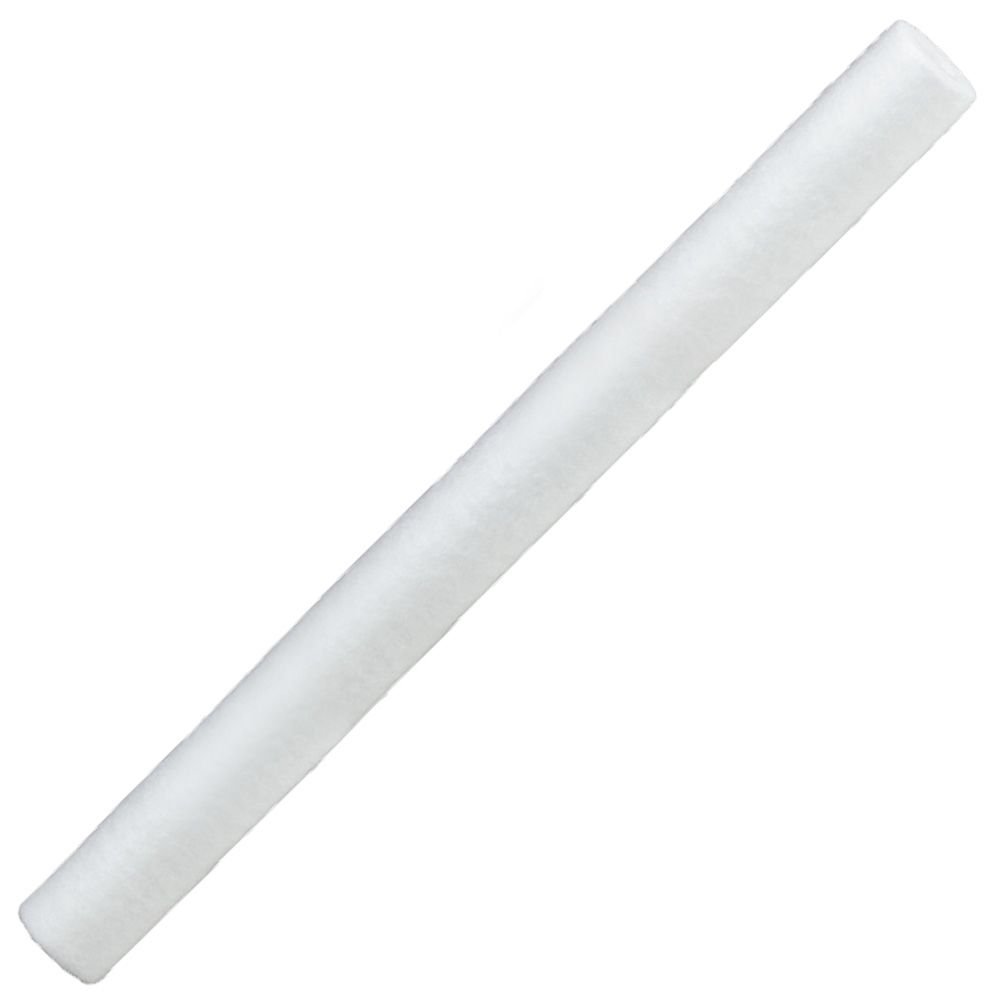

Neo-Pure HMB-25300-50 30" High Efficiency Meltblown Filter 50 micron

Part Number: HMB-25300-50

In Stock

out of stock

In Stock

$12.39

Neo-Pure HMB-25300-50 30" Meltblown 50 mic. 100% polypropylene filters offer economical and efficient filtration for commercial and industrial liquid applications. Ideal applications range from, SDI (service deionization) systems, and CDI (continuous deionization) systems, to reverse osmosis systems. These cartridges are manufactured in the USA with high efficiency polypropylene ensuring reduction of sediment, dirt, and rust particles. Neo-Pure HMB-25300-50 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.

Features:
  • High dirt holding capacity
  • Double open-ended for quick change-out
  • Reduces sediment, dirt, and rust particles
  • Filter Media: 100% polypropylene
  • High efficiency operating at 90% efficiency
  • FDA CFR Title 21 Approved Material
  • Certified by WQA to NSF/ANSI Standard 61
  • Certified by WQA to NSF/ANSI Standard 42
Applications
  • Chemicals
  • Food and Beverage
  • Microelectronics
  • Photo Solutions
  • Bottled Water
  • Plating Processes
  • Reverse Osmosis Prefiltration
  • Water and Wastewater



Fin Style
(222, 226, or SOE)

Dual O-ring Style
(222)

Spring Style
(222, 226, or SOE)

Dual O-ring Style
(226)

Gasket Style
(222 or 226)

Compatible with:
GE Water1194233, 94233, GX50-30
Graver TechnologiesSTA1-30NN

Weight & Dimensions

Approx Length (Inches)

30" (76.2 cm)

Box Dimensions

13x13.125x33

Case Quantity

25

Height (inches)

2.5

Length (inches)

30

Weight (lbs)

0.059375

Width (inches)

2.5

Details

Initial Pressure Drop

<1 psi typical PSI Differential

Max Temp (°F)

175

Micron Rating (Nominal)

50 µm

Outer Diameter

2-1/2"

Psid@Flow Rate

< 1 psi typical

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Melt Blown

Filter Type

Sediment Depth

Media Type

Polypropylene

Micron Rating

50 µm

Origin

USA

Product Length

30"

Warranty & Certifications

Certifications

FDA CFR-21


Neo-Pure
