Neo-Pure

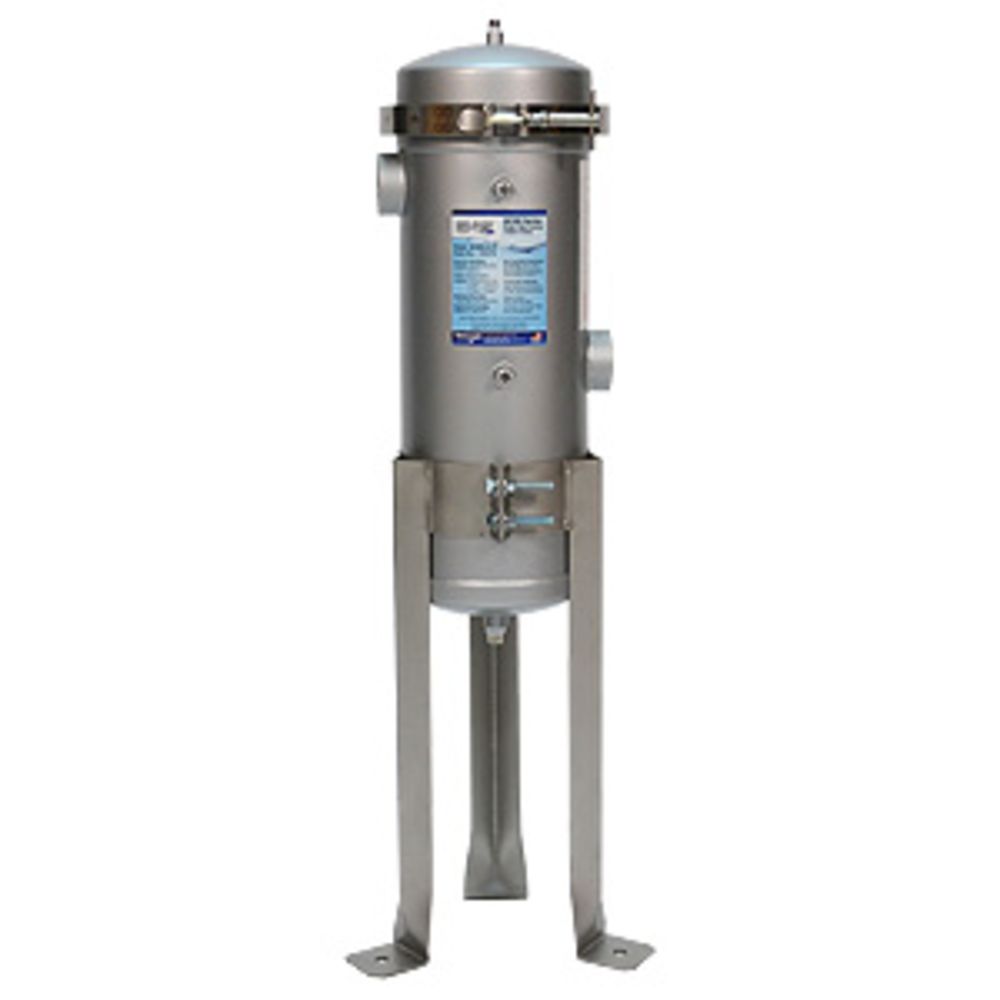

Neo-Pure BCSB1 #1 Standard Bag Band Clamp Filter Housing - Standard 2" Flanged

Part Number: BCSB1-316L-2FL

In Stock

out of stock

In Stock

$982.32


Neo-Pure Stainless Steel BCSB1 Housing provides excellent filtration with a single standard #1 bag filter for flow rates up to 70 gpm. The V-band clamp allows quick filter bag change-outs and secure sealing.
Specifications:
  • Designed for commercial and industrial filter applications
  • Accepts standard bag #1 filters for easy replacement and excellent filtration
  • Heavy-duty 316L stainless steel construction for maximum durability
  • V-band clamp closure for quick, easy change-outs and secure sealing
  • Protective poly-coat finish
  • Flow rates up to 70 gallons per minute
  • Inlet/Outlet: 3" FNPT
  • All stainless steel internals
  • Standard version comes with adjustable mounting legs
Standard option BCSB series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our  Returns Policy .

Applications for BCSB Series Filter Housings:
  • Chemicals
  • Coolants
  • Food and Beverage
  • Electronics
  • Oil and Gas
  • Paints, Inks, and Coatings
  • Paper and Pulp
  • Water

Compatible with:
Harmsco® CompatibleBCB-1-2-STD

Weight & Dimensions

Weight (lbs)

43

Approx Height (Inches)

27.204"

Case Dimensions

18-7/8" (47. 9 cm)

Details

Max Temp (°F)

300

Max Pressure (Psi)

150

Body Material

316L Stainless Steel

Cap Color

Stainless Steel

Cap Material

316 Stainless Steel

Closure Type

V-Band Clamp

Color / Finish

Stainless Steel

Drain Size

1/2" FPT

Material Of Construction

316 Stainless Steel

Max Flow Rate

70 GPM

Origin

USA

Size

2"

Inlet/Outlet Connection

2" FPT
