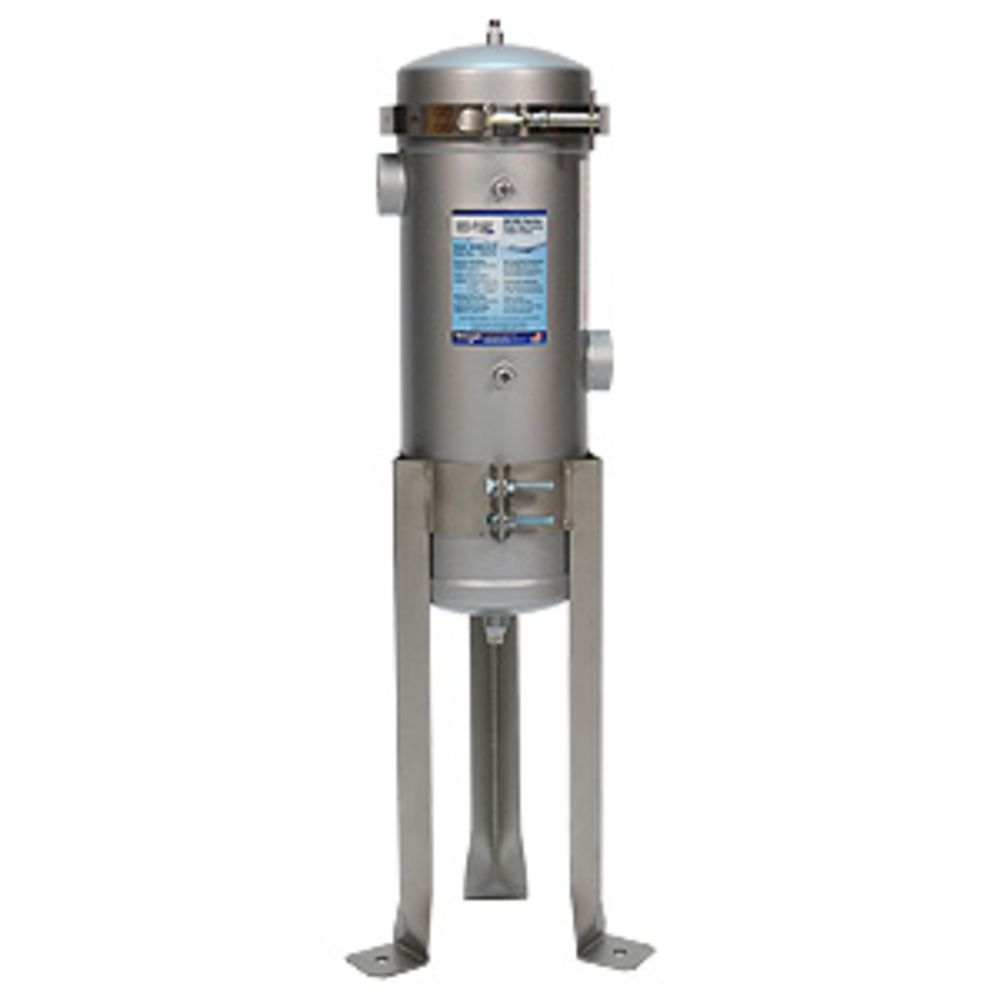

Neo-Pure BCSB1 #1 Standard Bag Band Clamp Filter Housing

Part Number: BCSB1-304L-2

In Stock

out of stock

In Stock

$827.64


Neo-Pure Stainless Steel BCSB1 Housing provides excellent filtration with a single standard #1 bag filter for flow rates up to 70 gpm. The V-band clamp allows quick filter bag change-outs and secure sealing.

Specifications:
  • Designed for commercial and industrial filter applications
  • Accepts standard bag #1 filters for easy replacement and excellent filtration
  • Heavy-duty 304L stainless steel construction for maximum durability

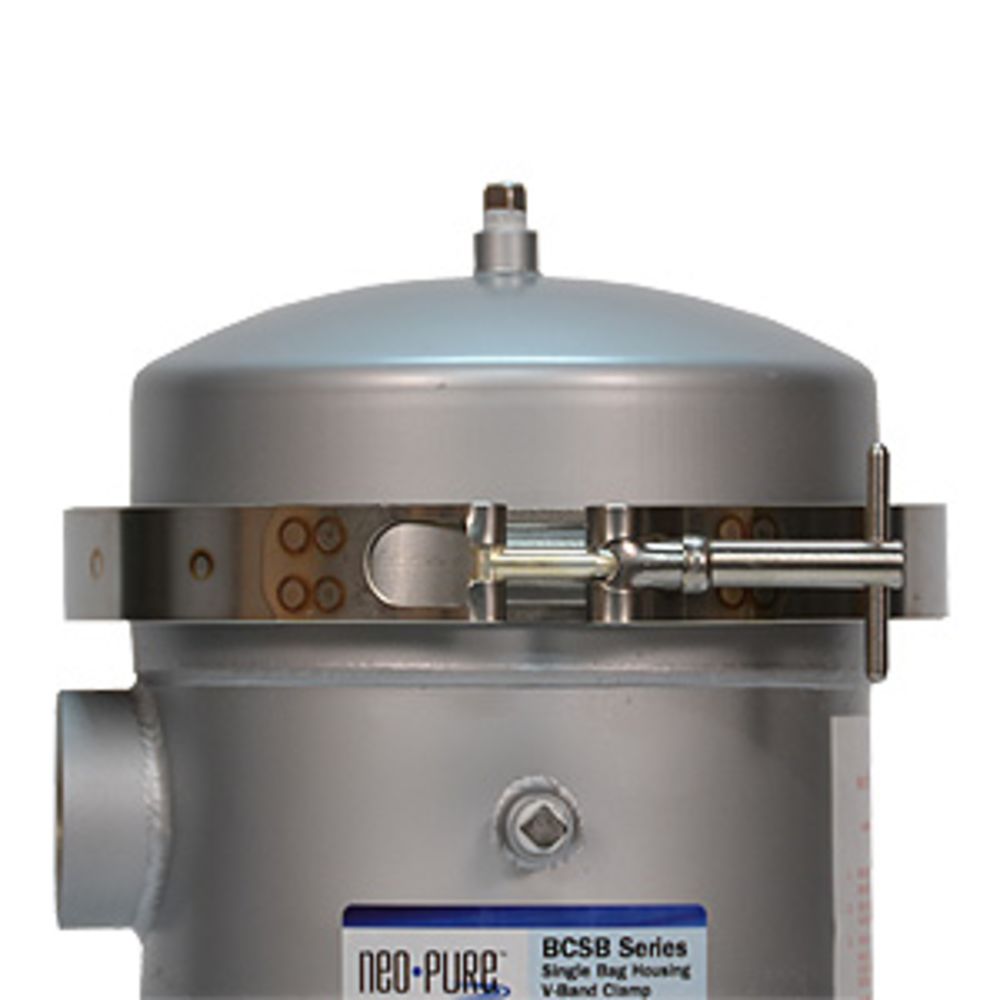

  • V-band clamp closure for quick, easy change-outs and secure sealing
  • Protective poly-coat finish
  • Flow rates up to 70 gallons per minute

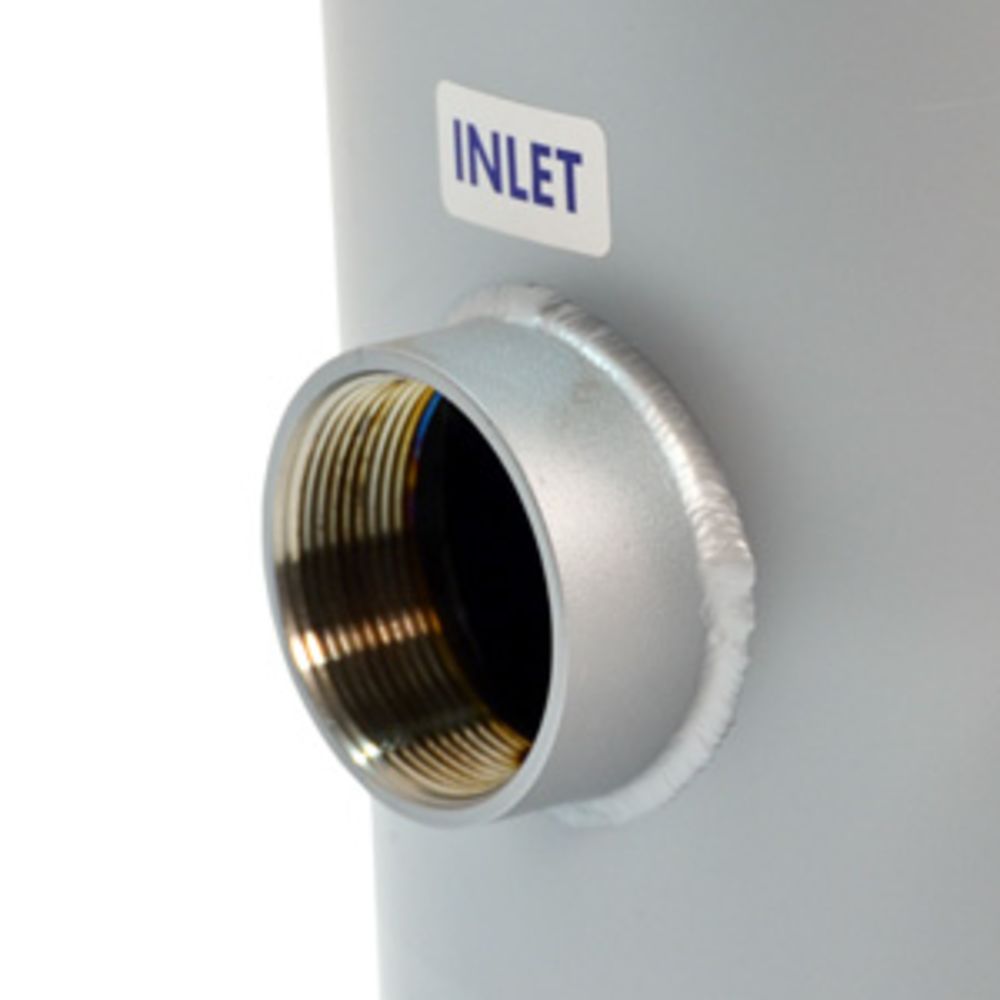

  • Inlet/Outlet: 2" FNPT
  • All stainless steel internals

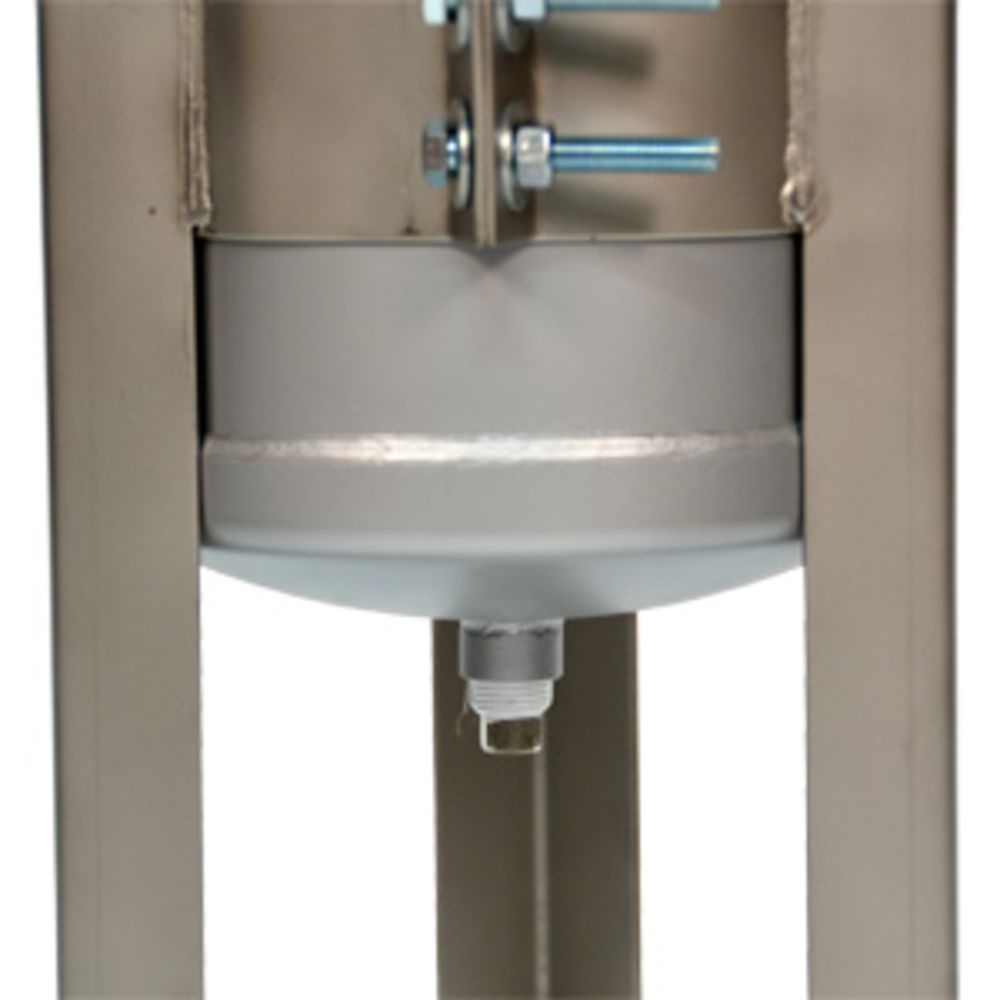

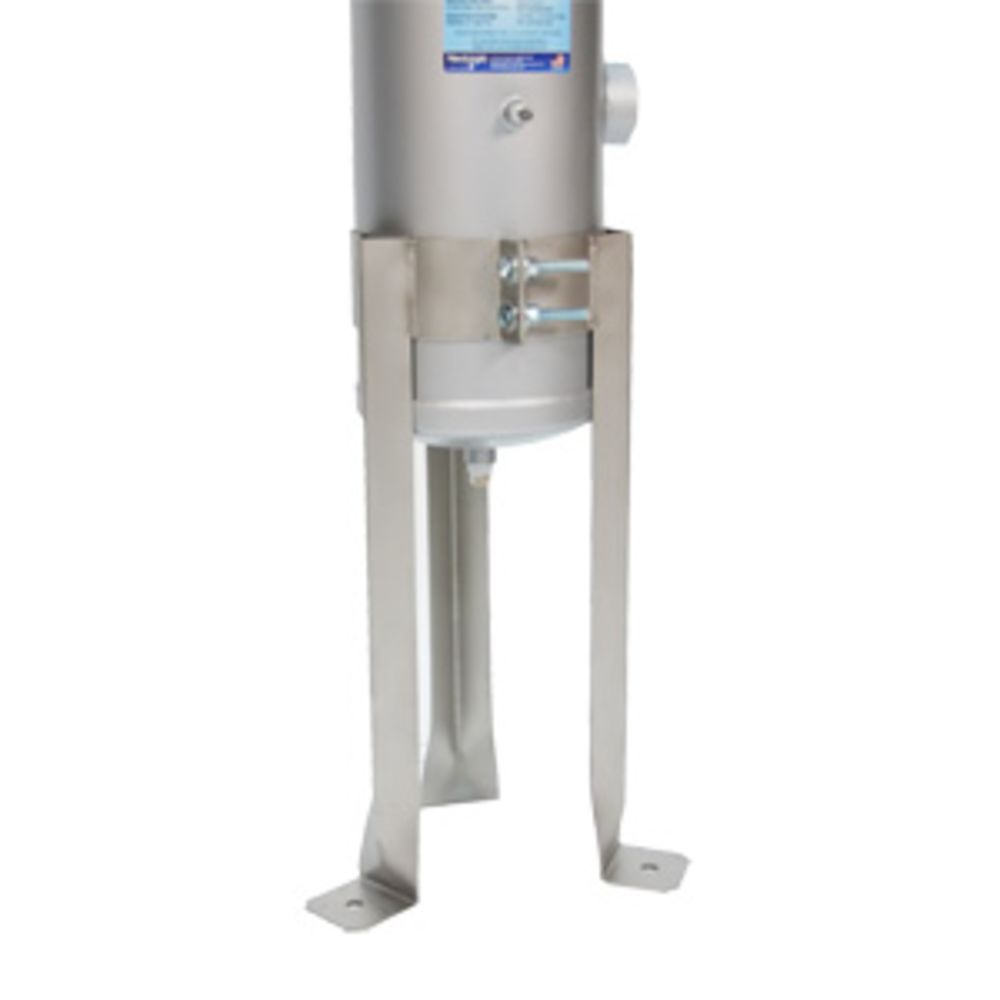

  • Standard version comes with adjustable mounting legs
Applications:
  • Chemicals
  • Coolants
  • Food and Beverage
  • Electronics
  • Oil and Gas
  • Paints, Inks, and Coatings
  • Paper and Pulp
  • Water

NOTE: Standard option BCSB series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our  Returns Policy .

Compatible with: Harmsco® Compatible | BCB-1-2-STD


Weight & Dimensions

Approx Height (Inches)

27.204 Inches

Details

Body Material

304L Stainless Steel

Cap Color

Stainless Steel

Cap Material

304 Stainless Steel

Closure Type

V-band clamp - Stainless Steel

Color / Finish

Stainless Steel

Drain Size

1/2"

Gaskets

Buna N (FDA grade)

Housing Material

304 Stainless Steel

Inlet/Outlet Size

2" FNPT

Material Of Construction

304 Stainless Steel

Max Flow Rate

70 Gallons Per Minute

Max Operating Pressure

150 PSI

Max Operating Temperature

300 Degrees Fahrenheit

Origin

USA

Vent Size

1/4" NPT


Neo-Pure





Neo-Pure Stainless Steel BCSB1 Housing provides excellent filtration with a single standard #1 bag filter for flow rates up to 70 gpm. The V-band clamp allows quick filter bag change-outs and secure sealing.

Specifications:
  • Designed for commercial and industrial filter applications
  • Accepts standard bag #1 filters for easy replacement and excellent filtration
  • Heavy-duty 304L stainless steel construction for maximum durability
  • V-band clamp closure for quick, easy change-outs and secure sealing
  • Protective poly-coat finish
  • Flow rates up to 70 gallons per minute
  • Inlet/Outlet: 2" FNPT
  • All stainless steel internals
  • Standard version comes with adjustable mounting legs
Applications:
  • Chemicals
  • Coolants
  • Food and Beverage
  • Electronics
  • Oil and Gas
  • Paints, Inks, and Coatings
  • Paper and Pulp
  • Water

NOTE: Standard option BCSB series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our  Returns Policy .

Compatible with: Harmsco® Compatible | BCB-1-2-STD

Weight & Dimensions

Approx Height (Inches)

27.204 Inches

Details

Body Material

304L Stainless Steel

Cap Color

Stainless Steel

Cap Material

304 Stainless Steel

Closure Type

V-band clamp - Stainless Steel

Color / Finish

Stainless Steel

Drain Size

1/2"

Gaskets

Buna N (FDA grade)

Housing Material

304 Stainless Steel

Inlet/Outlet Size

2" FNPT

Material Of Construction

304 Stainless Steel

Max Flow Rate

70 Gallons Per Minute

Max Operating Pressure

150 PSI

Max Operating Temperature

300 Degrees Fahrenheit

Origin

USA

Vent Size

1/4" NPT
