Neo-Pure

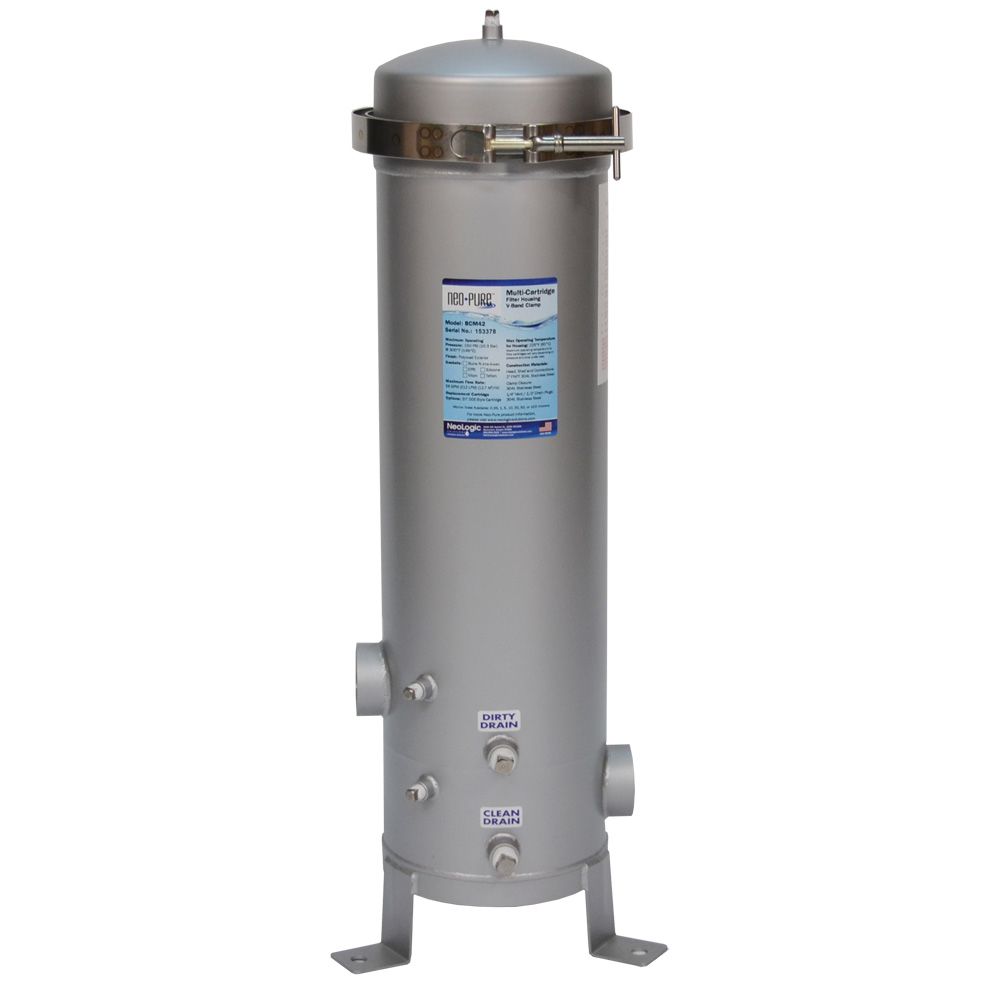

Neo-Pure BCM5X2 20" Multi-Cartridge Stainless Steel Housing

Part Number: BCM5X2

In Stock

out of stock

In Stock

$735.99

Neo-Pure BCM5X2 Multi-Cartridge Stainless Steel Housing utilizes four or five 20" cartridges providing top-of-the-line filtration with up to 70 gallons per minute. The V-band clamp also allows quick change-outs and secure sealing.

Features:
  • Accepts five 20" cartridges for optimal filtration flow
  • Heavy-duty 304L stainless steel construction for maximum durability
  • V-band clamp closure for quick, easy change-outs and secure sealing
  • Protective poly-coat finish
  • Flow rates up to 70 gallons per minute
  • Inlet/Outlet: 2" FNPT
  • All stainless steel internals
  • Standard version comes with gauge ports and mounting legs

Standard option BCM5 series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our Returns Policy.

Applications for BCM5 Filter Housings:
  • Chemicals
  • Cooling Tower Filtration
  • Desalination Prefiltration
  • Electronics
  • Food and Beverage
  • Oil and Gas
  • Paints, Inks, and Coatings
  • Paper and Pulp
  • Power
  • Water


Weight & Dimensions

Weight (lbs)

58

Approx Height (Inches)

30-7/8"

Details

Max Temp (°F)

225

Max Pressure (Psi)

150

Body Material

304L Stainless Steel

Closure Type

V-Band Clamp

Color / Finish

Stainless Steel

Flow Rate

70 GPM

Gaskets

BUNA-N (FDA Grade)

Material Of Construction

304 Stainless Steel, 316 Stainless Steel

Number Of Cartridges

5

Origin

USA

Size

2"

Inlet/Outlet Connection

2" FPT


Neo-Pure




Neo-Pure BCM5X2 Multi-Cartridge Stainless Steel Housing utilizes four or five 20" cartridges providing top-of-the-line filtration with up to 70 gallons per minute. The V-band clamp also allows quick change-outs and secure sealing.

Features:
  • Accepts five 20" cartridges for optimal filtration flow
  • Heavy-duty 304L stainless steel construction for maximum durability
  • V-band clamp closure for quick, easy change-outs and secure sealing
  • Protective poly-coat finish
  • Flow rates up to 70 gallons per minute
  • Inlet/Outlet: 2" FNPT
  • All stainless steel internals
  • Standard version comes with gauge ports and mounting legs

Standard option BCM5 series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our Returns Policy.

Applications for BCM5 Filter Housings:
  • Chemicals
  • Cooling Tower Filtration
  • Desalination Prefiltration
  • Electronics
  • Food and Beverage
  • Oil and Gas
  • Paints, Inks, and Coatings
  • Paper and Pulp
  • Power
  • Water

Weight & Dimensions

Weight (lbs)

58

Approx Height (Inches)

30-7/8"

Details

Max Temp (°F)

225

Max Pressure (Psi)

150

Body Material

304L Stainless Steel

Closure Type

V-Band Clamp

Color / Finish

Stainless Steel

Flow Rate

70 GPM

Gaskets

BUNA-N (FDA Grade)

Material Of Construction

304 Stainless Steel, 316 Stainless Steel

Number Of Cartridges

5

Origin

USA

Size

2"

Inlet/Outlet Connection

2" FPT
