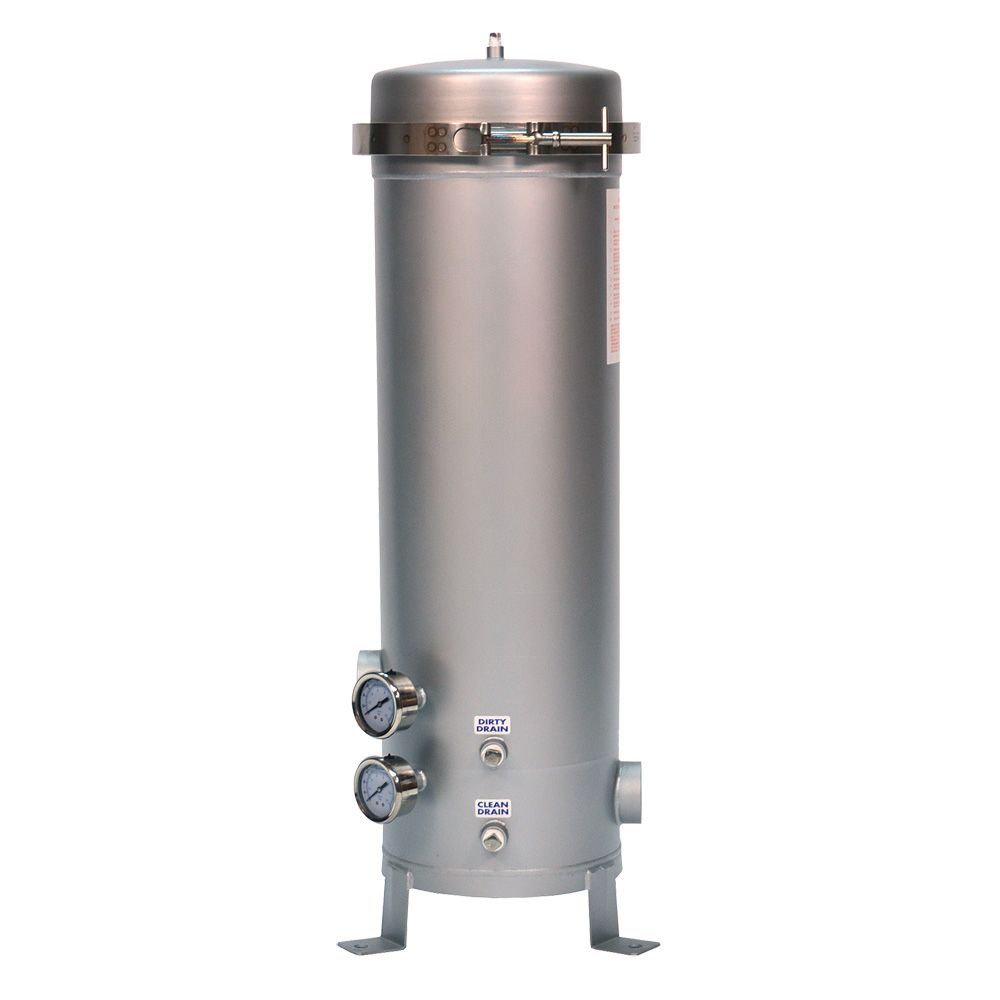

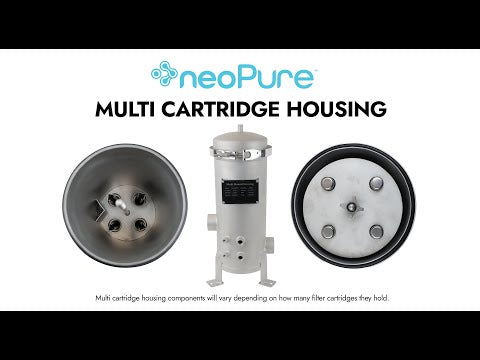

Neo-Pure BCM4X2 20" Multi-Cartridge Stainless Steel Housing

Part Number: BCM4X2

In Stock

out of stock

In Stock

$630.00


Neo-Pure BCM4X2 Multi-Cartridge Stainless Steel Housing utilizes four 20" cartridges providing top-of-the-line filtration with up to 56 gallons per minute. The V-band clamp also allows quick change-outs and secure sealing.Neo-Pure BMC Multi Cartridge Housing Replacement Filters

Features:

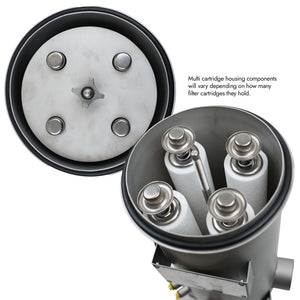

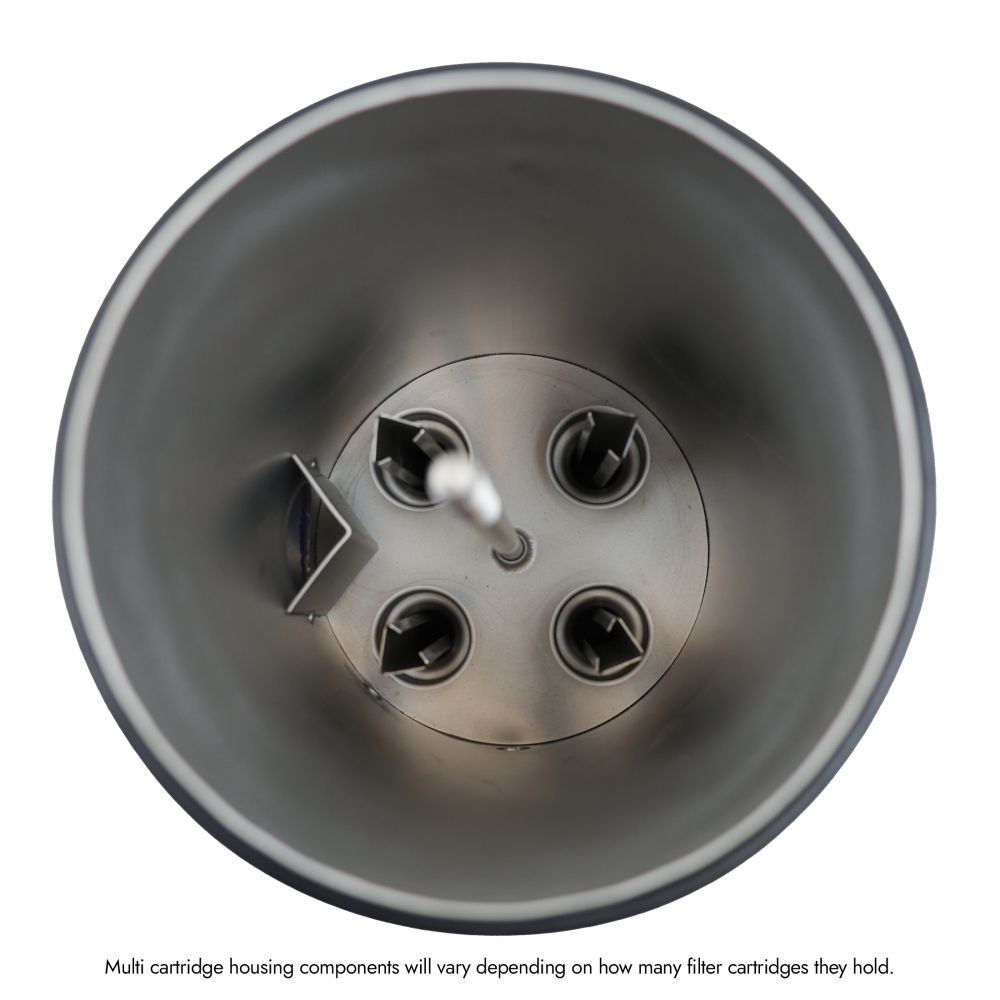

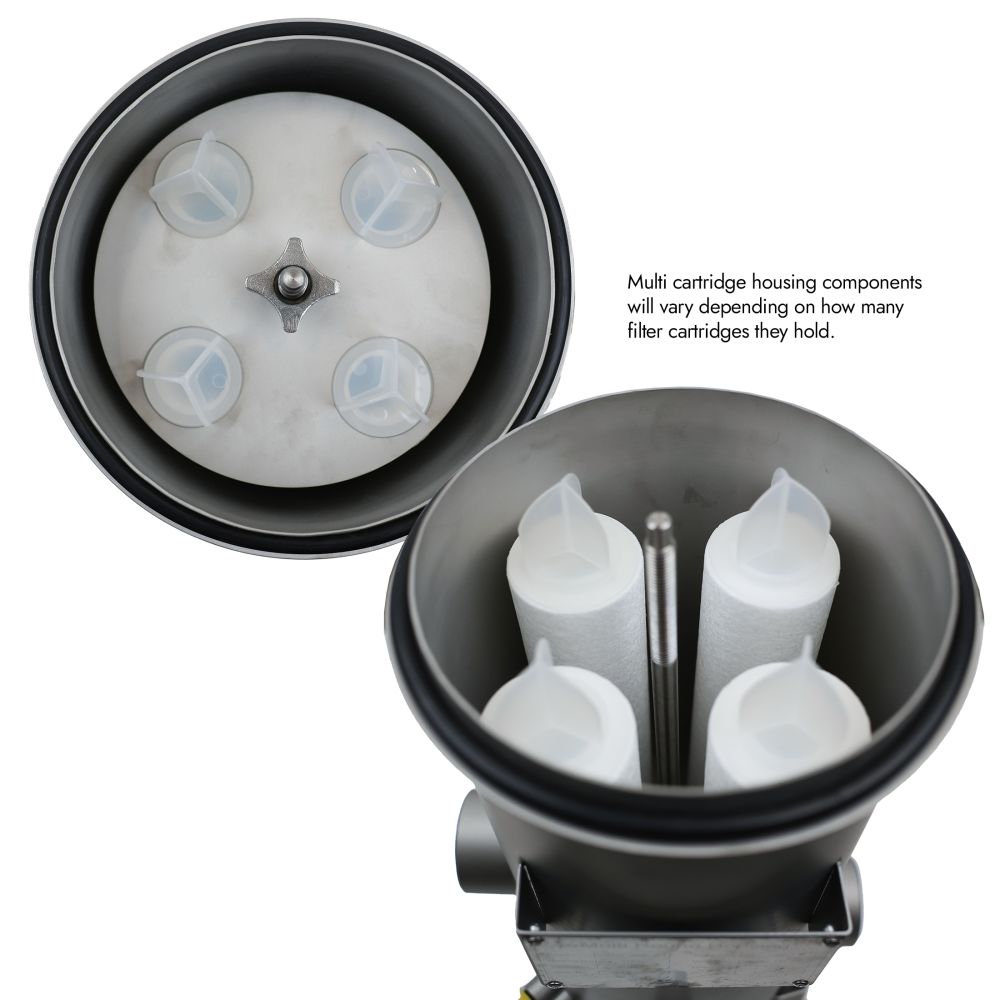

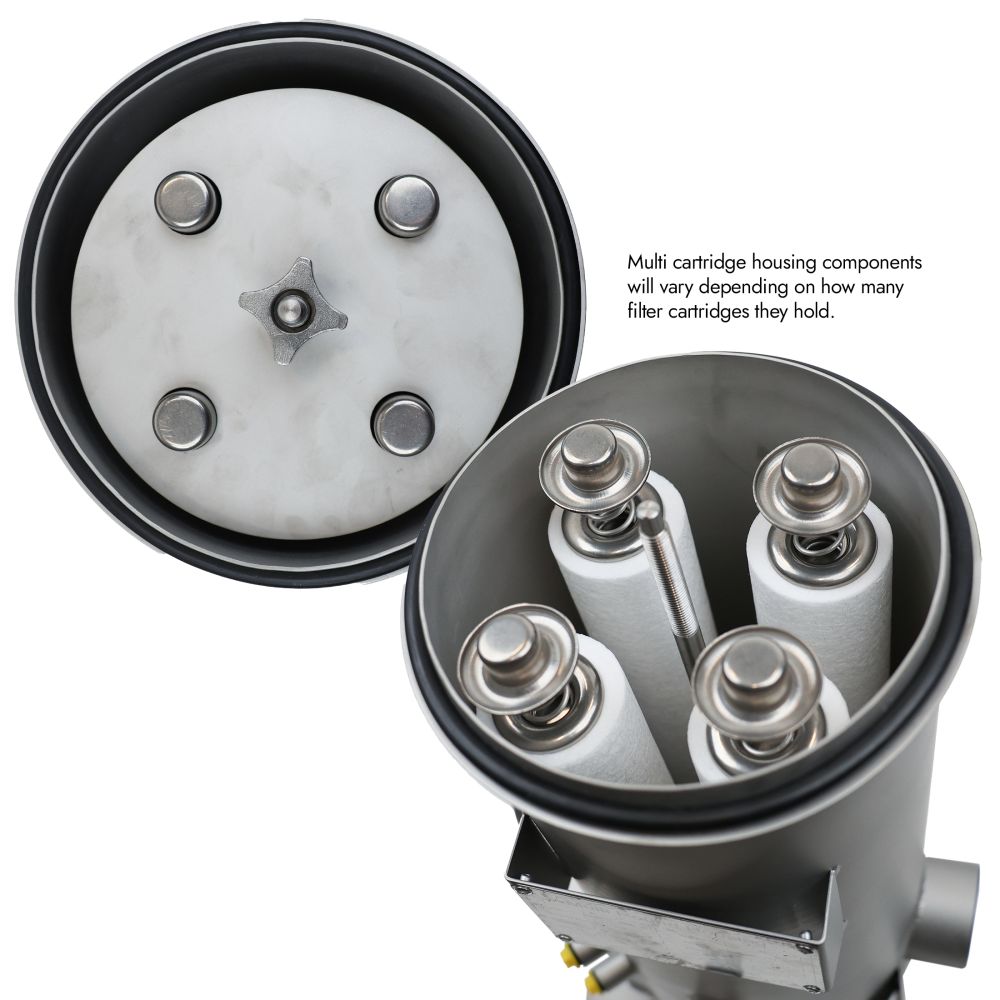

  • Accepts four 20" cartridges for optimal filtration flow
  • Heavy-duty 304L stainless steel construction for maximum durability

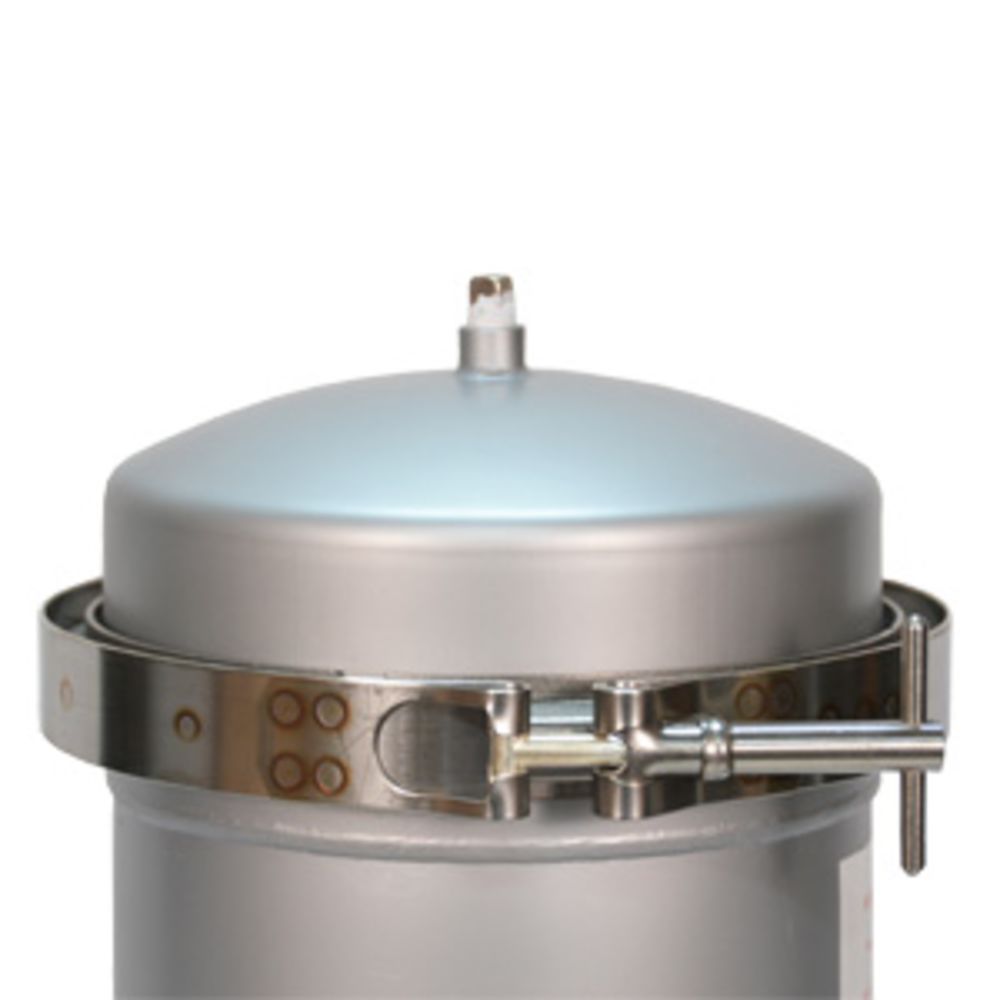

  • V-band clamp closure for quick, easy change-outs and secure sealing
  • Protective poly-coat finish
  • Flow rates up to 56 gallons per minute

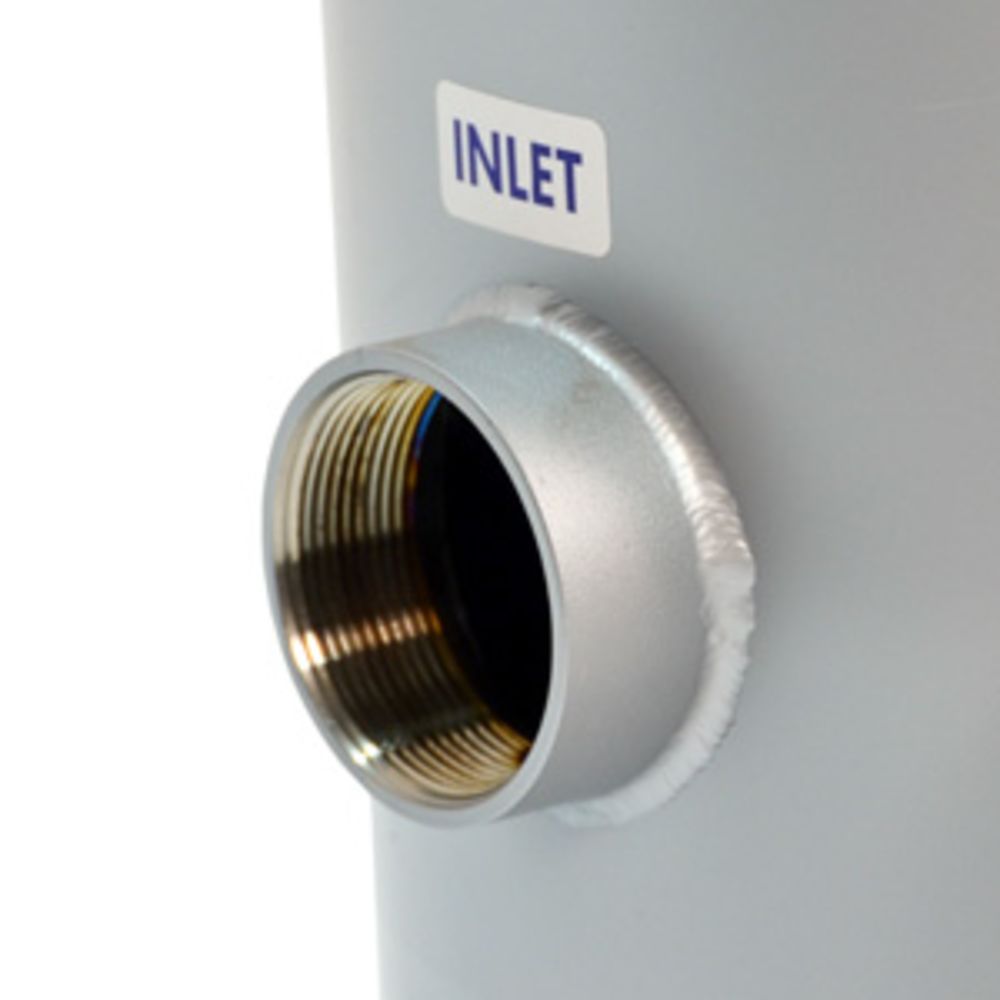

  • Inlet/Outlet: 2" FNPT

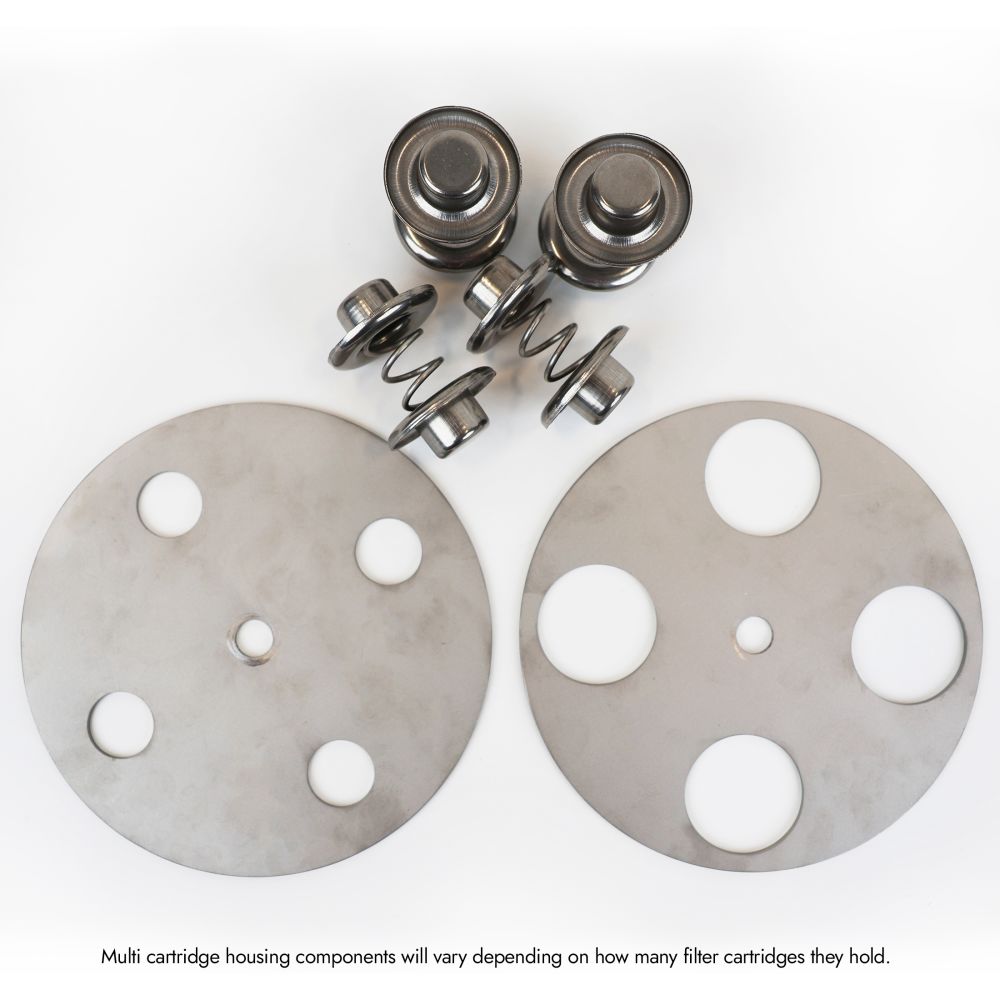

  • All stainless steel internals

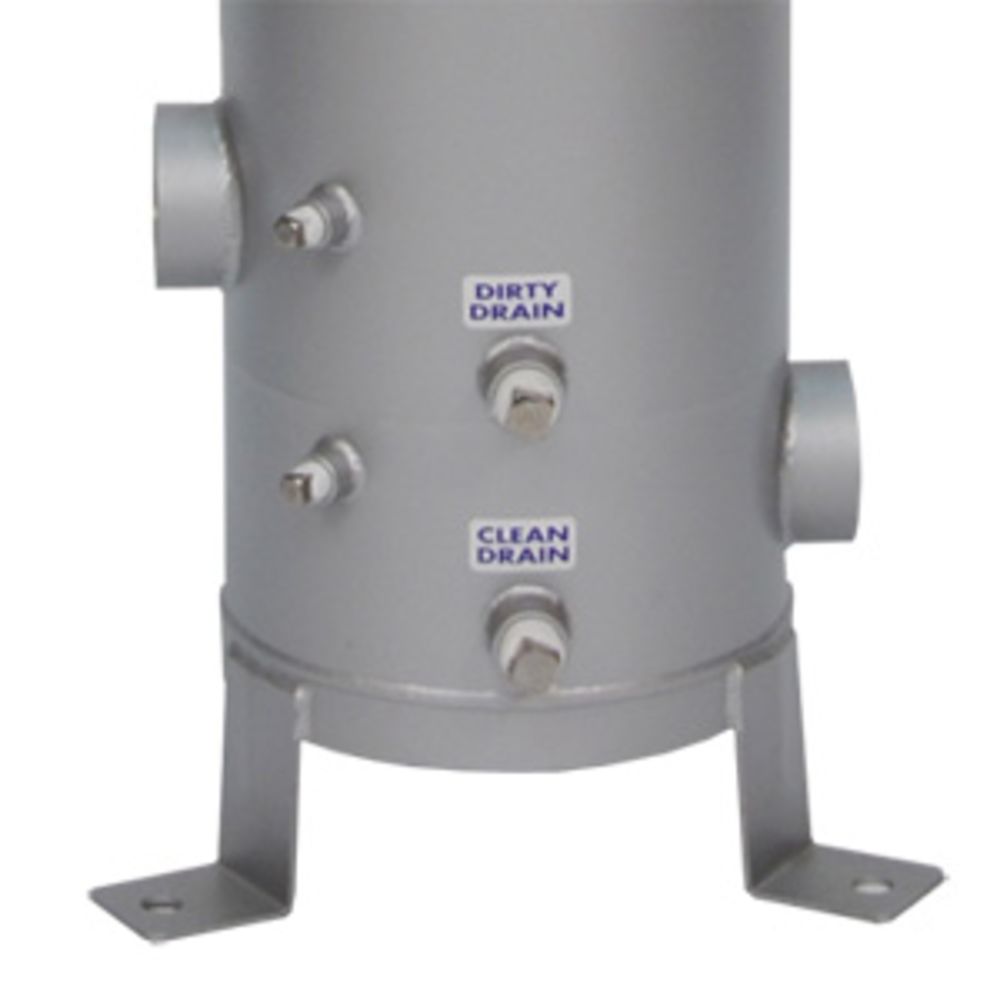

  • Standard version comes with gauge ports and mounting legs
Applications:
  • Chemicals
  • Cooling Tower Filtration
  • Desalination Prefiltration
  • Electronics
  • Food and Beverage
  • Oil and Gas
  • Paints, Inks, and Coatings
  • Paper and Pulp
  • Power
  • Water

NOTE: Standard option BCM4 series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our Returns Policy.

Compatible with: Harmsco® Compatible | BC-2-T-EP, HBC-4-2


Weight & Dimensions

Approx Height (Inches)

30-7/8 Inches

Approx Length (Inches)

20" DOE Style Cartridge

Details

Body Material

304L Stainless Steel

Closure Type

V-band clamp - Stainless Steel

Color / Finish

Stainless Steel

Gaskets

Buna N (FDA grade)

Housing Material

304 Stainless Steel

Inlet/Outlet Size

2" FNPT

Material Of Construction

304 Stainless Steel, 316 Stainless Steel

Max Flow Rate

56 Gallons Per Minute

Max Operating Pressure

150 PSI

Max Operating Temperature

225 Degrees Fahrenheit

Number Of Cartridges

4

Origin

USA
