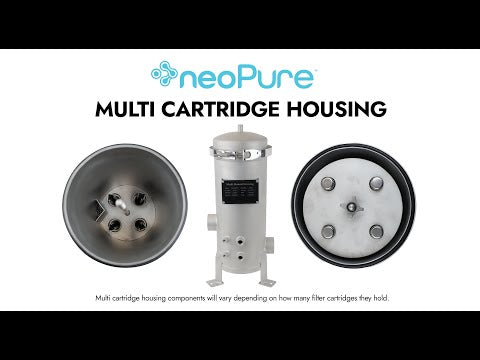

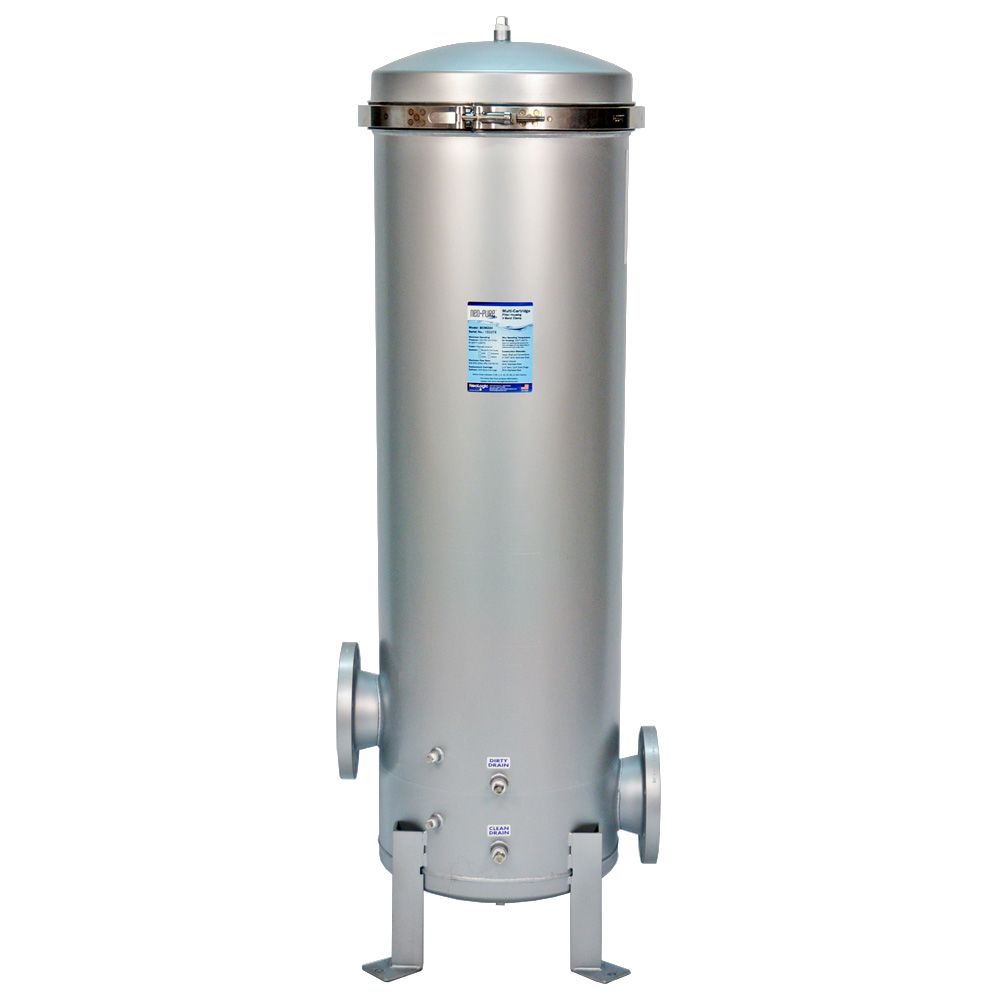

Neo-Pure BCM22 40" Multi-Cartridge Stainless Steel Housing with Band Clamp

Part Number: BCM22X4

In Stock

out of stock

In Stock

$4,670.37

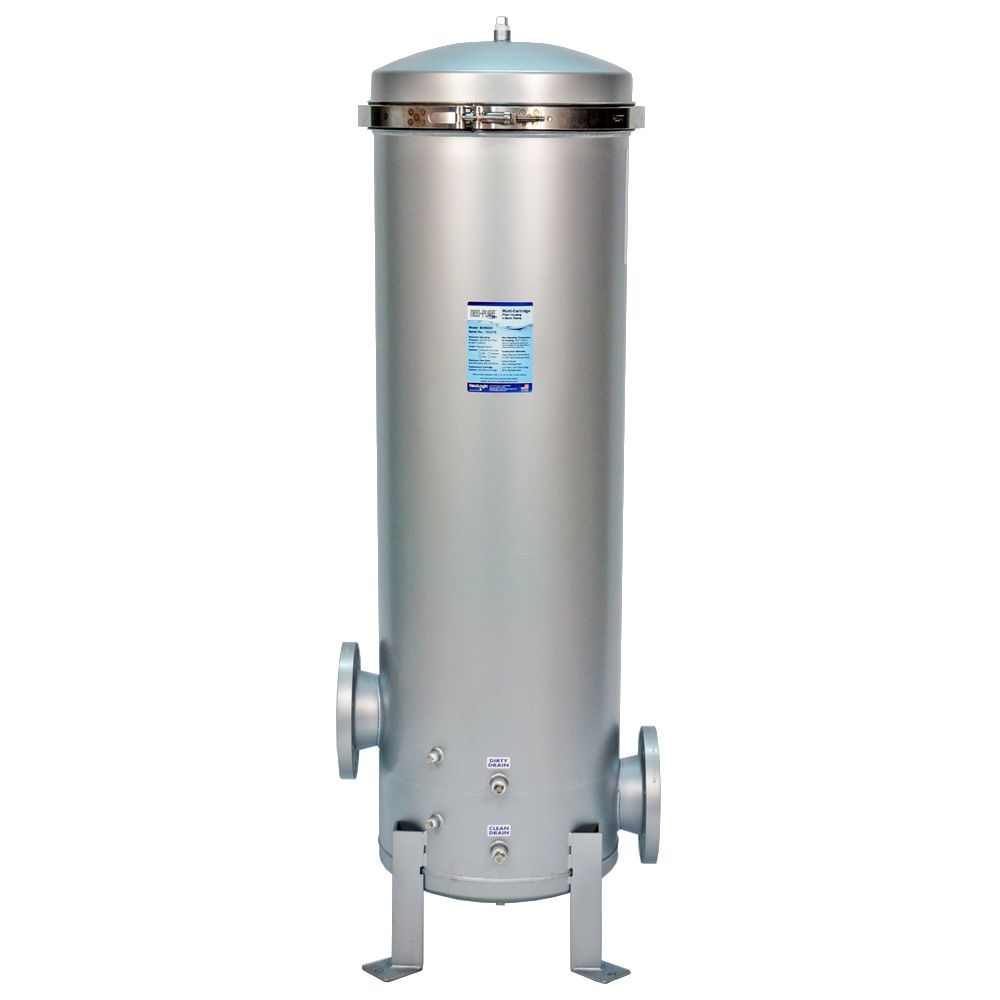

Neo-Pure BCM22 Multi-Cartridge Stainless Steel Housing with Band Clamp utilizes twenty-two 40" cartridges providing top-of-the-line filtration for up to 616 gallons per minute. The V-band clamp also allows quick change-outs and secure sealing.Neo-Pure BMC Multi Cartridge Housing Replacement Filters

Features:

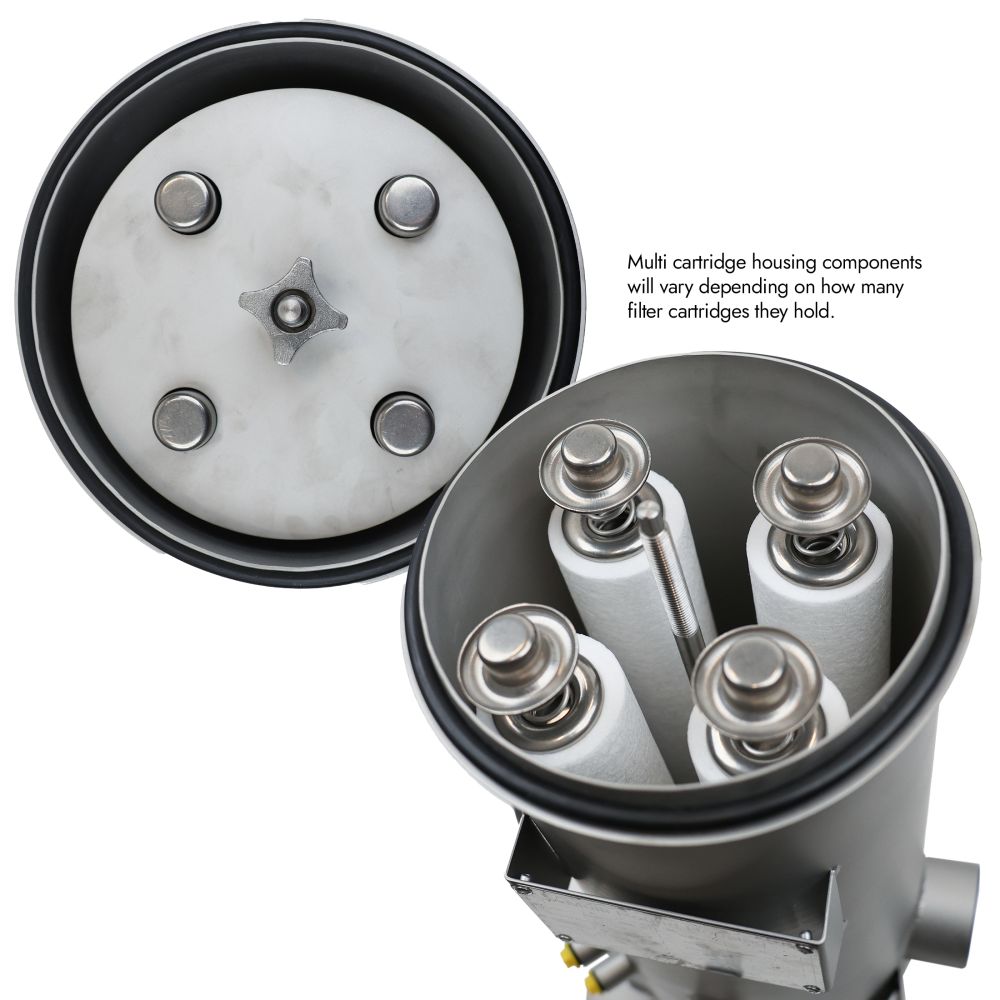

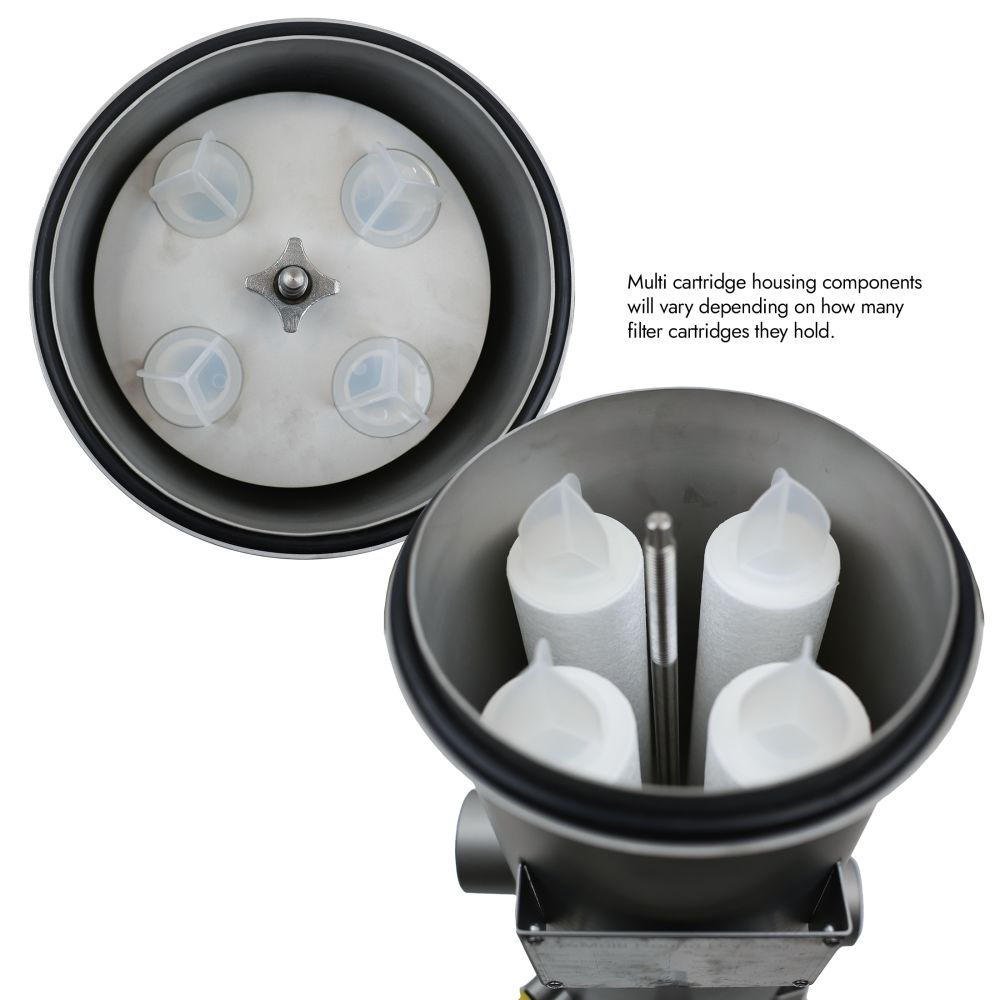

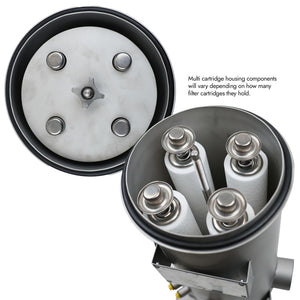

  • Accepts twenty-two 40" cartridges for optimal filtration flow
  • Heavy-duty 304L stainless steel construction for maximum durability

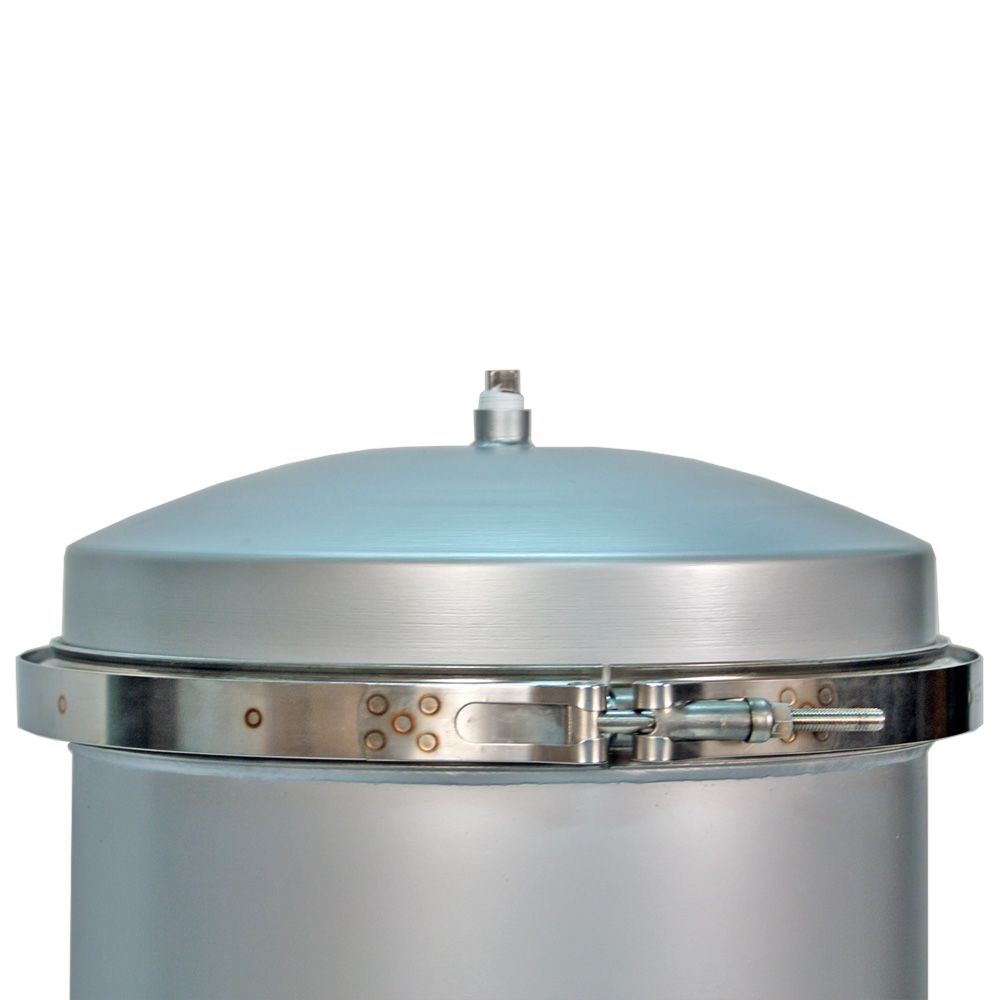

  • V-band clamp closure for quick, easy change-outs and secure sealing
  • Protective poly-coat finish
  • Flow rates up to 616 gallons per minute

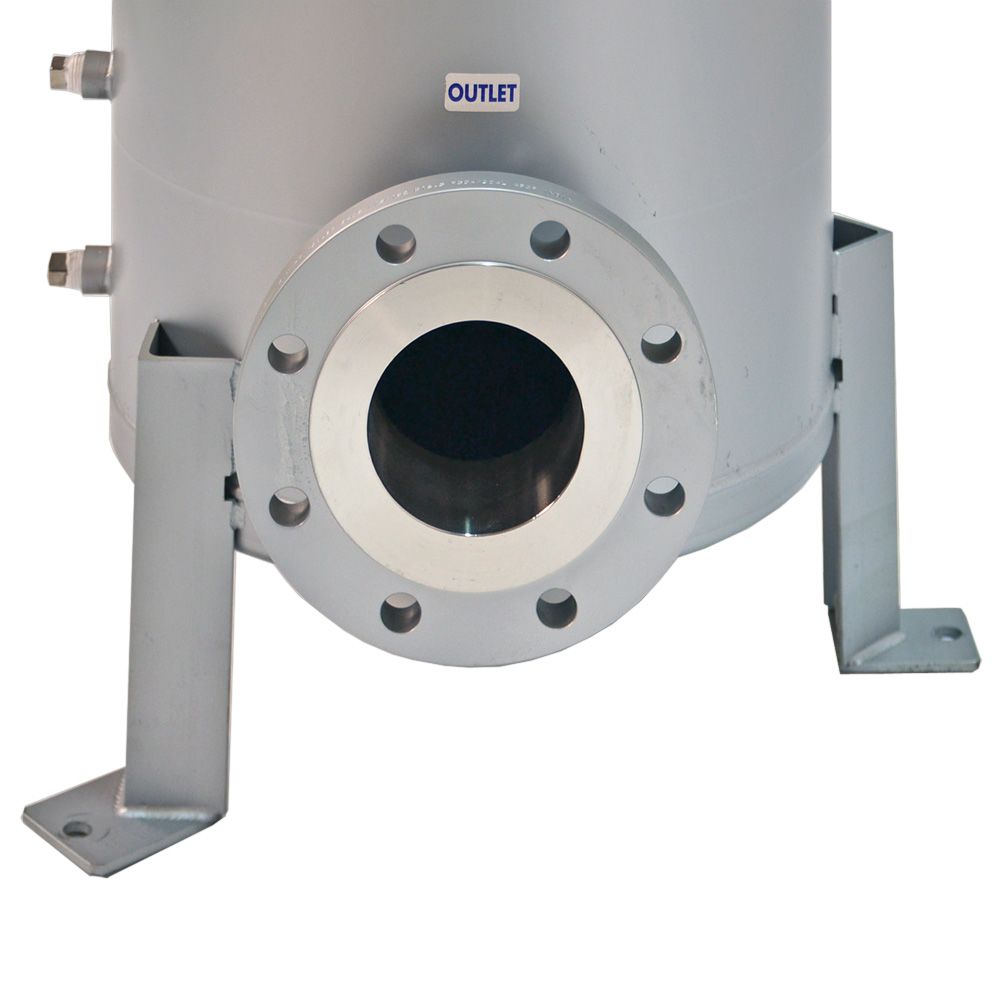

  • Inlet/Outlet: 4" RF Flange

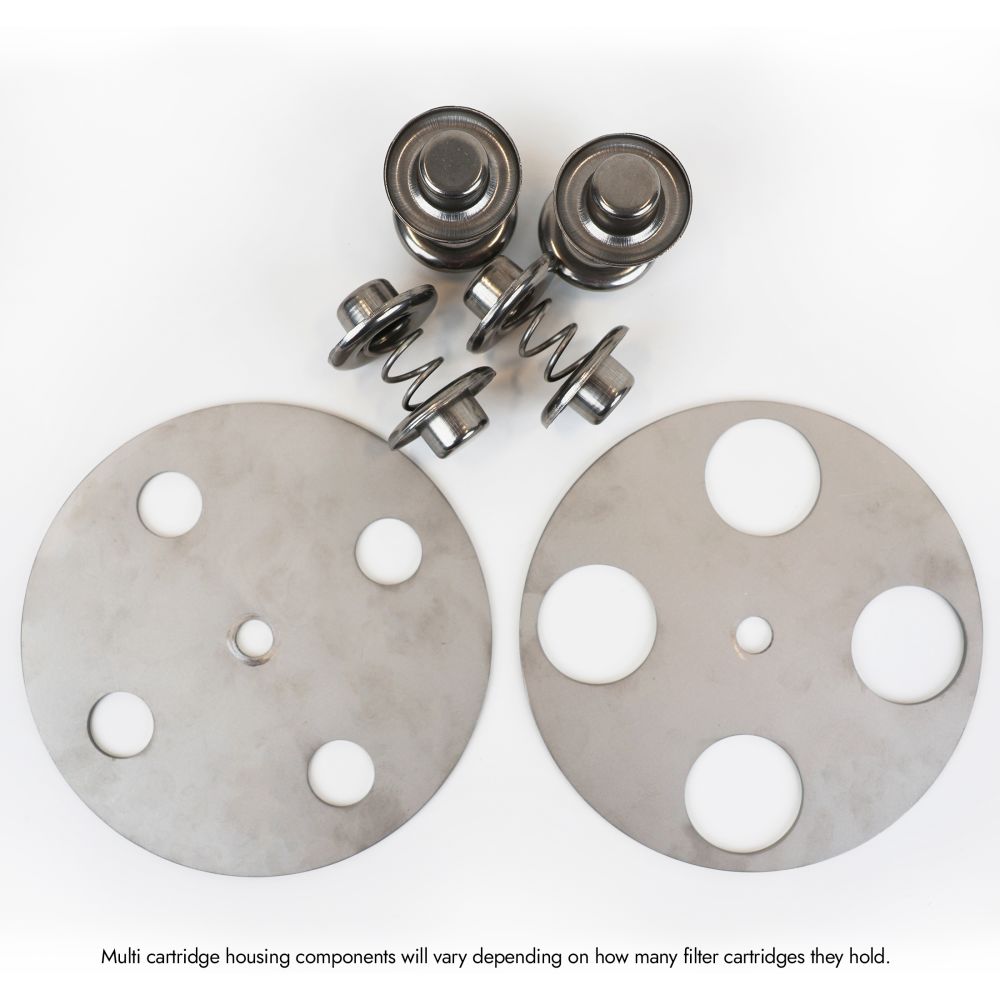

  • All stainless steel internals
  • Standard version comes with gauge ports and mounting legs
Standard option BCM22 series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our Returns Policy.    Applications :
  • Chemicals
  • Cooling Tower Filtration
  • Desalination Prefiltration
  • Electronics
  • Food and Beverage
  • Oil and Gas
  • Paints, Inks, and Coatings
  • Paper and Pulp
  • Power
  • Water


Weight & Dimensions

Approx Height (Inches)

60-3/16" Inches

Approx Length (Inches)

40"

Details

Closure Type

V-band clamp - Stainless Steel

Gaskets

Buna N (FDA grade)

Inlet/Outlet Size

4" flange

Material Of Construction

304 Stainless Steel, 316 Stainless Steel

Max Flow Rate

616 Gallons Per Minute

Max Operating Pressure

150 PSI

Max Operating Temperature

300°F Degrees Fahrenheit

Number Of Cartridges

22

Origin

USA

Type

Commercial
