Neo-Pure

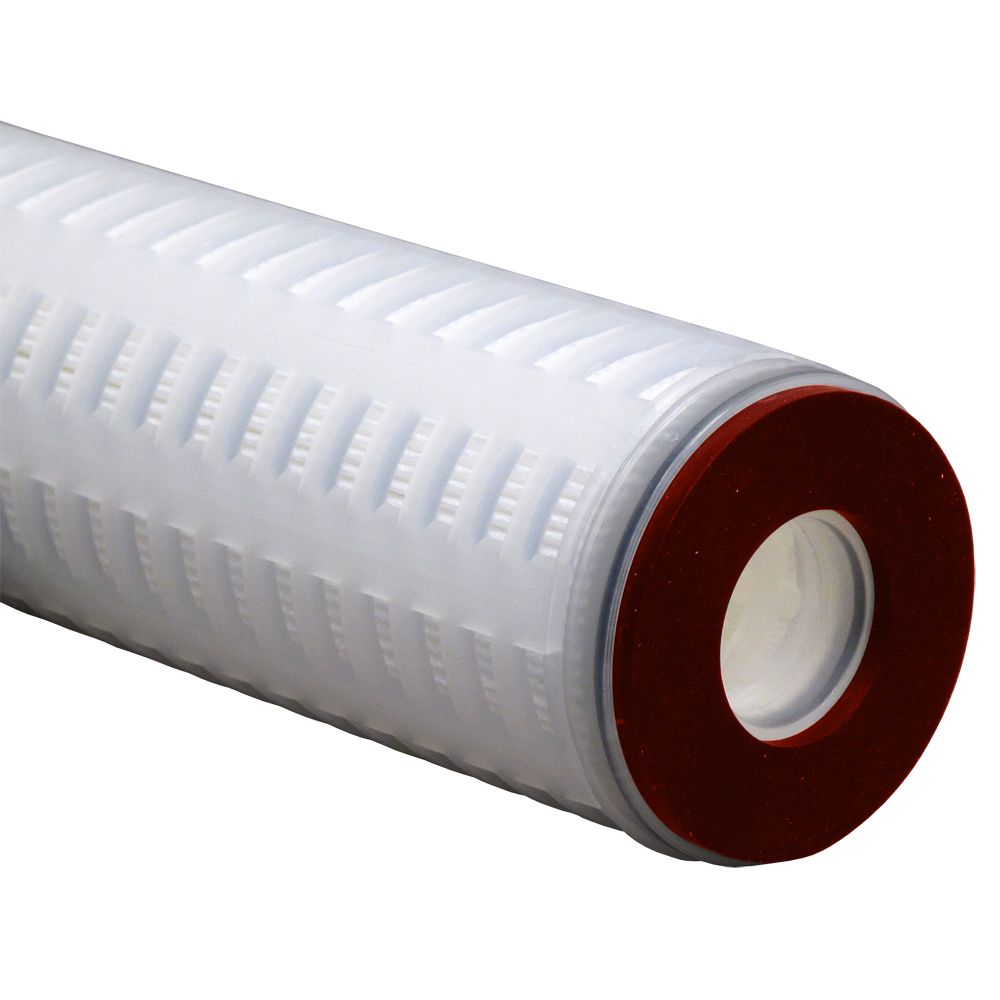

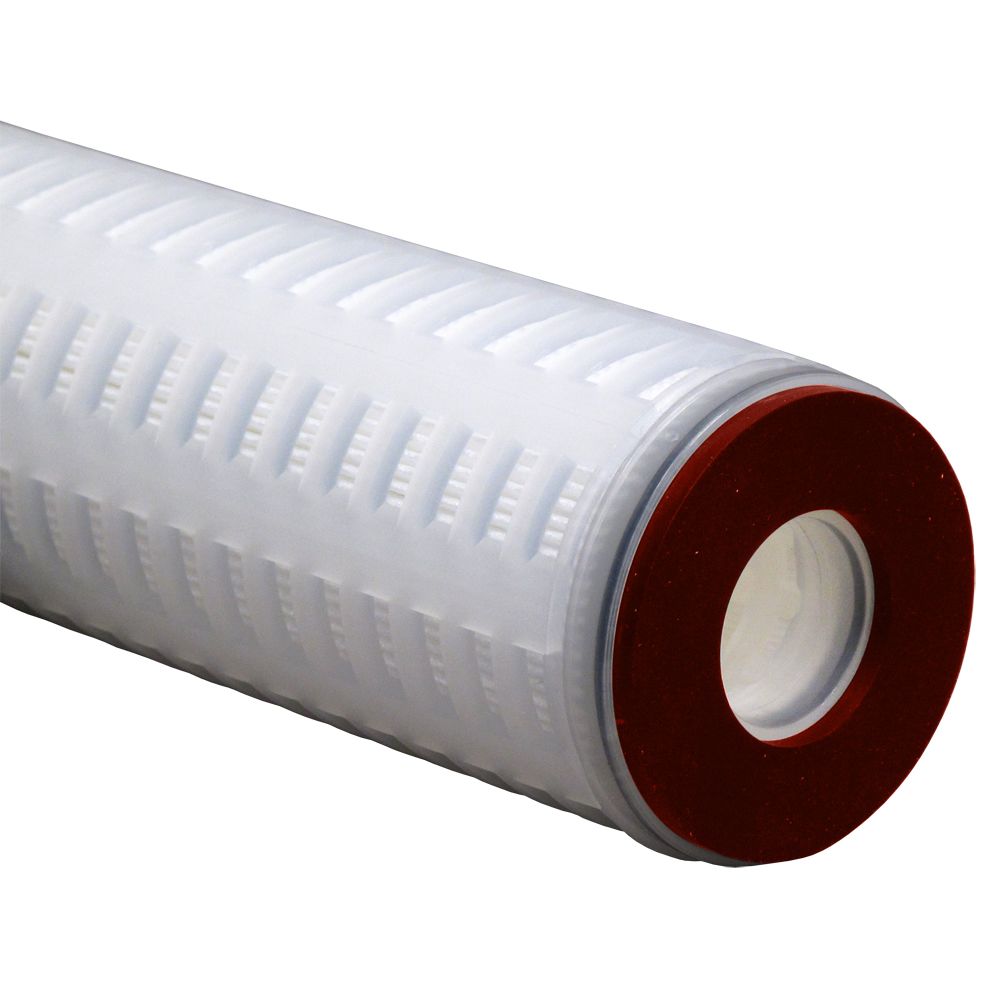

Neo-Pure 9-3/4" High Purity Pleated Polypropylene Filter 0.2 micron EPDM Gasket

Part Number: HP-PPN-26097-0.2-E

In Stock

out of stock

In Stock

$43.80


Neo-Pure HP-PP High Purity Polypropylene Filter Cartridges are manufactured in the USA in a state-of-the-art white room. They are absolute-rated Beta 5000 (99.98%) retention efficiency for high purity applications. HP-PP Series filters feature a rigid, molded cage for greater stability and 7 sq. ft of media surface area per 10″ length for high throughput and particle retention. All filter materials comply with the FDA CFR criteria for food and beverage contact and meet USP Class VI Biological Testing for plastics.

Specifications:
  • Micron Rating: 0.2 micron Nominal
  • End Caps: EPDM Gaskets
  • Filter Dimensions: 9-3/4" L x 2.67" OD
  • Absolute rated Beta 5000 retention efficiency
  • All materials comply with FDA requirements for food contact
  • Gradient fixed pore structure increases dirt holding capacity while resisting unloading under high pressure differential
  • 100% polypropylene construction for a wide range of chemical compatibility
  • 7 square feet of media surface area
  • Made in USA


Weight & Dimensions

Approx Length (Inches)

9-7/8" (25.1 cm)

Details

Cap Material

Polypropylene

Capacity

As Needed

Case Quantity

12

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Gaskets

EPDM

Inner/Outer Wraps

Polypropylene

Media Type

Polypropylene

Micron Rating (Nominal)

0.2 Micron

Operating Temperature Range

Max 176 Degrees Fahrenheit

Outer Diameter

2.67"

Surface Area

7 Square Feet


Neo-Pure





Neo-Pure HP-PP High Purity Polypropylene Filter Cartridges are manufactured in the USA in a state-of-the-art white room. They are absolute-rated Beta 5000 (99.98%) retention efficiency for high purity applications. HP-PP Series filters feature a rigid, molded cage for greater stability and 7 sq. ft of media surface area per 10″ length for high throughput and particle retention. All filter materials comply with the FDA CFR criteria for food and beverage contact and meet USP Class VI Biological Testing for plastics.

Specifications:
  • Micron Rating: 0.2 micron Nominal
  • End Caps: EPDM Gaskets
  • Filter Dimensions: 9-3/4" L x 2.67" OD
  • Absolute rated Beta 5000 retention efficiency
  • All materials comply with FDA requirements for food contact
  • Gradient fixed pore structure increases dirt holding capacity while resisting unloading under high pressure differential
  • 100% polypropylene construction for a wide range of chemical compatibility
  • 7 square feet of media surface area
  • Made in USA

Weight & Dimensions

Approx Length (Inches)

9-7/8" (25.1 cm)

Details

Cap Material

Polypropylene

Capacity

As Needed

Case Quantity

12

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Gaskets

EPDM

Inner/Outer Wraps

Polypropylene

Media Type

Polypropylene

Micron Rating (Nominal)

0.2 Micron

Operating Temperature Range

Max 176 Degrees Fahrenheit

Outer Diameter

2.67"

Surface Area

7 Square Feet
