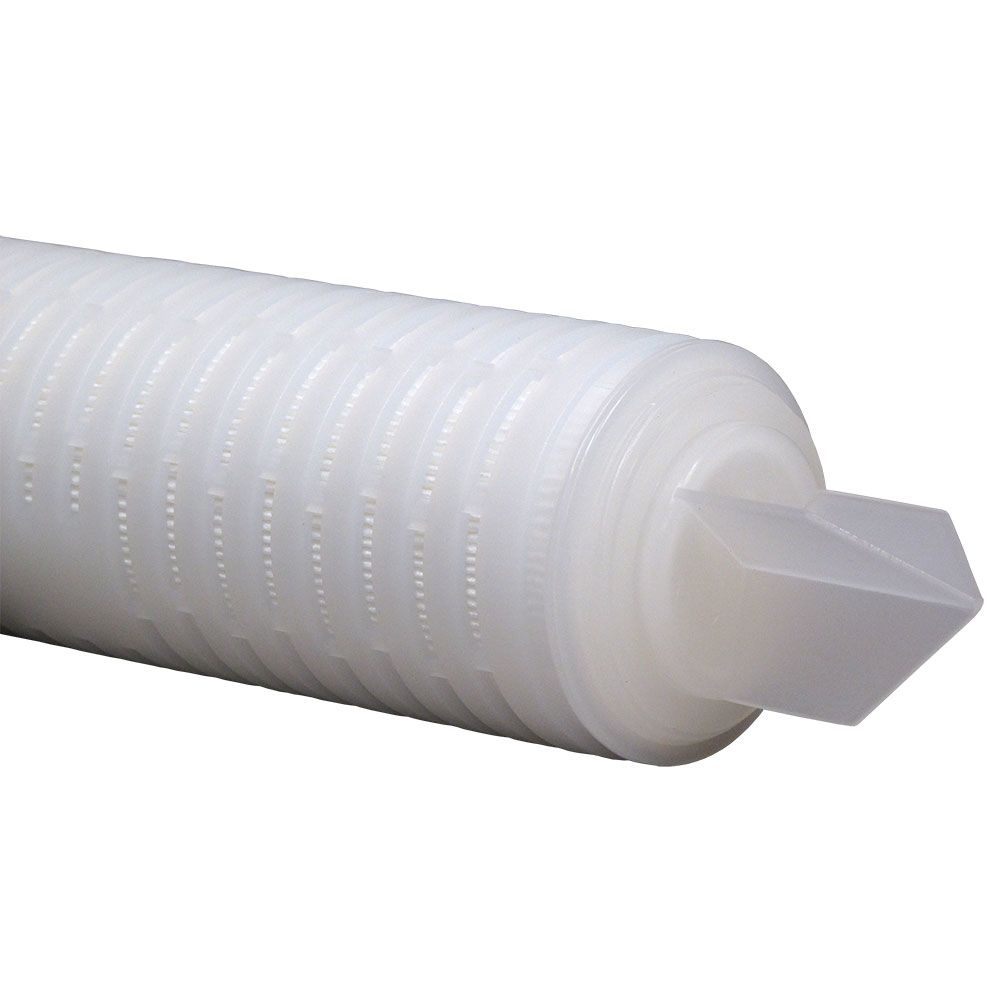

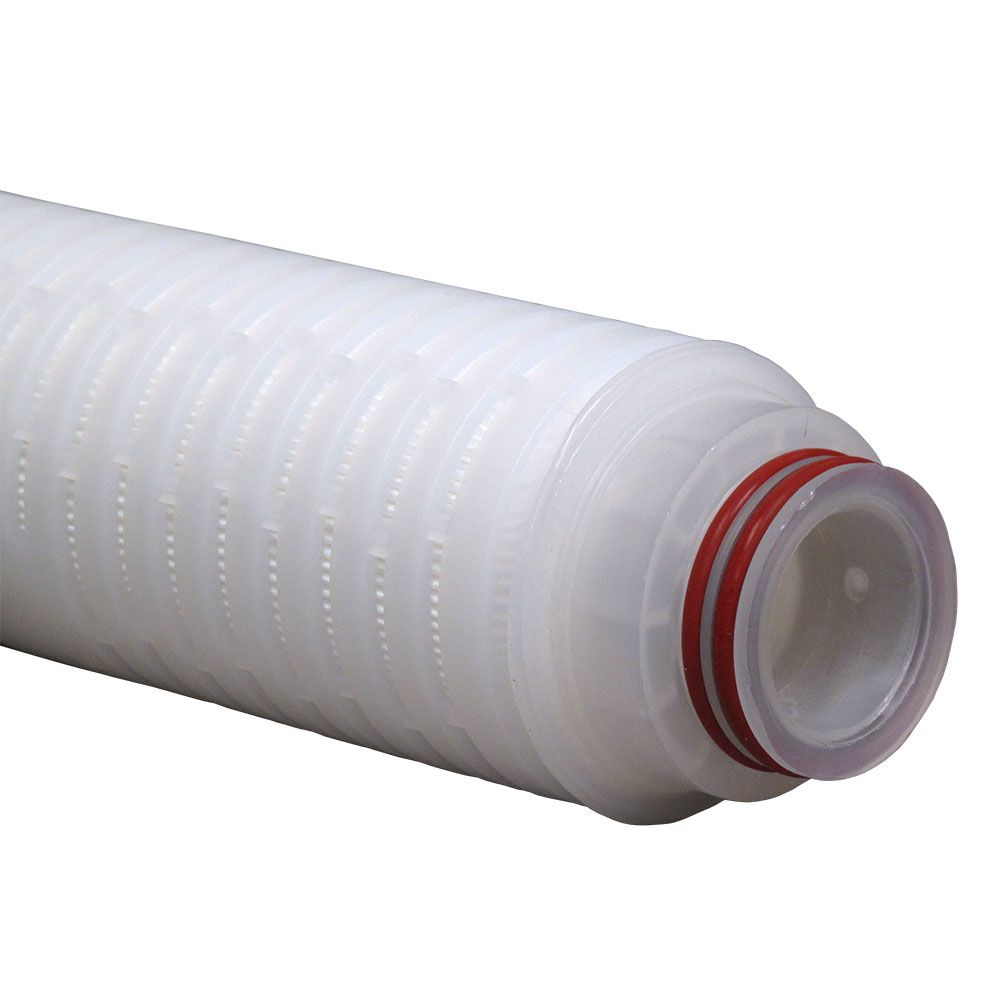

Neo-Pure 30" High Purity Polypropylene Filter 0.2 micron 222/Fin EPDM O-rings

The Neo-Pure HP-PP High Purity Polypropylene Filter Cartridges are manufactured in the USA in a state-of-the-art white room. They are absolute-rated Beta 5000 (99.98%) retention efficiency for high purity applications. HP-PP Series filters feature a rigid, molded cage for greater stability and 7 sq. ft of media surface area per 10″ length for high throughput and particle retention. All filter materials comply with the FDA CFR criteria for food and beverage contact and meet USP Class VI Biological Testing for plastics.

Specifications:

Micron Rating: 0.2 micron absolute
End Caps: 222/fin
Filter Dimensions: 30" L x 2.67" OD
Absolute rated Beta 5000 retention efficiency
All materials comply with FDA requirements for food contact
Gradient fixed pore structure increases dirt holding capacity while resisting unloading under high pressure differential
100% polypropylene construction for a wide range of chemical compatibility
Approx. 17 Square Feet of Surface Area
Made in USA

This product is made and assembled in our certified clean room

Compatible with:

Graver Technologies

QMA0.2-30P8E

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Inner/Outer Wraps	Polypropylene
Max Temp (°F)	176
Micron Rating (Absolute)	0.2 µm
O-Rings	EPDM
Surface Area	21 Square Feet
Cap Material	Polypropylene
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-2/3"
End Cap Type	SOE 222 O-ring & Fin
Inner Diameter	1"
Media Type	Polypropylene
Micron Rating	0.2 µm ABS
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	FDA CFR-21
Shipping Dimensions
Shipping Length	33.13 in.
Shipping Width	3.13 in.
Shipping Height	3.13 in.
Product Weight & Dimensions
Product Height	3.13 in.
Product Length	33.13 in.
Product Width	3.13 in.
Product Weight (lbs)	2.015625

Product Details
Inner/Outer Wraps	Polypropylene
Max Temp (°F)	176
Micron Rating (Absolute)	0.2 µm
O-Rings	EPDM
Surface Area	21 Square Feet
Cap Material	Polypropylene
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-2/3"
End Cap Type	SOE 222 O-ring & Fin
Inner Diameter	1"
Media Type	Polypropylene
Micron Rating	0.2 µm ABS
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	FDA CFR-21
Shipping Dimensions
Shipping Length	36 in.
Shipping Width	6 in.
Shipping Height	12 in.
Product Weight & Dimensions
Product Length	30"
Product Weight (lbs)	24.1875
