Neo-Pure

Neo-Pure 20" PES General Grade Membrane 0.03 micron DOE EPDM Gasket

Part Number: HP-PESG-26200-0.03-E

In Stock

out of stock

In Stock

$210.63

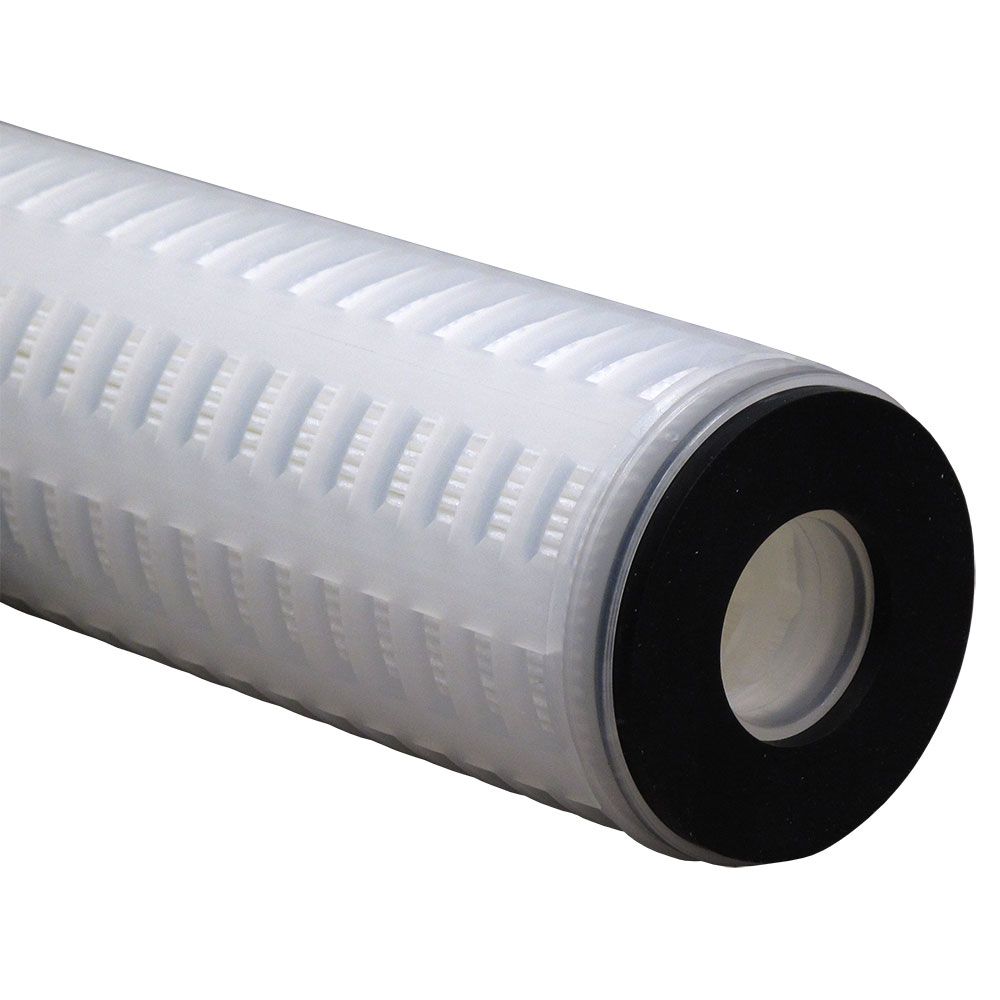

The Neo-Pure HP-PESG-26200-0.03-E High Purity Polyethersulfone General Grade Membranes are manufactured in the USA in a Class 10,000 clean room environment. They provide absolute-rated retention efficiency for high purity applications. HP-PESG Series filters are fully integrity tested to ensure reliable performance in critical applications. All filter materials comply with the FDA CFR criteria for food and beverage contact and meet USP Class VI Biological Testing for plastics.

Features:
  • Micron Rating: 0.03 micron absolute
  • End Caps: DOE
  • Filter Dimensions: 20" L x 2.67" OD
  • Absolute rated retention efficiency
  • All materials comply with FDA requirements for food contact
  • Fully integrity tested to ensure reliable performance in critical applications
  • Filter Media: asymmectric polyethersulfone
  • 14.4 square feet of media surface area
  • Made in USA



Compatible with:
Graver TechnologiesZTECE.03-9.75PS

Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Weight

454 g

Weight (lbs)

0.75

Details

Capacity

As Needed

Gaskets

EPDM

Inner/Outer Wraps

Polypropylene

Max Temp (°F)

176

Micron Rating (Absolute)

0.03 µm

Surface Area

14.4 Square Feet

Cap Material

Polypropylene

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-2/3"

End Cap Type

Double Open Ended (DOE)

Inner Diameter

1"

Media Type

Asymmetric Polyethersulfone

Micron Rating

0.03 µm ABS

Origin

USA

Product Length

20"

Warranty & Certifications

Certifications

FDA CFR-21


Neo-Pure




The Neo-Pure HP-PESG-26200-0.03-E High Purity Polyethersulfone General Grade Membranes are manufactured in the USA in a Class 10,000 clean room environment. They provide absolute-rated retention efficiency for high purity applications. HP-PESG Series filters are fully integrity tested to ensure reliable performance in critical applications. All filter materials comply with the FDA CFR criteria for food and beverage contact and meet USP Class VI Biological Testing for plastics.

Features:
  • Micron Rating: 0.03 micron absolute
  • End Caps: DOE
  • Filter Dimensions: 20" L x 2.67" OD
  • Absolute rated retention efficiency
  • All materials comply with FDA requirements for food contact
  • Fully integrity tested to ensure reliable performance in critical applications
  • Filter Media: asymmectric polyethersulfone
  • 14.4 square feet of media surface area
  • Made in USA



Compatible with:
Graver TechnologiesZTECE.03-9.75PS

Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Weight

454 g

Weight (lbs)

0.75

Details

Capacity

As Needed

Gaskets

EPDM

Inner/Outer Wraps

Polypropylene

Max Temp (°F)

176

Micron Rating (Absolute)

0.03 µm

Surface Area

14.4 Square Feet

Cap Material

Polypropylene

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-2/3"

End Cap Type

Double Open Ended (DOE)

Inner Diameter

1"

Media Type

Asymmetric Polyethersulfone

Micron Rating

0.03 µm ABS

Origin

USA

Product Length

20"

Warranty & Certifications

Certifications

FDA CFR-21
