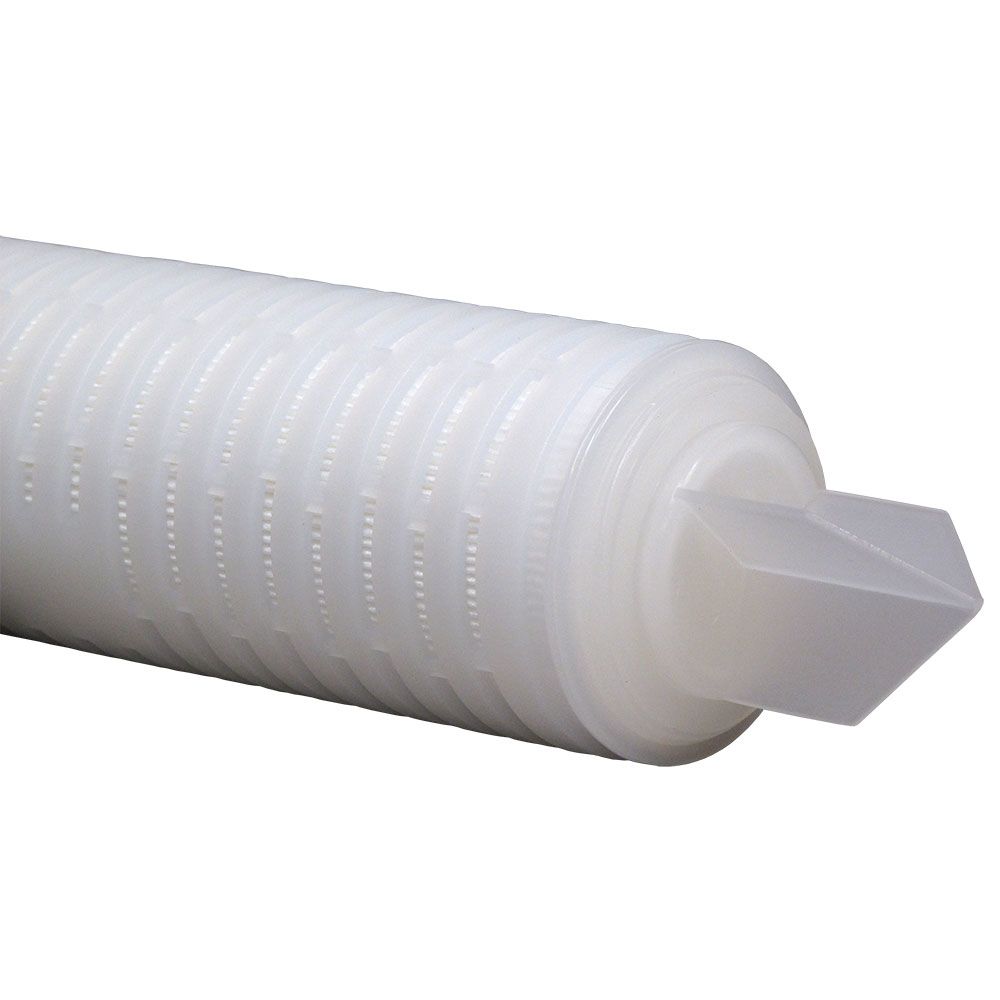

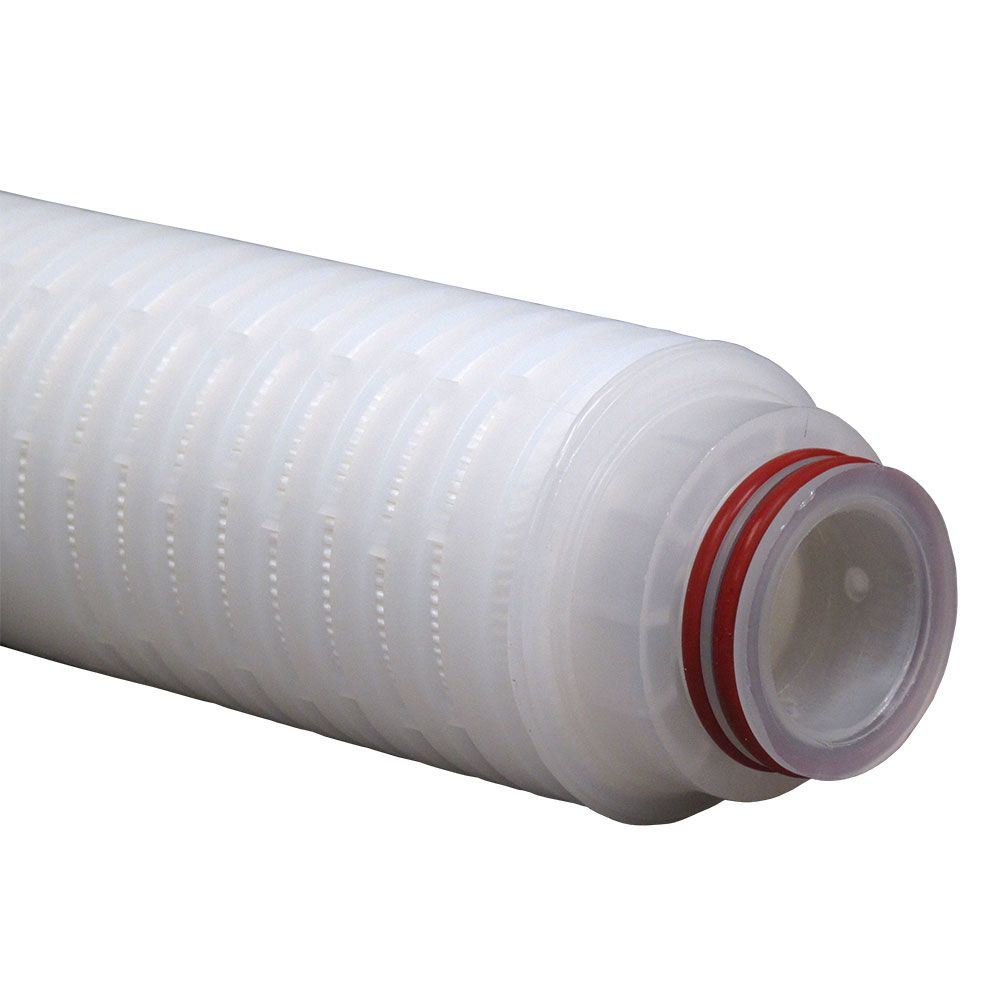

The Neo-Pure HP-PP High Purity Polypropylene Filter Cartridges are manufactured in the USA in a state-of-the-art white room. They are absolute-rated Beta 5000 (99.98%) retention efficiency for high purity applications. HP-PP Series filters feature a rigid, molded cage for greater stability and 7 sq. ft of media surface area per 10″ length for high throughput and particle retention. All filter materials comply with the FDA CFR criteria for food and beverage contact and meet USP Class VI Biological Testing for plastics.
Features:
Compatible with:
Features:
- Micron Rating: 0.2 micron absolute
- End Caps: 222/fin
- Filter Dimensions: 20" L x 2.67" OD
- Absolute rated Beta 5000 retention efficiency
- All materials comply with FDA requirements for food contact
- Gradient fixed pore structure increases dirt holding capacity while resisting unloading under high pressure differential
- 100% polypropylene construction for a wide range of chemical compatibility
- 14 square feet of media surface area
- Made in USA
Compatible with:
| Graver Technologies | QMA0.2-20P8S |
Weight & Dimensions
Weight (lbs) | 1.5 |
Approx Length (Inches) | 20" (50.8 cm) |
Details
Max Temp (°F) | 176 |
Cap Material | Polypropylene |
Capacity | As Needed |
Case Quantity | 12 |
End Cap Type | SOE 222 Oring & Fin |
Filter Application | Sediment/Dirt/Rust |
Inner/Outer Wraps | Polypropylene |
Media Type | Polypropylene |
Micron Rating (Absolute) | 0.2 µm |
O-Rings | Silicone |
Origin | USA |
Outer Diameter | 2-2/3" |
Surface Area | 14 Square Feet |
The Neo-Pure HP-PP High Purity Polypropylene Filter Cartridges are manufactured in the USA in a state-of-the-art white room. They are absolute-rated Beta 5000 (99.98%) retention efficiency for high purity applications. HP-PP Series filters feature a rigid, molded cage for greater stability and 7 sq. ft of media surface area per 10″ length for high throughput and particle retention. All filter materials comply with the FDA CFR criteria for food and beverage contact and meet USP Class VI Biological Testing for plastics.
Features:
- Micron Rating: 0.2 micron absolute
- End Caps: 222/fin
- Filter Dimensions: 20" L x 2.67" OD
- Absolute rated Beta 5000 retention efficiency
- All materials comply with FDA requirements for food contact
- Gradient fixed pore structure increases dirt holding capacity while resisting unloading under high pressure differential
- 100% polypropylene construction for a wide range of chemical compatibility
- 14 square feet of media surface area
- Made in USA
Compatible with:
| Graver Technologies | QMA0.2-20P8S |
Weight & Dimensions
Weight (lbs) | 1.5 |
Approx Length (Inches) | 20" (50.8 cm) |
Details
Max Temp (°F) | 176 |
Cap Material | Polypropylene |
Capacity | As Needed |
Case Quantity | 12 |
End Cap Type | SOE 222 Oring & Fin |
Filter Application | Sediment/Dirt/Rust |
Inner/Outer Wraps | Polypropylene |
Media Type | Polypropylene |
Micron Rating (Absolute) | 0.2 µm |
O-Rings | Silicone |
Origin | USA |
Outer Diameter | 2-2/3" |
Surface Area | 14 Square Feet |
