Colder Products

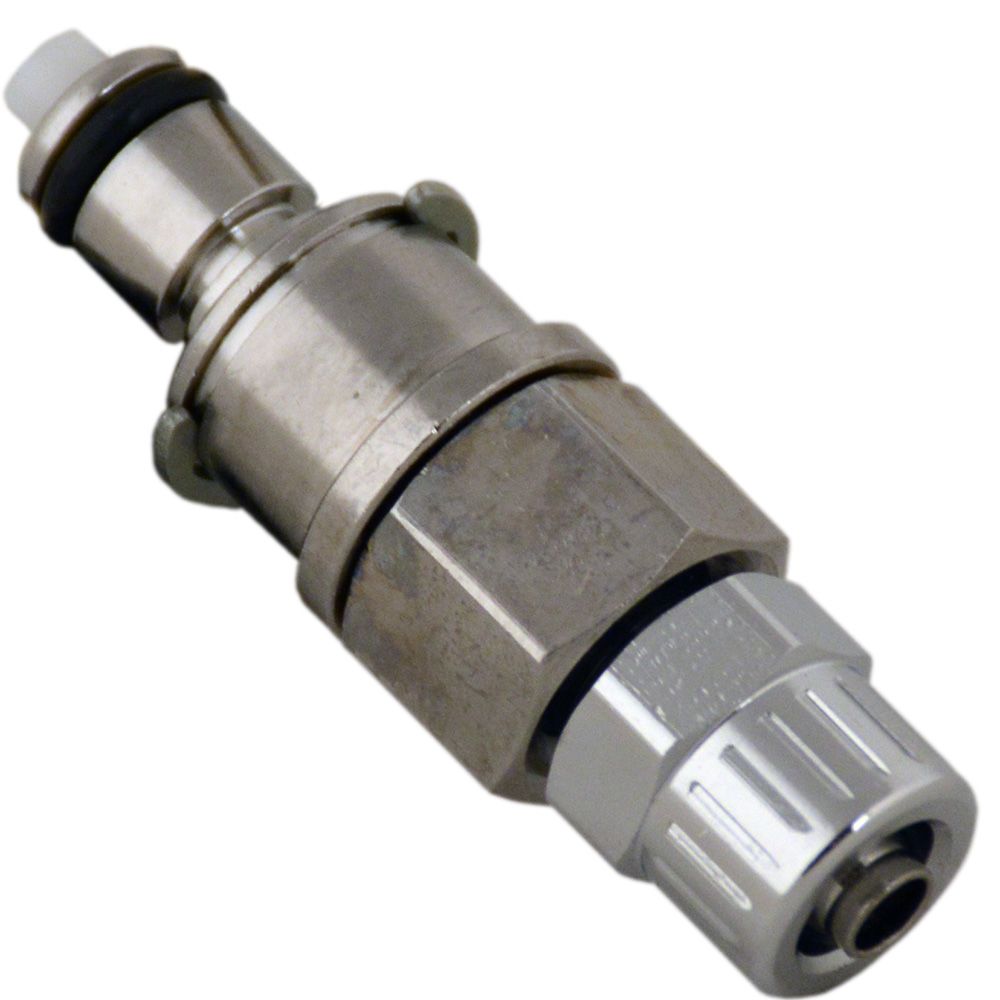

Multi-Mount Valved PTF Coupling Insert - 5/32 PTF Chrome

Part Number: MMD20025

In Stock

out of stock

In Stock

$18.58

Multi-Mount couplings provide one easy-to-use coupling for connecting three to five lines at one time. Multi-mounts are available in either acetal or chrome plated brass and are keyed to prevent mismatched connections.

Specifications:
  • Material: Brass
  • Finish: Chrome
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Tubing Size: .10" ID, 5/32" OD
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 10 units




Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

5/32" FPT

Max Pressure (Psi)

500

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Push-In Size

5/32" OD

Seal Material

Buna-N

Series

Multi-Mount, MM

Size

5/32"

Spring

316 Stainless Steel

Thumb Latch

Stainless steel

Valve Type

Valved

Color / Finish

Chrome

Connection Type

Female (FPT)

Origin

USA

Type

Coupling Insert


Multi-Mount




Multi-Mount couplings provide one easy-to-use coupling for connecting three to five lines at one time. Multi-mounts are available in either acetal or chrome plated brass and are keyed to prevent mismatched connections.

Specifications:
  • Material: Brass
  • Finish: Chrome
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Tubing Size: .10" ID, 5/32" OD
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 10 units



Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

5/32" FPT

Max Pressure (Psi)

500

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Push-In Size

5/32" OD

Seal Material

Buna-N

Series

Multi-Mount, MM

Size

5/32"

Spring

316 Stainless Steel

Thumb Latch

Stainless steel

Valve Type

Valved

Color / Finish

Chrome

Connection Type

Female (FPT)

Origin

USA

Type

Coupling Insert
