Colder Products

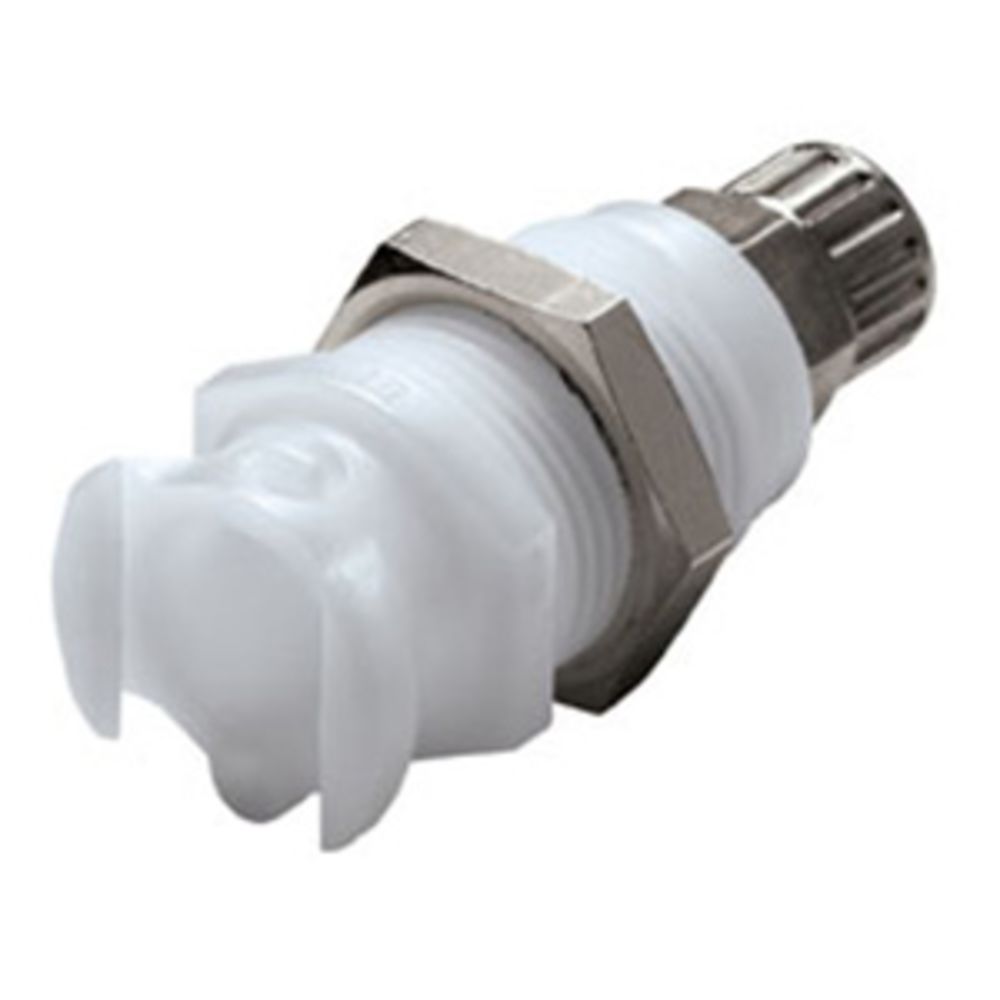

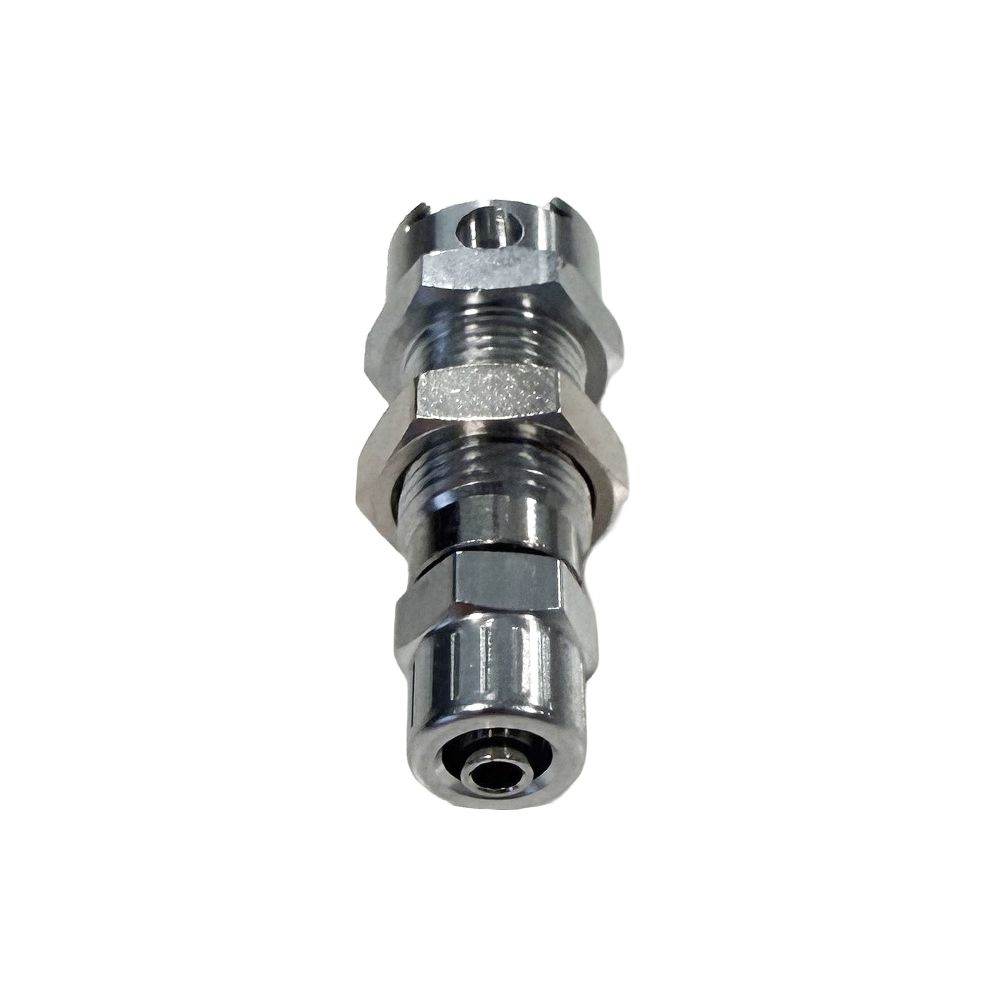

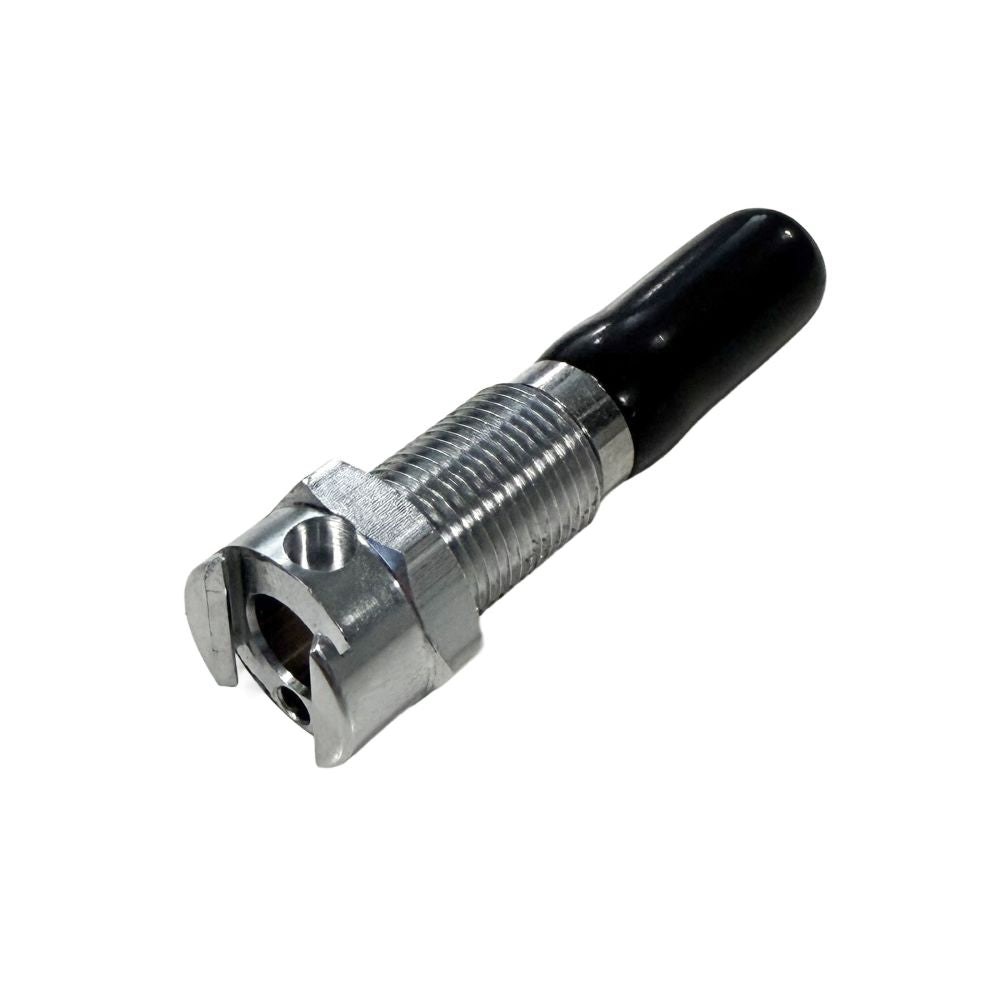

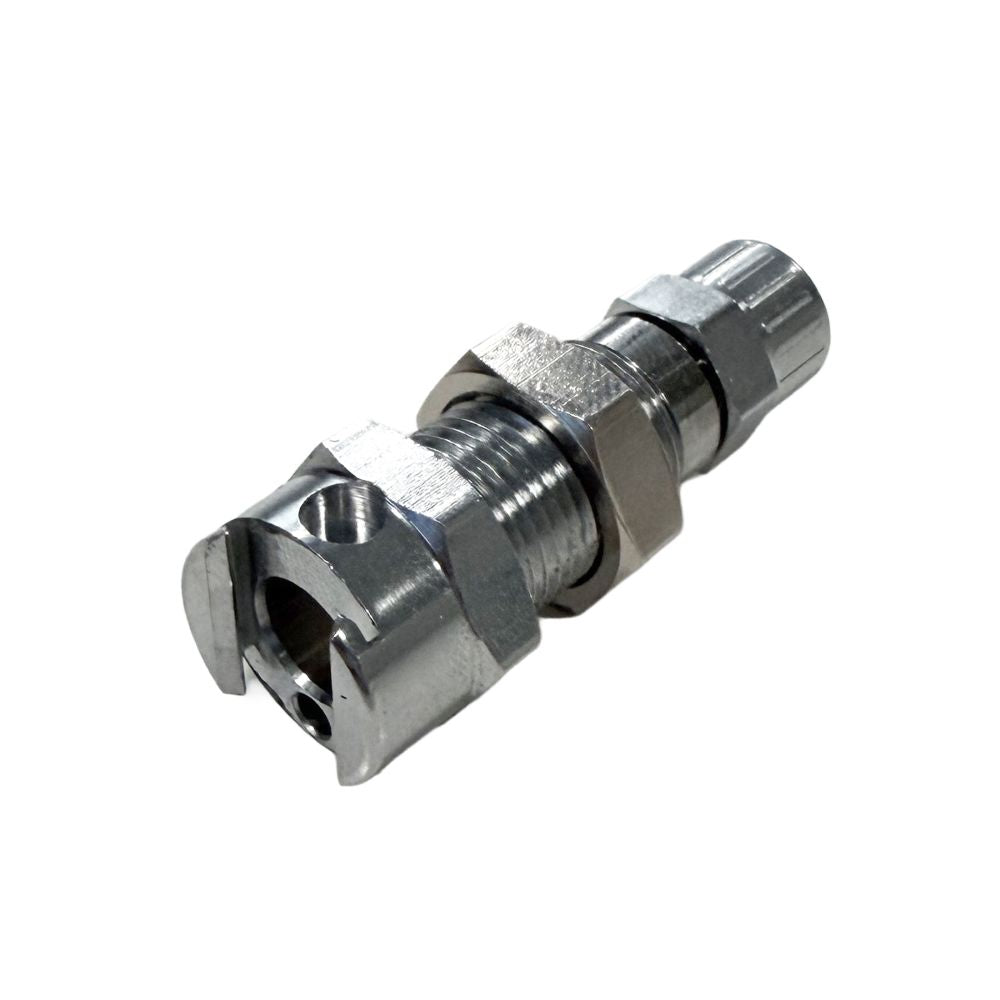

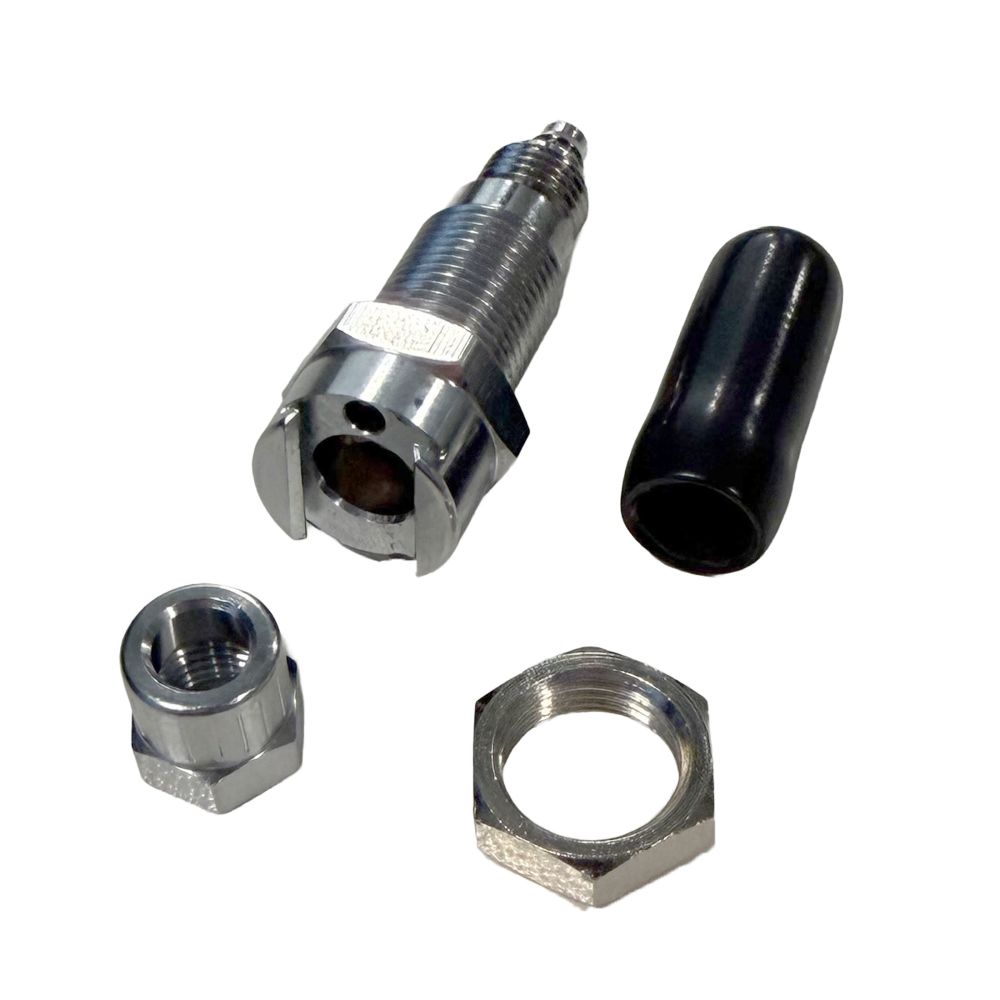

Multi-Mount Valved PTF Coupling Body - 1/4 PTF Chrome

Part Number: MMD1204

In Stock

out of stock

In Stock

$20.65

Multi-Mount couplings provide one easy-to-use coupling for connecting three to five lines at one time. Multi-mounts are available in either acetal or chrome plated brass and are keyed to prevent mismatched connections.

 Specifications;
  • Material: Brass
  • Finish: Chrome
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Panel Mount
  • Tubing Size: .17" ID, 1/4" OD
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 10 units




Weight & Dimensions

Weight (lbs)

0.05

Details

Series

Multi-Mount, MM

Max Temp (°F)

180

Max Pressure (Psi)

500

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Push-In Size

1/4" OD

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Panel Mount

Origin

USA

Seal Material

Buna-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

1/4" FPT


Multi-Mount




Multi-Mount couplings provide one easy-to-use coupling for connecting three to five lines at one time. Multi-mounts are available in either acetal or chrome plated brass and are keyed to prevent mismatched connections.

 Specifications;
  • Material: Brass
  • Finish: Chrome
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Panel Mount
  • Tubing Size: .17" ID, 1/4" OD
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 10 units



Weight & Dimensions

Weight (lbs)

0.05

Details

Series

Multi-Mount, MM

Max Temp (°F)

180

Max Pressure (Psi)

500

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Push-In Size

1/4" OD

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Panel Mount

Origin

USA

Seal Material

Buna-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

1/4" FPT

Documentation
Multi-Mount
