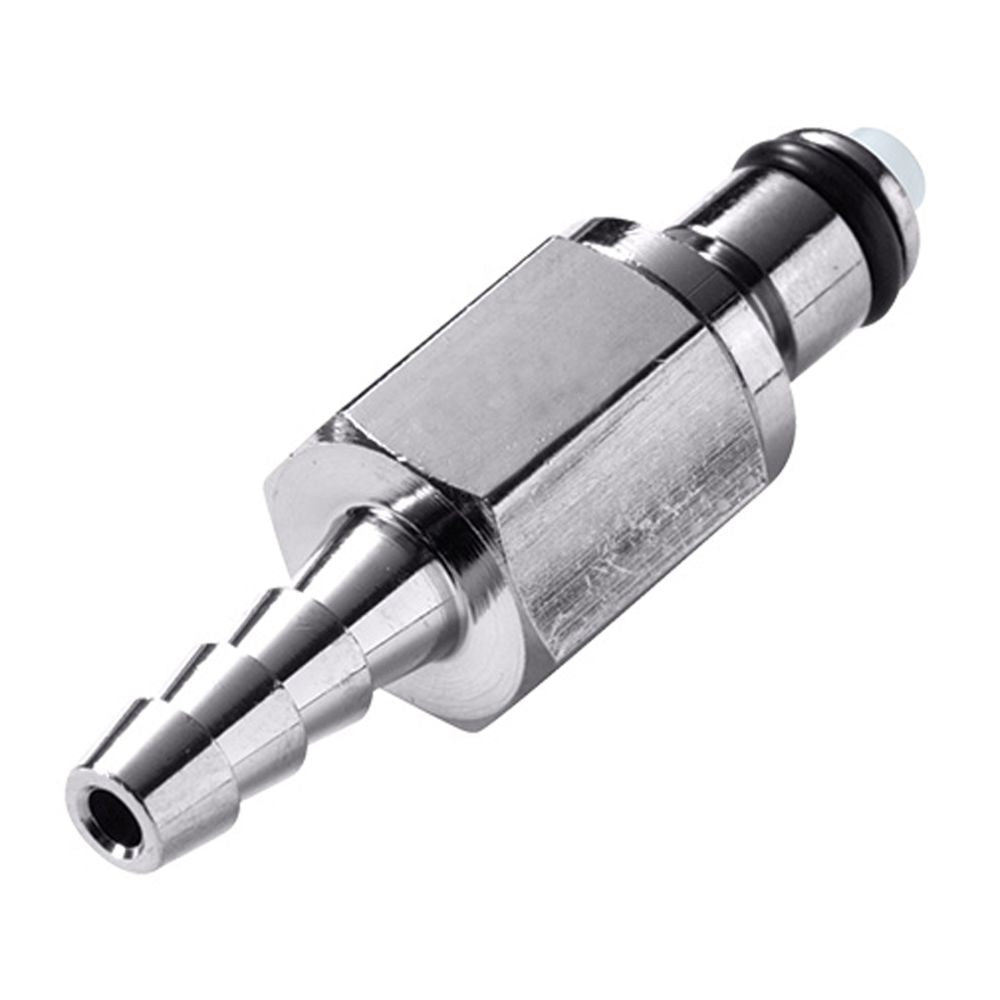

Multi-Mount couplings provide one easy-to-use coupling for connecting three to five lines at one time. Multi-mounts are available in either acetal or chrome plated brass and are keyed to prevent mismatched connections.
Specifications:
Specifications:
- Material: Brass
- Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Mounting Option: Free Floating
- Tubing Size: 1/4" ID
- Valve Option: Valved
- Temperature Range: -40ºF to 180ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: Buna-N
- Available in Bags of 10 units
Weight & Dimensions
Weight (lbs) | 0.05 |
Details
Series | Multi-Mount, MM |
Max Temp (°F) | 180 |
Max Pressure (Psi) | 500 |
Min Temp (°F) | -40 |
Min Pressure (Psi) | Vacuum |
Barb Size | 1/4" ID |
Application | Water |
Bag Quantity | 10 |
Body Material | Chrome-Plated Brass |
Color / Finish | Chrome |
Mounting Options | Panel Mount |
Origin | USA |
Seal Material | Buna-N |
Spring | 316 Stainless Steel |
Valve Type | Valved |
External Springs And Pin | Stainless Steel |
Thumb Latch | Stainless steel |
Multi-Mount couplings provide one easy-to-use coupling for connecting three to five lines at one time. Multi-mounts are available in either acetal or chrome plated brass and are keyed to prevent mismatched connections.
Specifications:
- Material: Brass
- Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Mounting Option: Free Floating
- Tubing Size: 1/4" ID
- Valve Option: Valved
- Temperature Range: -40ºF to 180ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: Buna-N
- Available in Bags of 10 units
Weight & Dimensions
Weight (lbs) | 0.05 |
Details
Series | Multi-Mount, MM |
Max Temp (°F) | 180 |
Max Pressure (Psi) | 500 |
Min Temp (°F) | -40 |
Min Pressure (Psi) | Vacuum |
Barb Size | 1/4" ID |
Application | Water |
Bag Quantity | 10 |
Body Material | Chrome-Plated Brass |
Color / Finish | Chrome |
Mounting Options | Panel Mount |
Origin | USA |
Seal Material | Buna-N |
Spring | 316 Stainless Steel |
Valve Type | Valved |
External Springs And Pin | Stainless Steel |
Thumb Latch | Stainless steel |
