Colder Products

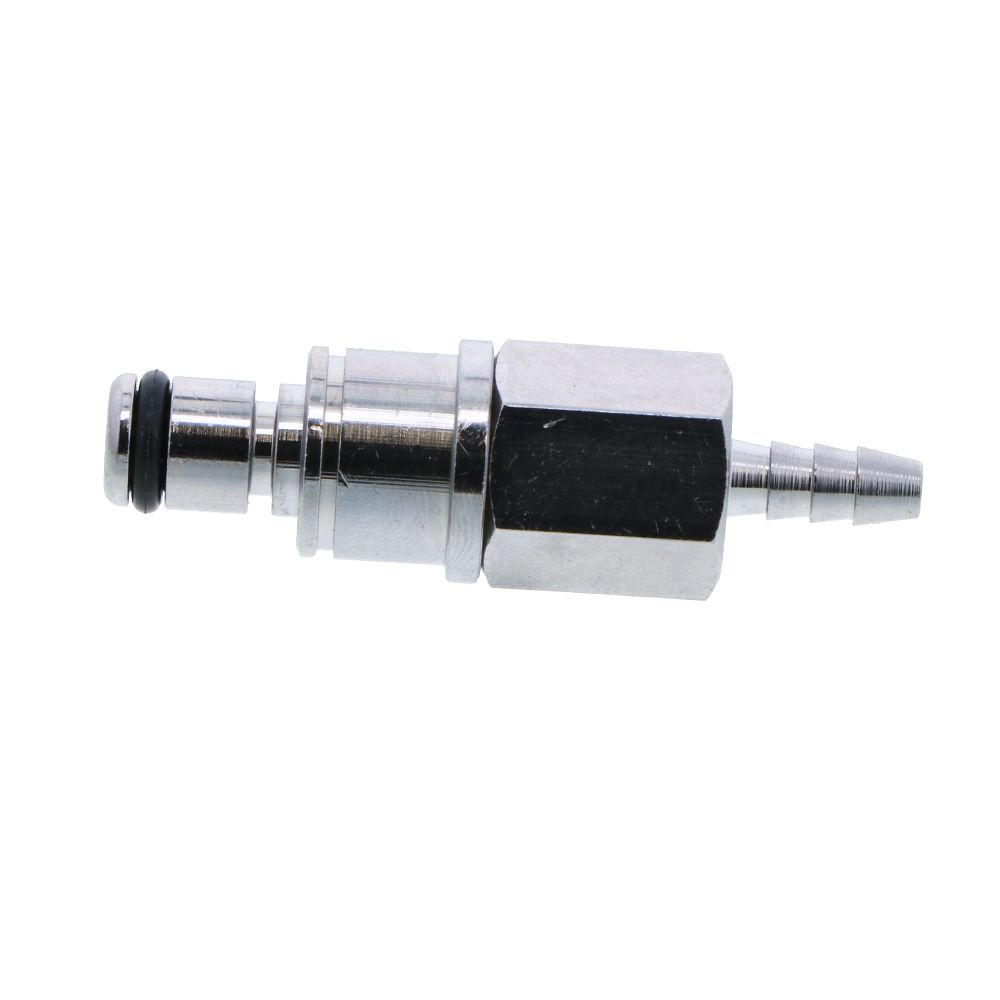

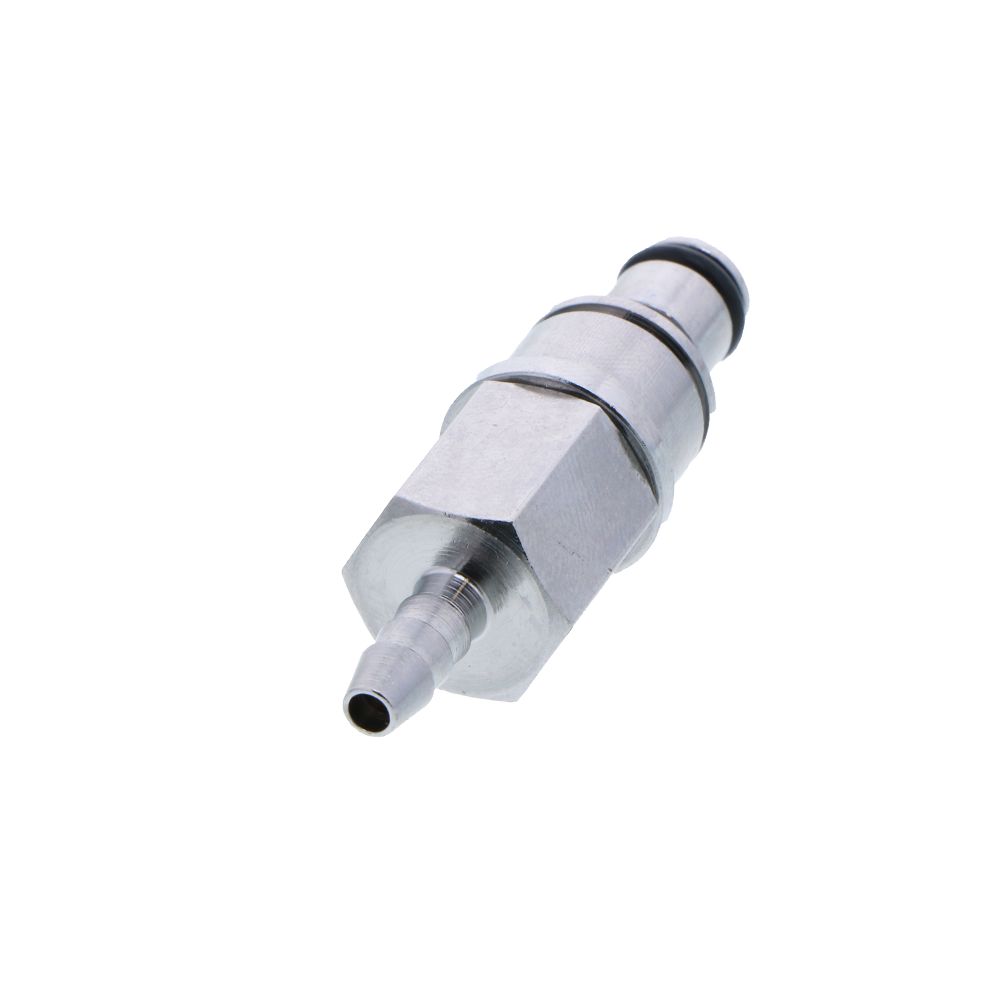

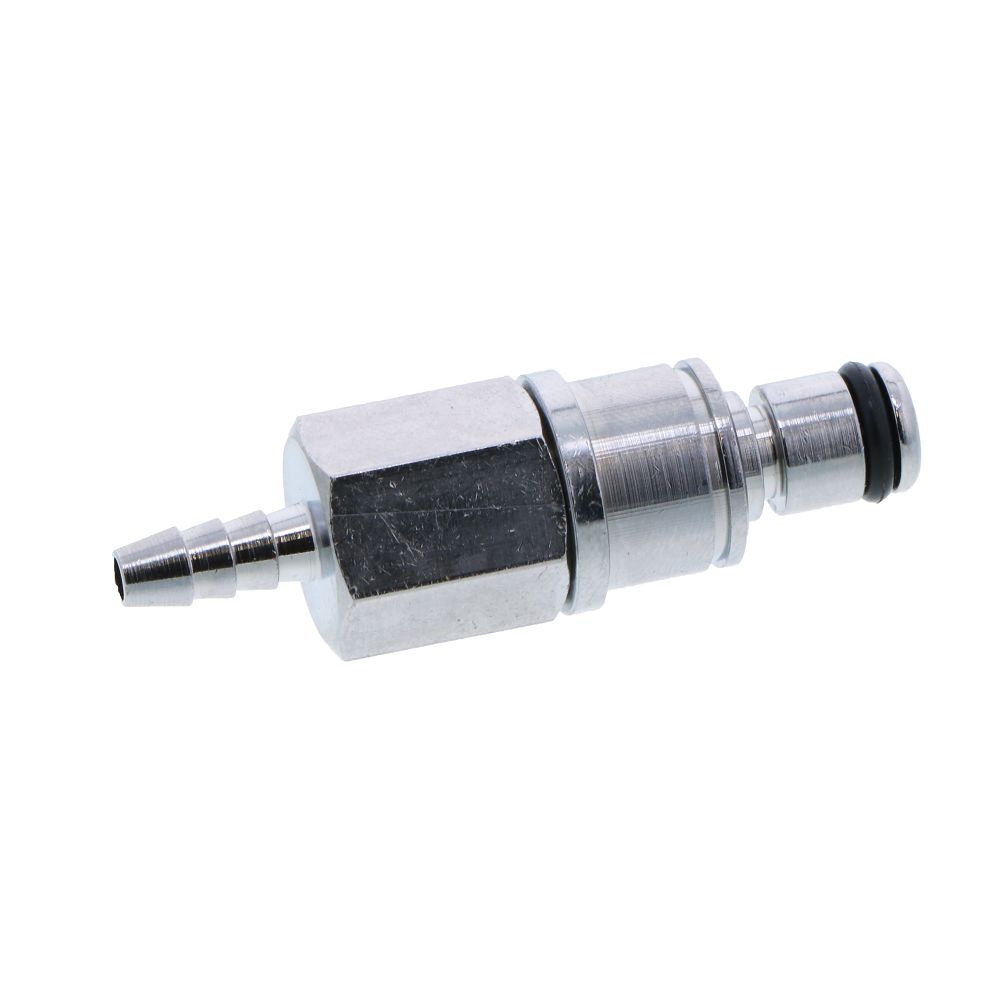

Multi-Mount Non-Valved Hose Barb Coupling Insert - 1/8 ID Barb Chrome

Part Number: MM2202

In Stock

out of stock

In Stock

$12.94

Multi-Mount couplings provide one easy-to-use coupling for connecting three to five lines at one time. Multi-mounts are available in either acetal or chrome plated brass and are keyed to prevent mismatched connections.

Specifications:
  • Material: Brass
  • Finish: Chrome
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Tubing Size: 1/8" ID
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 units
  • Colder Multi-Mount Coupling Specifications




Weight & Dimensions

Height (inches)

0.13

Length (inches)

1.75

Weight (lbs)

0.003125

Width (inches)

0.13

Details

Application

Water

Barb Size

1/8" ID

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

500

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Seal Material

Buna-N

Series

Multi-Mount, MM

Spring

316 stainless steel

Thumb Latch

Stainless stee

Valve Type

Non-Valved

Color / Finish

Chrome

Origin

USA

Type

Coupling Insert


Multi-Mount




Multi-Mount couplings provide one easy-to-use coupling for connecting three to five lines at one time. Multi-mounts are available in either acetal or chrome plated brass and are keyed to prevent mismatched connections.

Specifications:
  • Material: Brass
  • Finish: Chrome
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Tubing Size: 1/8" ID
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 units
  • Colder Multi-Mount Coupling Specifications



Weight & Dimensions

Height (inches)

0.13

Length (inches)

1.75

Weight (lbs)

0.003125

Width (inches)

0.13

Details

Application

Water

Barb Size

1/8" ID

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

500

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Seal Material

Buna-N

Series

Multi-Mount, MM

Spring

316 stainless steel

Thumb Latch

Stainless stee

Valve Type

Non-Valved

Color / Finish

Chrome

Origin

USA

Type

Coupling Insert

Documentation
Multi-Mount
