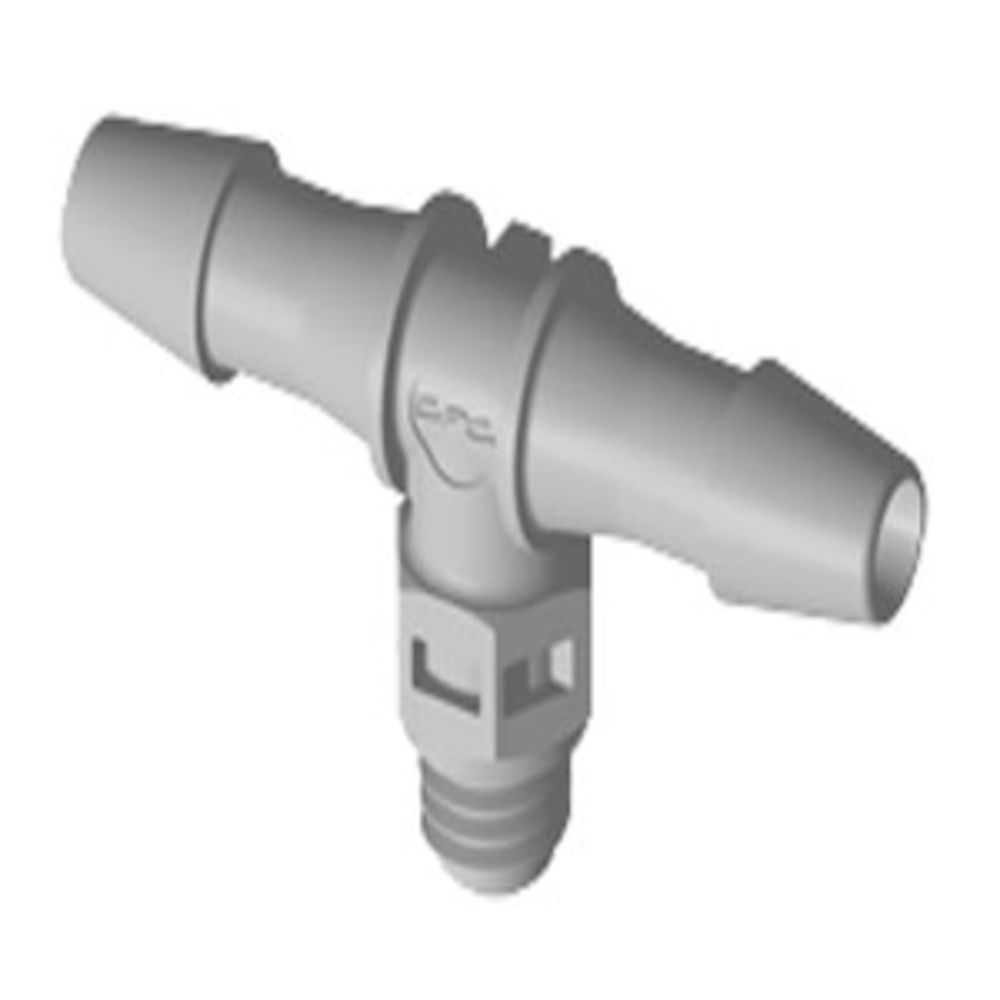

Colder FitQuik Connectors are instrumentation grade fittings that are designed to fit securely even in the most demanding applications. FitQuik fittings feature precise hose barbs and threads to ensure the right fit each and every time.
Specifications:
Specifications:
- Material: Polypropylene
- Material Finish: Natural
- Color: Natural
- Valve Option: Non-Valved
- Temperature Range: -10°F to 150°F (-23°C to 66°C)
Details
Application | Water, Air |
Barb Size | 5/32" ID |
Body Material | Polypropylene |
Inlet/Outlet Connection | 10-32 UNF |
Max Temp (°F) | 150 |
Min Temp (°F) | -10 |
Mounting Options | Thread |
Series | FitQuik |
Size | 10-32 |
Valve Type | Non-Valved |
Color / Finish | Natural |
Sub-Type | Branch Tee |
Type | Tee |
Colder FitQuik Connectors are instrumentation grade fittings that are designed to fit securely even in the most demanding applications. FitQuik fittings feature precise hose barbs and threads to ensure the right fit each and every time.
Specifications:
- Material: Polypropylene
- Material Finish: Natural
- Color: Natural
- Valve Option: Non-Valved
- Temperature Range: -10°F to 150°F (-23°C to 66°C)
Details
Application | Water, Air |
Barb Size | 5/32" ID |
Body Material | Polypropylene |
Inlet/Outlet Connection | 10-32 UNF |
Max Temp (°F) | 150 |
Min Temp (°F) | -10 |
Mounting Options | Thread |
Series | FitQuik |
Size | 10-32 |
Valve Type | Non-Valved |
Color / Finish | Natural |
Sub-Type | Branch Tee |
Type | Tee |
