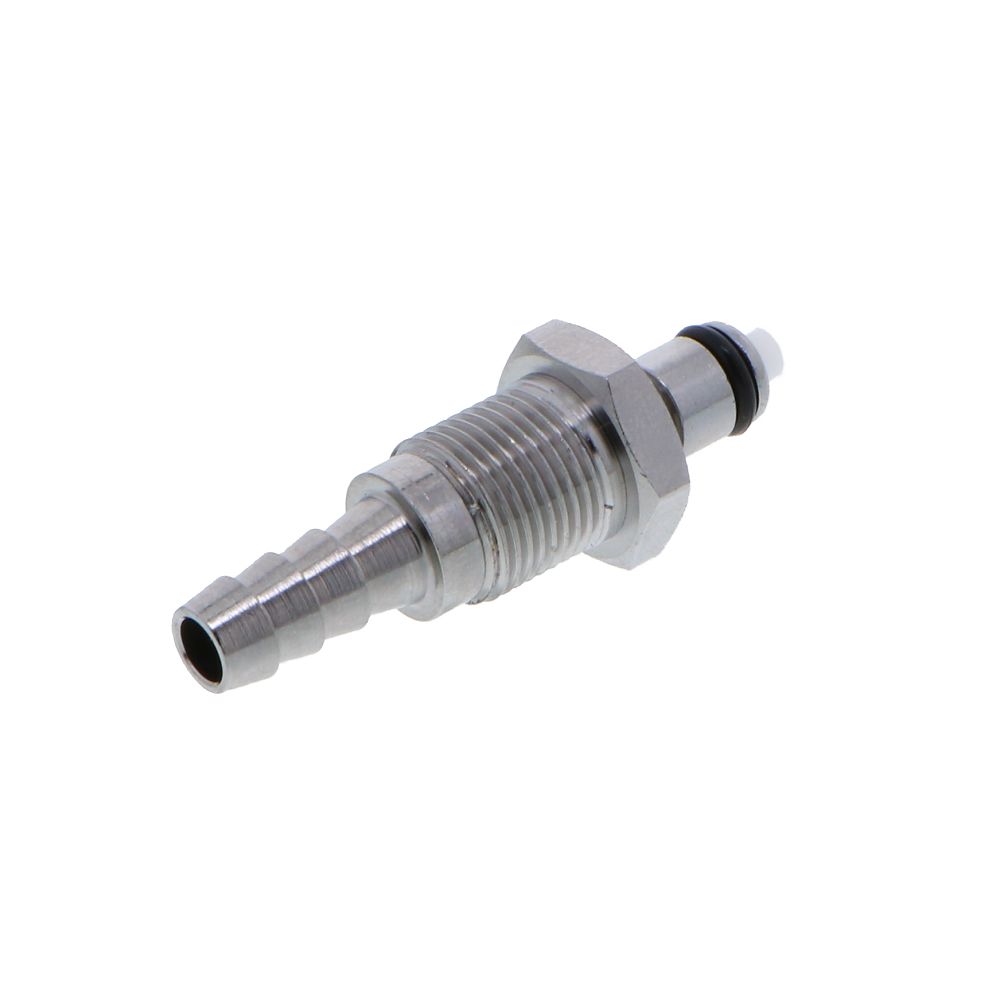

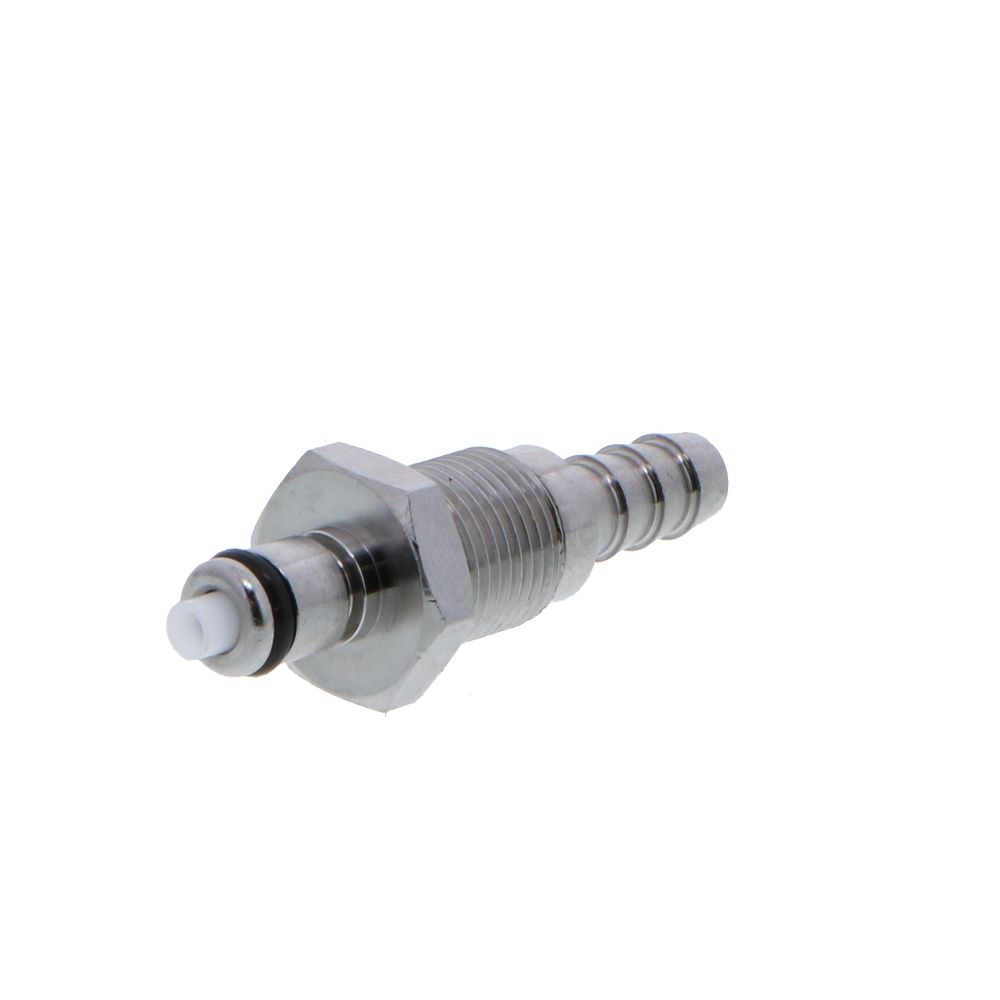

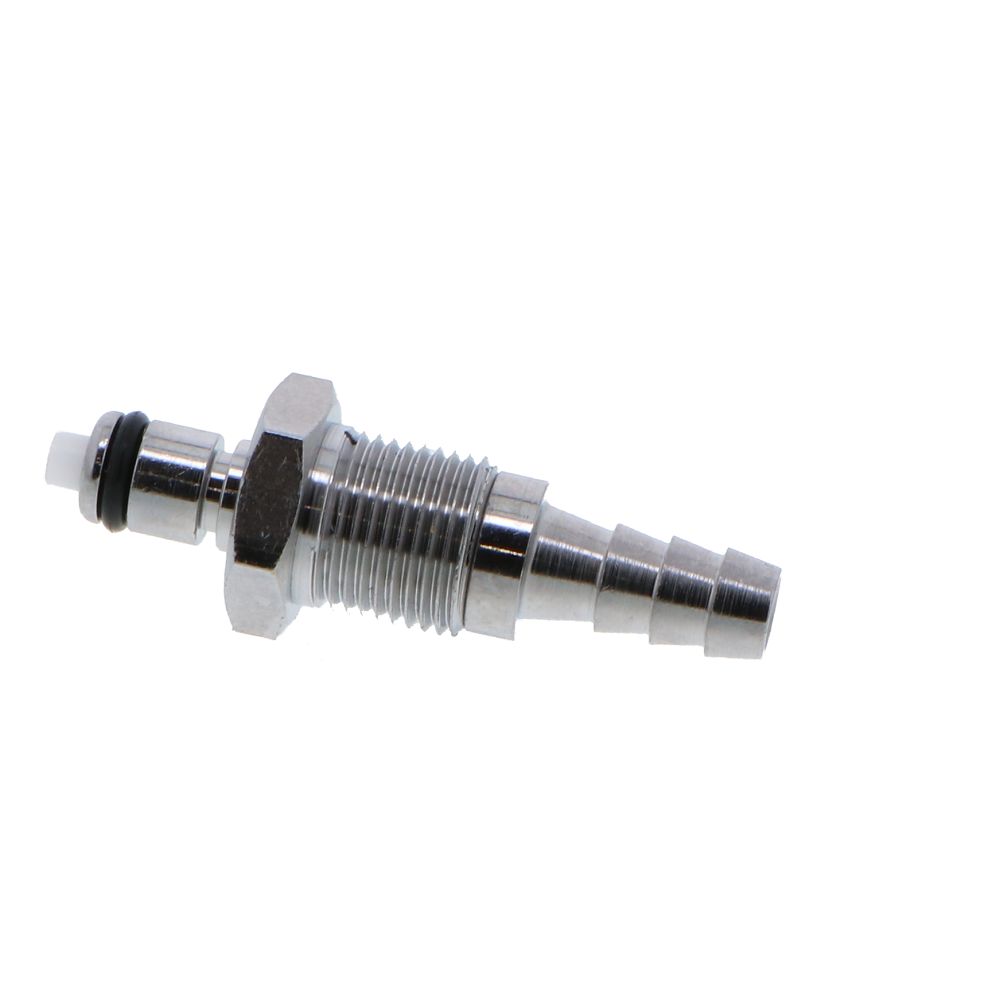

Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.
Specifications:
Specifications:
- Material: Brass
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Mounting Option: Panel Mount
- Valve Option: Valved
- Finish: Chrome
- Temperature Range: -40ºF to 180ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: Buna-N
Details
Series | MC |
Max Temp (°F) | 180 |
Max Pressure (Psi) | 180 |
Min Temp (°F) | -40 |
Min Pressure (Psi) | Vacuum |
Barb Size | 1/4" ID |
Application | Water |
Bag Quantity | 10 |
Body Material | Chrome-Plated Brass |
Color / Finish | Chrome |
Mounting Options | Panel Mount |
Origin | USA |
Seal Material | Buna-N |
Spring | 316 Stainless Steel |
Valve Type | Valved |
External Springs And Pin | Stainless Steel |
Thumb Latch | Stainless Steel |
Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.
Specifications:
- Material: Brass
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Mounting Option: Panel Mount
- Valve Option: Valved
- Finish: Chrome
- Temperature Range: -40ºF to 180ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: Buna-N
Details
Series | MC |
Max Temp (°F) | 180 |
Max Pressure (Psi) | 180 |
Min Temp (°F) | -40 |
Min Pressure (Psi) | Vacuum |
Barb Size | 1/4" ID |
Application | Water |
Bag Quantity | 10 |
Body Material | Chrome-Plated Brass |
Color / Finish | Chrome |
Mounting Options | Panel Mount |
Origin | USA |
Seal Material | Buna-N |
Spring | 316 Stainless Steel |
Valve Type | Valved |
External Springs And Pin | Stainless Steel |
Thumb Latch | Stainless Steel |
