Colder Products

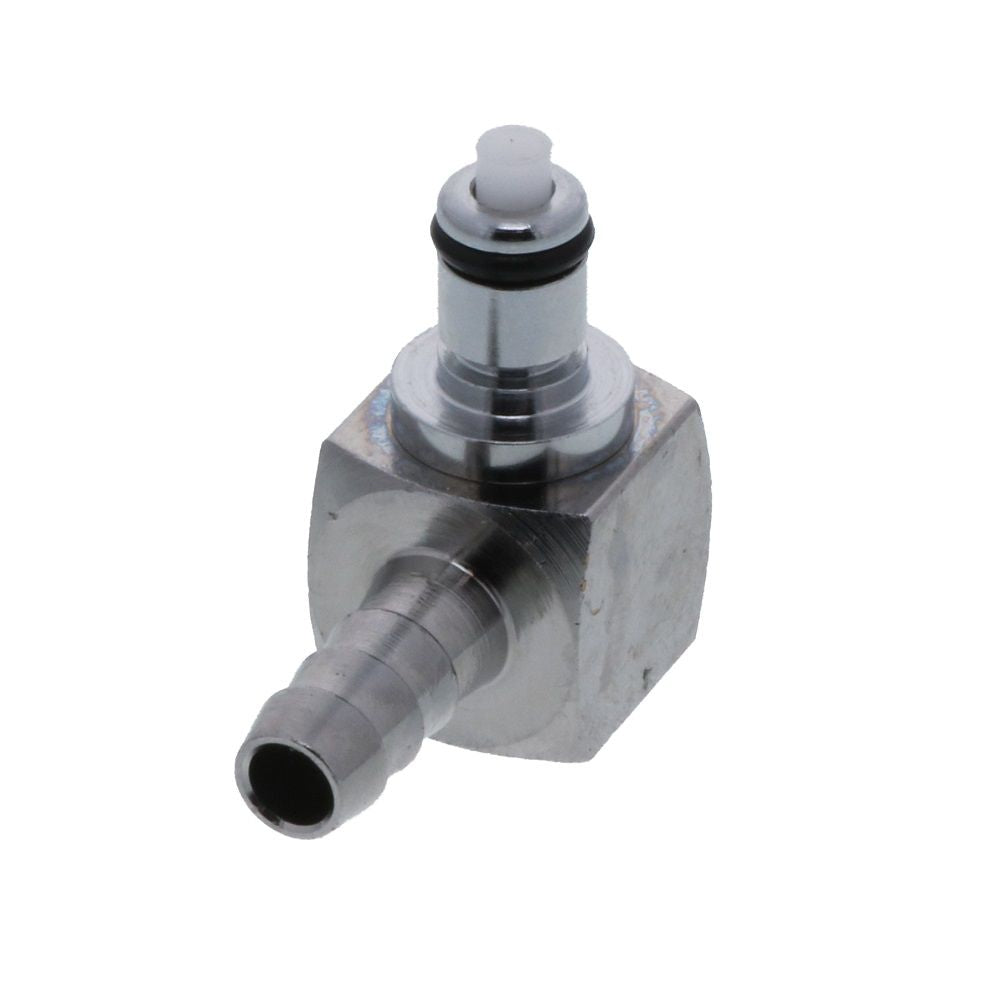

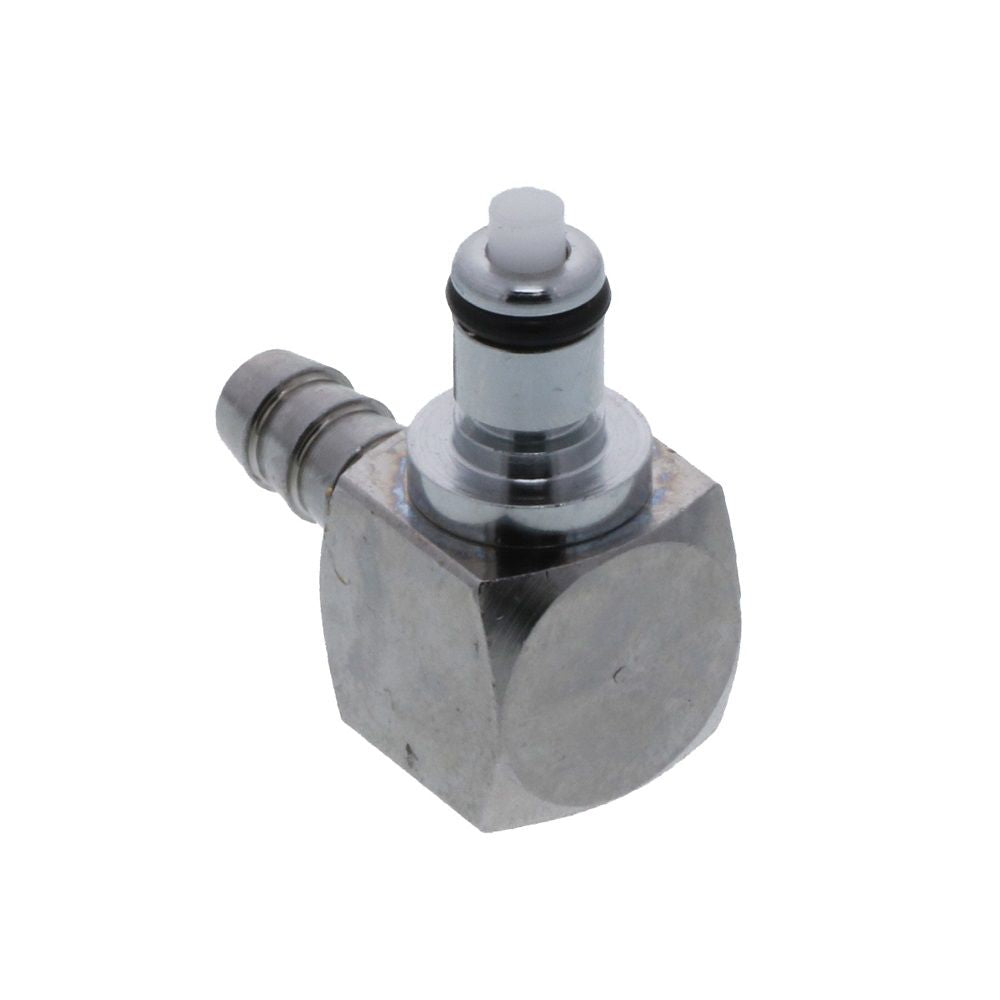

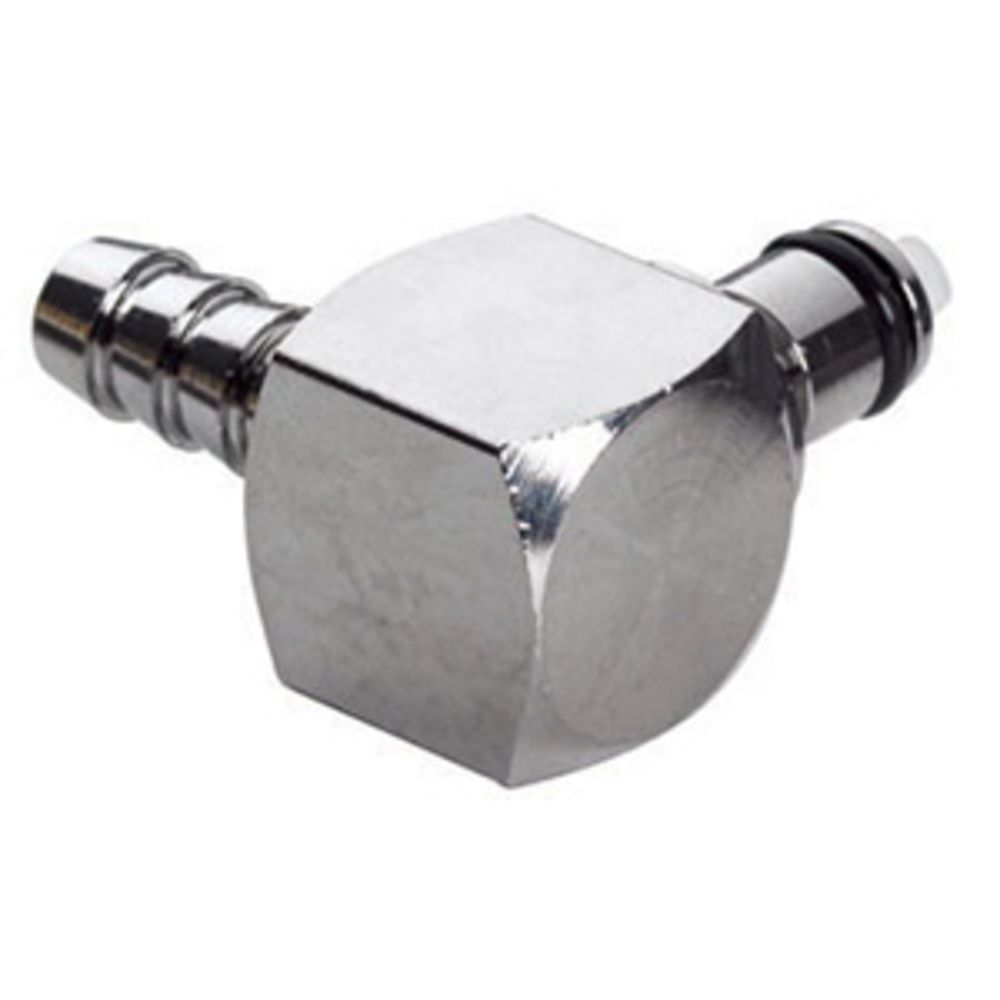

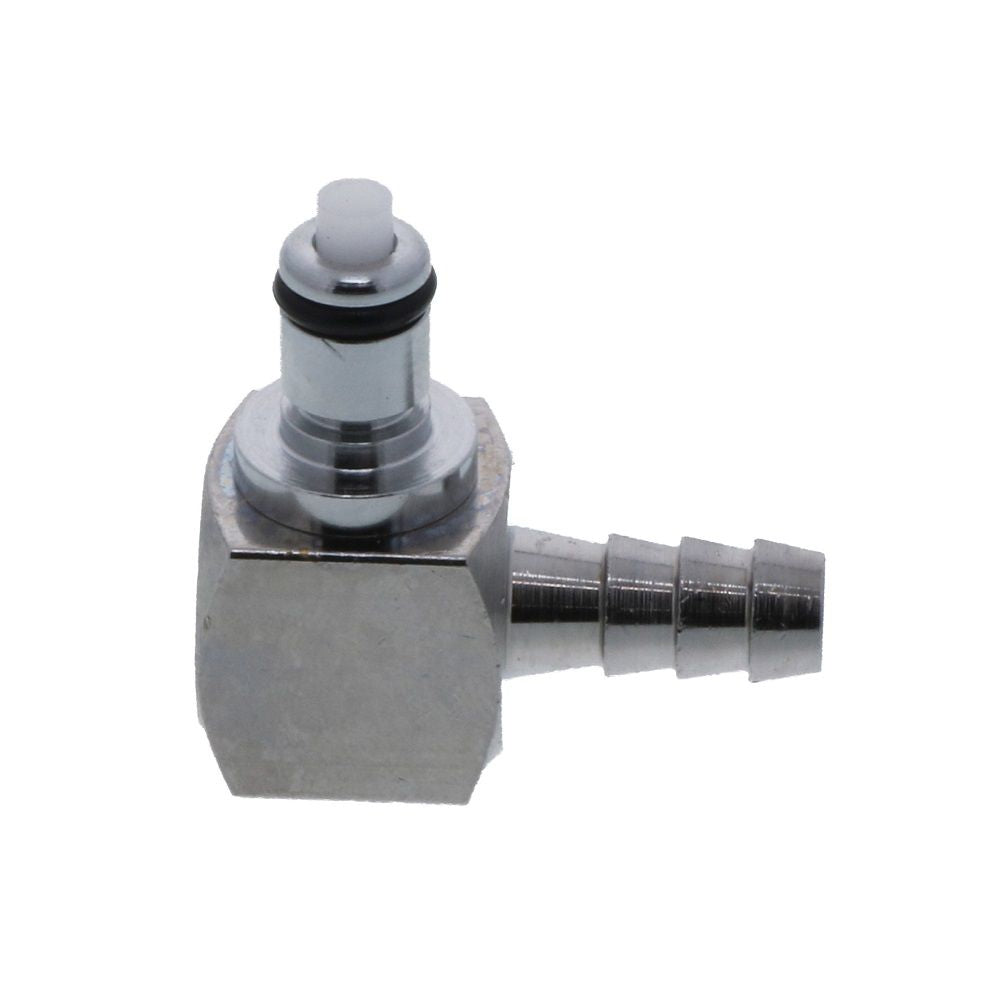

MCD2304 Elbow Hose Barb Valved Coupling Insert 1/4 ID Barb

Part Number: MCD2304

In Stock

out of stock

In Stock

$14.20

Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units




Weight & Dimensions

Weight (lbs)

0.1

Details

Application

Water

Barb Size

1/4" ID

Body Material

Chrome-Plated Brass

Max Pressure (Psi)

180

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

MC

Valve Type

Valved

Color / Finish

Chrome

Type

Coupling Insert


MCD2304




Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units



Weight & Dimensions

Weight (lbs)

0.1

Details

Application

Water

Barb Size

1/4" ID

Body Material

Chrome-Plated Brass

Max Pressure (Psi)

180

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

MC

Valve Type

Valved

Color / Finish

Chrome

Type

Coupling Insert

Documentation
MCD2304
