Colder Products

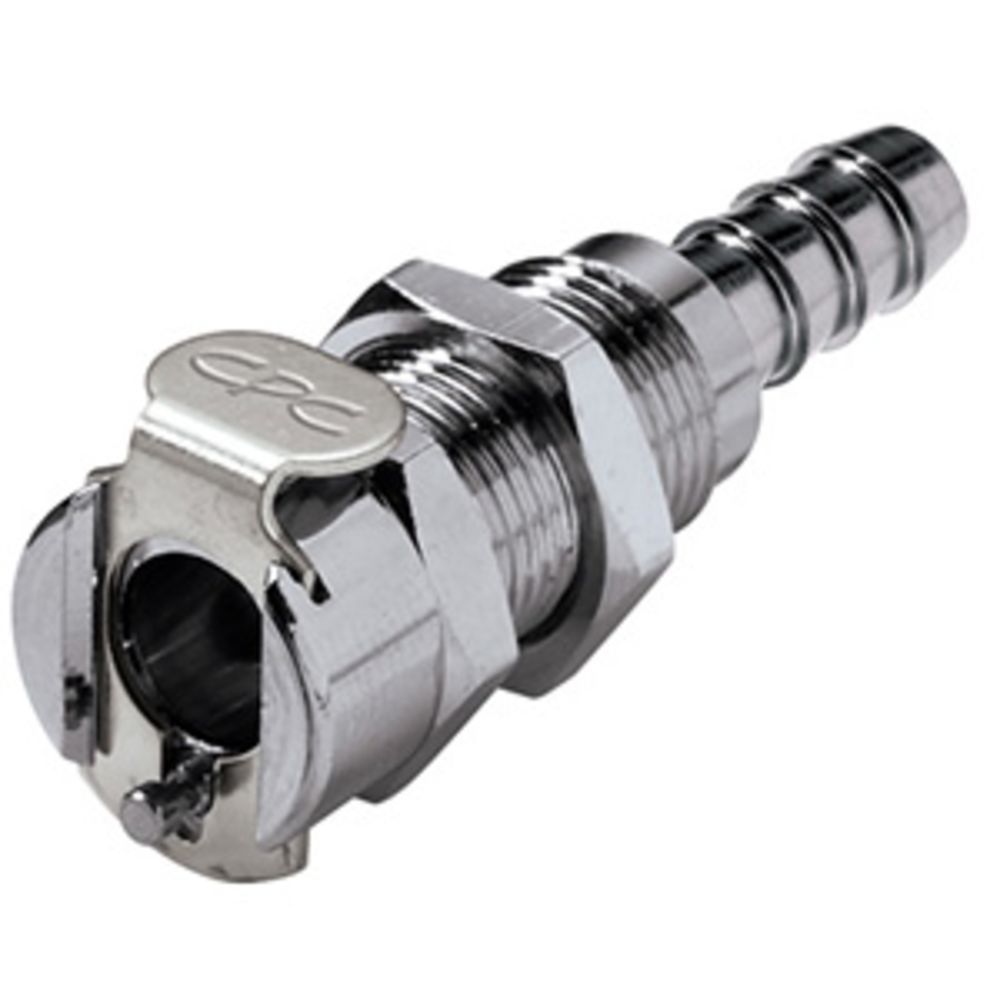

MCD1603 Valved Panel Mount Hose Barb Coupling Body 3/16 ID Barb

Part Number: MCD1603

In Stock

out of stock

In Stock

$18.79

Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N




Weight & Dimensions

Weight (lbs)

0.1

Details

Application

Water

Barb Size

3/16" ID

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

180

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Seal Material

Buna-N

Series

MC

Spring

316 Stainless Steel

Thumb Latch

Stainless Steel

Valve Type

Valved

Color / Finish

Chrome

Type

Coupling Body


MCD1603
