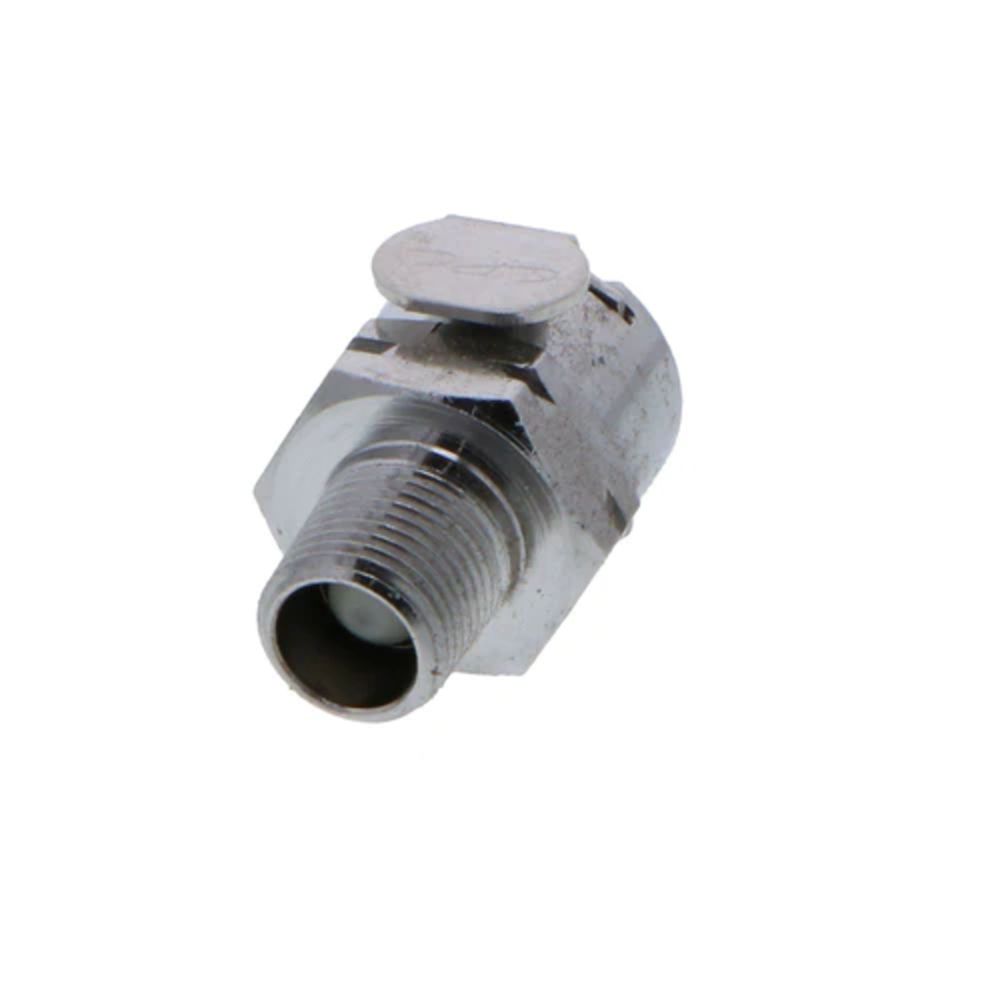

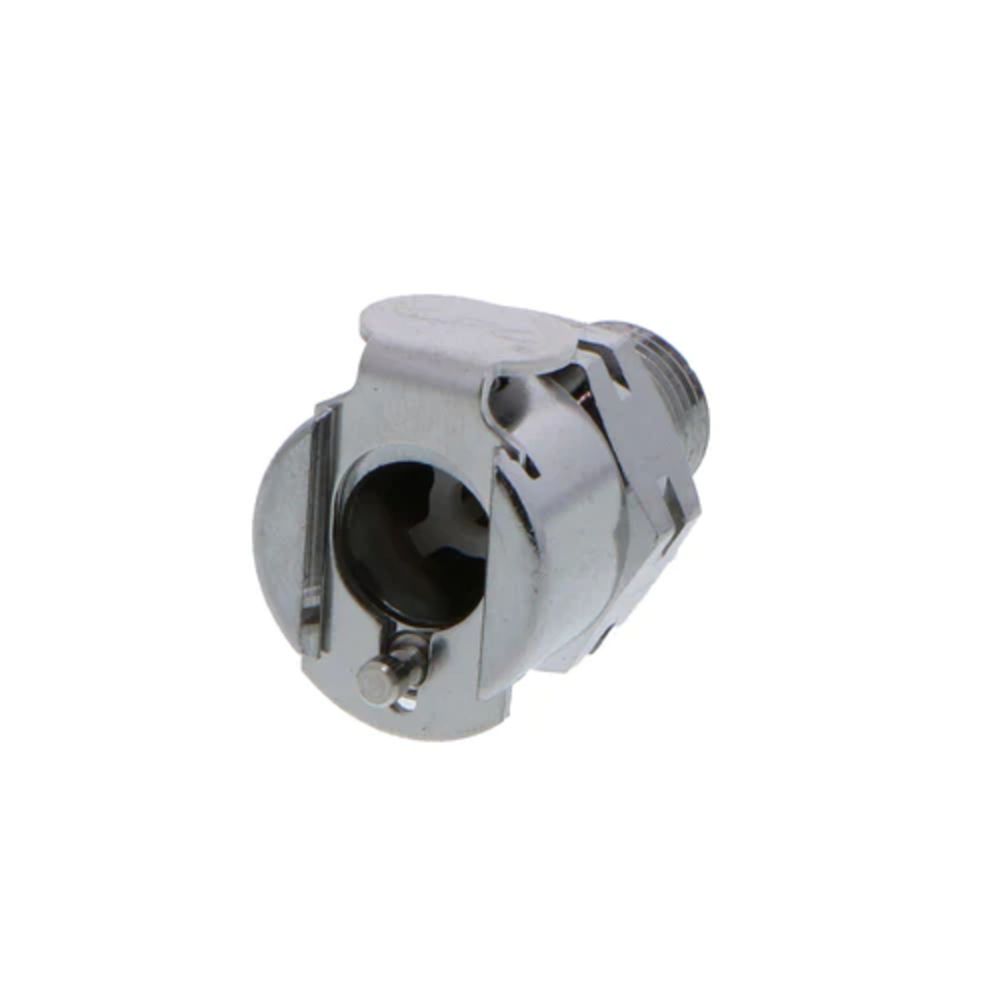

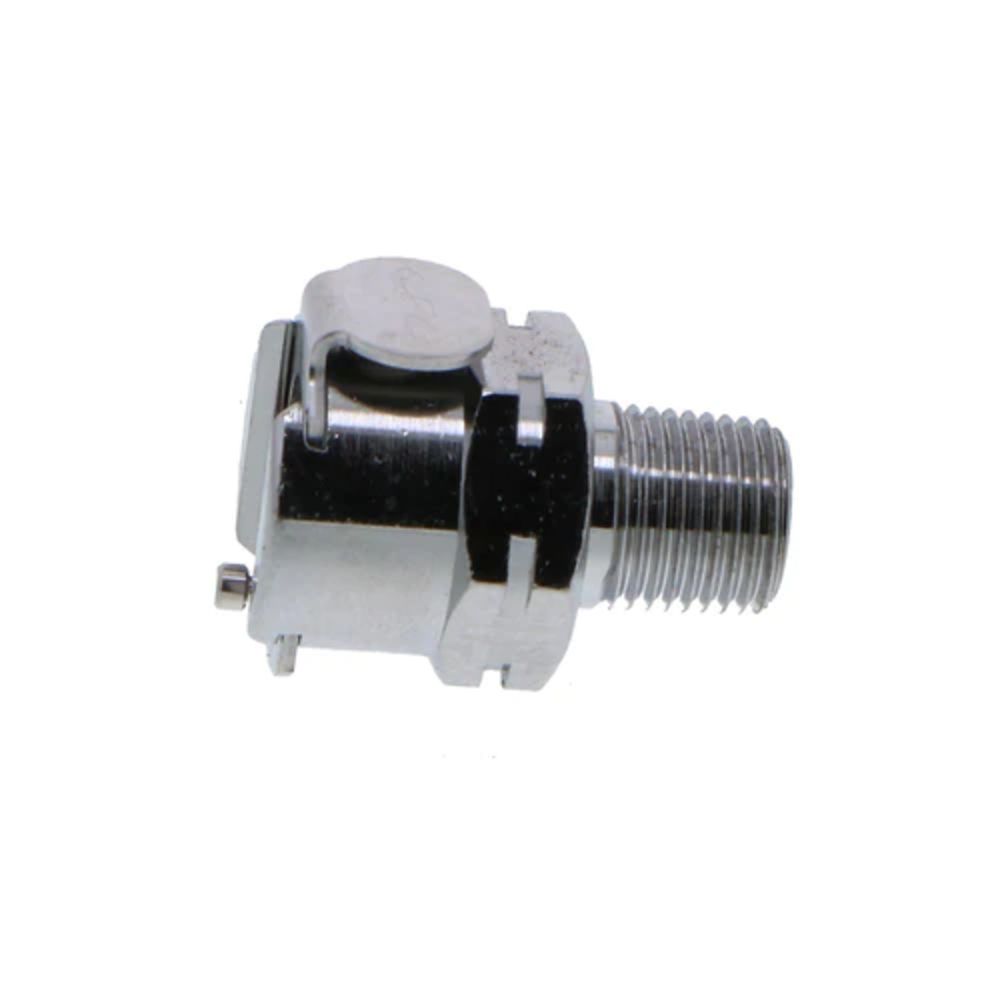

MCD1002BSPTV Valved Male Thread Coupling Body 1/8 BSPT FKM Seal

Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:

Material: Brass
Pressure Range: Vacuum to 250 psi, 17.3 bar
Mounting Option: Thread
Valve Option: Valved
Finish: Chrome
Temperature Range: -40ºF to 180ºF
Valve Spring: 316 Stainless Steel
Seal Options: FKM/Viton

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Inlet Connection	1/8" BSP
Max Pressure (Psi)	180
Max Temp (°F)	180
Min Temp (°F)	-40
Nsf Version	No
Outlet Connection	1/8" BSP
Series	MC
Shape	Straight
Size	1/8"
Valve Type	Valved
Color / Finish	Silver
Connection Type	BSP
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Height	0.63"
Product Length	0.88"
Product Width	0.63"
Product Weight (lbs)	0.003125

Product Details
Inlet Connection	1/8" BSP
Max Pressure (Psi)	180
Max Temp (°F)	180
Min Temp (°F)	-40
Nsf Version	No
Outlet Connection	1/8" BSP
Series	MC
Shape	Straight
Size	1/8"
Valve Type	Valved
Color / Finish	Silver
Connection Type	BSP
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	0.03125

Product Details
Inlet Connection	1/8" BSP
Max Pressure (Psi)	180
Max Temp (°F)	180
Min Temp (°F)	-40
Nsf Version	No
Outlet Connection	1/8" BSP
Series	MC
Shape	Straight
Size	1/8"
Valve Type	Valved
Color / Finish	Silver
Connection Type	BSP
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	5
