Colder Products

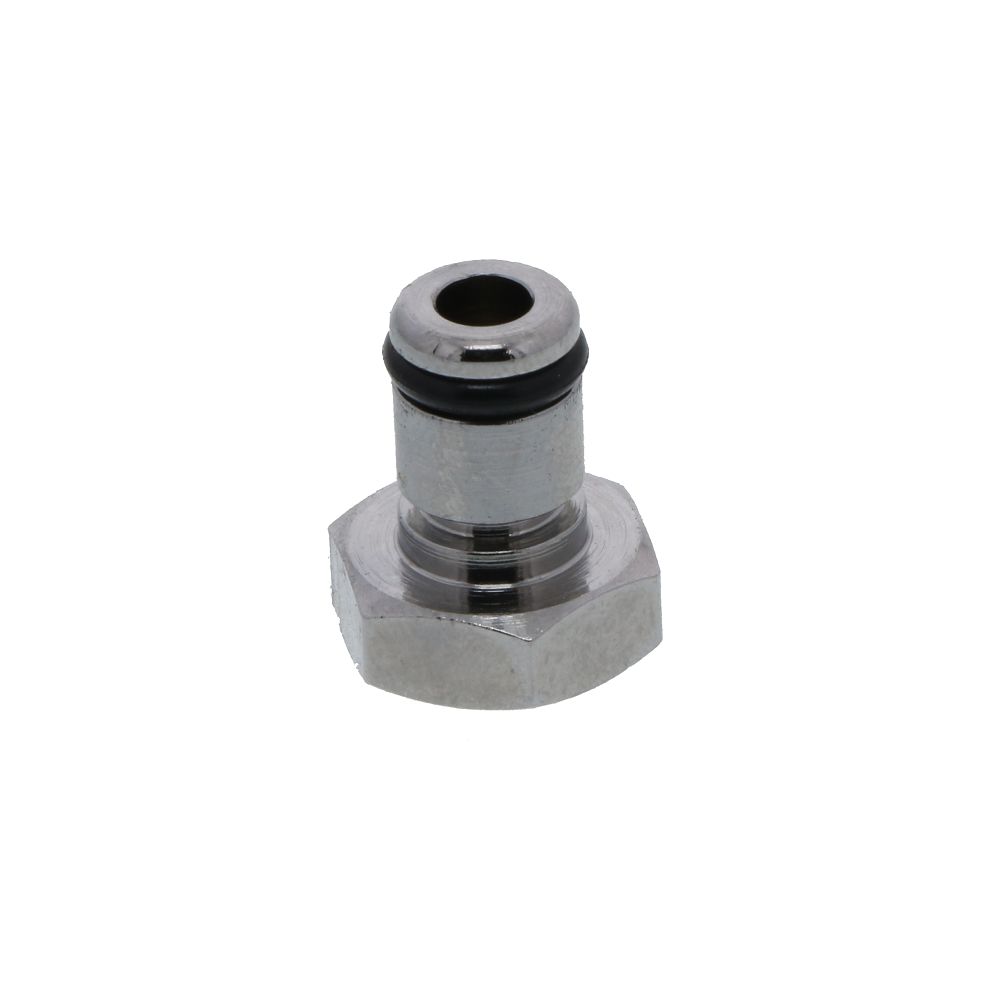

MC281032 Female Thread Coupling Insert 10-32 UNF

Part Number: MC281032

In Stock

out of stock

In Stock

$6.35

Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Thread
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units




Weight & Dimensions

Length (inches)

0.5

Height (inches)

0.38

Width (inches)

0.38

Weight (lbs)

0.000625

Details

Series

MC

Max Temp (°F)

180

Max Pressure (Psi)

180

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Thread

Origin

USA

Seal Material

Buna-N

Size

10-32

Spring

316 Stainless Steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Inlet/Outlet Connection

10-32 UNF


MC281032




Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Thread
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units



Weight & Dimensions

Length (inches)

0.5

Height (inches)

0.38

Width (inches)

0.38

Weight (lbs)

0.000625

Details

Series

MC

Max Temp (°F)

180

Max Pressure (Psi)

180

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Thread

Origin

USA

Seal Material

Buna-N

Size

10-32

Spring

316 Stainless Steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Inlet/Outlet Connection

10-32 UNF
