Colder Products

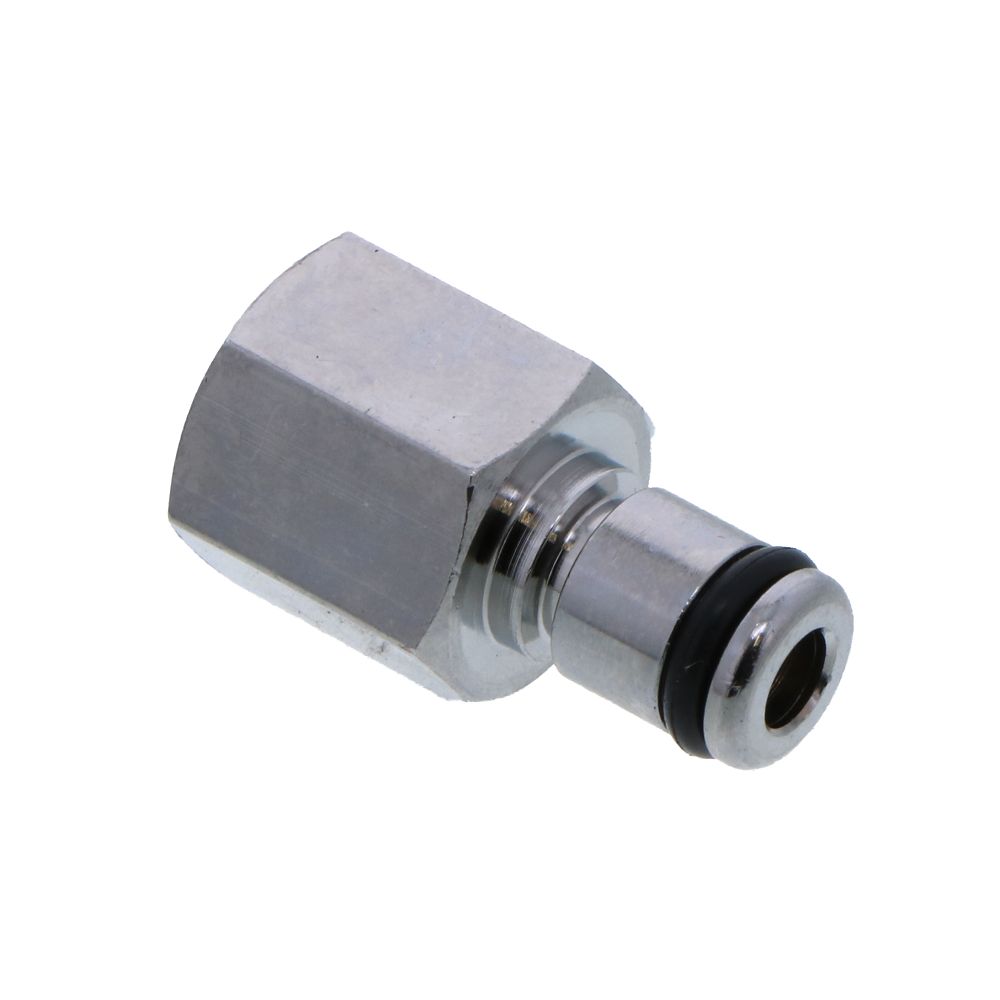

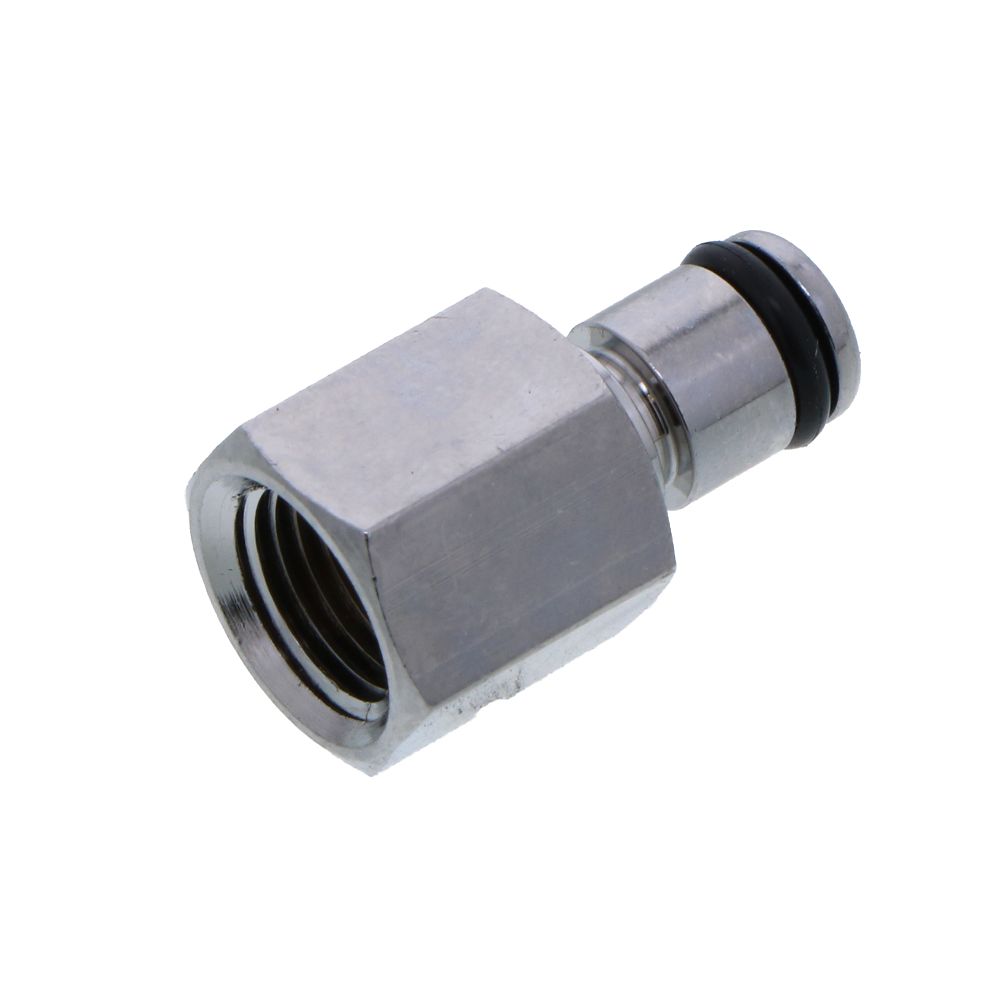

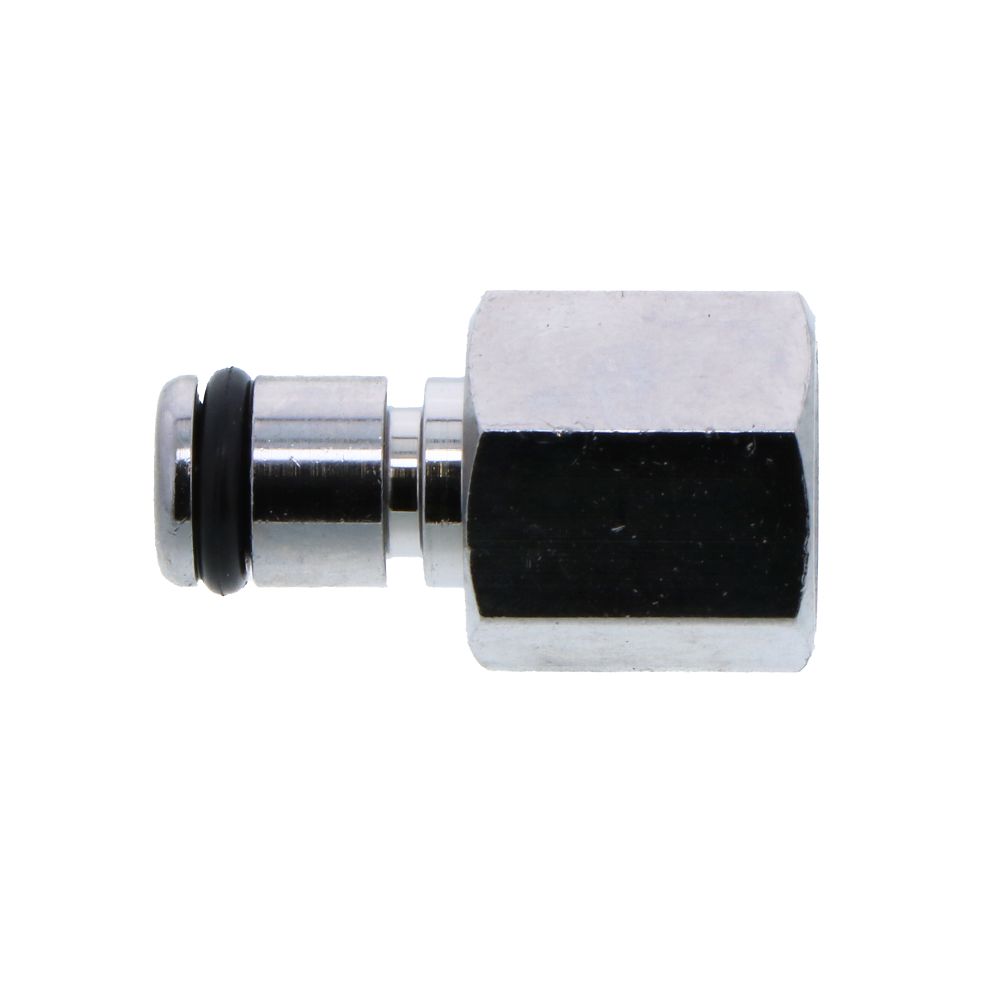

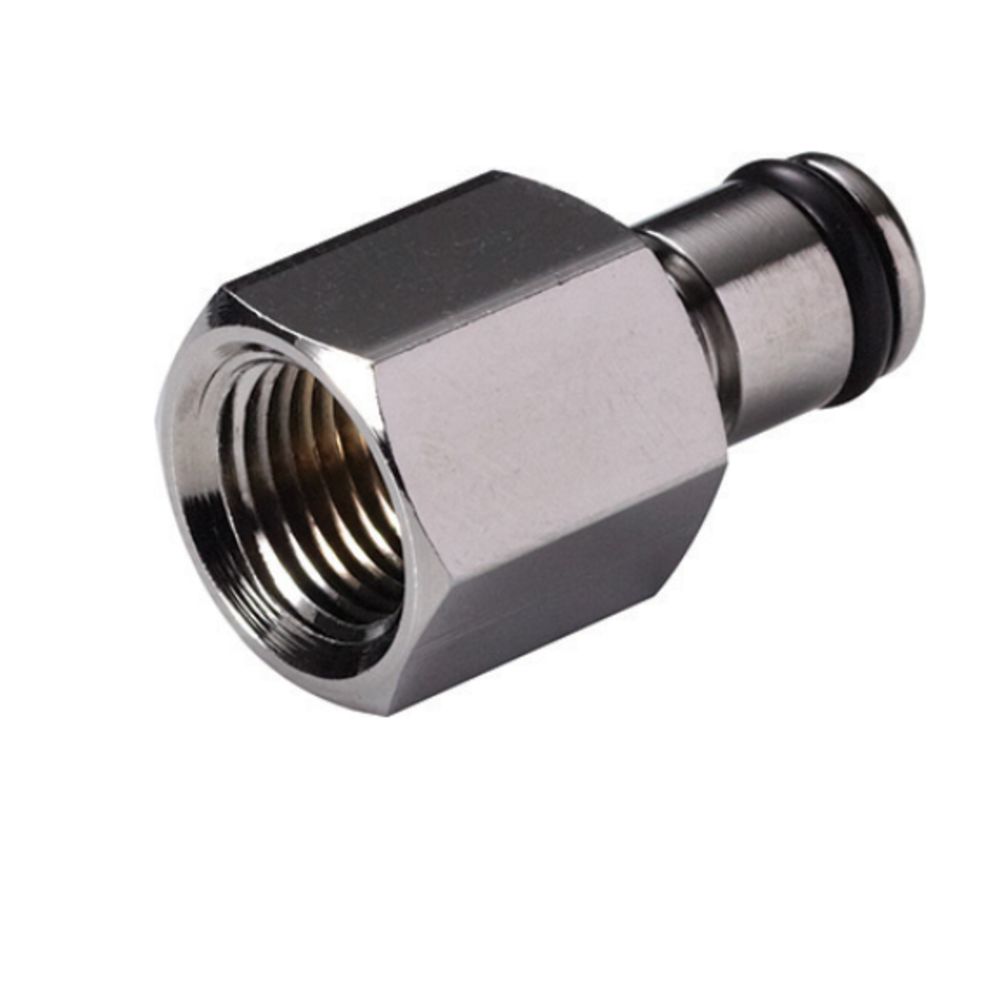

MC2602 Female Thread Coupling Insert 1/8 NPT

Part Number: MC2602

In Stock

out of stock

In Stock

$4.92


Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Thread
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units
  • NSF Listed Version (part # 17500) Available Upon Request


Details

Bag Quantity

10

Body Material

Brass

Color / Finish

Chrome

Mounting Options

Thread

O Rings

Buna-N

Operating Pressure Range

Vacuum to 250 psi, 17.3 bar PSI

Operating Temperature Range

-40 to 180 Degrees Fahrenheit

Origin

USA

Seal Material

Buna-N

Spring

316 stainless steel

Type

Coupler

Valve Type

Non-Valved; Chrome-plated brass

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel


MC2602





Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Thread
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units
  • NSF Listed Version (part # 17500) Available Upon Request

Details

Bag Quantity

10

Body Material

Brass

Color / Finish

Chrome

Mounting Options

Thread

O Rings

Buna-N

Operating Pressure Range

Vacuum to 250 psi, 17.3 bar PSI

Operating Temperature Range

-40 to 180 Degrees Fahrenheit

Origin

USA

Seal Material

Buna-N

Spring

316 stainless steel

Type

Coupler

Valve Type

Non-Valved; Chrome-plated brass

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel
