Colder Products

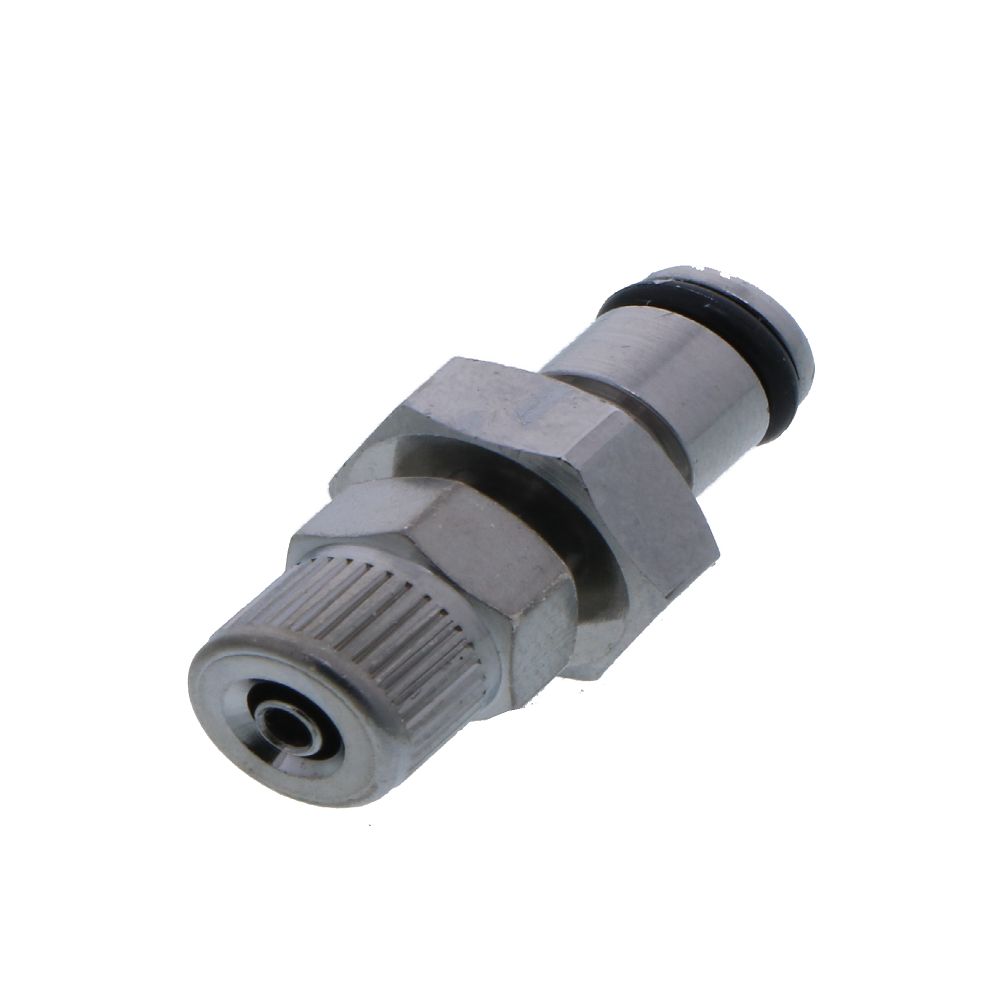

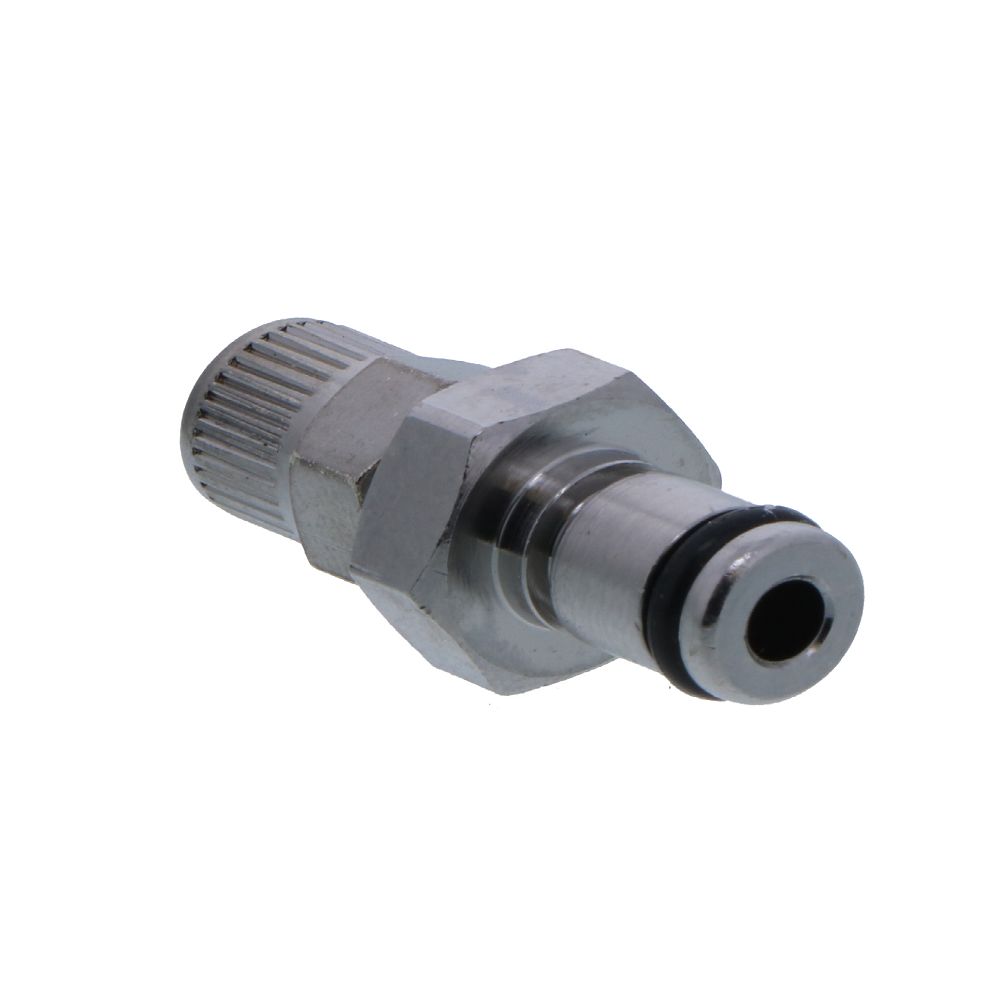

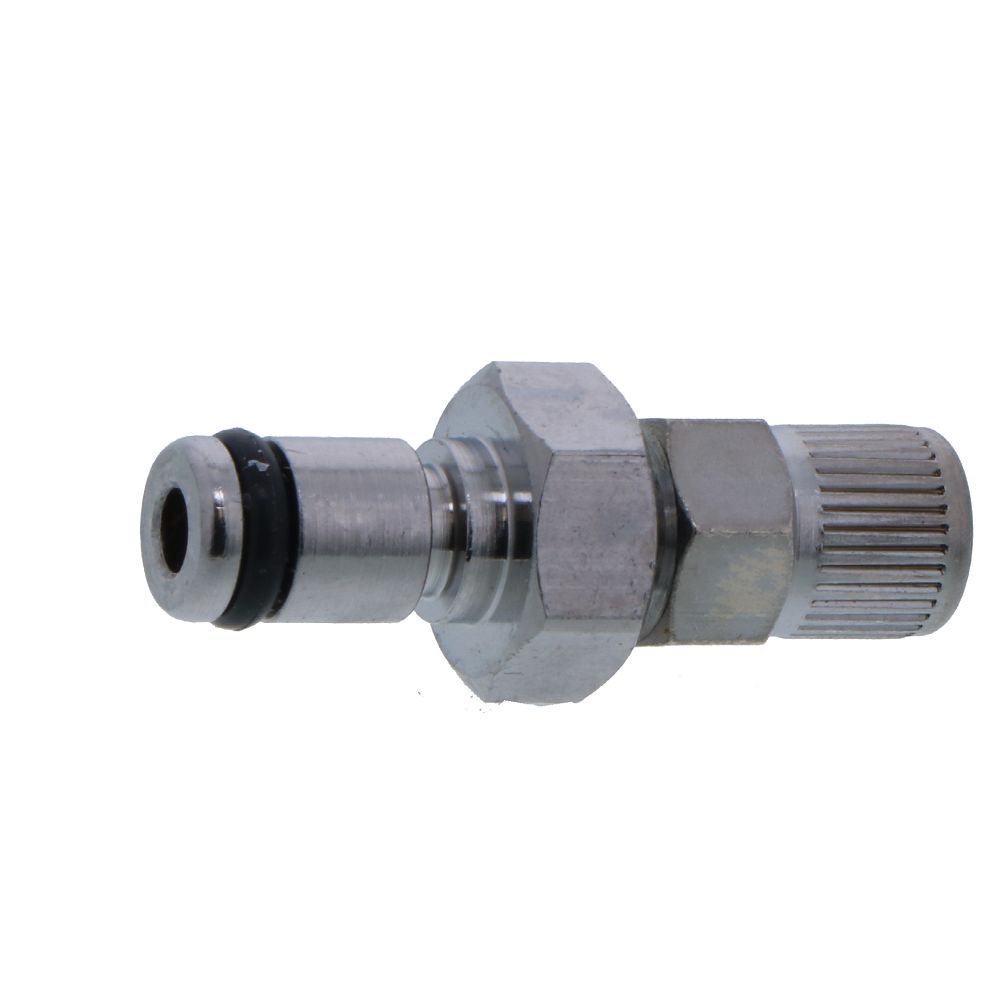

MC20025 In-Line PTF Coupling Insert 5/32 PTF

Part Number: MC20025

In Stock

out of stock

In Stock

$7.21

Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Tubing Size:.10" ID, 5/32" OD
  • Available in Bags of 10 Units




Weight & Dimensions

Weight (lbs)

0.1

Details

Application

Water

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

5/32" FPT

Max Pressure (Psi)

180

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Push-In Size

5/32" OD

Seal Material

Buna-N

Series

MC

Size

5/32"

Spring

316 Stainless Steel

Thumb Latch

Stainless Steel

Valve Type

Non-Valved

Color / Finish

Chrome

Connection Type

Female (FPT)

Origin

USA

Type

Coupling Insert


MC20025
