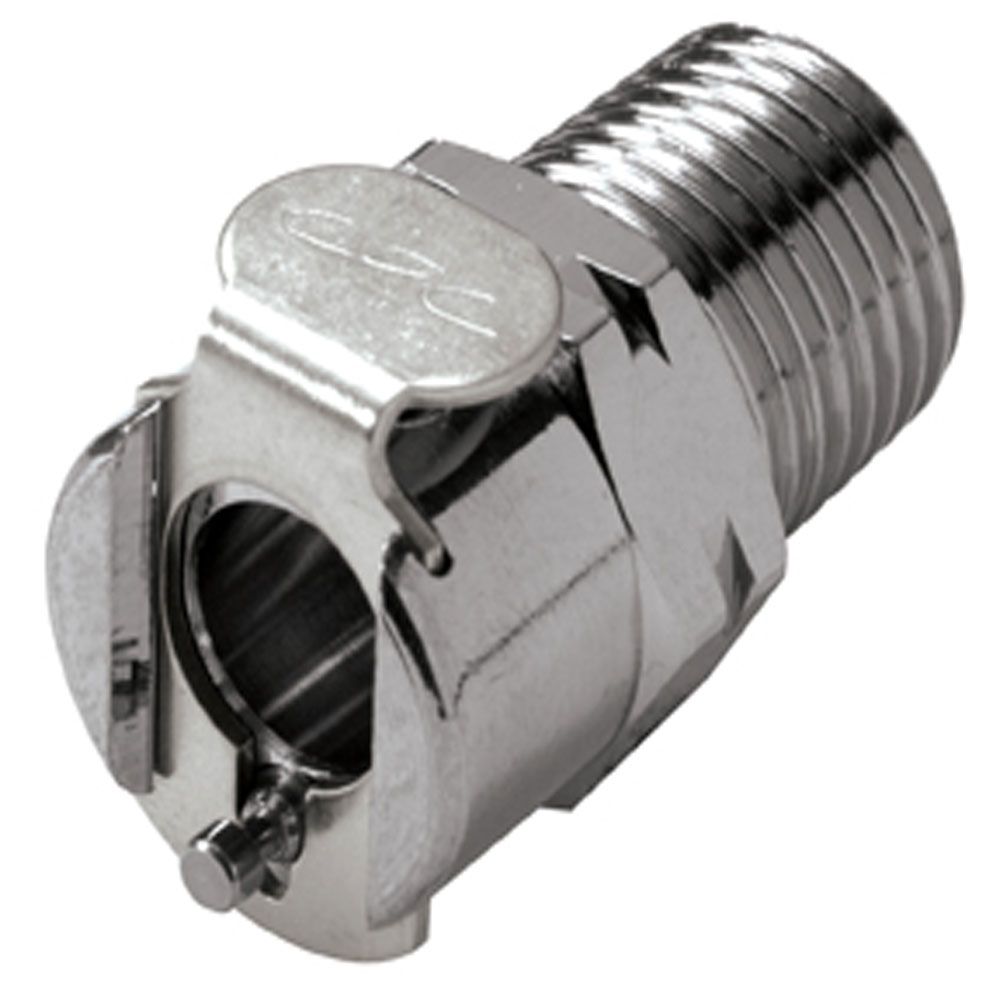

MC1004BSPT Non-Valved Coupling Body 1/4 BSPT

Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:

Material: Brass
Material Finish: Chrome
Color: Chrome
Valve Option: Non-Valved
Mounting Option: Thread
Pressure Range: Vacuum to 250 psi, 17.3 bar
Temperature Range: -40°F to 180°F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Chrome-Plated Brass
Inlet Connection	1/4" BSP
Max Pressure (Psi)	180
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	No
Outlet Connection	1/4" BSP
Series	MC
Shape	Straight
Size	1/4"
Valve Type	Non-Valved
Color / Finish	Chrome
Connection Type	BSP
Type	Coupling Body

Product Details
Application	Water
Body Material	Chrome-Plated Brass
Inlet Connection	1/4" BSP
Max Pressure (Psi)	180
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	No
Outlet Connection	1/4" BSP
Series	MC
Shape	Straight
Size	1/4"
Valve Type	Non-Valved
Color / Finish	Chrome
Connection Type	BSP
Type	Coupling Body

Product Details
Application	Water
Body Material	Chrome-Plated Brass
Inlet Connection	1/4" BSP
Max Pressure (Psi)	180
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	No
Outlet Connection	1/4" BSP
Series	MC
Shape	Straight
Size	1/4"
Valve Type	Non-Valved
Color / Finish	Chrome
Connection Type	BSP
Type	Coupling Body
