Marathon Electric

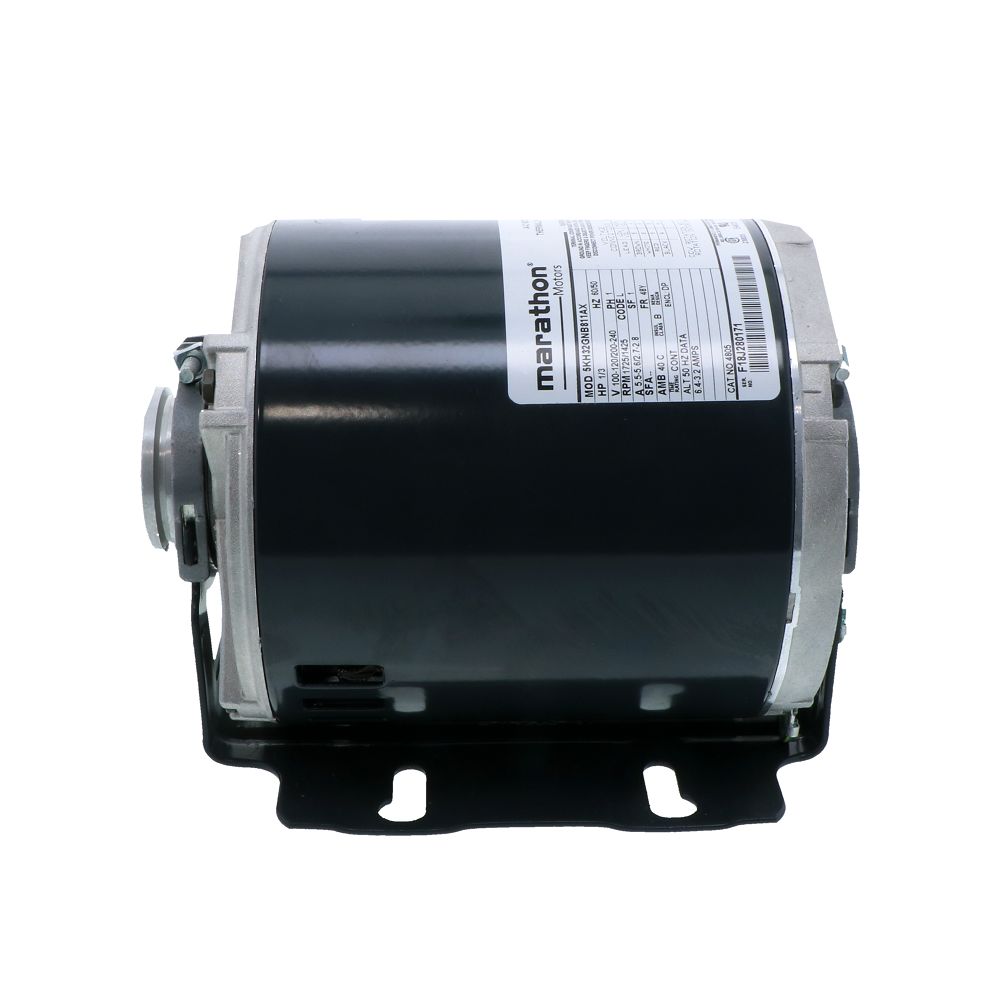

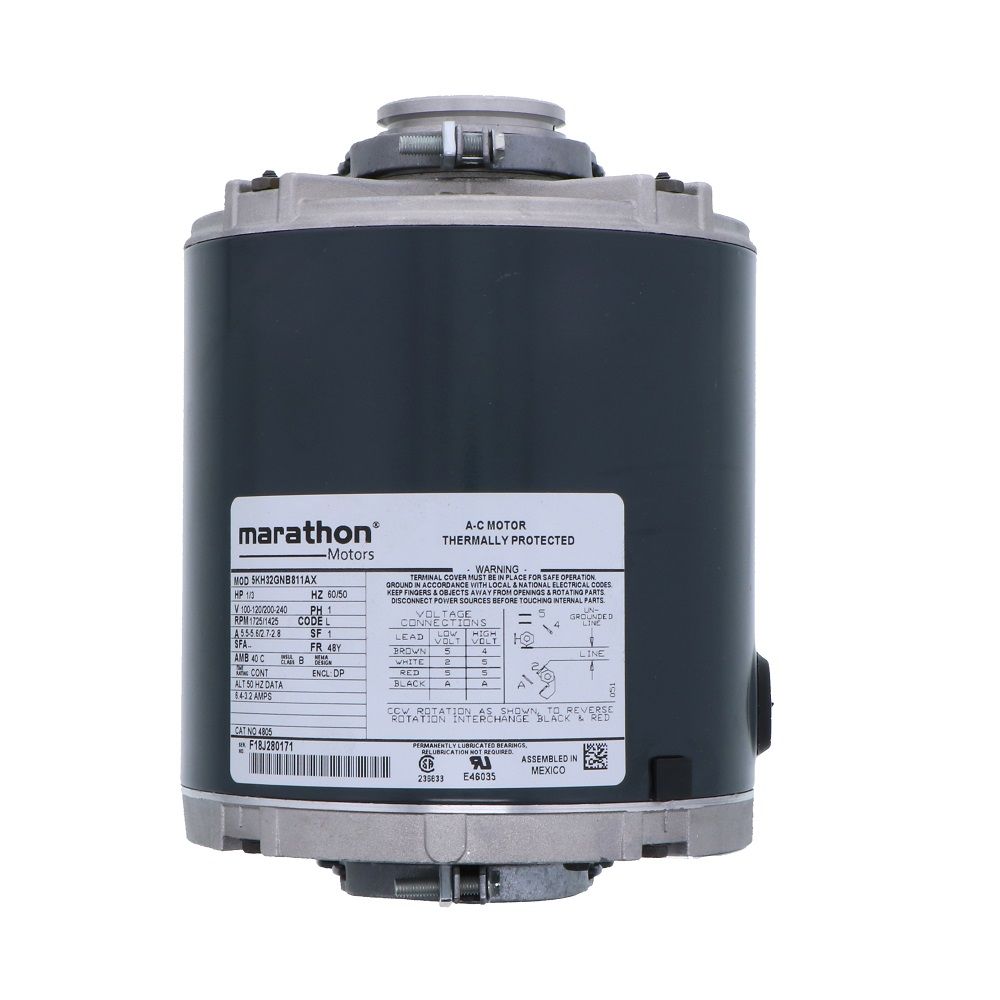

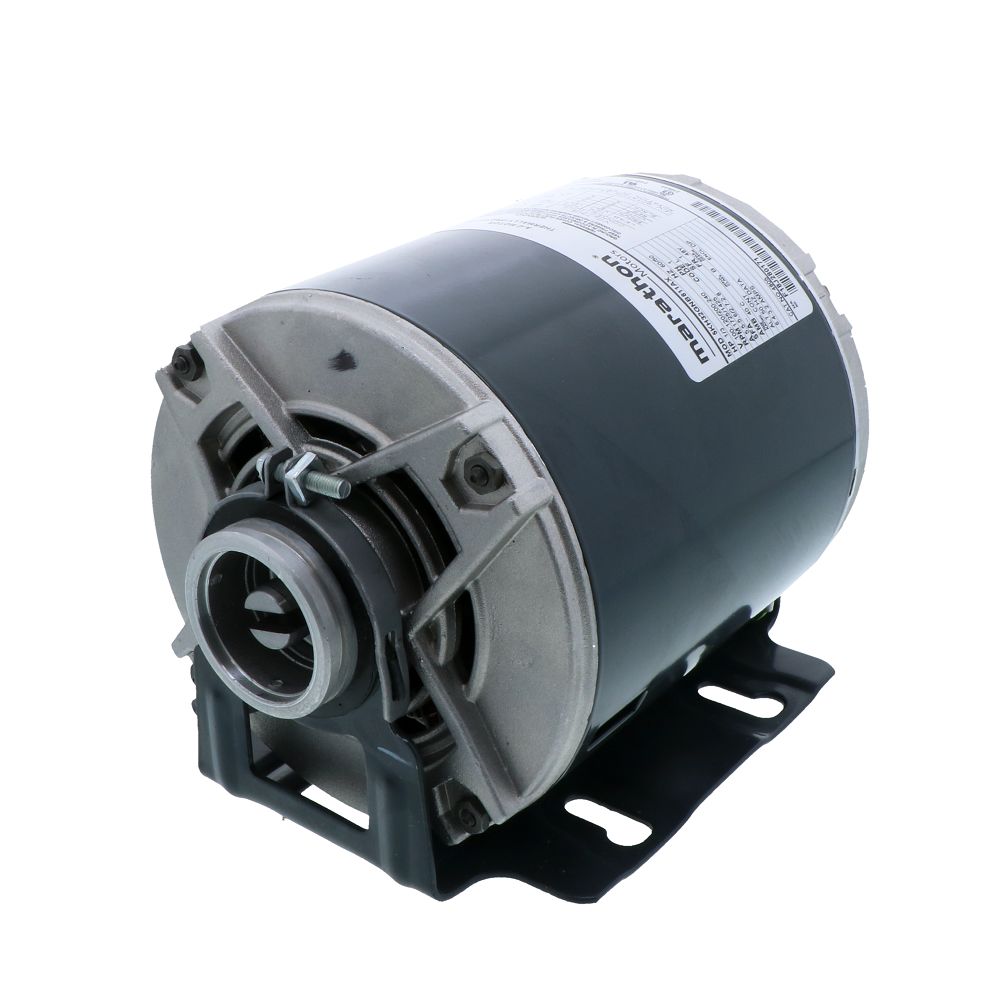

Marathon Electric 828 NEMA 48YZ Frame RO/Carbonator Motor 1/3 HP 100-120V/240V AC

Part Number: 4805

Alt. Part Number: 828, 5KH32GN5588X, P-MG571C06

In Stock

out of stock

In Stock

$135.87

This 1/3 HP RO/Carbonator Motor is manufactured by Marathon Electric to be completely interchangeable with OEM units. The 4805 motor features an automatic reset thermal protector and is UL recognized and CSA certified. The pump can be mounted vertically or horizontally to suit your application.

Features:
  • Auto reset thermal protection
  • Clamp-on pump mount
  • Voltag: 100-120/200-240V AC single phase
  • Rotation: counterclockwise (can be reversed to clockwise)
  • Procon Stock Number: 828
  • Marathon Model Number: 5KH32GNB811X
  • Marathon Catalog Number: 4805
  • Manufactured by Marathon Electric (formerly Manufactured by GE)
  • Formerly known as GE model number 5KH36MNA445X
Specifications:
  • Power: 1/3 HP
  • RPM: 1725 RPM @ 60Hz, 1425 @ 50 Hz
  • NEMA Frame: 48YZ
  • Voltage: 100-120/200-240 VAC
  • Hertz: 60/50
  • Amps: 5.5-5.6/2.7-2.8
  • Type: Single Phase
  • Enclosure: Open Drip Proof
  • Insulation: Class B
  • Ambient: 40 C
  • Shaft Diameter: 5/8" Slotted
  • Shaft Length: 1-1/2"


Weight & Dimensions

Length (inches)

12.75

Height (inches)

7.75

Width (inches)

1.06

Weight (lbs)

14.021875

Details

Series

828

Ambient Temperature Range

Max 104 °F

Amps

6.5 Amps Full Load @ 120V/3.0 @ 240V

Frequency

50/60 Hz

Mounting Options

Clamp On

Power

1/3 hp

Voltage

115VAC, 240VAC

Direction

Clockwise/Counter-Clockwise

Rating

Continuous

Phase Type

Single Phase

Torque Types

Type B

Insulation Class - Temp.

B

Load Rpm

1725 RPM @ 60 Hz, 1425 RPM @ 50 Hz

Shaft Diameter

5/8"

Nominal Speed - Rpm

1425, 1725


Marathon




This 1/3 HP RO/Carbonator Motor is manufactured by Marathon Electric to be completely interchangeable with OEM units. The 4805 motor features an automatic reset thermal protector and is UL recognized and CSA certified. The pump can be mounted vertically or horizontally to suit your application.

Features:
  • Auto reset thermal protection
  • Clamp-on pump mount
  • Voltag: 100-120/200-240V AC single phase
  • Rotation: counterclockwise (can be reversed to clockwise)
  • Procon Stock Number: 828
  • Marathon Model Number: 5KH32GNB811X
  • Marathon Catalog Number: 4805
  • Manufactured by Marathon Electric (formerly Manufactured by GE)
  • Formerly known as GE model number 5KH36MNA445X
Specifications:
  • Power: 1/3 HP
  • RPM: 1725 RPM @ 60Hz, 1425 @ 50 Hz
  • NEMA Frame: 48YZ
  • Voltage: 100-120/200-240 VAC
  • Hertz: 60/50
  • Amps: 5.5-5.6/2.7-2.8
  • Type: Single Phase
  • Enclosure: Open Drip Proof
  • Insulation: Class B
  • Ambient: 40 C
  • Shaft Diameter: 5/8" Slotted
  • Shaft Length: 1-1/2"

Weight & Dimensions

Length (inches)

12.75

Height (inches)

7.75

Width (inches)

1.06

Weight (lbs)

14.021875

Details

Series

828

Ambient Temperature Range

Max 104 °F

Amps

6.5 Amps Full Load @ 120V/3.0 @ 240V

Frequency

50/60 Hz

Mounting Options

Clamp On

Power

1/3 hp

Voltage

115VAC, 240VAC

Direction

Clockwise/Counter-Clockwise

Rating

Continuous

Phase Type

Single Phase

Torque Types

Type B

Insulation Class - Temp.

B

Load Rpm

1725 RPM @ 60 Hz, 1425 RPM @ 50 Hz

Shaft Diameter

5/8"

Nominal Speed - Rpm

1425, 1725
