Fresh Water Systems

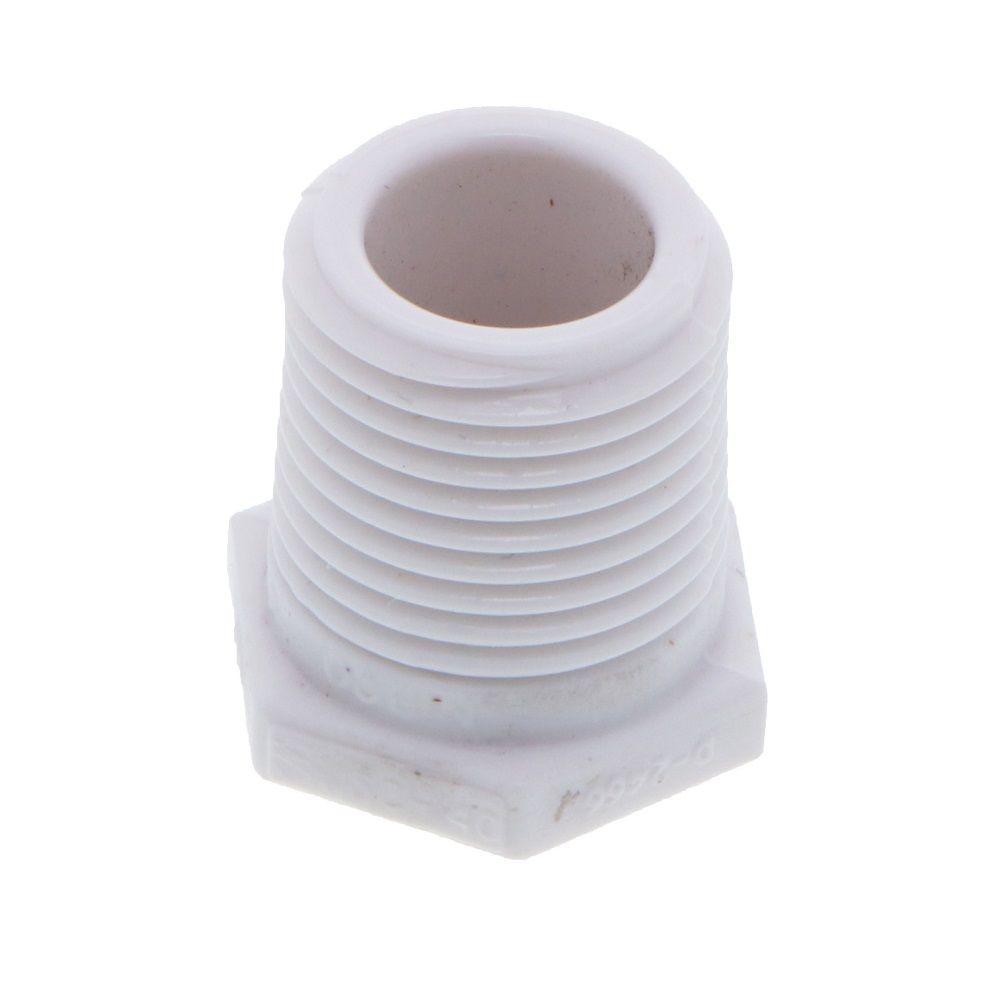

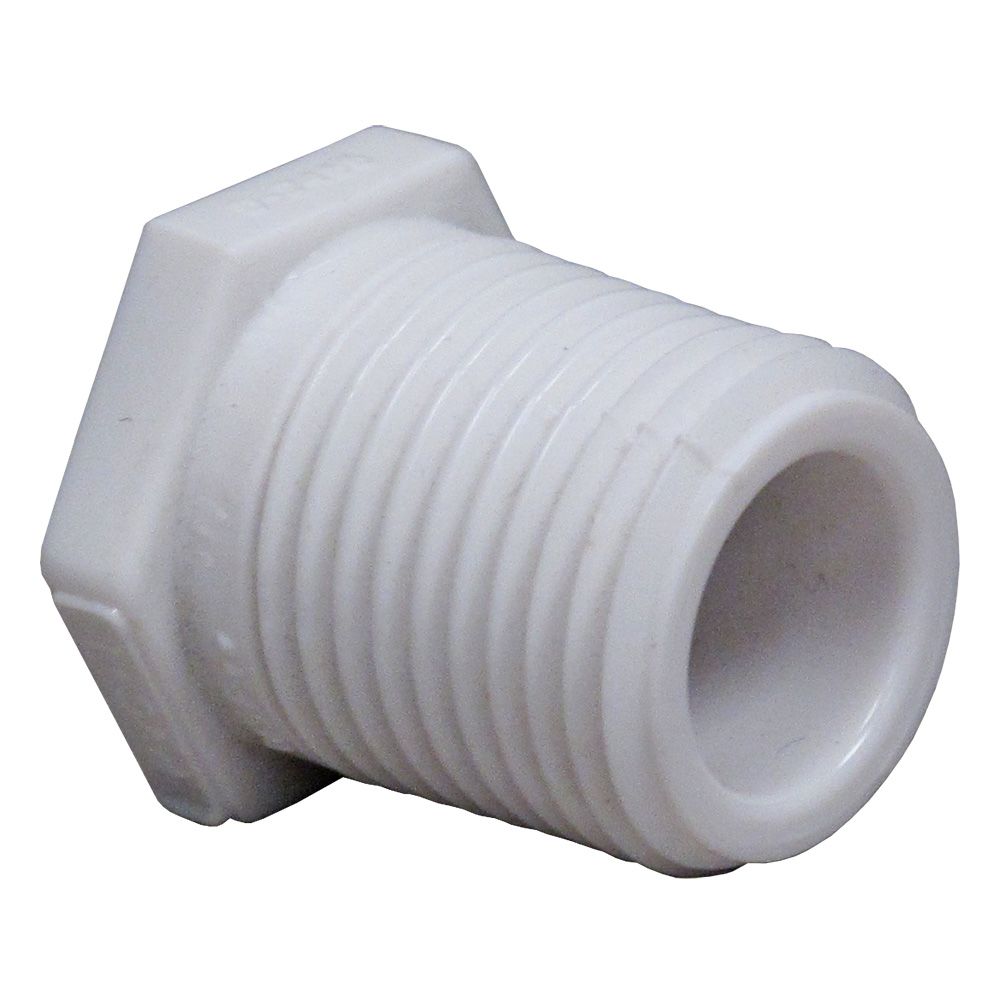

Male Threaded 1/2" PVC PLUG MPIT SCH40 450-005

Part Number: PVC40-TP08

Alt. Part Number: 450-005

In Stock

out of stock

In Stock

$0.52

The PVC Schedule 40 male threaded plug is used to close off the end of a pipleline or a location that has had a connection removed. The plug could also be used to plug a location that is designated for future pipe or fixtures.

Features:
  • Hex head threaded plug
  • Material: Schedule 40 PVC
  • Thread: 1/2" MIPT
Comparable to:
  • Nibco: L17035Y
  • Spears: 450-005
  • Lasco: 450-005




Weight & Dimensions

Height (inches)

0.88

Length (inches)

1

Weight (lbs)

0.015

Width (inches)

0.88

Details

Application

Water

Body Material

Schedule 40 PVC

Inlet/Outlet Connection

1/2" MPT

Max Pressure (Psi)

600

Max Temp (°F)

140

Min Pressure (Psi)

0

Mounting Options

Thread

Series

Schedule 40

Size

1/2"

Color / Finish

White

Connection Type

Male (MPT)

Type

Plug

Warranty & Certifications

Certifications

NSF 61; NSF 14



The PVC Schedule 40 male threaded plug is used to close off the end of a pipleline or a location that has had a connection removed. The plug could also be used to plug a location that is designated for future pipe or fixtures.

Features:
  • Hex head threaded plug
  • Material: Schedule 40 PVC
  • Thread: 1/2" MIPT
Comparable to:
  • Nibco: L17035Y
  • Spears: 450-005
  • Lasco: 450-005



Weight & Dimensions

Height (inches)

0.88

Length (inches)

1

Weight (lbs)

0.015

Width (inches)

0.88

Details

Application

Water

Body Material

Schedule 40 PVC

Inlet/Outlet Connection

1/2" MPT

Max Pressure (Psi)

600

Max Temp (°F)

140

Min Pressure (Psi)

0

Mounting Options

Thread

Series

Schedule 40

Size

1/2"

Color / Finish

White

Connection Type

Male (MPT)

Type

Plug

Warranty & Certifications

Certifications

NSF 61; NSF 14
