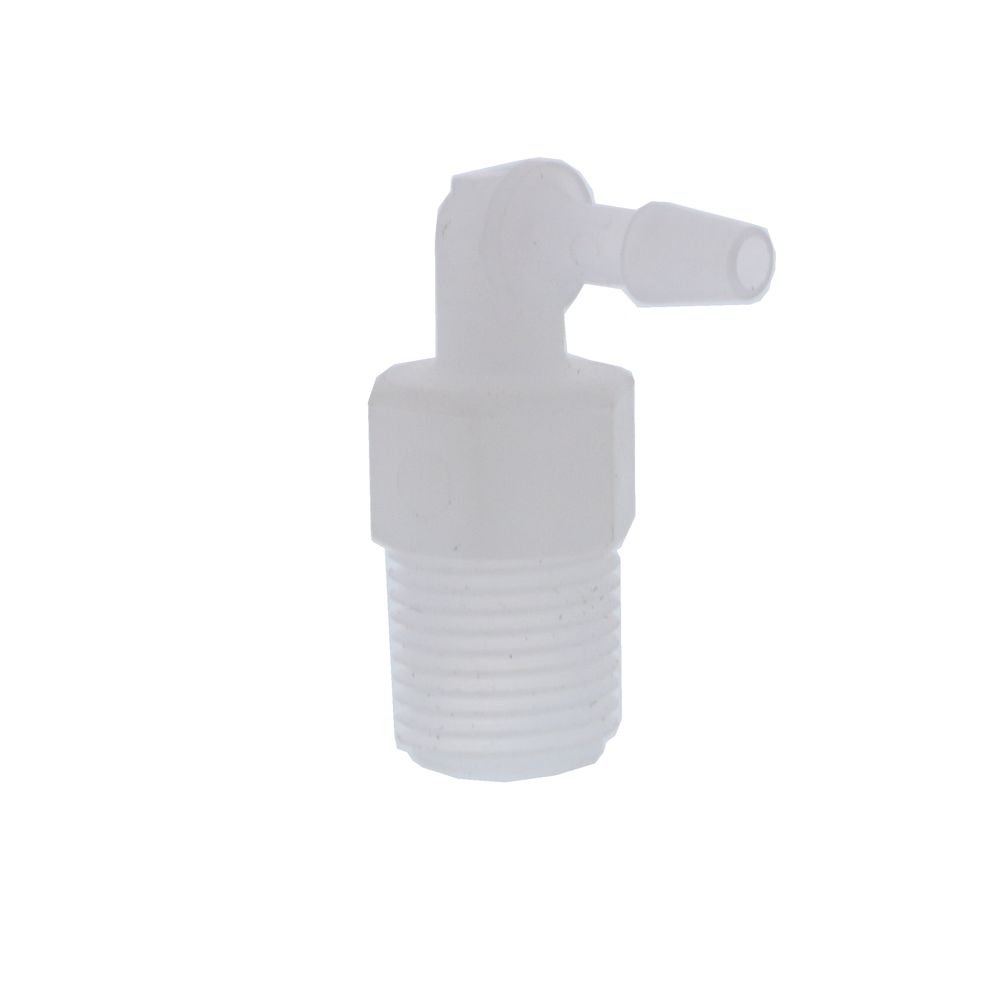

The Male Barb Elbow is constructed from Natural Kynar and meets USP class VI requirements. This fitting is chemically resistant to most acids, salts, weak bases, halogenated solvents, alcohols, nuclear and UV radiation. The temperature range for the MEB-0202K is from -80° F to 226° F and the maximum pressure for this fitting is 260 PSI at 70° F.

Specifications:

• Material: Natural Kynar
• Tubing Size: 1/8" ID
• Connections: 1/8" ID Barb x 1/8" MPT
• Temperature Range: -80° to 226° F
• Max Pressure: 260 psi at 70° F
• Compatible with the Eldon James L2-2 NK
