Colder Products

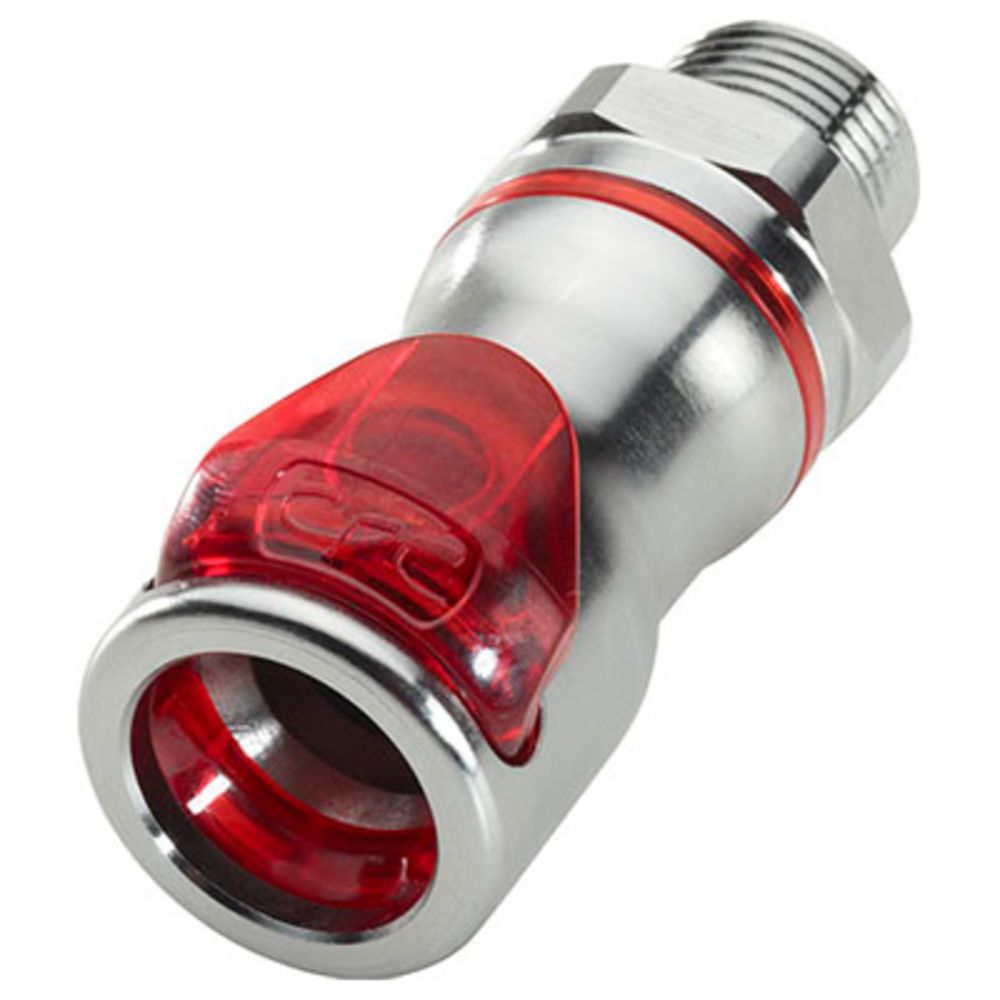

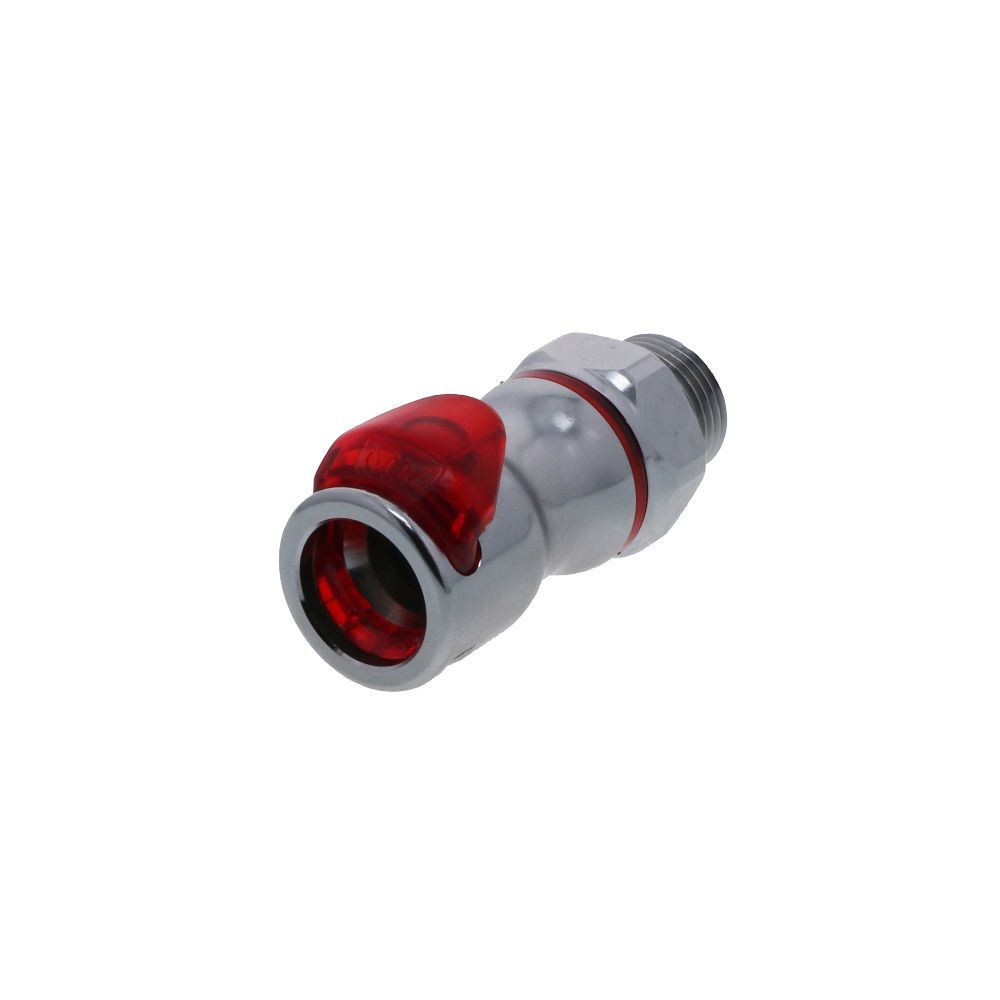

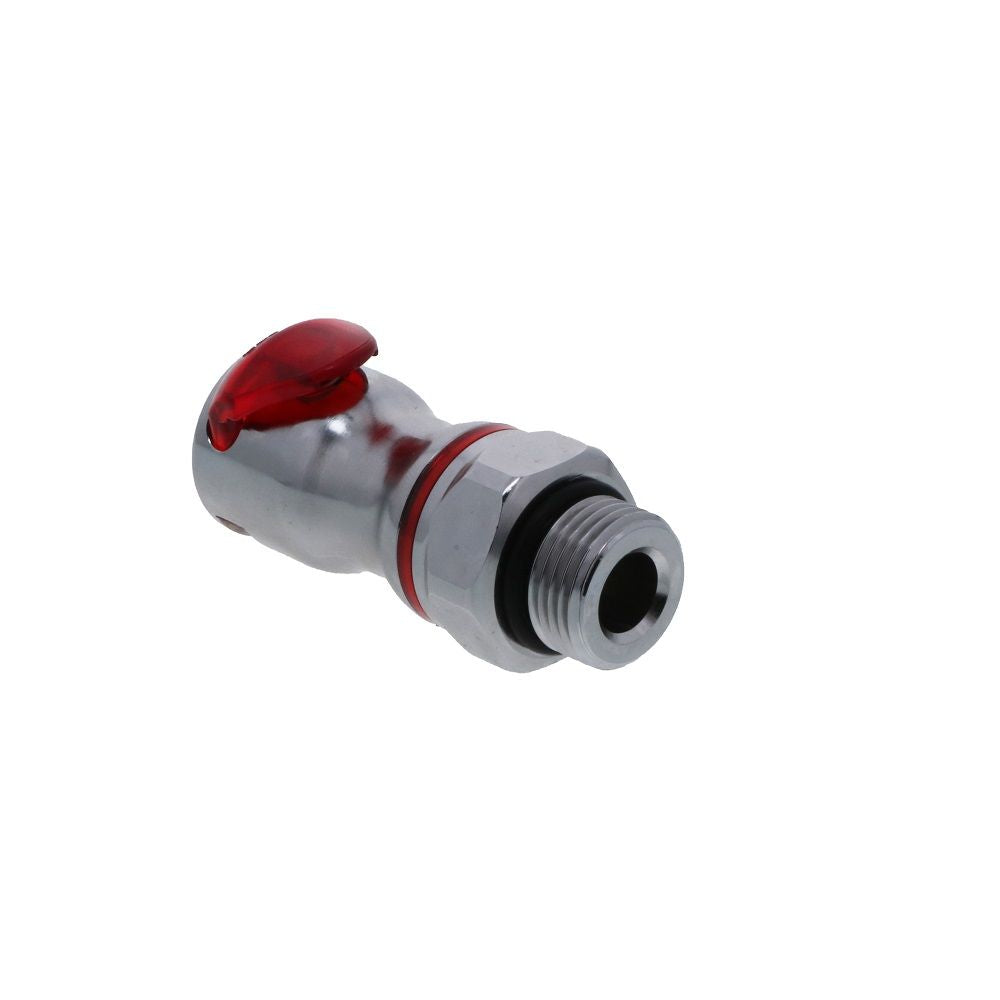

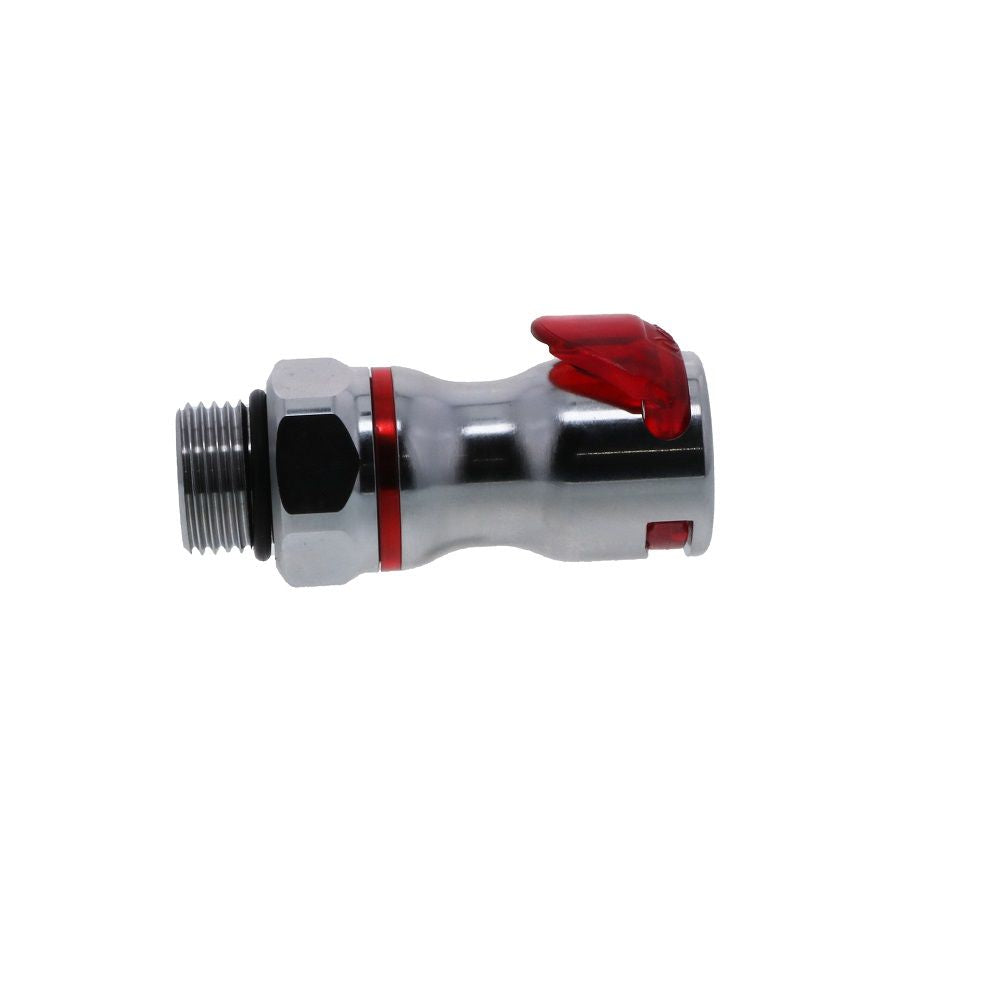

LQ6D30008RED Valved Straight Thread Liquid Cooling Coupling Body 1/2 SAE Warm Red

Part Number: LQ6D30008RED

In Stock

out of stock

In Stock

$52.99


Colder’s LQ6 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ6's closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections, even after long-term and repeated use. Also available in blue.

 Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: 1/2 SAE-8 Thread
  • Valve Option: Valved
  • Finish: Chrome
  • Color Coding: Cool Blue or Warm Red
  • Temperature Range: -0ºF to 240ºF
  • Max Flow at Disconnect: 4.0 gpm
  • Valve Spring: 302 Stainless Steel
  • Valves and Thumb Latch: Polysulfone
  • Lubricants: Krytox® PFPE
  • Seal Options: EPDM
  • Spillage:
  • <0.05 cc per disconnect (at 0 psi)
  • <0.125 cc per disconnect (at 120 psi)
  • Inclusion: <0.42 cc per connect


Details

Series

LQ6

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Warm Red, Chrome

Max Operating Pressure

Vacuum to 120 PSI, 8.3 bar

Mounting Options

Thread

Operating Temperature Range

0-240 °F

Origin

USA

Seal Material

EPDM

Size

1/2"

Spring

302 Stainless Steel

Valve Type

Valved

Thumb Latch

Polysulfone

Inlet/Outlet Connection

1/2" | SAE


LQ6D30008RED





Colder’s LQ6 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ6's closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections, even after long-term and repeated use. Also available in blue.

 Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: 1/2 SAE-8 Thread
  • Valve Option: Valved
  • Finish: Chrome
  • Color Coding: Cool Blue or Warm Red
  • Temperature Range: -0ºF to 240ºF
  • Max Flow at Disconnect: 4.0 gpm
  • Valve Spring: 302 Stainless Steel
  • Valves and Thumb Latch: Polysulfone
  • Lubricants: Krytox® PFPE
  • Seal Options: EPDM
  • Spillage:
  • <0.05 cc per disconnect (at 0 psi)
  • <0.125 cc per disconnect (at 120 psi)
  • Inclusion: <0.42 cc per connect

Details

Series

LQ6

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Warm Red, Chrome

Max Operating Pressure

Vacuum to 120 PSI, 8.3 bar

Mounting Options

Thread

Operating Temperature Range

0-240 °F

Origin

USA

Seal Material

EPDM

Size

1/2"

Spring

302 Stainless Steel

Valve Type

Valved

Thumb Latch

Polysulfone

Inlet/Outlet Connection

1/2" | SAE

Documentation
LQ6D30008RED
