Colder Products

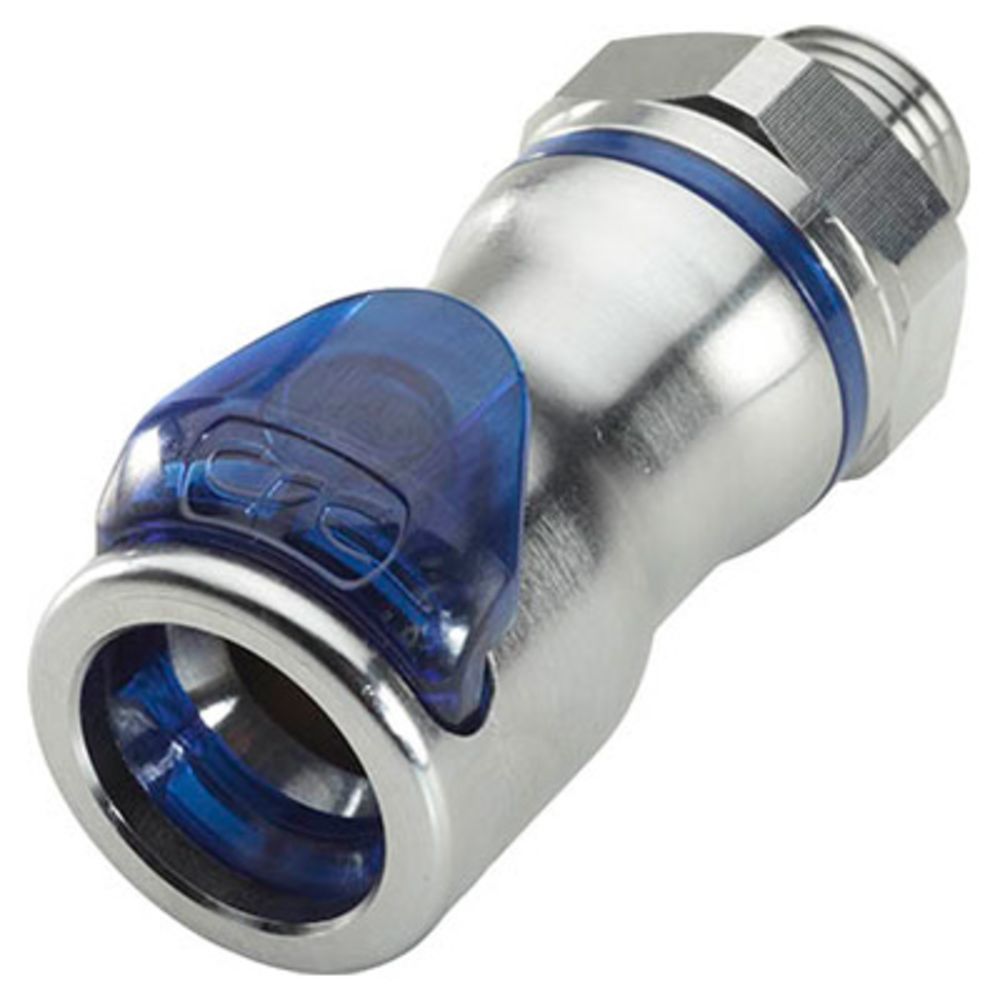

LQ6D30006BLU Valved Straight Thread Liquid Cooling Coupling Body 3/8 SAE Cool Blue

Part Number: LQ6D30006BLU

In Stock

out of stock

In Stock

$52.99

Colder’s LQ6 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ6's closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections, even after long-term and repeated use. Also available in red.

 Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: 3/8 SAE-6 Thread
  • Valve Option: Valved
  • Finish: Chrome
  • Color Coding: Cool Blue or Warm Red
  • Temperature Range: -0ºF to 240ºF
  • Max Flow at Disconnect: 4.0 gpm
  • Valve Spring: 302 Stainless Steel
  • Valves and Thumb Latch: Polysulfone
  • Lubricants: Krytox® PFPE
  • Seal Options: EPDM
  • Spillage:
  • <0.05 cc per disconnect (at 0 psi)
  • <0.125 cc per disconnect (at 120 psi)
  • Inclusion: <0.42 cc per connec




Weight & Dimensions

Weight (lbs)

0.05

Details

Series

LQ6

Max Temp (°F)

240

Max Pressure (Psi)

120

Min Temp (°F)

0

Min Pressure (Psi)

Vacuum

Application

Water, Cooling Systems

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Blue

Mounting Options

Thread

Seal Material

EPDM

Size

3/8"

Spring

302 Stainless Steel

Valve Type

Valved

Thumb Latch

Polysulfone

Inlet/Outlet Connection

3/8" SAE


LQ6D30006BLU




Colder’s LQ6 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ6's closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections, even after long-term and repeated use. Also available in red.

 Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: 3/8 SAE-6 Thread
  • Valve Option: Valved
  • Finish: Chrome
  • Color Coding: Cool Blue or Warm Red
  • Temperature Range: -0ºF to 240ºF
  • Max Flow at Disconnect: 4.0 gpm
  • Valve Spring: 302 Stainless Steel
  • Valves and Thumb Latch: Polysulfone
  • Lubricants: Krytox® PFPE
  • Seal Options: EPDM
  • Spillage:
  • <0.05 cc per disconnect (at 0 psi)
  • <0.125 cc per disconnect (at 120 psi)
  • Inclusion: <0.42 cc per connec



Weight & Dimensions

Weight (lbs)

0.05

Details

Series

LQ6

Max Temp (°F)

240

Max Pressure (Psi)

120

Min Temp (°F)

0

Min Pressure (Psi)

Vacuum

Application

Water, Cooling Systems

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Blue

Mounting Options

Thread

Seal Material

EPDM

Size

3/8"

Spring

302 Stainless Steel

Valve Type

Valved

Thumb Latch

Polysulfone

Inlet/Outlet Connection

3/8" SAE
